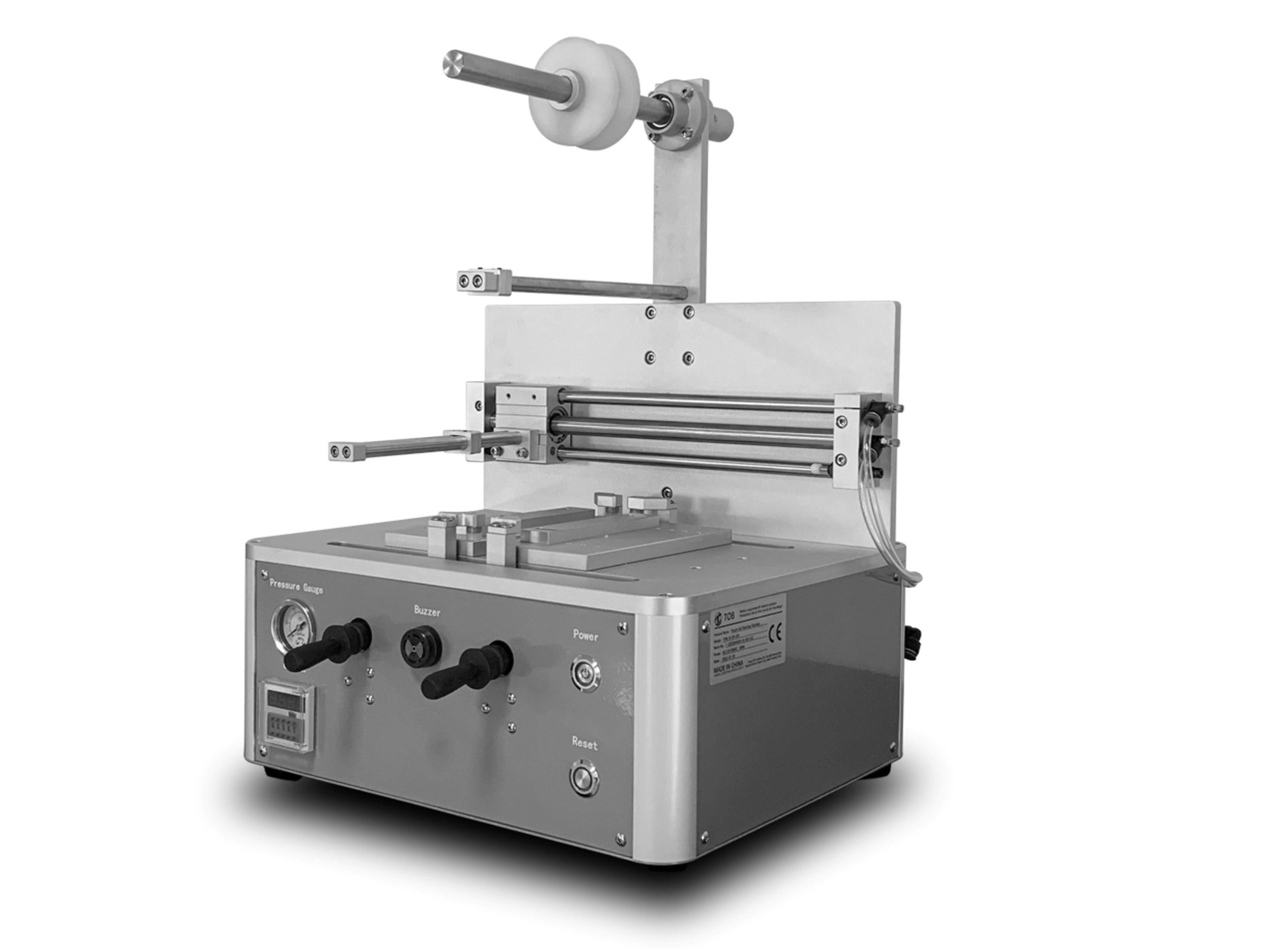

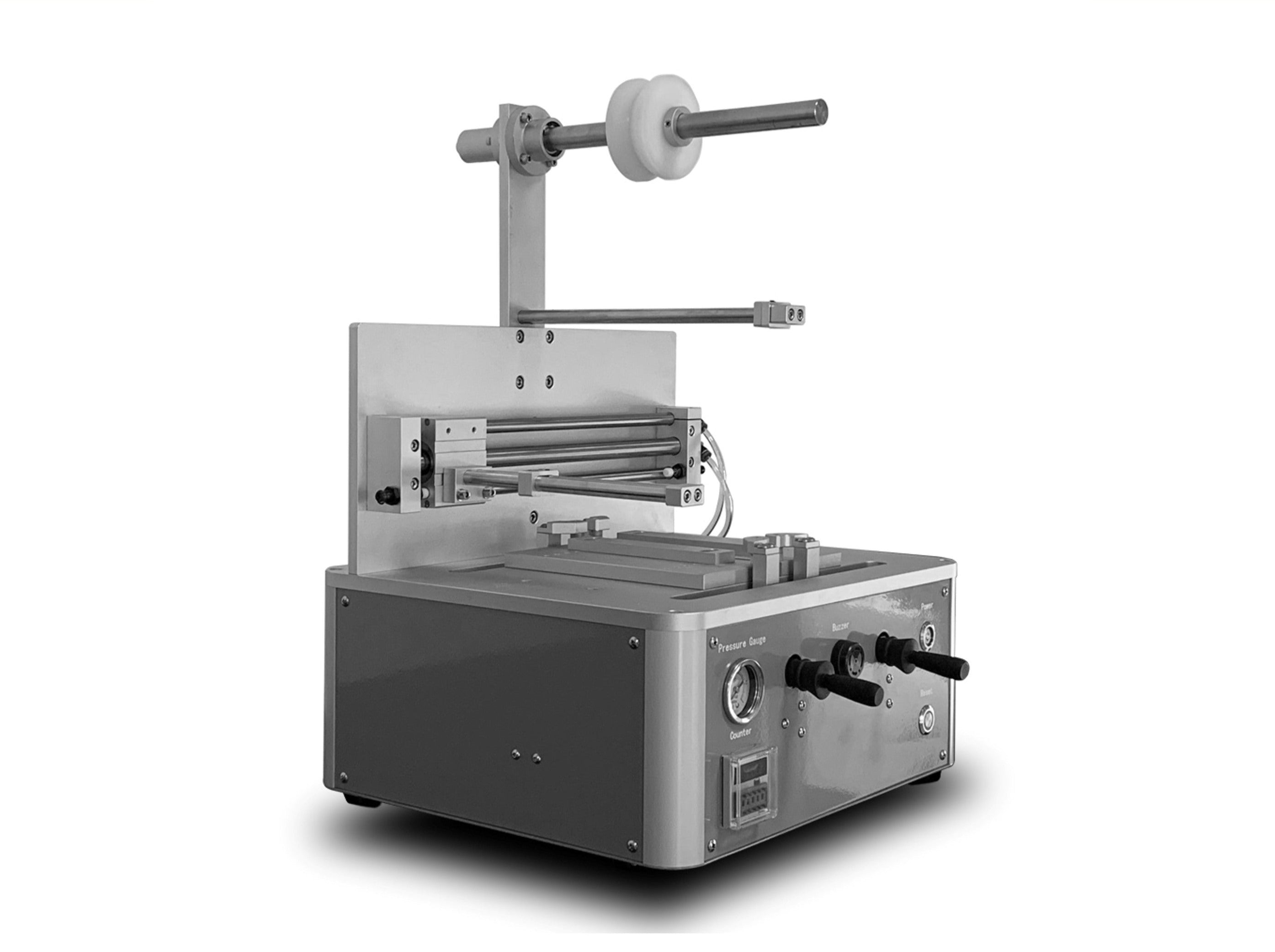

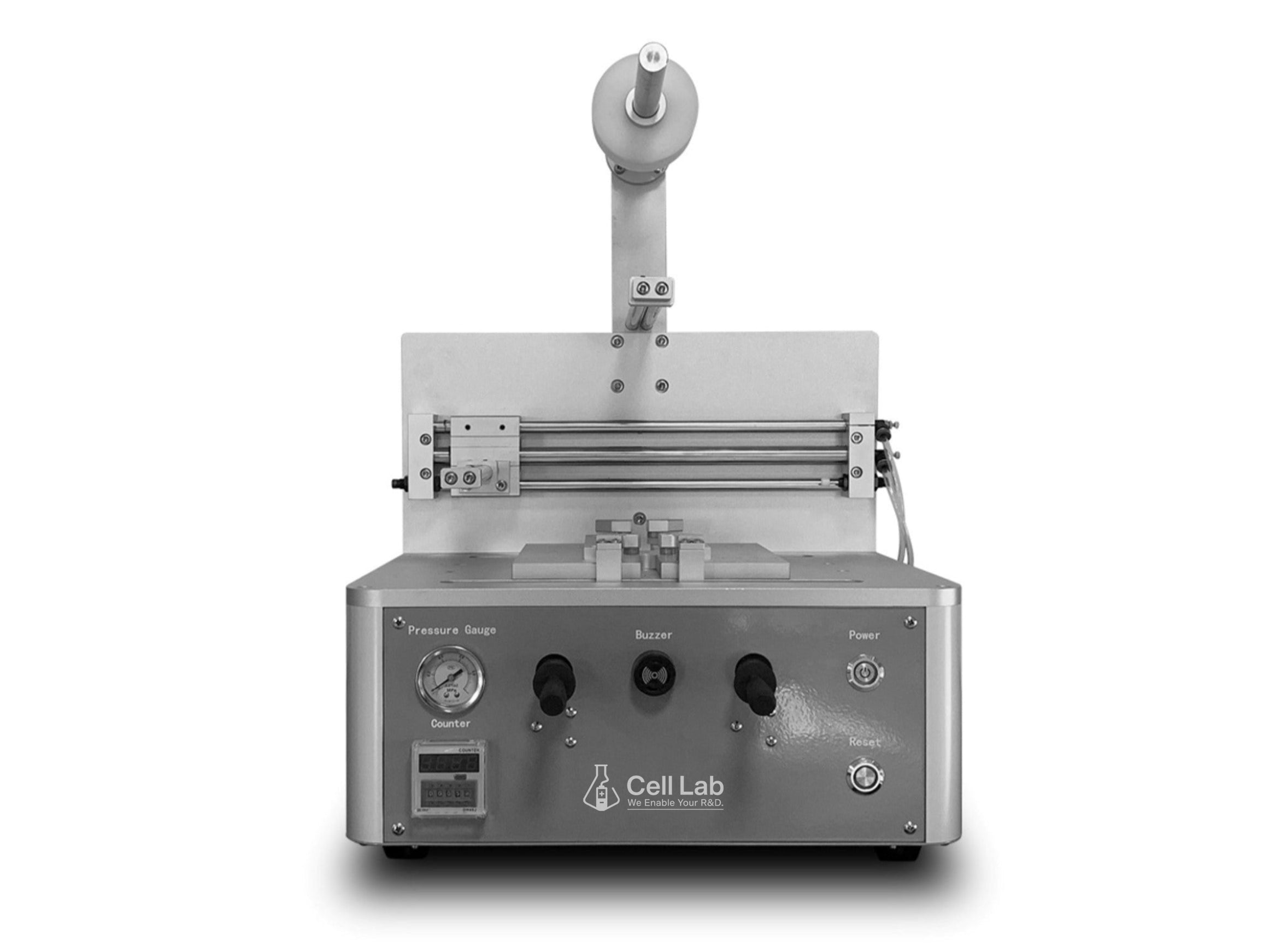

The Cell Lab Semi-Automatic Electrode Stacking Machine is engineered for high-precision stacking of cathode, anode, and separator layers using a Z-shaped stacking path. Designed specifically for pouch cell research and pilot-scale production, it delivers exceptional alignment accuracy for electrodes up to 200 × 200 mm. The modular benchtop configuration with a separate controller allows flexible laboratory installation, while pneumatic-driven operation ensures stable and repeatable stacking performance.

Key Features

• Z-Shape Layering Structure: Enables precise and consistent stacking of electrode and separator layers for pouch cell assembly.

• Customisable Electrode Size: Compatible with electrodes measuring 55–200 mm in length and 40–200 mm in width.

• Stable Pneumatic Operation: Operates under 0.25–0.55 MPa air pressure for smooth, consistent stacking movement.

• Compact & Modular Design: Separate controller and stacker units allow flexible placement on laboratory benches.

• User-Friendly Control Interface: Simple setup and operation ensure fast workflow in R&D and pilot environments.

Technical Specifications:

Applications & Industries

• Pouch cell R&D and pilot-scale manufacturing

• Lithium-ion and sodium-ion cell assembly

• Electrode and separator stacking for high-precision cells

• Battery material testing and prototype development

• Academic and industrial battery fabrication laboratories

FAQ

Q1: What stacking method does this machine use?
It uses a Z-shaped stacking path for precise alignment of anode, separator, and cathode layers.

Q2: What electrode sizes can it handle?
It supports electrodes up to 200 × 200 mm, with minimum sizes of 55 × 40 mm.

Q3: Is it suitable for small-scale or pilot production?
Yes. Its benchtop footprint and semi-automatic operation are ideal for lab-scale and pre-production environments.

Q4: What power and air requirements does it need?
It operates on 220 V AC and 0.25–0.55 MPa compressed air pressure.

Q5: Does Cell Lab provide technical support?
Yes. It comes with a one-year warranty and lifetime after-sales technical support.
