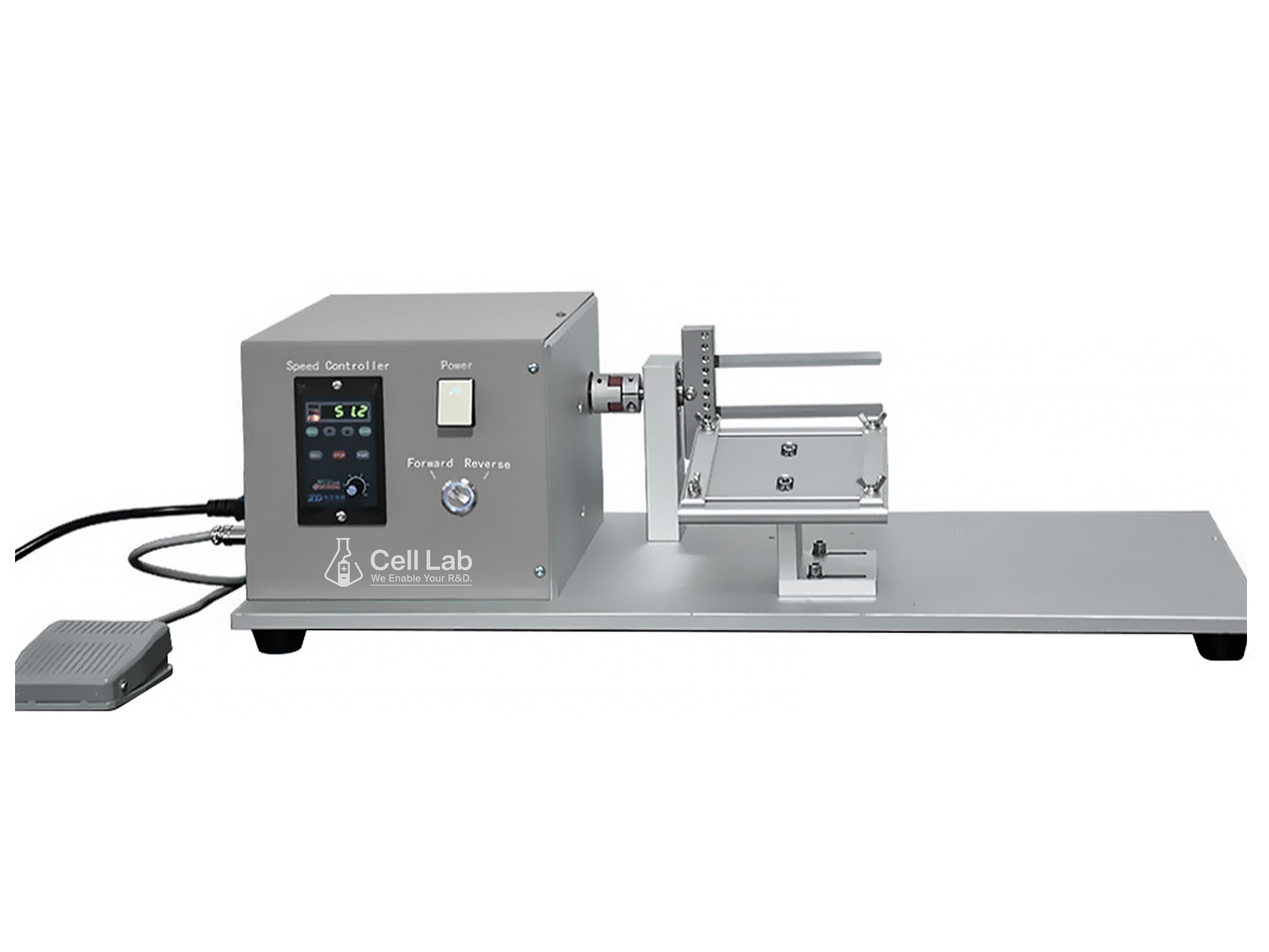

Cell Lab semi-auto electrode winding machine for pouch cell R&D offers up to 170 rpm variable speed, bidirectional control, and custom core compatibility in a compact benchtop design for precise electrode winding.
Cell Lab semi-auto electrode winding machine for pouch cell R&D offers up to 170 rpm variable speed, bidirectional control, and custom core compatibility in a compact benchtop design for precise electrode winding.

Cell Lab Semi-Auto Electrode Winding Machine [Precision Battery Winder | For Pouch Cell Research & Prototyping]

Cell Lab Semi-Auto Electrode Winding Machine [Precision Battery Winder | For Pouch Cell Research & Prototyping] Compact semi-automatic winding system for precision electrode and separator alignment in pouch cell assembly The Cell Lab Semi-Auto Electrode Winding Machine is a high-precision...
Vendor: Cell Lab
SKU: CL0121
Product type: Battery Equipment
£3,290.00
£3,290.00
Subtotal: £3,290.00
Description
Description
x

Cell Lab Semi-Auto Electrode Winding Machine [Precision Battery Winder | For Pouch Cell Research & Prototyping]

Compact semi-automatic winding system for precision electrode and separator alignment in pouch cell assembly

The Cell Lab Semi-Auto Electrode Winding Machine is a high-precision benchtop device designed for laboratory-scale winding of electrodes and separators into pouch cell configurations. Featuring adjustable winding speed, bidirectional rotation, and compatibility with custom core designs, it ensures accurate, repeatable, and stable winding performance. Ideal for lithium-ion and solid-state battery R&D, this compact system fits easily within gloveboxes or laboratory workbenches, providing the flexibility and control required for pilot-scale pouch cell fabrication.

Key Features

  • Adjustable Winding Speed: Variable speed control up to 170 rpm for precise tension management and smooth winding.

  • Bidirectional Operation: Switch easily between clockwise and counterclockwise rotation for flexible electrode configuration.

  • Custom Core Compatibility: Supports both round and square shafts designed to match specific pouch cell geometries.

  • Compact Benchtop Design: Small footprint (360 × 310 × 280 mm) makes it ideal for glovebox integration and lab setups.

  • Fully Customisable Structure: Core blade and winding fixtures can be tailored to fit customer-defined pouch dimensions.

Technical Specifications:

Parameter Specification
Winding Speed 0 – 170 rpm adjustable
Winding Direction Clockwise / Counterclockwise selectable
Compatible Cell Design Customised blade according to cell size
Voltage 220V / 50Hz
Dimensions (L × W × H) 360 × 310 × 280 mm
Net Weight 20 kg

Optional Add-ons: Torque control module, automatic tension adjustment, and safety enclosure available upon request.

Applications & Industries

  • Pouch cell electrode winding and alignment

  • Lithium-ion and solid-state battery prototyping

  • R&D and pilot-scale pouch cell fabrication

  • Electrode separator layering studies

  • Material research and process optimisation

FAQ

Q1: What cell formats can this winding machine handle?
It supports both round and square core winding configurations with fully customisable blades.

Q2: What is the maximum winding speed?
The speed is adjustable up to 170 rpm, allowing fine-tuned control for delicate electrode layers.

Q3: Is this device compatible with gloveboxes?
Yes. Its compact design makes it ideal for integration into argon-filled glovebox systems.

Q4: Can winding tension be adjusted?
Yes. Optional torque control and adjustable resistance modules are available.

Q5: Is automation possible?
Semi-automatic operation comes standard; full automation modules can be customised upon request.
