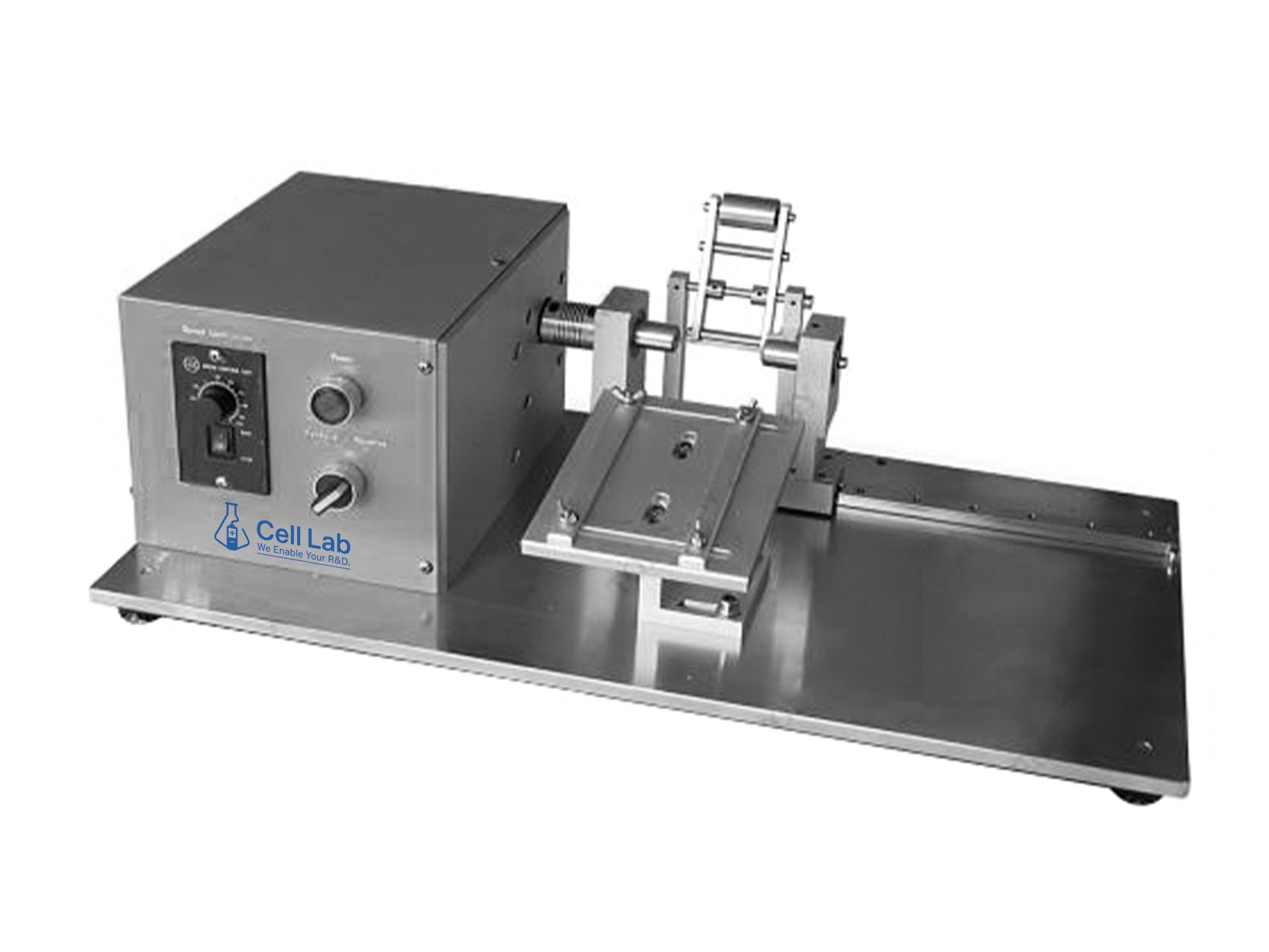

Cell Lab semi-automatic electrode winding machine for cylindrical battery R&D – adjustable speed (0–170 rpm), reversible winding, and 18650 compatibility. Ideal for precision electrode assembly and lab-scale prototyping.

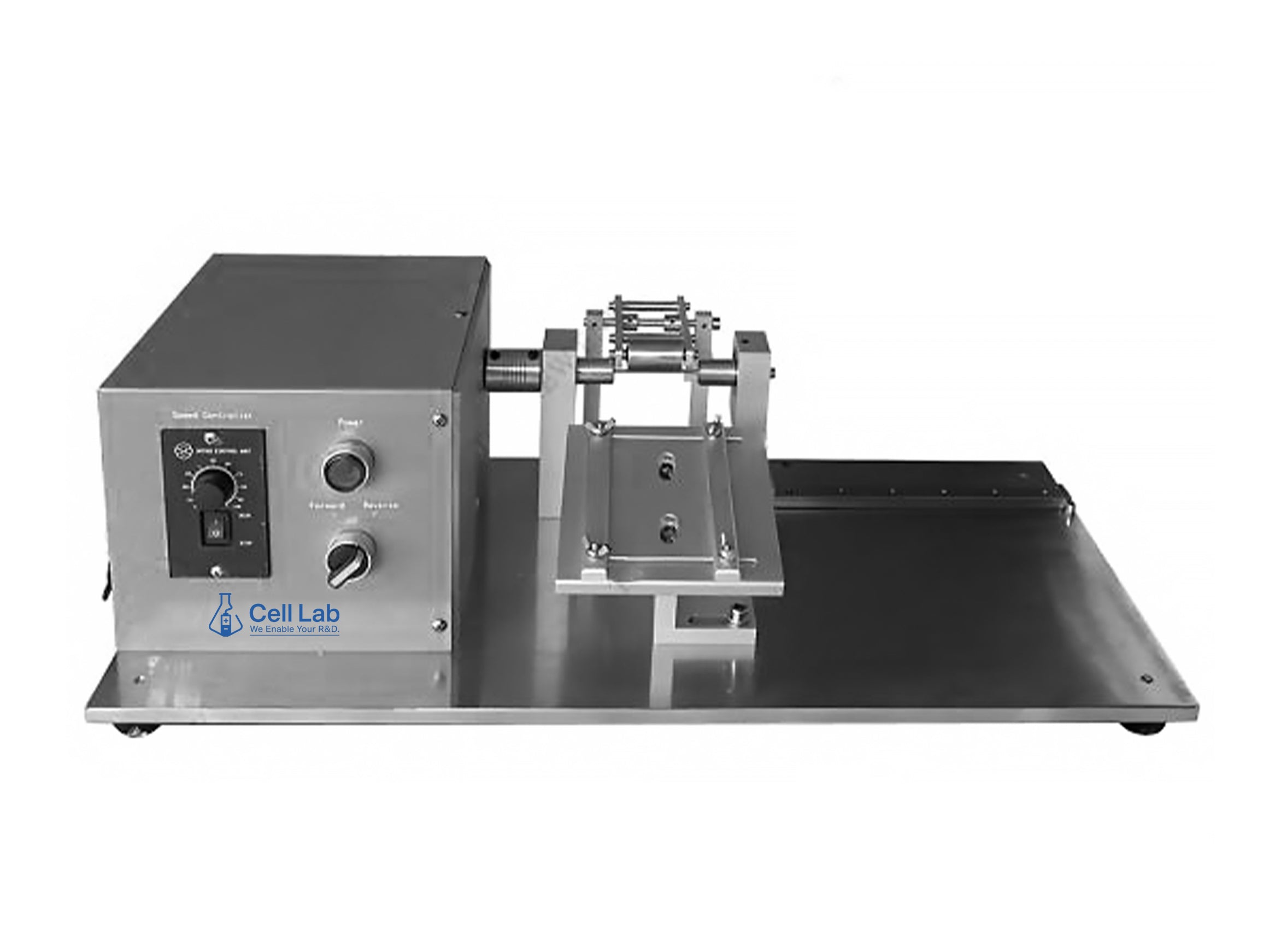

Cell Lab semi-automatic electrode winding machine for cylindrical battery R&D – adjustable speed (0–170 rpm), reversible winding, and 18650 compatibility. Ideal for precision electrode assembly and lab-scale prototyping.
Cell Lab semi-automatic electrode winding machine for cylindrical battery R&D – adjustable speed (0–170 rpm), reversible winding, and 18650 compatibility. Ideal for precision electrode assembly and lab-scale prototyping.
Cell Lab semi-automatic electrode winding machine for cylindrical battery R&D – adjustable speed (0–170 rpm), reversible winding, and 18650 compatibility. Ideal for precision electrode assembly and lab-scale prototyping.

Cell Lab Semi-Auto Electrode Winding Machine [For Cylindrical Battery Research, Adjustable Speed, 220V / 50Hz]

Cell Lab Semi-Auto Electrode Winding Machine [For Cylindrical Battery Research, Adjustable Speed, 220V / 50Hz] Precision semi-automatic electrode winder for cylindrical cell and separator assembly in battery R&D laboratories The Cell Lab Semi-Auto Electrode Winding Machine is a laboratory-scale electrode...
Vendor: Cell Lab
SKU: CL0180
Product type: Battery Equipment
£2,990.00
£2,990.00
Subtotal: £2,990.00
Description
Description
x

Cell Lab Semi-Auto Electrode Winding Machine [For Cylindrical Battery Research, Adjustable Speed, 220V / 50Hz]

Precision semi-automatic electrode winder for cylindrical cell and separator assembly in battery R&D laboratories

The Cell Lab Semi-Auto Electrode Winding Machine is a laboratory-scale electrode winder designed for assembling cylindrical battery electrodes and separators with exceptional accuracy and repeatability. Equipped with adjustable speed control (0–170 rpm) and bidirectional winding capability, it allows precise control of winding tension and direction for different electrode formats.

Compact and durable, this benchtop unit supports standard 18650 winding shafts and can be customised for 26650, 32650, or pouch-type cells. The ergonomic design and intuitive operation make it ideal for academic laboratories, pilot-scale R&D, and electrode prototyping across lithium-ion and next-generation cylindrical cell research.

Key Features

Adjustable Winding Speed
Variable rotation speed from 0–170 rpm allows precise control for different electrode and separator combinations.

Reversible Winding Direction
Switchable between clockwise and counterclockwise rotation for diverse cylindrical cell configurations.

Standard & Custom Shaft Compatibility
Supplied with a round winding shaft for 18650 cells; custom options available for 26650, 32650, or pouch-type assemblies.

Compact Benchtop Design
Space-efficient structure suitable for laboratory benches and glove box environments.

Reliable and User-Friendly Operation
Robust mechanical build and intuitive controls ensure reproducibility and long-term operational stability.

Technical Specifications

Specification Details
Winding Speed 0–170 rpm adjustable
Winding Direction Clockwise and counterclockwise switchable
Guiding Plate Size 150 × 105 mm
Compatible Cell Ø4 mm × 65 mm (e.g. 18650 cylinder cells)
Optional Cell Sizes 26650, 32650 (customisable)
Voltage 220V / 50Hz
Net Weight 20 kg
Dimensions (L × W × H) 360 × 310 × 280 mm

Applications & Industries

  • Cylindrical cell R&D and prototyping (e.g. 18650, 26650, 32650)

  • Lithium-ion and sodium-ion battery electrode assembly

  • Electrode and separator winding studies

  • Material science and energy research laboratories

  • Pilot-scale battery fabrication lines

FAQ

Q1: What cell types are supported?
The standard configuration supports 18650 cells, with optional shafts available for 26650, 32650, and pouch cells.

Q2: Can winding direction be changed during operation?
Yes. The system allows seamless switching between clockwise and counterclockwise winding modes.

Q3: Is this machine suitable for solid-state battery R&D?
Yes. It can be used with solid-state electrode and separator materials under inert environments.

Q4: Can winding tension be controlled?
Yes. The machine offers adjustable speed control for consistent tension management during winding.

Q5: Does it support glove box integration?
Yes. Its compact design and 220V / 50Hz power input make it suitable for glove box operation.
