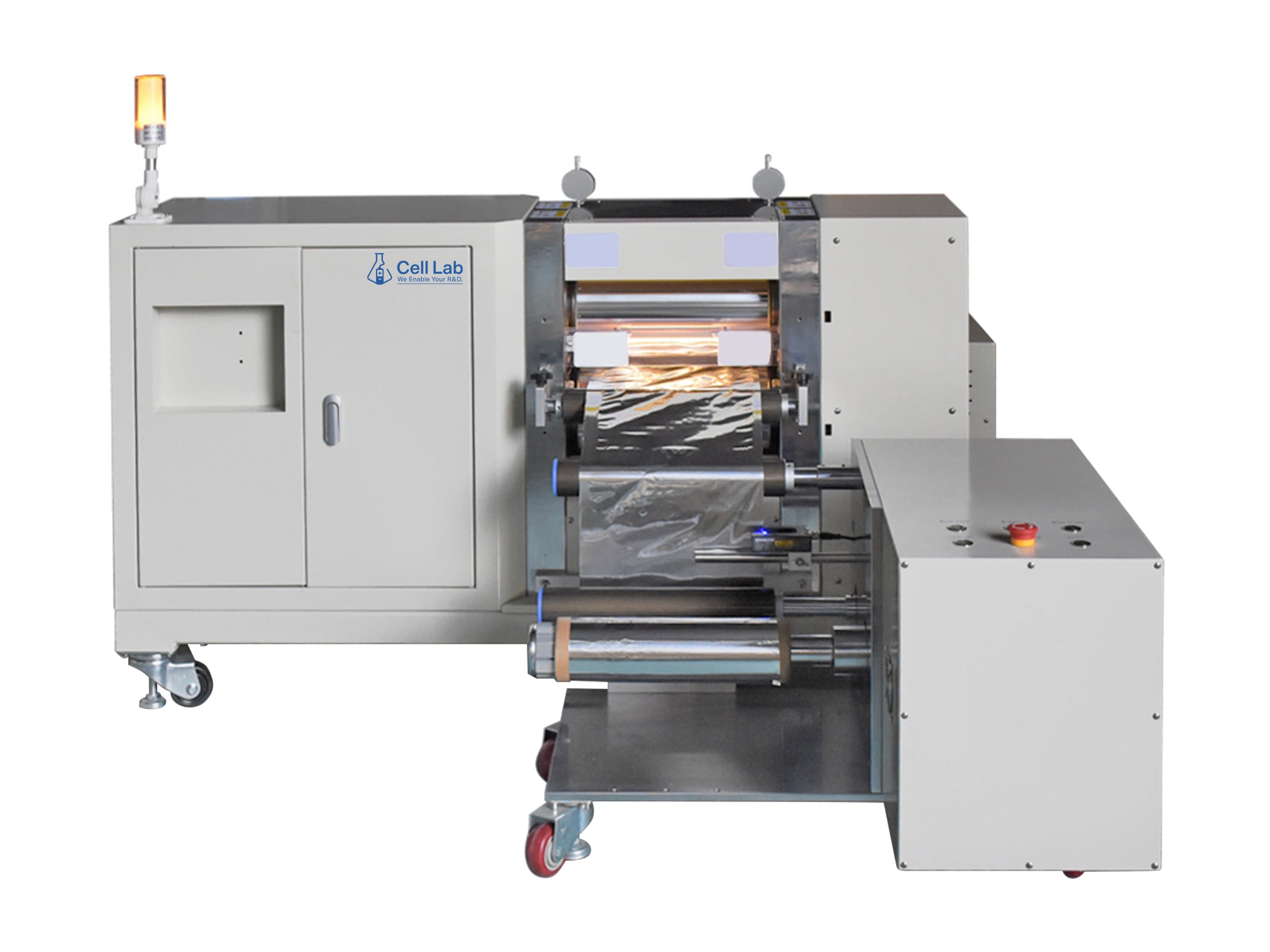

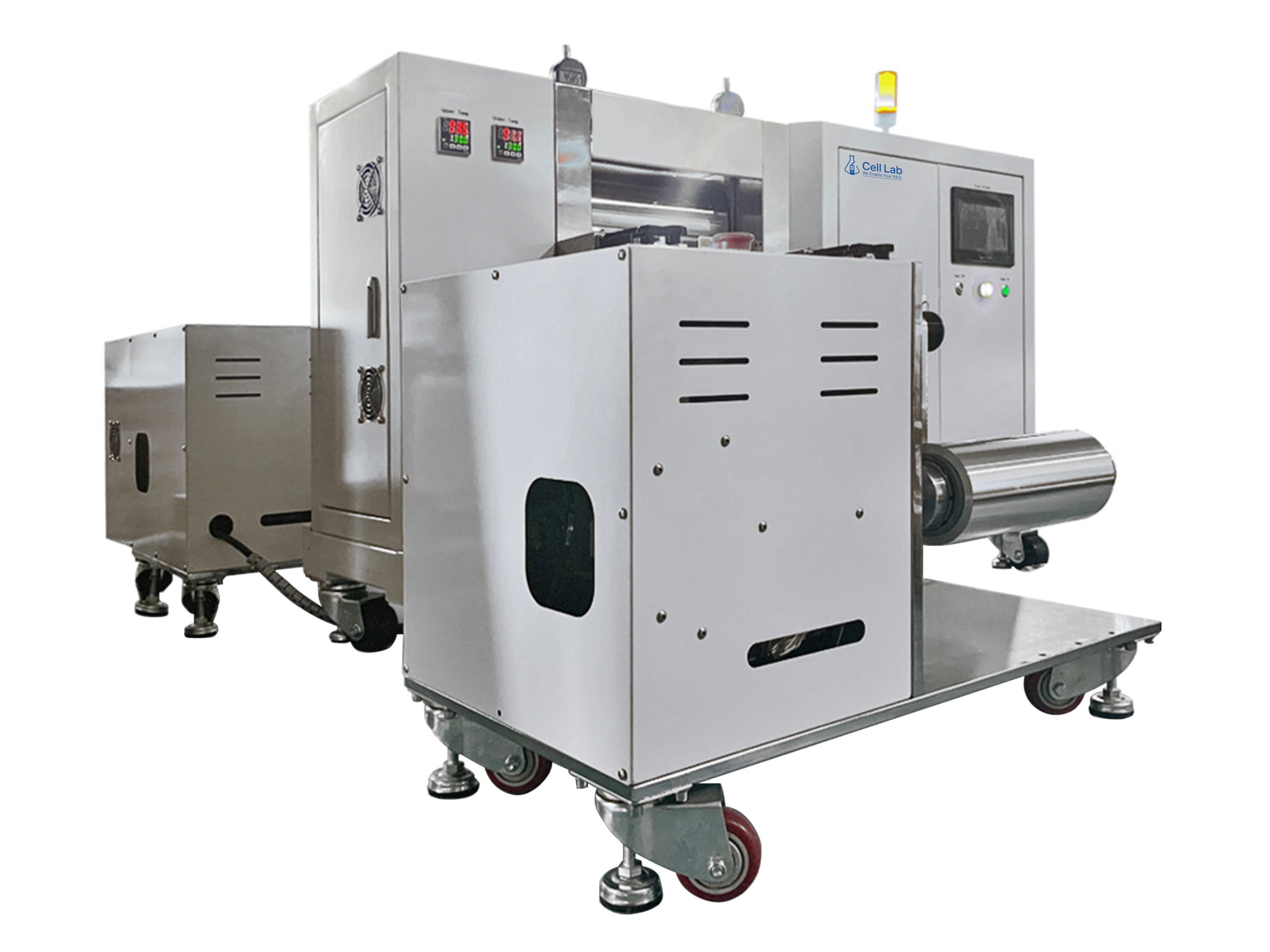

Cell Lab Roll-to-Roll Hydraulic Rolling Press Machine [Heated, with Unwinding & Rewinding]

Cell Lab Roll-to-Roll Hydraulic Rolling Press Machine [Heated | Unwinding & Rewinding System] High-pressure continuous electrode rolling for advanced pouch cell and thin-film manufacturing The Cell Lab Roll-to-Roll Hydraulic Rolling Press Machine delivers industrial-grade precision and stability for continuous electrode...
Vendor: Cell Lab
SKU: CL0089
Product type: Battery Equipment
£88,590.00
£88,590.00
Subtotal: £88,590.00
Description
Description
x

Cell Lab Roll-to-Roll Hydraulic Rolling Press Machine [Heated | Unwinding & Rewinding System]

High-pressure continuous electrode rolling for advanced pouch cell and thin-film manufacturing

The Cell Lab Roll-to-Roll Hydraulic Rolling Press Machine delivers industrial-grade precision and stability for continuous electrode processing in pouch cell production. Equipped with a servo-controlled hydraulic system, integrated heating, and an automated unwinding-rewinding setup, it enables micron-level thickness control and uniformity across long electrode sheets. Ideal for lithium-ion battery electrodes, flexible electronics, and functional thin-film materials, this machine ensures consistent, high-throughput operation in both R&D and pilot-scale production lines.

Key Features

  • Servo Hydraulic Control: Imported servo-proportional valve system ensures precise, stable hydraulic pressure and consistent rolling force.

  • Roll-to-Roll Automation: Integrated unwinding and rewinding mechanism allows seamless continuous electrode processing.

  • Micron-Level Uniformity: Achieves ±0.002 mm thickness precision for exceptional electrode consistency.

  • Integrated Heating Function: Dual 1.5 kW internal heating rods reach up to 130 °C, supporting temperature-sensitive material processing.

  • Industrial Efficiency: Adjustable speed up to 4 m/min with maximum rolling pressure of 40 tons for high-throughput operations.

Technical Specifications:

Parameter Specification
Control Mode Servo hydraulic proportional valve system
Thickness Adjustment Servo motor
Roller Size Ø196 × 330 mm (Diameter × Width)
Effective Width 300 mm
Machine Speed 0.3 – 4 m/min adjustable
Electrode Uniformity ±0.002 mm (user guaranteed)
Rolling Gap Range 0 – 3 mm adjustable
Main Motor Power 1.5 kW AC (frequency conversion)
Voltage Supply 220V AC ±10%, single phase, 50/60Hz, 2 kW
Max Working Pressure Approx. 40 tons
Heating Range Room Temp – 130°C
Heating Mode Internal heating rod
Heating Power 1.5 kW × 2 = 3 kW total
Dimensions (L × W × H) 1400 × 500 × 1300 mm
Machine Weight Approx. 550 kg

Applications & Industries

  • Lithium-ion pouch cell electrode rolling

  • Solid-state and sodium-ion battery material processing

  • Thin-film and flexible electronics fabrication

  • Laboratory and pilot-scale production lines

  • Advanced materials and energy storage research

FAQ

Q1: Does this machine support continuous roll-to-roll operation?
Yes. It includes integrated unwinding and rewinding systems for fully continuous electrode pressing and thickness control.

Q2: Can the pressure and thickness be adjusted during operation?
Yes. Servo control allows real-time adjustments to rolling gap and pressure for precise material control.

Q3: What is the maximum heating temperature?
The dual internal heating rods reach up to 130 °C for temperature-controlled processing.

Q4: Is the machine suitable for pilot production?
Absolutely. It is engineered for both laboratory and pilot manufacturing scales, offering industrial-grade uniformity.

Q5: What materials can it process?
The machine is suitable for copper and aluminium electrodes, solid-state materials, and various thin-film substrates.
