Precision Pressure Monitoring for Solid-State & Lithium Metal Battery Research

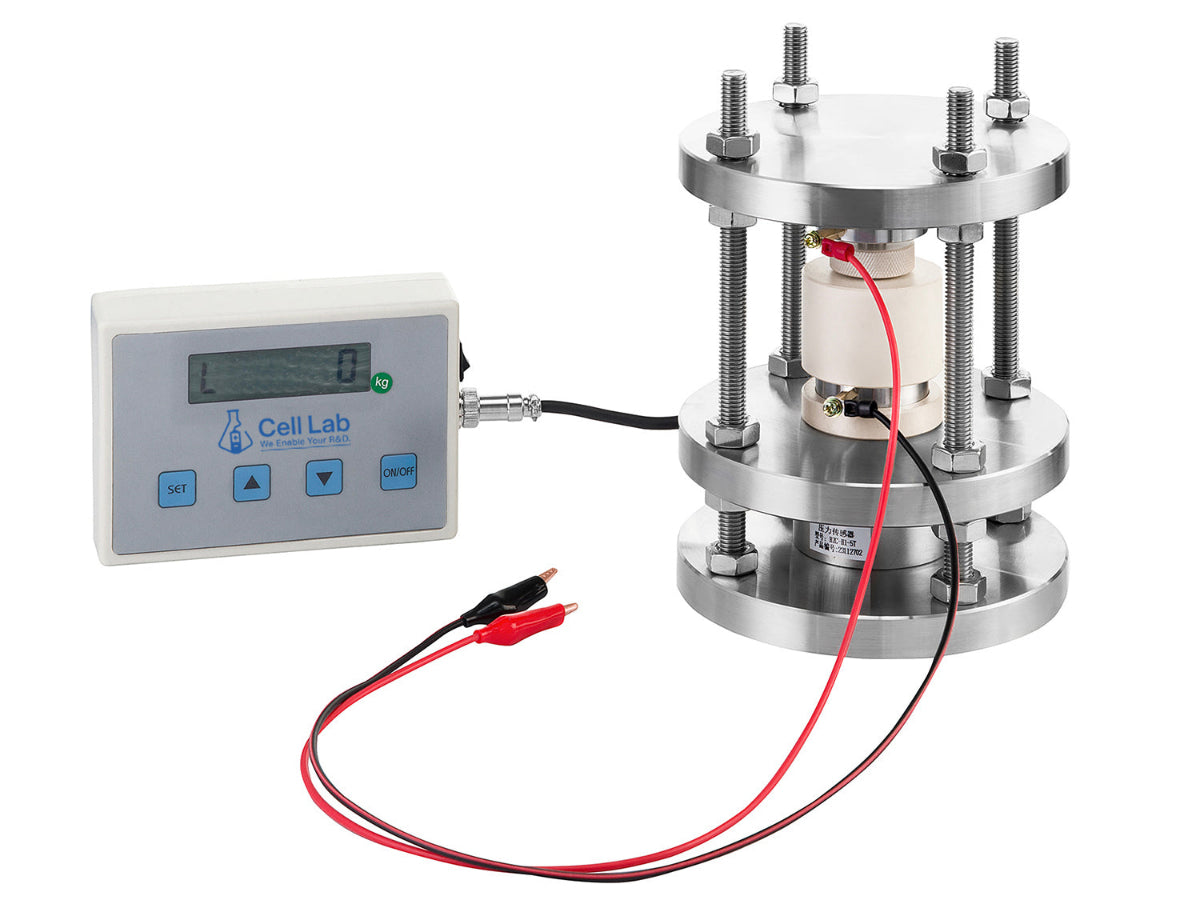

The Cell Lab Pressure Jig and Load Sensor Kit is engineered for precise pressure application and monitoring during solid-state electrolyte, lithium metal battery, and pouch cell testing. With robust stainless steel construction and high-accuracy load sensors, the system enables controlled mechanical loading for research laboratories and quality control environments.

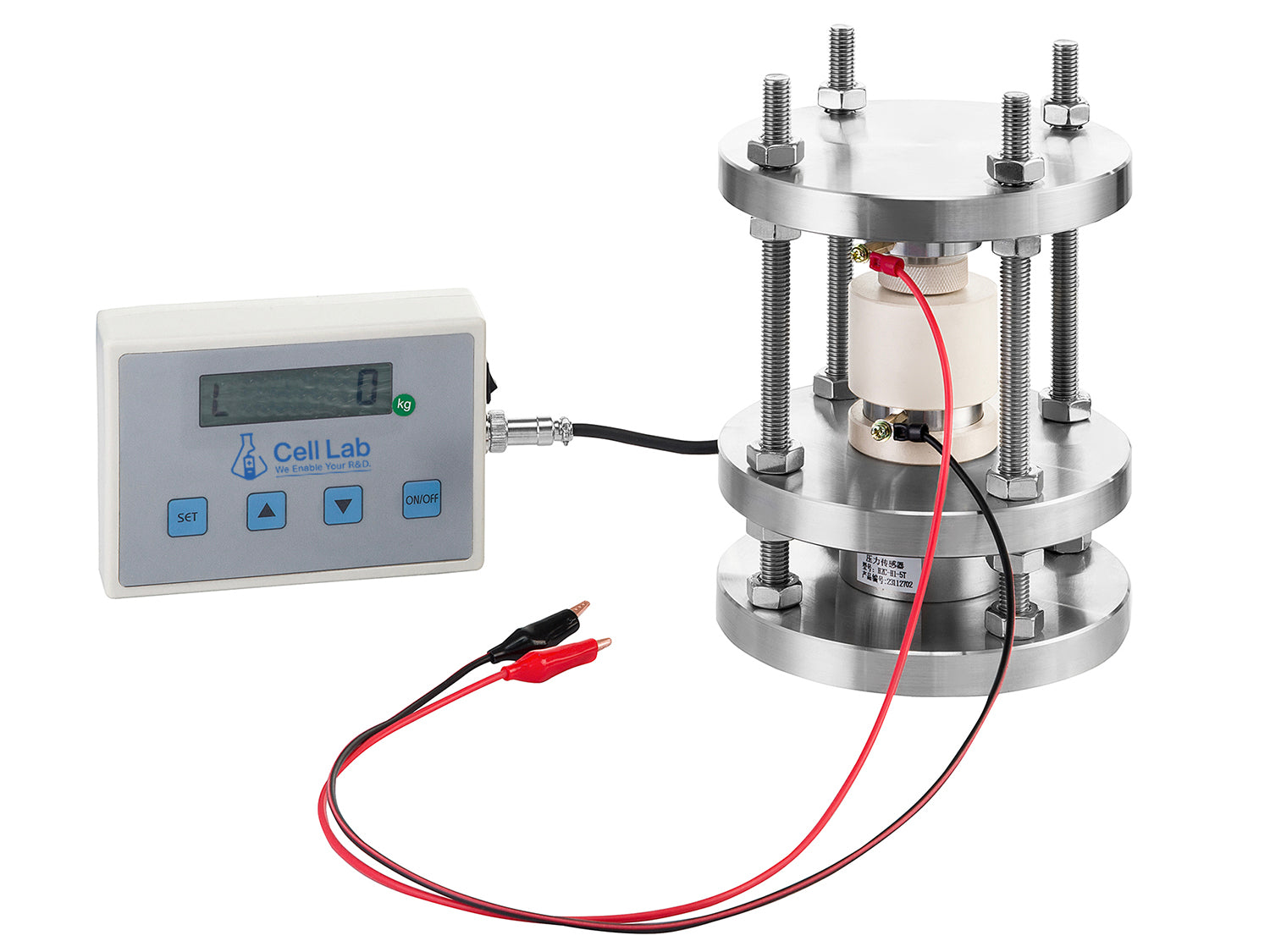

This kit includes a stainless steel pressure jig, a load sensor (available in 5T or 50 kg models), and a digital meter with 220V / 50 Hz adapter. It supports PEEK split cell kits, 2" × 4" pouch cells, and smaller samples. Optional PEEK pressing boards can be added to fit specific pouch cell sizes.

Key Features

• Two sensor options – 5T (±5 kg accuracy) for high-load studies, or 50 kg sensor for lighter pouch cell tests.

• Stainless steel jig – Heavy-duty frame with precision-machined plates and secure screw fixtures.

• High measurement resolution – Digital meter provides real-time readings in kilograms.

• Compatible with split & pouch cells – Supports PEEK split cells, 2" × 4" pouch cells, and smaller formats.

• Complete test kit – Includes jig, load sensor, digital meter, and 220V / 50 Hz power adapter.

Specifications

Applications & Industries

• Solid-state battery R&D – Pressure testing of solid electrolytes and lithium metal cells.

• Pouch cell testing – Accurate compression and monitoring for 2" × 4" and smaller pouch formats.

• PEEK split cell experiments – Controlled pressure loading for electrochemical studies.

• Battery quality control – Ensures reliable and reproducible testing for R&D and production.

• Advanced materials research – Suitable for pressure-based evaluation of novel energy materials.

FAQ

Q1: What is included in the kit?
A: One stainless steel pressure jig, one load sensor (5T or 50 kg), one digital meter, and a 220V / 50 Hz power adapter.

Q2: What is the difference between the 5T and 50 kg versions?
A: The 5T sensor is designed for high-load testing with ±5 kg accuracy; the 50 kg sensor is better for lighter load pouch cell applications.

Q3: Are PEEK pressing boards included?
A: No. PEEK pressing boards are optional and can be ordered separately for pouch cells of different sizes.

Q4: What types of cells are compatible?
A: The kit supports PEEK split cells and pouch cells up to 2" × 4", as well as smaller variants.

Q5: Can the system be customised?
A: Yes. Custom plate sizes and pressing board options are available upon request.
