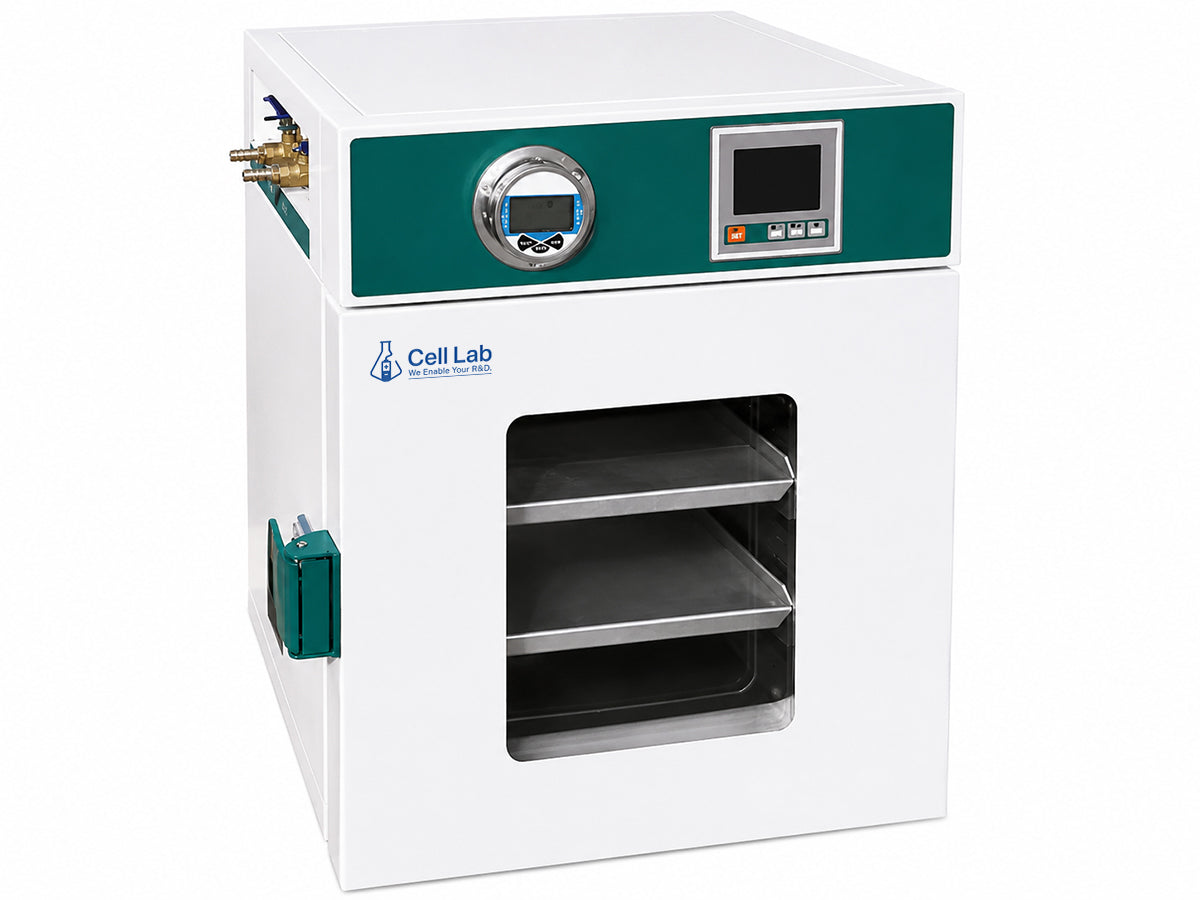

Cell Lab Precision Vacuum Drying Oven [25L–215L | LCD Vacuum Display | RT+10–250°C]

High-precision laboratory vacuum drying ovens with stainless steel chambers, LCD vacuum monitoring and uniform four-wall heating for heat-sensitive materials and advanced thermal processing applications.

General Description

The Cell Lab Precision Vacuum Drying Oven Series is designed for highly efficient vacuum drying, thermal processing and low-oxygen heating applications in laboratories, research institutes and industrial environments.

Featuring a four-wall heat conduction system, intelligent PID temperature control and a high-accuracy LCD vacuum display, these vacuum ovens provide stable and uniform heating performance while reducing oxidation and contamination risks during drying.

The oven chamber is manufactured from high-quality stainless steel (SUS) and equipped with an advanced sealing system for reliable vacuum retention. The double-layer explosion-proof observation window enhances operational safety while allowing clear monitoring of samples during operation.

Available in capacities from 25L to 215L, this series is suitable for drying powders, battery materials, pharmaceuticals, chemicals, electronics, biological samples and heat-sensitive materials requiring controlled vacuum environments.

Key Features

• Four-wall heating conduction system — Provides uniform heat transfer throughout the chamber for efficient and consistent drying results.

• High-precision LCD vacuum gauge — Displays vacuum degree in multiple units with stable and accurate monitoring performance.

• PID intelligent temperature controller — PT100 sensor and intelligent PID algorithm ensure precise temperature stability and rapid response.

• Explosion-proof double-layer observation window — Tempered glass with protective outer layer improves laboratory operational safety.

• Excellent vacuum sealing performance — Integrated silica gel sealing structure and inflatable port maintain stable vacuum conditions during operation.

Available Models

SKU Chamber Size (W × L × H) Volume Temperature Range Voltage
DO0047 300 × 300 × 270 mm 25L RT+10–250°C 220V / 50Hz
DO0048 415 × 370 × 340 mm 52L RT+10–250°C 220V / 50Hz
DO0049 450 × 450 × 450 mm 91L RT+10–250°C 220V / 50Hz
DO0050 550 × 600 × 650 mm 215L RT+10–250°C 220V / 50Hz

Technical Specifications

Parameter Specification
Product Type Precision Vacuum Drying Oven
Heating Method Four-wall heat conduction
Temperature Range RT+10–250°C
Vacuum Degree <133 Pa
Temperature Resolution 0.1°C
Temperature Fluctuation ±1°C
Heating Time Approx. 80 min
Chamber Material High-quality SUS stainless steel
Outer Shell Electrostatic spraying cold-rolled steel
Insulation Material High-quality aluminium silicate cotton
Heating Element Stainless steel electric heating tube
Observation Window Explosion-proof tempered glass
Vacuum Display LCD vacuum gauge
Vacuum Gauge Accuracy Class 2.5
Nozzle Diameter 10 mm
Temperature Sensor PT100
Temperature Control Two-stage PID intelligent control
Display Type LCD colour screen
Timer Range 0–9999 min
Operation Modes Fixed temperature, timed operation, auto stop
Safety Protection Over-temperature sound-light alarm
Shelf Load Capacity 15 kg per shelf

Standard Configuration

Included Accessories
Shelves
Shelf Frames

Optional Accessories

Optional Items
Silicone connecting tube
Vacuum pump filter
Vacuum pump

Applications & Industries

  • Vacuum drying of lithium battery materials
  • Pharmaceutical sample drying
  • Chemical powder processing
  • Electronic component drying
  • Semiconductor material preparation
  • Biological and microbiological sample drying
  • Heat-sensitive material processing
  • Laboratory thermal vacuum testing
  • Moisture removal and degassing
  • Research and industrial vacuum heat treatment

SEO Keywords: vacuum drying oven, laboratory vacuum oven, PID vacuum oven, stainless steel vacuum oven, vacuum drying chamber, laboratory drying equipment, industrial vacuum oven

FAQ

Q1: What materials are suitable for vacuum drying?

This oven is ideal for heat-sensitive, easily oxidised or moisture-sensitive materials including powders, chemicals, pharmaceuticals and battery materials.

Q2: What is the advantage of vacuum drying?

Vacuum drying reduces oxidation risk, lowers boiling points and enables efficient drying at lower temperatures.

Q3: Does the oven include vacuum monitoring?

Yes. All models feature an LCD vacuum gauge for real-time vacuum pressure monitoring.

Q4: Is a vacuum pump included?

Vacuum pumps are optional accessories and can be supplied separately.

Q5: What safety protections are included?

The system includes over-temperature alarm protection, explosion-proof observation glass and intelligent PID temperature control.
