Cell Lab Precision Punch Die Set for Coin Cell Disc Cutting [3–24 mm | Compatible with CL0037]

Custom die sets for precise electrode and separator disc punching

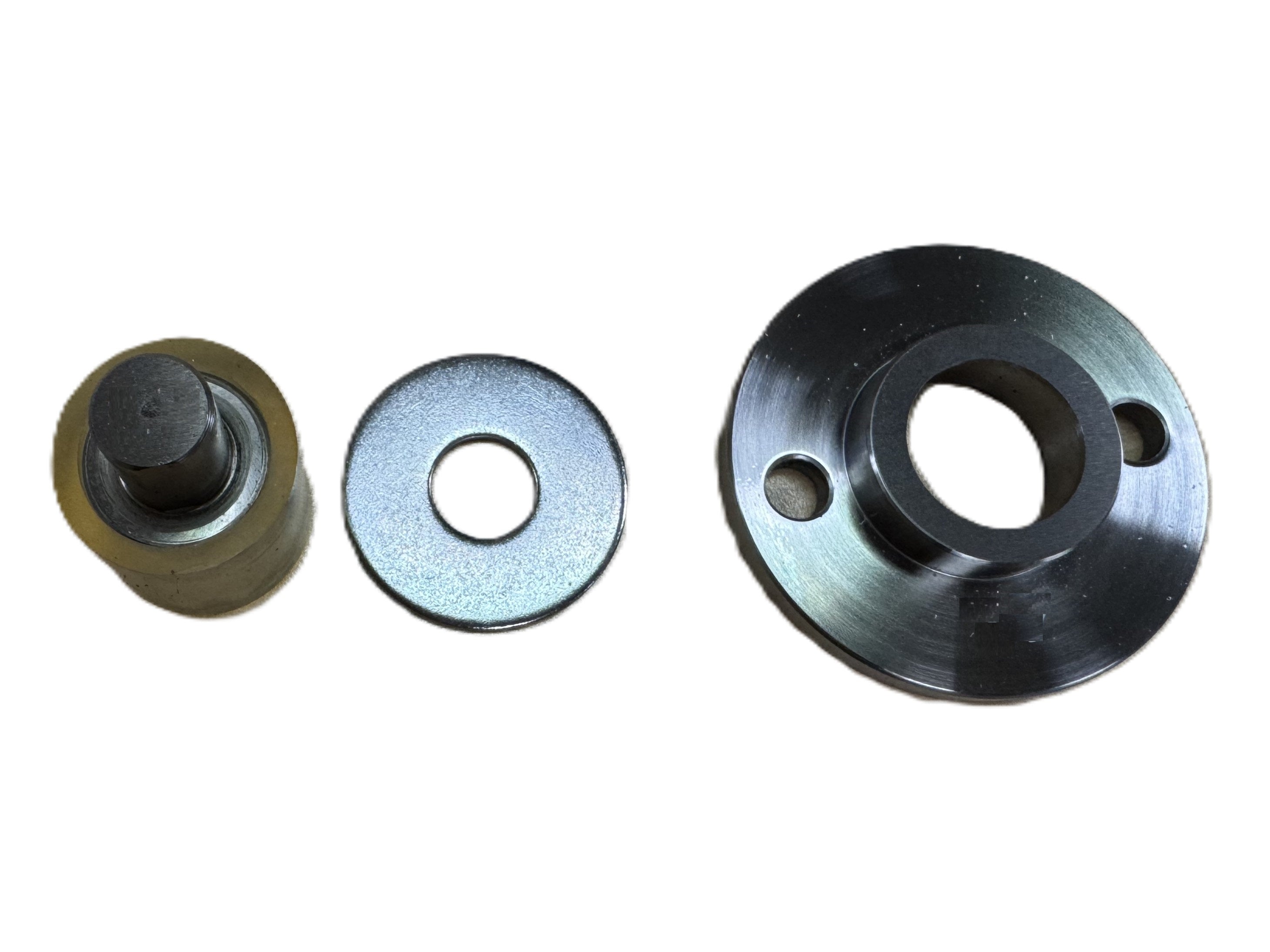

The Cell Lab™ Precision Punch Die Set provides researchers with high-accuracy tooling for cutting uniform circular discs from electrode foils, separators, and current collectors. Designed specifically for use with the Cell Lab Manual Disc Cutter (Model CL0037), each die ensures clean edges, tight dimensional control, and repeatable results.

Available in diameters ranging from 3 mm to 24 mm, these dies cover all standard coin cell sizes, including CR2016, CR2025, CR2032, and CR2450. Each die set is machined from hardened tool steel for long service life and dimensional stability under repeated load.

Key Features

• Precision Engineering
Each die is CNC-machined with micron-level tolerances, ensuring perfectly circular cuts and minimal burr formation across various electrode materials.

• Broad Size Compatibility (3–24 mm)
Supports all major coin cell formats — CR2016, CR2025, CR2032, and CR2450 — as well as custom research applications requiring specific disc diameters.

• Long-Life Construction
Manufactured from hardened tool steel with anti-corrosion surface treatment for durability and consistent performance over thousands of operations.

• Clean and Repeatable Cutting
Optimised edge geometry produces smooth disc edges without delamination or wrinkling, even on thin metal foils and polymer separators.

• Simple Installation and Maintenance
Compatible with Cell Lab CL0037 Manual Disc Cutter. Dies can be replaced or interchanged easily without recalibration.

Application Notes

Coin Cell Type Recommended Die Size Usage
CR2016 / CR2025 / CR2032 16 mm Negative case (diameter ≈ 16.5 mm)
19 mm Positive case (diameter ≈ 20 mm)
20 mm Separator disc (for complete electrode isolation)
CR2450 20 mm Electrode discs
24 mm Electrode or separator discs

Separator Disc Guideline:
Always select a separator disc slightly larger than the electrode diameter to prevent internal short circuits during coin-cell assembly and cycling.

Specifications

Parameter Details
Product Model CL0037-DIE Series
Compatible Equipment Cell Lab Manual Disc Cutter (CL0037)
Available Diameters 3 mm – 24 mm
Material Hardened tool steel
Cutting Type Circular precision punch
Dimensional Tolerance ± 0.02 mm
Surface Treatment Anti-rust coating
Service Life > 10 000 cuts (typical, material dependent)
Packaging Individual die sets, foam-lined protective case

Applications & Industries

  • Coin cell R&D (CR2016 / 2025 / 2032 / 2450)

  • Lithium-ion and sodium-ion electrode fabrication

  • Separator and current-collector cutting

  • Battery materials quality control

  • Academic and industrial research laboratories

FAQ

Q1: Are the dies interchangeable between manual and electric cutters?
A1: Yes. The CL0037 die sets are compatible with most manual and semi-automatic disc cutters following standard punch-mount dimensions.

Q2: What is the ideal clearance between die and punch?
A2: The clearance is precisely tuned at manufacturing (~0.02 mm) to balance cutting sharpness and durability.

Q3: Can the die size be customised?
A3: Yes. Custom diameters (≤ 30 mm) are available upon request.

Q4: How to maintain cutting performance?
A4: Keep the die clean and lightly oiled after use; avoid excessive force or misalignment during operation.

Q5: What materials can it cut?
A5: Suitable for copper, aluminium, stainless steel foils, graphite electrodes, and polymer separators.
