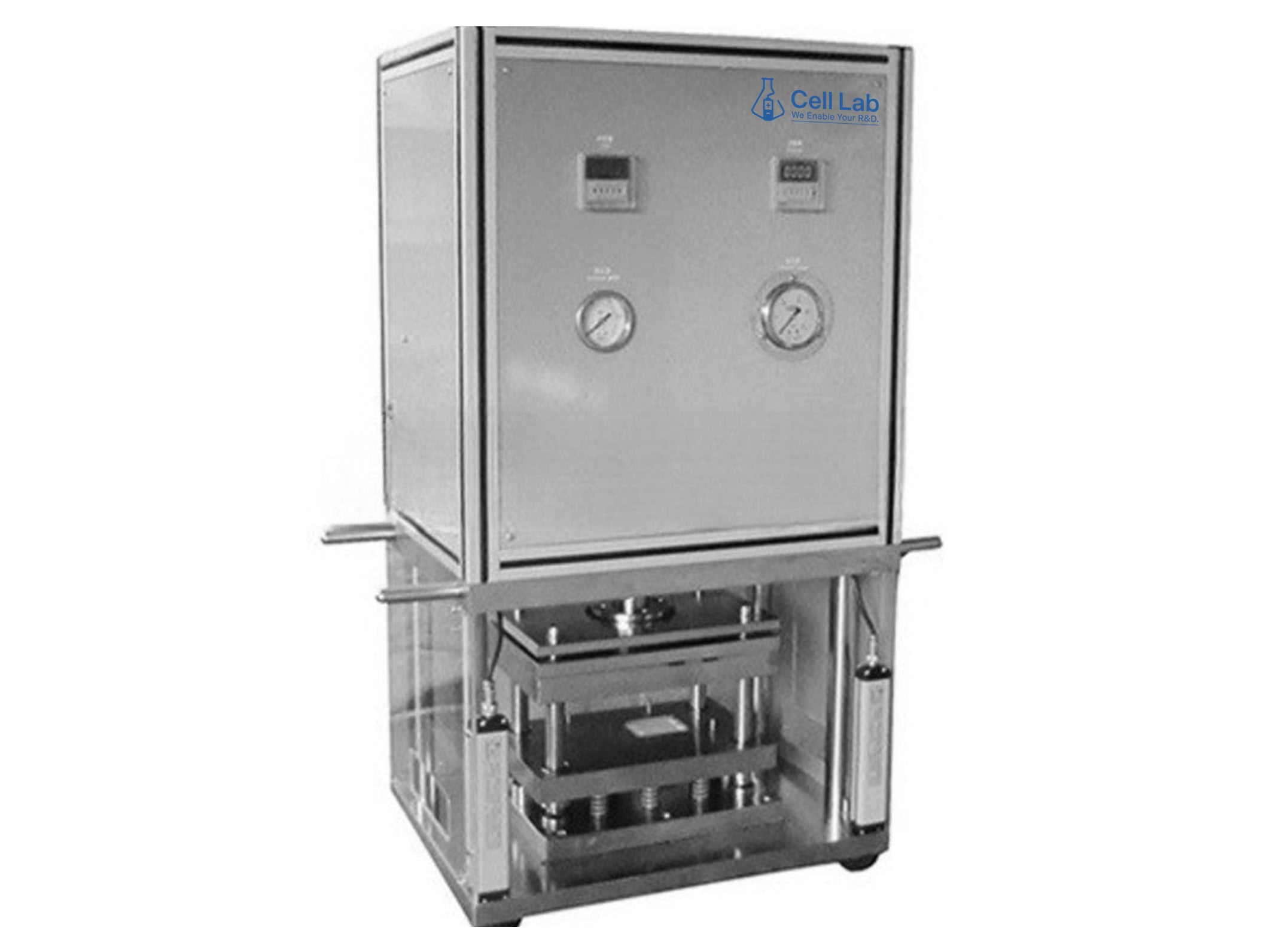

Cell Lab Pouch Cell Forming Machine [Compact Design | Customisable Size | Aluminium-Laminated Film Forming Press]

Laboratory-scale pouch cell case forming system for lithium-ion and solid-state battery R&D

The Cell Lab Pouch Cell Forming Machine is a compact and precise forming press engineered for shaping aluminium-laminated film into pouch cell cups. Ideal for lithium-polymer and pouch cell research, this laboratory-friendly system features a spring-type mould design that ensures smooth operation and consistent forming depth. Its small footprint, high forming accuracy, and customisable die sizes make it a preferred choice for academic and industrial battery research labs.

Key Features

  • Compact Spring-Type Mould Design: Ideal for laboratory setups with limited workspace while maintaining high precision.

  • Customisable Pouch Dimensions: Supports multiple aluminium laminated film sizes to match specific research requirements.

  • Precision Cup Forming: Achieves up to 6 mm forming depth with 3 T pressure, ensuring uniform pouch cavity geometry.

  • Low-Power, Lab-Scale Operation: Designed for high efficiency and safe operation with only 100 W power consumption.

  • Seamless System Integration: Fully compatible with Cell Lab pouch sealing, cutting, and degassing systems.

Technical Specifications:

Parameter Specification
Voltage 220V / 50Hz
Power 100 W
Compatible Film Thickness 0.1 – 0.2 mm
Film Size 160 × 120 mm (customisable)
Max. Punching Thickness 6 mm
Max. Punching Pressure 3 T
Dimensions (L × W × H) 460 × 320 × 925 mm
Weight Approx. 130 kg

Note: Custom mould sizes and forming depths are available upon request. Designed for R&D-scale pouch cell applications.

Applications & Industries

  • Lithium-ion and solid-state pouch cell cup forming

  • Laboratory R&D and pilot-scale battery fabrication

  • Aluminium-laminated film forming and shaping

  • Prototyping of pouch cell designs

  • Integration with Cell Lab sealing and vacuum systems

FAQ

Q1: What materials are compatible with this forming machine?
It is designed for aluminium-laminated films commonly used in lithium-ion and lithium-polymer pouch cells.

Q2: Can the mould size be customised?
Yes. Both the pouch cavity size and forming depth can be tailored to your specific requirements.

Q3: What forming depth can be achieved?
The forming press supports a maximum depth of 6 mm, adjustable via custom die sets.

Q4: Is this machine suitable for laboratory use?
Yes. Its compact footprint and low power consumption make it perfect for lab-scale R&D environments.

Q5: Can it be integrated with other Cell Lab systems?
Absolutely. It pairs seamlessly with Cell Lab pouch sealing, vacuum, and electrolyte injection equipment.
