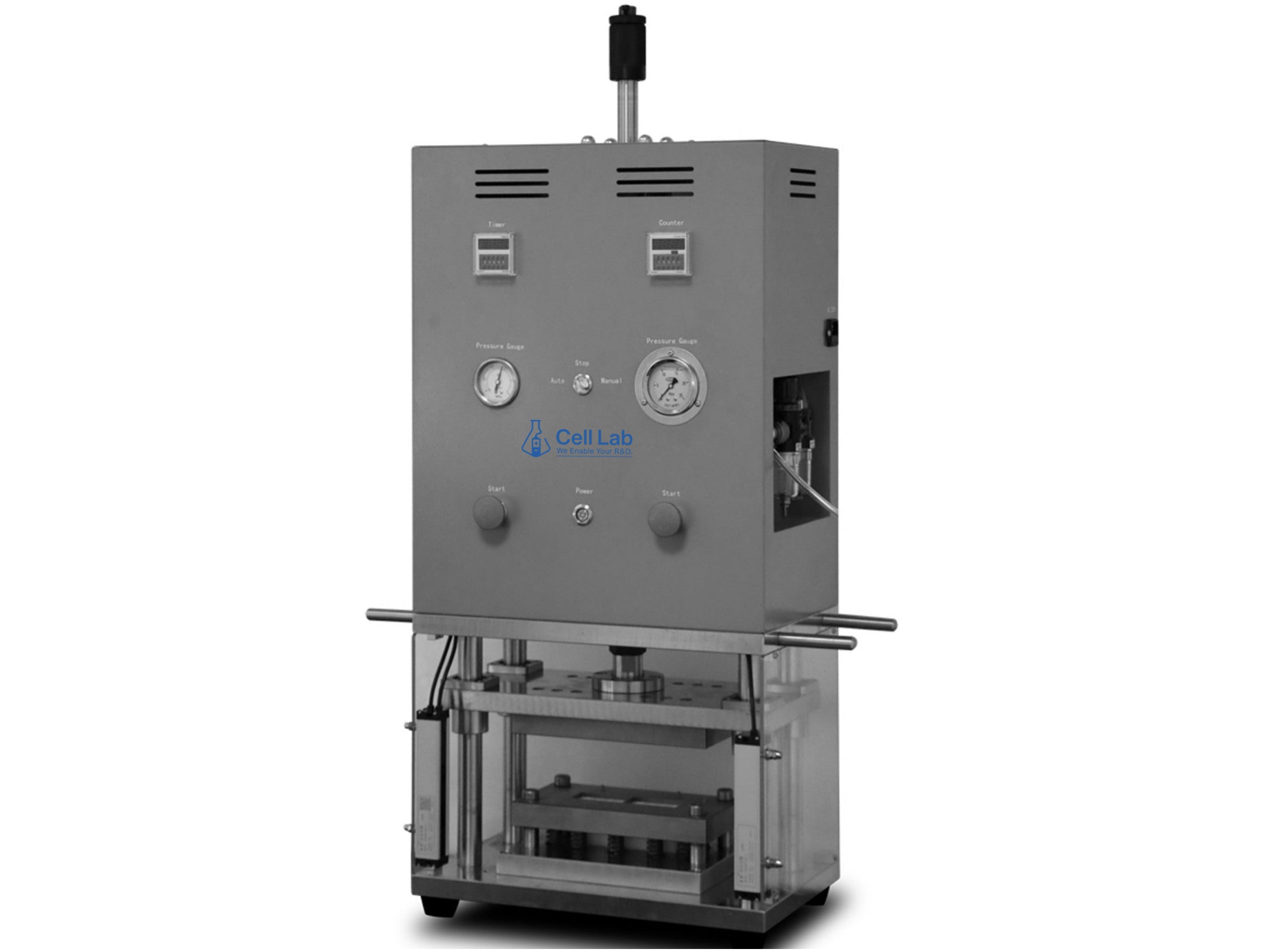

Cell Lab Pouch Cell Forming Machine (5 T, ≤6 mm) for Aluminium-Laminated Film Shaping with Adjustable Mould Depth for Lithium Battery R&D
Cell Lab Pouch Cell Forming Machine (5 T, ≤6 mm) for Aluminium-Laminated Film Shaping with Adjustable Mould Depth for Lithium Battery R&D

Cell Lab Pouch Cell Case Forming Machine for Aluminium-Laminated Films

Cell Lab Pouch Cell Case Forming Machine [5 T Output | ≤6 mm Forming Depth | Aluminium-Laminated Film Forming Press] High-precision forming solution for lithium pouch cell case fabrication in laboratory and pilot-scale R&D The Cell Lab Pouch Cell Case...
Vendor: Cell Lab
SKU: CL0107
Product type: Battery Equipment
£11,990.00
£11,990.00
Subtotal: £11,990.00
Description
Description
x

Cell Lab Pouch Cell Case Forming Machine [5 T Output | ≤6 mm Forming Depth | Aluminium-Laminated Film Forming Press]

High-precision forming solution for lithium pouch cell case fabrication in laboratory and pilot-scale R&D

The Cell Lab Pouch Cell Case Forming Machine is engineered for shaping aluminium-laminated films into pouch cell cups with consistent definition and depth. Featuring a robust four-column guide structure and spring-loaded die assembly, it ensures smooth, vertical motion and stable forming pressure. With a compact footprint and adjustable mould design, this forming press is ideal for laboratory environments focused on lithium-ion and solid-state pouch cell research.

Key Features

  • Four-Column Guide Mechanism: Delivers stable vertical motion for precise forming without misalignment.

  • Compact Design for R&D Labs: Small footprint and ergonomic layout ensure easy integration into laboratory workflows.

  • Customisable Mould Dimensions: Pouch cavity size and depth can be tailored for different pouch cell formats.

  • Adjustable Forming Depth: Supports up to ≤6 mm forming by changing mould sets, enabling flexible experimental configurations.

  • Reliable Pneumatic Drive: Operates smoothly under 0.5–0.7 MPa air pressure with minimal maintenance requirements.

Technical Specifications

Parameter Specification
Voltage 220V / 50Hz
Power 100 W
Compatible Film Size 300 × 280 mm (customisable)
Max. Punching Depth ≤ 6 mm
Output Pressure 5 T
Air Source 0.5 – 0.7 MPa
Dimensions (L × W × H) 560 × 420 × 925 mm
Weight Approx. 250 kg

Note: Custom moulds and die sets are available upon request to accommodate various pouch sizes and depths.

Applications & Industries

  • Aluminium-laminated pouch cell cup forming

  • Lithium-ion & solid-state battery case shaping

  • Research laboratories and pilot-line production

  • Pouch forming for coin-to-pouch transition studies

  • Integration with Cell Lab sealing and cutting systems

FAQ

Q1: What materials are compatible with this forming press?
It is designed for aluminium-laminated pouch films commonly used in lithium-ion and solid-state cells.

Q2: Can the forming depth be adjusted?
Yes. The forming depth (≤6 mm) can be modified by replacing the forming die.

Q3: Is the forming pressure adjustable?
Yes. The system delivers up to 5 T of pressure, controlled pneumatically within 0.5–0.7 MPa.

Q4: Can this machine integrate with other Cell Lab equipment?
Yes. It can be paired with Cell Lab’s cutting, sealing, or vacuum systems for a complete pouch cell production line.

Q5: Is it suitable for glovebox environments?
While not typically placed inside a glovebox, it is compact enough for adjacent installation and integration via transfer systems.
