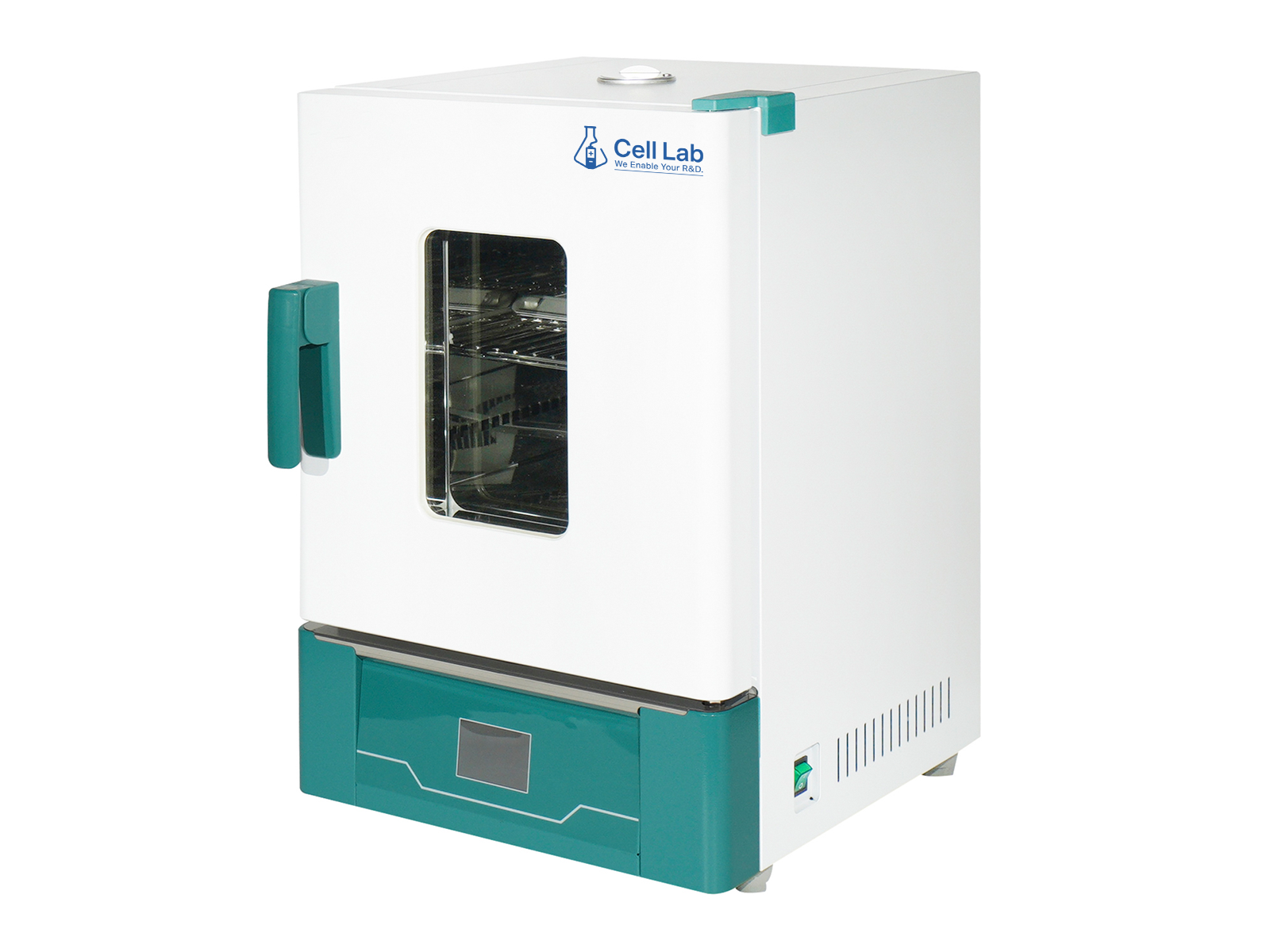

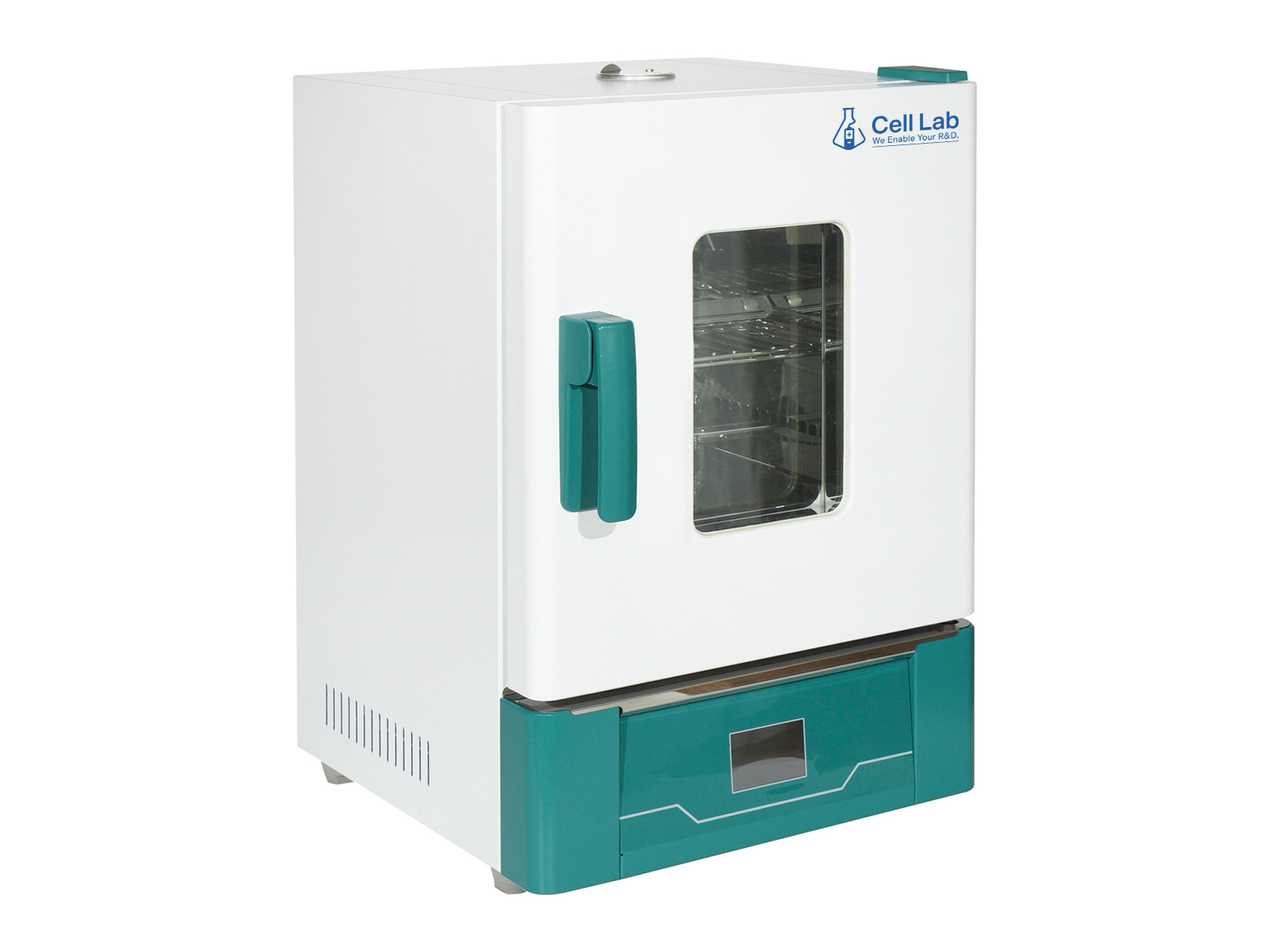

Cell Lab Portable Drying and Sterilizing Oven [Touchscreen PID | Forced Convection | 30–65 L]

High-uniformity benchtop ovens with intelligent control for drying, sterilisation, and heat processing

The Cell Lab Portable Drying and Sterilizing Oven series provides precision temperature control and uniform airflow for laboratory, medical, and industrial applications. With forced-convection heating, a 3.5-inch touchscreen PID controller, and multi-stage programmable modes, it ensures consistent, reproducible results for drying, sterilisation, or heat treatment tasks.

Key Features

• Forced Convection for Exceptional Uniformity
Dual horizontal air-ducts circulate heated air evenly throughout the chamber, maintaining stable temperature distribution and minimising gradients — ideal for multi-layer drying and high-load sterilisation.

• Smart 3.5-Inch Touchscreen PID Controller
Full-colour display with two-stage PID logic enables up to four pre-set operating programs. Users can adjust temperature and time parameters intuitively, simplifying workflows and improving repeatability.

• Advanced Safety and Auto-Memory Functions
Equipped with over-temperature audio-visual alarm, automatic heating cut-off, and sensor deviation correction. The system memorises the latest parameters for instant restoration after power interruption.

• Durable Laboratory-Grade Construction
Mirror-polished stainless-steel inner chamber provides corrosion resistance and easy cleaning. The outer shell is electrostatically coated cold-rolled steel with high-density rock-wool insulation to ensure safe, thermally stable operation.

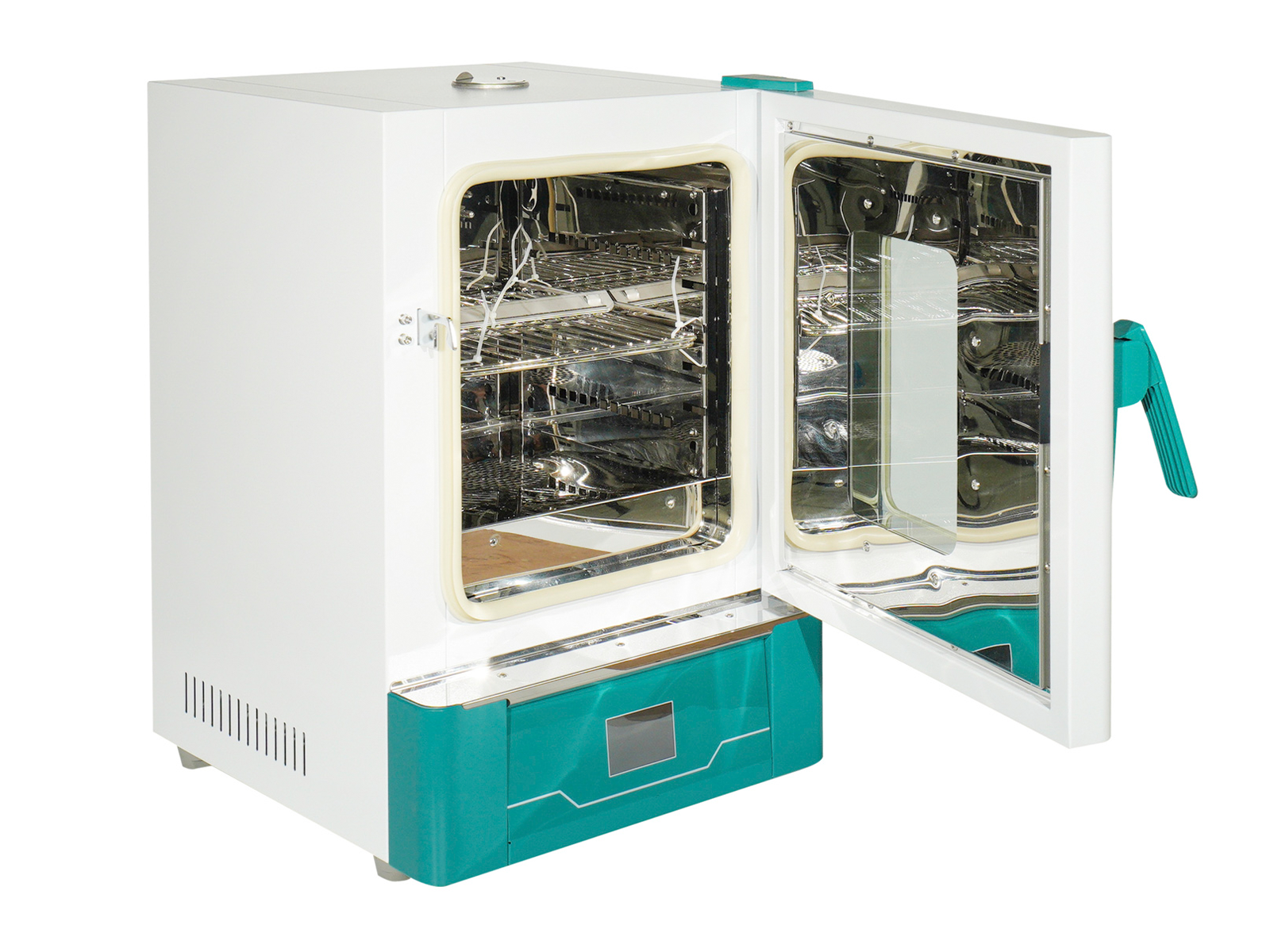

• Flexible Capacity and Configurable Racking
Available in 30 L and 65 L volumes, with up to six or nine shelf positions (15 kg load per shelf). A Φ 35 mm top vent doubles as exhaust and test port for probes or gas release. Optional RS-485 interface enables remote data logging.

Technical Parameters:


SKU

DO0041

DO0042

Cycle Mode

Forced convection

Function

Temp. Range

RT+10–300°C

Temp. Resolution Ratio

0.1°C

Temp. Motion

±1°C

Temp. Uniformity

±2.5%

Structure

Inner Chamber

Mirror Stainless Steel

Outer Shell

Cold rolling steel electrostatic spraying exterior

Insulation Layer

High quality rock wool board

Heater

Stainless steel heater

Power Rating

0.8kW

1.6kW

Exhaust Hole

Φ35mm top (with function of test hole)

Controller

Temp. Control Mode

Two temperature section PID intelligent

Temp. Setting Mode

3.5 inch touch screen

Temp. Display Mode

Touch screen preset 4 mode settings, select a good mode to set the temperature time

Timer

0–9999min (with timing wait function)

Operation Function

Fixed temperature operation, fixed timing operation, auto stop

Additional Function

Over temperature sound-light alarm, sensor deviation correction, temperature overshoot self-tuning, power-off parameter memory

Sensor

pt100

pt100

Safety Device

Over temperature alarm and cut off heating

Specification

Inner Chamber Size (W×L×H mm)

310×310×310

400×360×450

Exterior Size (W×L×H mm)

450×500×690

540×550×830

Packing Size (W×L×H mm)

540×575×855

635×625×995

Volume

30L

65L

Shelf Number

6

9

Load Per Rack

15kg

Shelf Space

35mm

Power Rating (50/60Hz)

AC220V

NW / GW (kg)

33 / 37

44 / 49

Accessory

Shelf

2

Shelf Frame

4

Optional Accessories

Spare shelf, RS485 Communication Interface, High temperature resistant UVC germicidal lamp.

Applications & Industries

  • Laboratory glassware and instrument drying

  • Sterilisation of samples and tools

  • Polymer, resin, or material pre-heating

  • Pharmaceutical and clinical heat treatment

  • Electronic and chemical testing processes

FAQ

Q1: What is the difference between forced and natural convection models?
A1: Forced convection ensures rapid, even heat distribution via dual air ducts, while natural convection models rely on passive airflow for gentler heating.

Q2: Can I run temperature-programmed cycles automatically?
A2: Yes — the touchscreen controller supports up to four programmable temperature/time profiles for unattended operation.

Q3: Is the touchscreen resistant to heat and chemicals?
A3: The interface uses a sealed, laboratory-grade capacitive panel that withstands high ambient temperatures and frequent cleaning.

Q4: Does it resume heating after power restoration?
A4: Yes — the built-in memory automatically restores all parameters and continues the previous cycle.

Q5: Can I connect the oven to a computer or monitoring system?
A5: An optional RS-485 interface enables real-time data logging and remote temperature monitoring.
