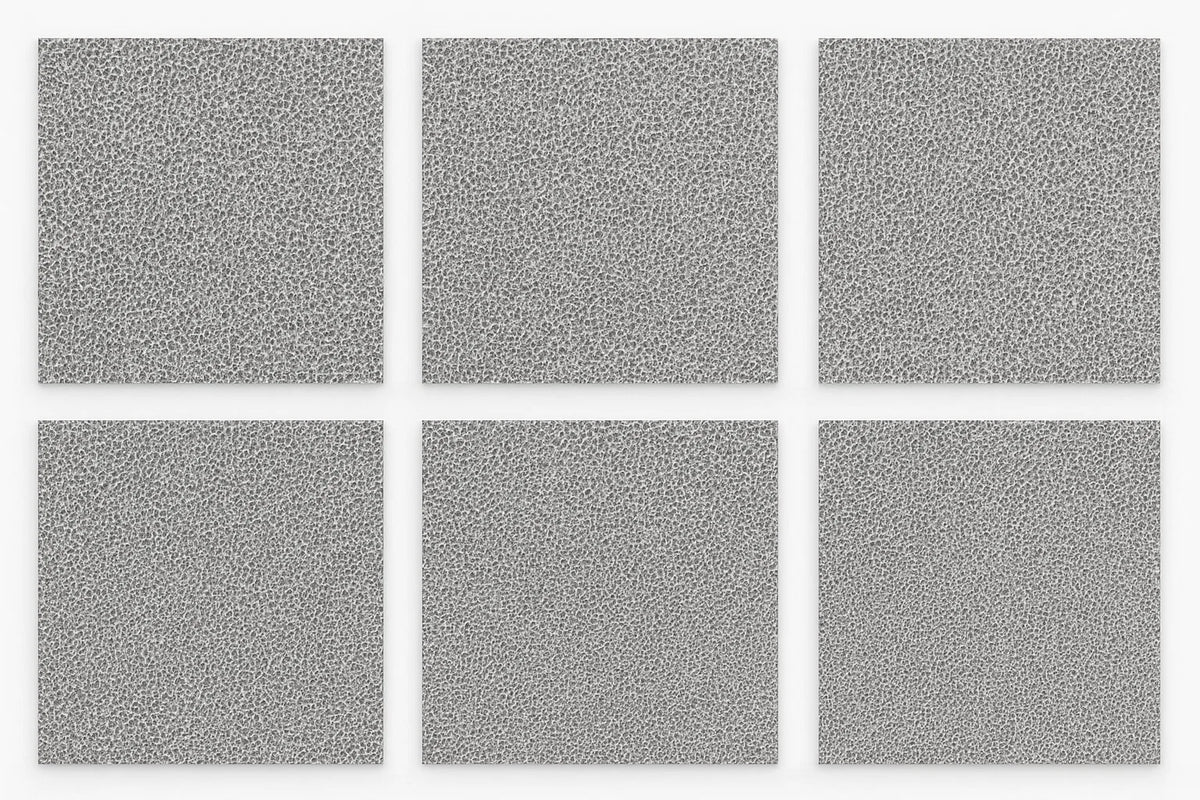

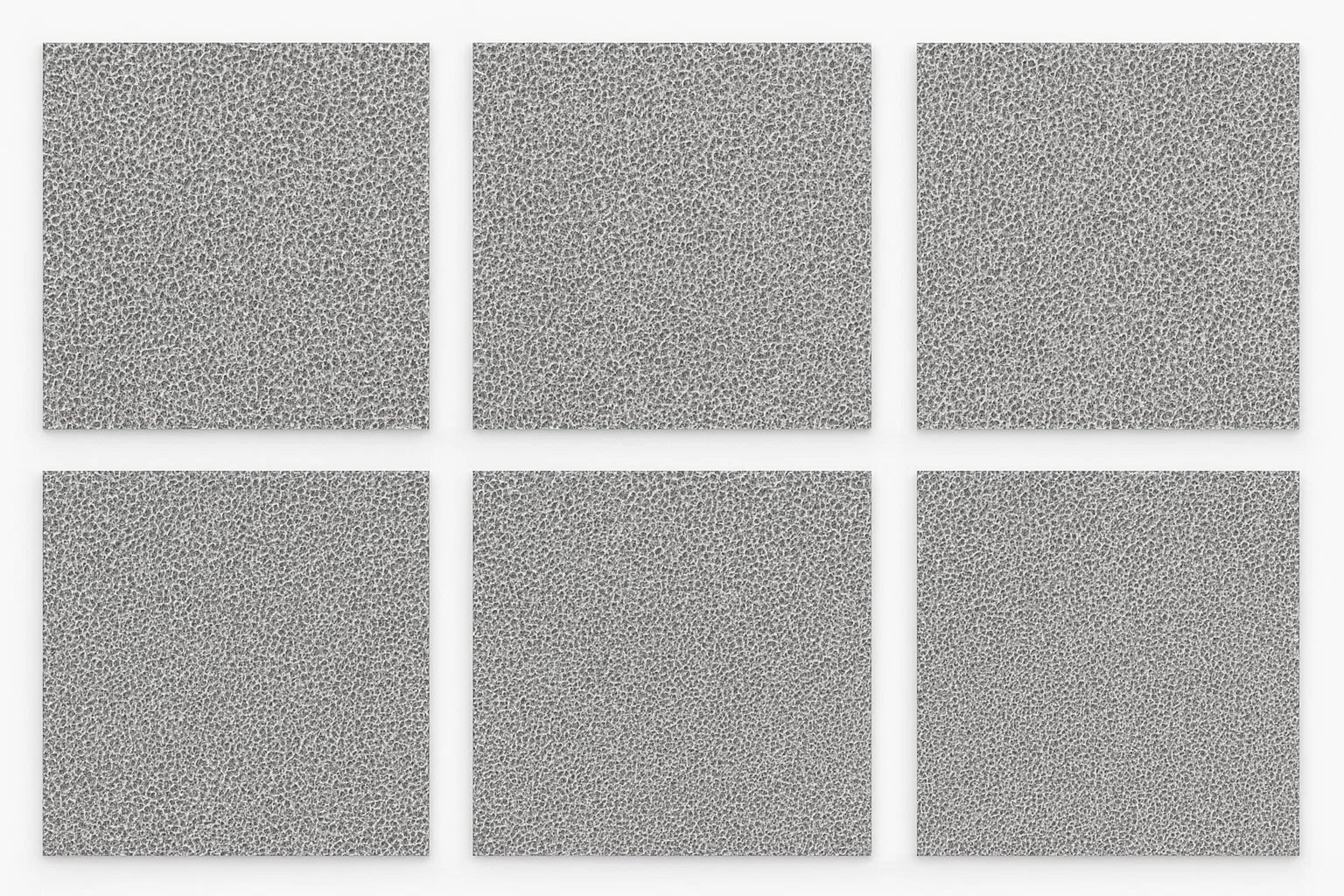

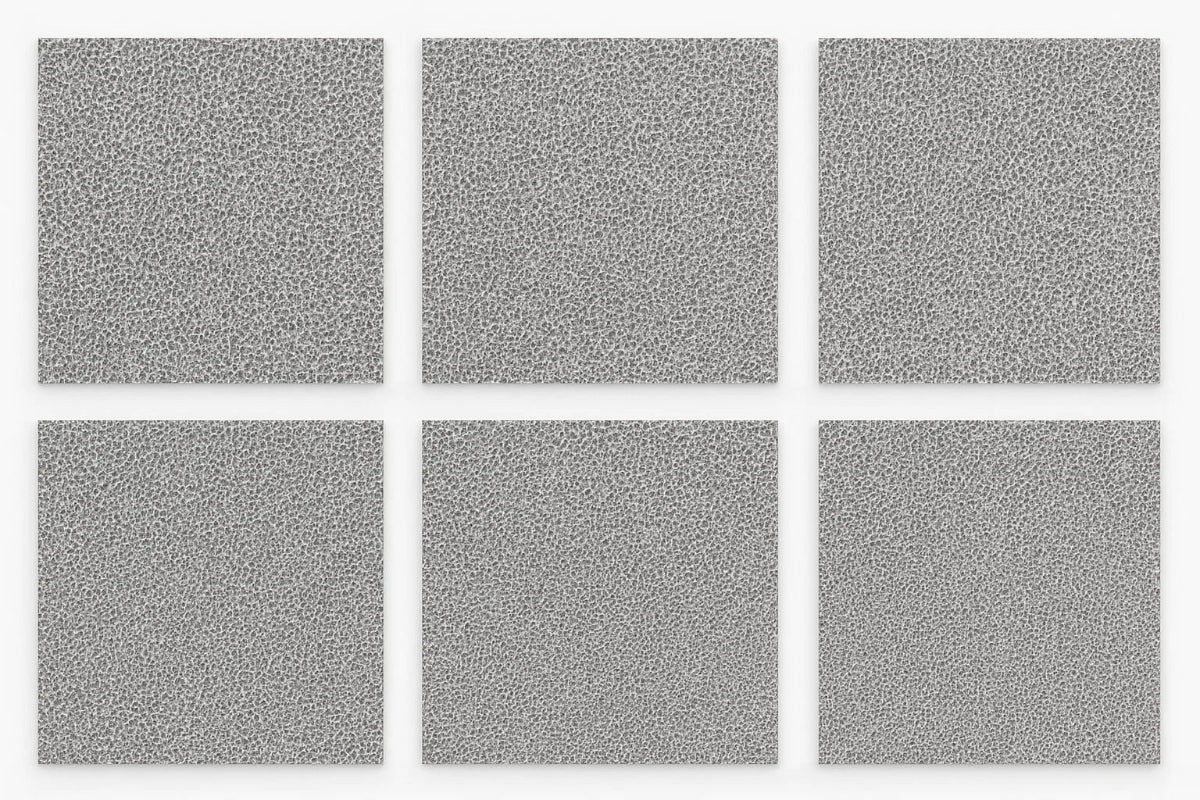

Cell Lab Porous Titanium Foam [High-Purity Substrate for Battery and R&D Applications] – Corrosion-Resistant Titanium Electrode Support for Advanced Energy Research

Lightweight, high-strength, and corrosion-resistant titanium foam for electrochemical and catalytic systems

The Cell Lab Porous Titanium Foam is a high-purity (≥99.99%) titanium substrate engineered for use in advanced electrochemical and catalytic applications. Compared to nickel or copper foams, it delivers superior corrosion resistance and long-term chemical stability, even in highly reactive electrolyte systems.

With a 3D interconnected pore structure (30–50% porosity), this titanium foam provides large electrochemical surface area, low resistance pathways, and excellent ion and gas diffusion—making it ideal for battery, supercapacitor, and fuel cell R&D. Its robust mechanical properties further enable use in filtration, catalysis, and biomedical applications.

Key Features

Superior Corrosion Resistance
Outperforms copper and nickel foams under acidic and alkaline electrolyte exposure, ensuring long-term electrode stability.

High Porosity 3D Structure
Optimised 30–50% porosity with interconnected pores (10–160 µm) enhances material loading and active site accessibility.

Excellent Mechanical Integrity
Compressive strength of 4–6 MPa allows repeated cycling and mechanical durability during assembly.

Wide Research Applications
Suitable for batteries, fuel cells, catalysis, sensors, filtration, and chemical or biological engineering.

Customisable Dimensions
Available in standard 100 × 100 mm size; custom thicknesses (0.56–2.8 mm) and shapes available upon request.

Technical Specifications

Product Name Porous Titanium Foam
Brand Cell Lab
SKU CL0233
Package 1 piece
Material Titanium ≥99.99%
Density 0.5 – 1.0 g/cm³
Dimensions 100 mm × 100 mm (customisable)
Thickness 0.6 mm (customisable 0.56 – 2.8 mm)
Porosity 30 – 50%
Net Weight ~20 g
Pore Size 10 – 160 µm
Compressive Strength 4 – 6 MPa
Filtration Efficiency 98%

Applications & Industries

  • Lithium-ion and sodium-ion battery current collectors

  • Supercapacitor and solid-state electrolyte support

  • Hydrogen evolution and oxygen evolution electrocatalysis

  • Biomedical implants and tissue engineering scaffolds

  • Filtration and fluid separation in chemical processes

FAQ

Q1: What advantages does titanium foam have over nickel or copper foam?
Titanium offers superior corrosion resistance, biocompatibility, and mechanical strength in harsh environments.

Q2: Can this foam be used as an electrode substrate?
Yes. Its high porosity and conductivity make it ideal for current collectors and catalyst supports.

Q3: Is it suitable for high-temperature or high-pressure systems?
Yes. Titanium maintains structural integrity at elevated temperatures and under compression.

Q4: Can custom dimensions or densities be produced?
Absolutely. Custom pore size, density, and shape can be fabricated upon request.

Q5: How should the material be stored and handled?
Store in a dry, inert atmosphere. If surface oxidation occurs, mild acid etching can restore metallic lustre.
