Cell Lab Porous Nickel Foam [300 × 200 mm, 1.6 mm Thickness, 97% Porosity] – High-Performance Conductive Substrate for Battery & Catalytic Research

Cell Lab Porous Nickel Foam [300 × 200 mm, 1.6 mm Thickness, 97% Porosity] – High-Performance Conductive Substrate for Battery & Catalytic Research High-surface-area nickel foam for advanced energy storage, water splitting, and electrochemical R&D The Cell Lab Porous Nickel...
Vendor: Cell Lab
SKU: CL0218
Product type: Battery Consumables
£57.68
£57.68
Subtotal: £57.68
Description
Description
x

Cell Lab Porous Nickel Foam [300 × 200 mm, 1.6 mm Thickness, 97% Porosity] – High-Performance Conductive Substrate for Battery & Catalytic Research

High-surface-area nickel foam for advanced energy storage, water splitting, and electrochemical R&D

The Cell Lab Porous Nickel Foam is a battery-grade, high-conductivity metallic substrate designed for energy storage and catalytic research. With its 3D interconnected pore structure, 97% porosity, and superior mechanical strength, this nickel foam provides outstanding performance as a current collector, catalyst support, or electrode framework.

Ideal for lithium-ion batteries, supercapacitors, and electrocatalysis, it ensures efficient ion transport, gas diffusion, and long-term cycling stability. Its chemical durability and machinability make it an essential material for academic and industrial laboratories focused on energy materials innovation.

Key Features

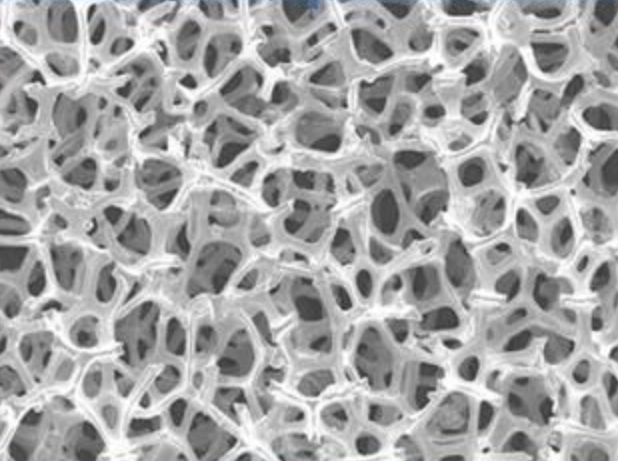

97% High Porosity with 110 PPI
Highly open-cell network (~0.25 mm pores) enables superior gas diffusion and electrolyte penetration for improved reaction kinetics.

Superior Mechanical Strength
Longitudinal tensile strength ≥ 95 N/cm² with elongation ≥ 5% ensures structural stability under compression and repeated cycling.

Excellent Electrochemical Performance
Compatible with a wide range of systems, including Li-ion, Na-ion, supercapacitors, and OER/HER catalysts.

Customisable Format and Thickness
Standard 300 × 200 × 1.6 mm sheet, with adjustable thickness options from 0.3 to 1.8 mm for different experimental setups.

Research-Proven Reliability
Widely cited in peer-reviewed publications for Ni₂P bifunctional catalysts and NiO/polyaniline-based Li-ion anodes.

Technical Specifications

Parameter Specification
SKU CL0218
Pack Size 1 piece
Material Nickel (≥99.80%)
Dimensions 300 mm x 200 mm (customisable)
Thickness 1.6 mm (customisable between 0.3–1.8 mm)
Net Weight 21 g
Surface Density 320 g/m²
Porosity 97%
Pore Density 110 PPI (~0.25 mm pore size)
Longitudinal Tensile Strength ≥95 N/cm²
Longitudinal Elongation ≥5%
Transverse Tensile Strength ≥60 N/cm²
Transverse Elongation ≥10%
Chemical Composition Ni ≥99.80%, Fe ≤0.02%, C ≤0.03%,
P ≤0.2%, Cu ≤0.01%, Si ≤0.005%, S ≤0.008%

Applications & Industries

  • Battery R&D – Current collector or scaffold for anodes/cathodes

  • Catalyst Support – Substrate for Ni-based, Co-based, or noble metal electrocatalysts

  • Water Splitting – OER/HER electrode substrate

  • Supercapacitors – Conductive skeleton for high-power charge storage

  • Energy Materials Research – Electrode architecture and 3D structured materials

FAQ

Q1: Can this foam be used as a current collector for lithium-ion batteries?
Yes, its high conductivity and corrosion resistance make it ideal for Li-ion, Na-ion, and supercapacitor electrodes.

Q2: What is the pore size and porosity level?
Approximately 0.25 mm pore size with 97% porosity, optimised for efficient ion transport.

Q3: Is it suitable for water-splitting research?
Absolutely. It’s a preferred substrate for Ni₂P, NiFe, and Co-based bifunctional catalysts.

Q4: Can the size or thickness be customised?
Yes. Cell Lab provides tailored dimensions and PPI values for specialised research needs.

Q5: How should it be cleaned before use?
Rinse with dilute acid or ethanol to remove surface oxides before electrode fabrication.
