Cell Lab Porous Copper Foam [High Conductivity Substrate for Battery & Thermal Applications] – Battery-Grade Conductive Copper Foam for Energy and Heat Management

Exceptional conductivity and high porosity for advanced energy storage, catalysis, and thermal systems

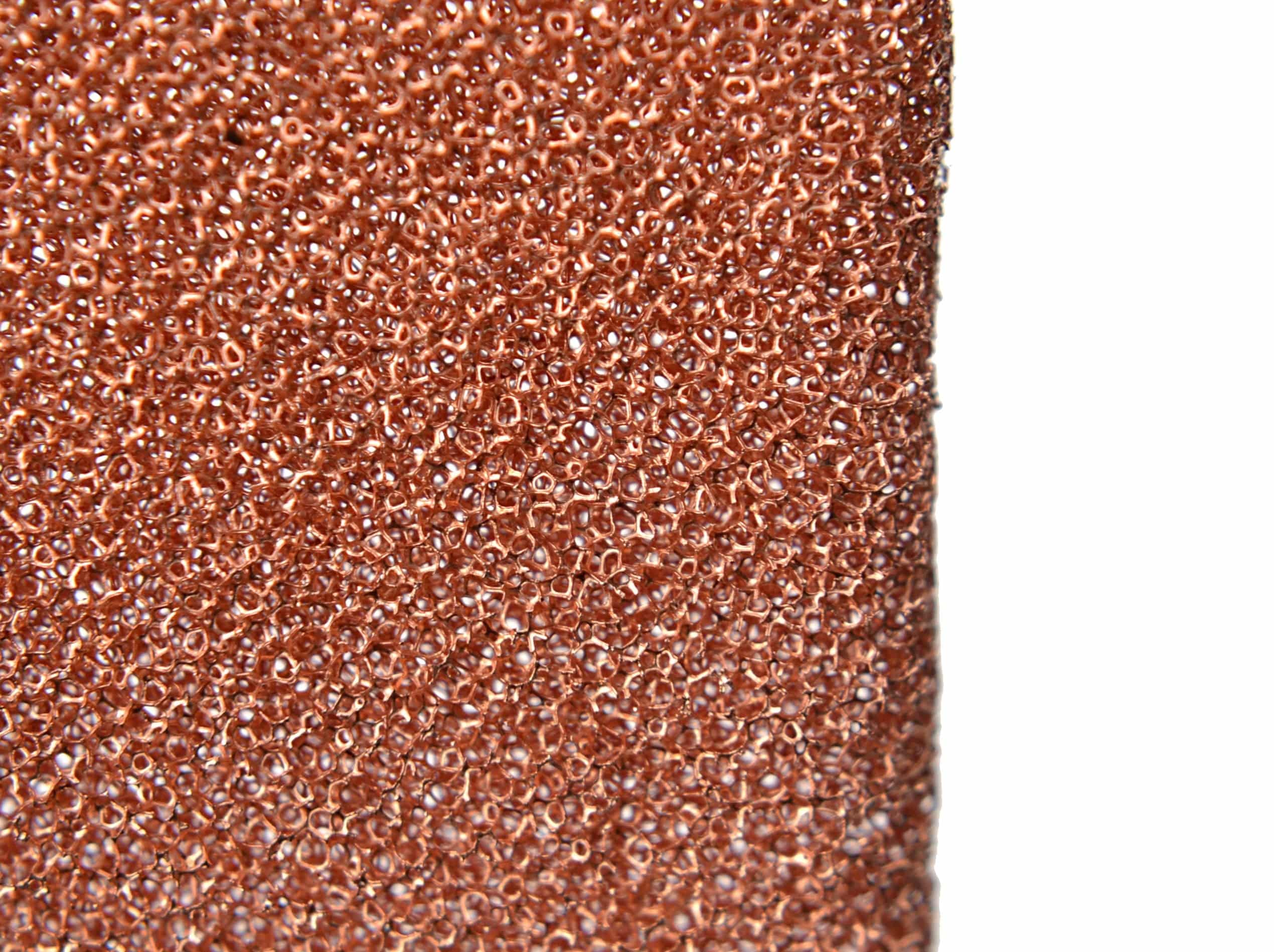

The Cell Lab Porous Copper Foam is a high-purity (≥99.99%) copper substrate designed for cutting-edge applications in energy storage, catalysis, and heat dissipation. Featuring a 3D open-cell architecture with 98% porosity and 110 PPI, this material provides an extensive surface area for efficient electron transport, rapid ion diffusion, and enhanced thermal conduction.

Engineered for lithium-ion batteries, supercapacitors, fuel cells, and thermal management systems, this copper foam supports uniform material deposition, in-situ electrode growth, and improved heat dissipation. Its combination of high conductivity and structural integrity makes it ideal for both research environments and industrial-scale energy device manufacturing.

Key Features

High Electrical & Thermal Conductivity
Exceptional charge transport and heat dissipation for energy storage and cooling applications.

Optimised 3D Porous Structure
110 PPI with 98% porosity ensures large surface area and uniform material distribution.

High-Purity Copper (≥99.99%)
Delivers consistent electrochemical performance and long-term structural stability.

Multi-Functional Substrate
Perfect for battery electrodes, fuel cells, heat sinks, catalyst supports, and electroplating applications.

Customisable Dimensions
Standard size 300 × 200 mm × 1.6 mm; alternative thicknesses and sheet dimensions available upon request.

Technical Specifications

Product Name Porous Copper Foam
Brand Cell Lab
SKU CL0231
Package 1 piece
Material Copper ≥99.99%
Dimensions 300 mm × 200 mm (customisable)
Thickness 1.6 mm (customisable)
Surface Density 600 g/m²
Porosity 98%
Pores Per Inch (PPI) 110
Pore Size ~0.15 mm

Applications & Industries

  • Lithium-ion, sodium-ion, and solid-state battery electrodes

  • Supercapacitors and hybrid energy storage systems

  • Fuel cells and catalyst substrate supports

  • Thermal management and heat sink assemblies

  • Chemical catalysis and electroplating structures

FAQ

Q1: Why choose copper foam over nickel or aluminium foam?
Copper offers significantly higher electrical and thermal conductivity, making it ideal for high-current or heat-dissipating systems.

Q2: Can this material be used as a current collector?
Yes. Its conductivity and structural rigidity make it a premium choice for current collectors in both cathode and anode systems.

Q3: Is this foam suitable for supercapacitor electrode growth?
Absolutely. Its 3D network promotes uniform coating and superior charge distribution.

Q4: Can I request thicker sheets or continuous rolls?
Yes. Custom thicknesses (0.3–3.0 mm) and roll formats can be produced to order.

Q5: How should the foam be stored and handled?
Store in a dry, low-humidity environment. If mild oxidation occurs, surface cleaning with dilute acid can restore brightness and conductivity.
