Cell Lab Polyvinylidene Fluoride (PVDF) [High Purity Binder, ≥99.6%] – Battery-Grade PVDF Powder for Cathode and Anode Fabrication

High-performance electrode binder for advanced lithium-ion battery research

The Cell Lab Polyvinylidene Fluoride (PVDF) is a high-purity, battery-grade fluoropolymer binder designed for electrode material mixing and coating in lithium-ion battery R&D and pilot production. Offering ≥99.6% purity, excellent chemical stability, and complete solubility in N-Methyl-2-pyrrolidone (NMP), this binder delivers strong adhesion and superior slurry rheology for both cathode and anode applications.

Engineered for use in LiCoO₂, NMC, LFP, graphite, and Si-C systems, Cell Lab PVDF ensures uniform electrode coatings, enhanced mechanical integrity, and excellent cycle stability even under high-voltage or elevated-temperature conditions.

Key Features

High Purity Binder
≥ 99.6 % purity ensures consistent electrochemical performance with minimal impurity-induced side reactions.

Excellent NMP Solubility
Completely dissolves in NMP to form a clear transparent solution for smooth slurry mixing.

Strong Adhesion and Flexibility
Provides durable binding between active materials and current collectors for long-cycle stability.

Superior Thermal and Chemical Stability
Resists common electrolyte solvents and maintains performance up to 160–168 °C.

Optimised Viscosity Control
High rheological consistency (≥ 2000 mPa·s) for uniform film formation and repeatable coating quality.

Technical Specifications

Parameter Specification Testing Standard
SKU CL0225 —
Package Size 100 g per bottle —
CAS Number 24937-79-9 —

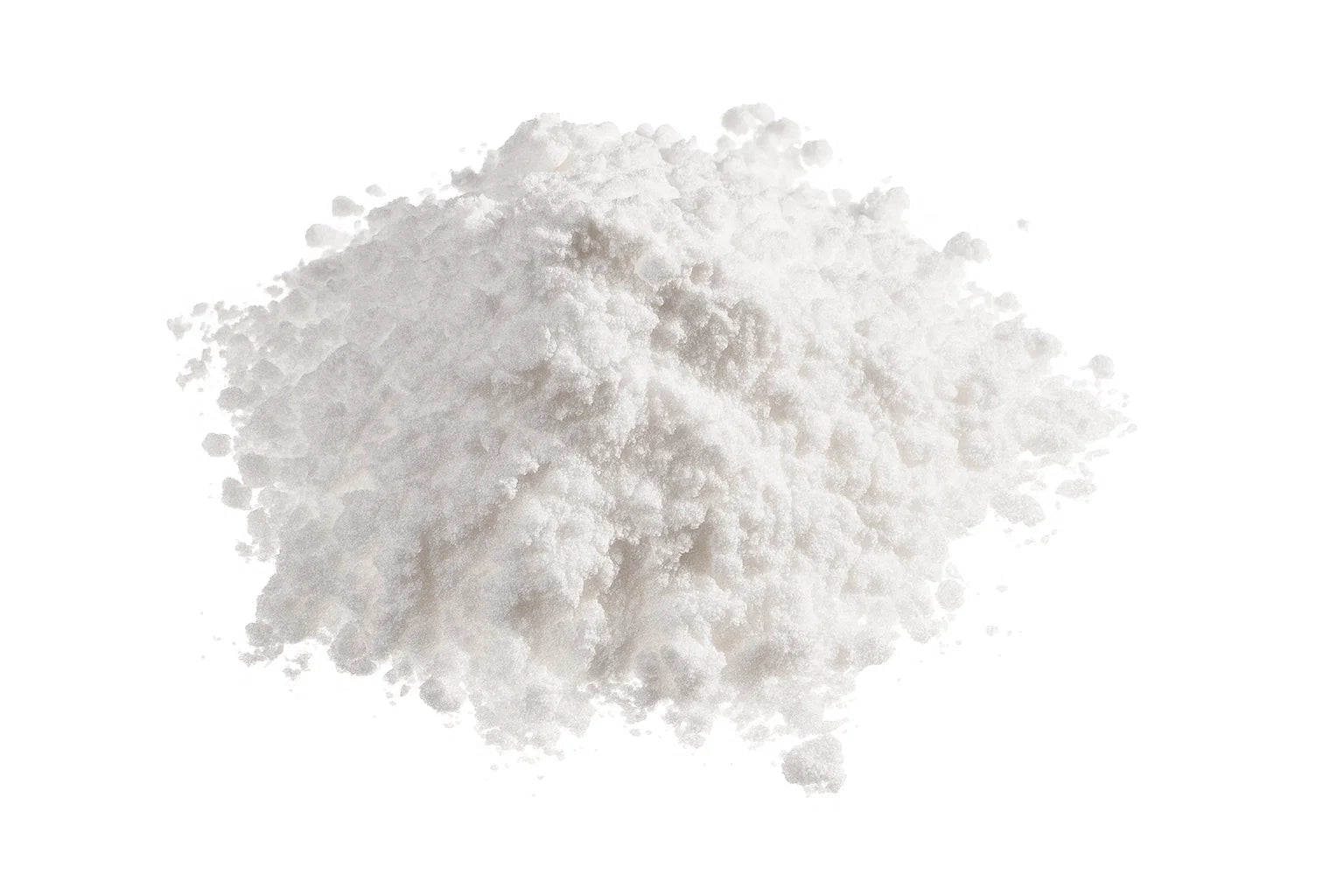

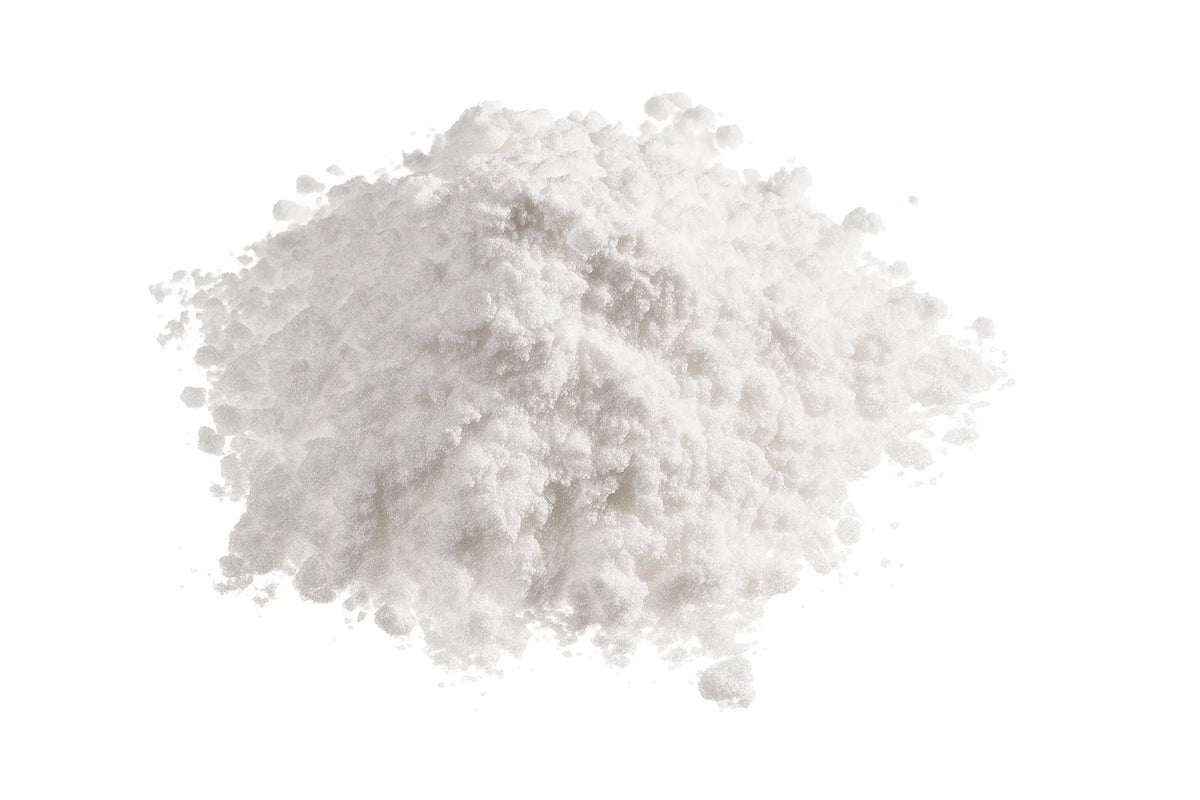

Appearance White powder Visual
Purity ≥99.6% —
Density 1.75–1.78 g/cm³ ISO 1183
Dielectric Constant 4.50–5.50 @ 100 MHz
8.00–9.50 @ 100 Hz		 ASTM D150
Melting Point 160–168 °C ASTM D3418
Melt Flow Index 1–2 g/10 min —
Solubility Transparent solution
(1 g/mL NMP, 30 °C, 1 hr)		 —
Rotational Viscosity ≥2000 mPa·s
(1 g/mL NMP, 30 °C)		 —
Intrinsic Viscosity 0.27–0.37 dL/g DMA, 30 °C
Moisture ≤0.1% Karl Fischer
Molecular Weight ~1,000,000 ASTM D5296-05

Applications & Industries

  • Lithium-ion battery cathode and anode slurry binder

  • High-energy NMC, LFP and graphite cell formulations

  • Electrode tape casting and pilot production lines

  • Solid-state and next-generation battery research

  • General polymer and coating R&D applications

FAQ

Q1: Is this PVDF binder suitable for water-based systems?
No. This grade is NMP-soluble and intended for organic solvent systems. For aqueous binders, consider Cell Lab LA133.

Q2: What is the recommended binder content in electrode slurries?
Typically 2 – 5 % for anodes and 1.5 – 4 % for cathodes, depending on active material type.

Q3: Can this material be used for solid-state batteries?
Yes. It is often used as a matrix polymer or binder in solid-electrolyte interfaces.

Q4: How should PVDF be stored?
Keep sealed in a dry, cool place below 38 °C to prevent moisture absorption and viscosity change.

Q5: Does it require pre-baking before slurry mixing?
Pre-baking is optional but recommended (80 – 100 °C, 2 h) to ensure complete moisture removal.
