Cell Lab Polyurethane (PU) Roller Mill Grinding Jars [0.5 L – 20 L]

Cell Lab Polyurethane (PU) Roller Mill Grinding Jars [0.5 L – 20 L] Durable, Cost-Effective PU Jars for Roller Ball Mill Grinding Applications The Cell Lab Polyurethane Roller Mill Grinding Jars offer abrasion resistance, low contamination risk, and chemical stability—ideal...
Vendor: Cell Lab
SKU: CL0421
Product type: Milling Jars
£149.00
£149.00
Volume: 0.5 L
Subtotal: £149.00
Description
Description
x

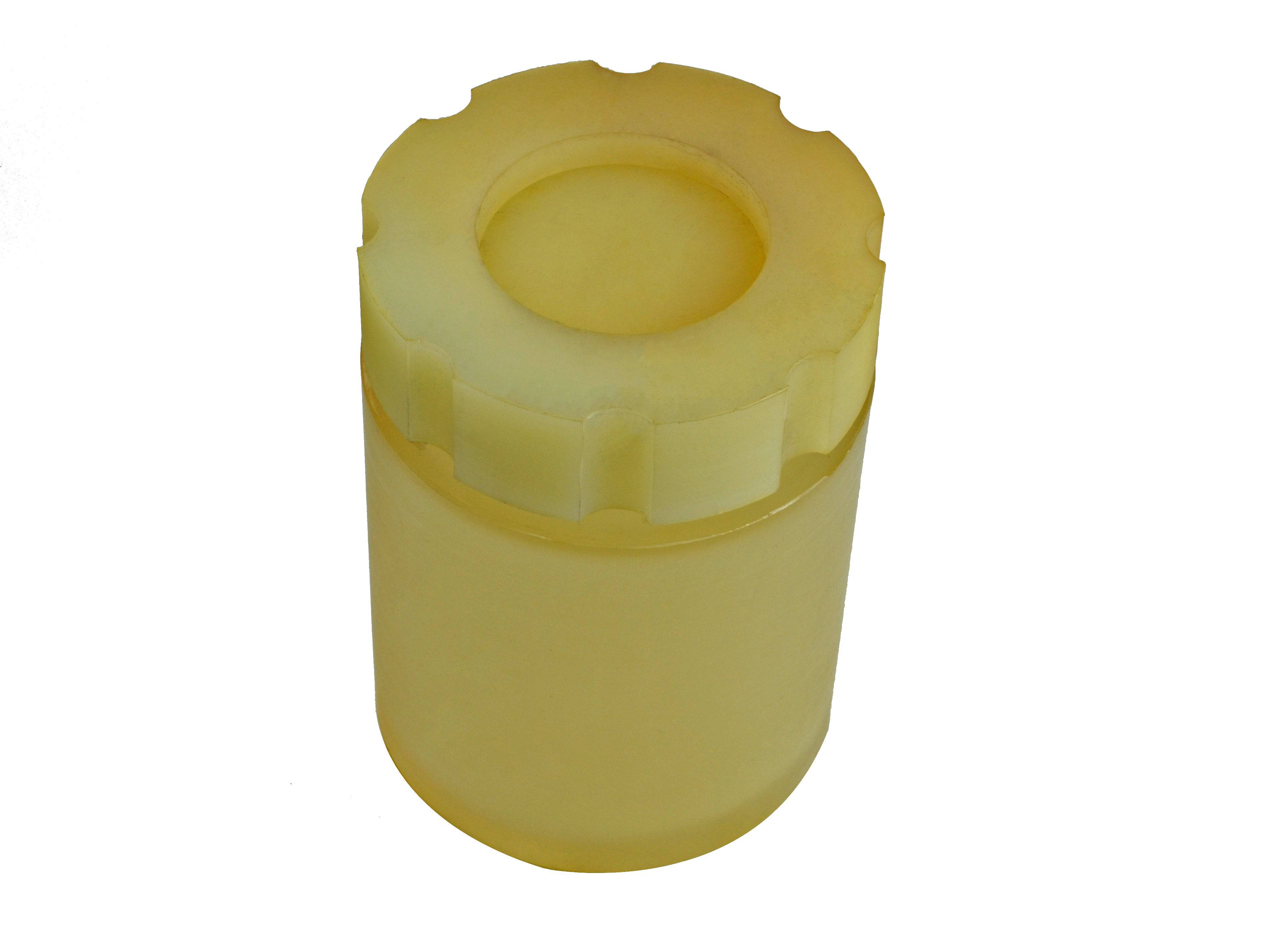

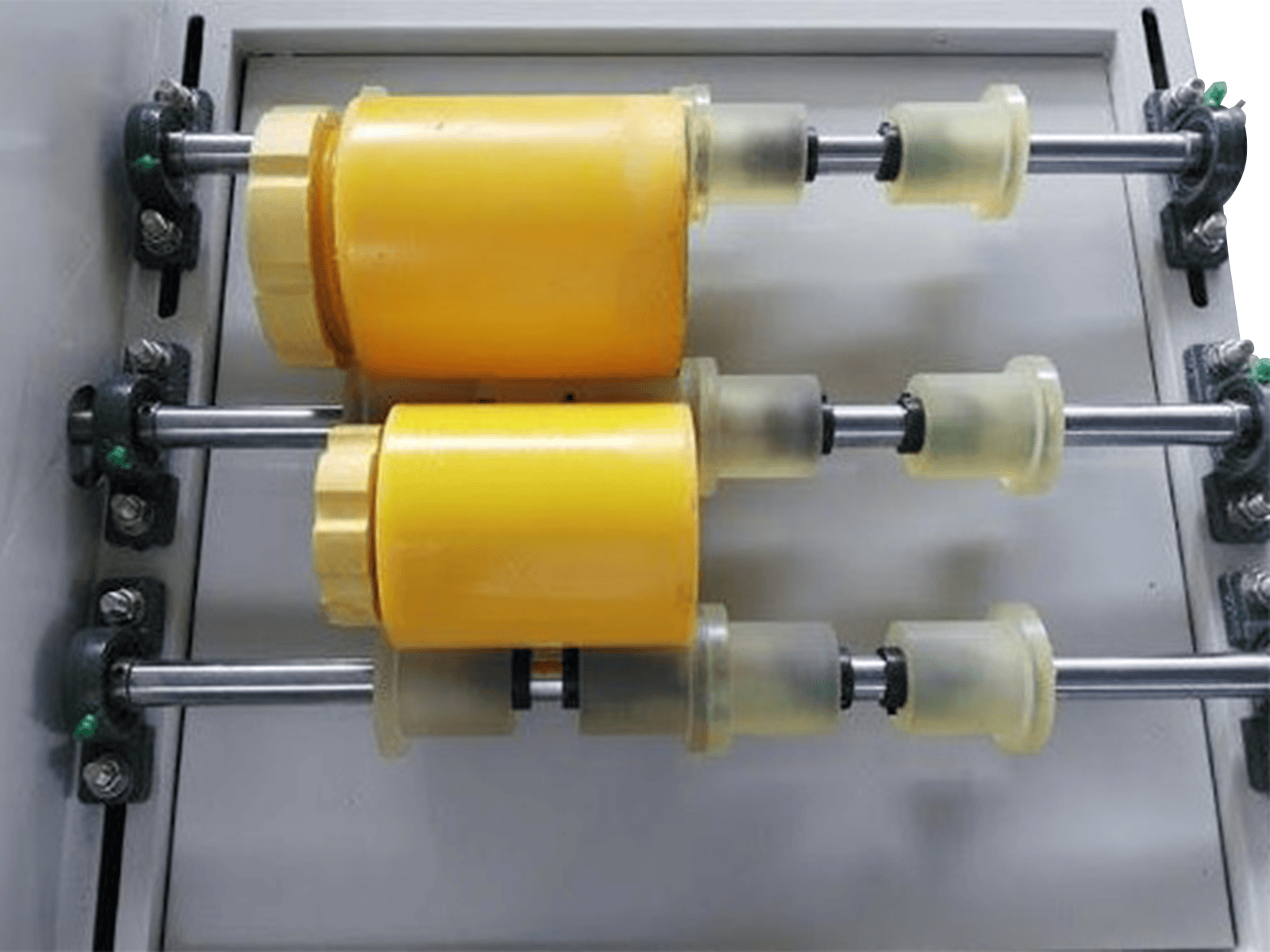

Cell Lab Polyurethane (PU) Roller Mill Grinding Jars [0.5 L – 20 L]

Durable, Cost-Effective PU Jars for Roller Ball Mill Grinding Applications

The Cell Lab Polyurethane Roller Mill Grinding Jars offer abrasion resistance, low contamination risk, and chemical stability—ideal for medium-hard or caustic samples in R&D laboratories, especially in the UK, EU & US. Available in sizes from 0.5 L to 20 L, they feature anti-leak design, thick wall structures, and lid/gasket or clamp attachments. Optimised for roller ball mills where stainless steel or zirconia media are desired but metal jar contamination is a concern.

Key Features

  • Material: Polyurethane (PU), which provides low metal contamination, flexibility, and chemical tolerance.

  • Size range: from 0.5 L to 20 L, supporting both small lab batches and larger pilot scale work.

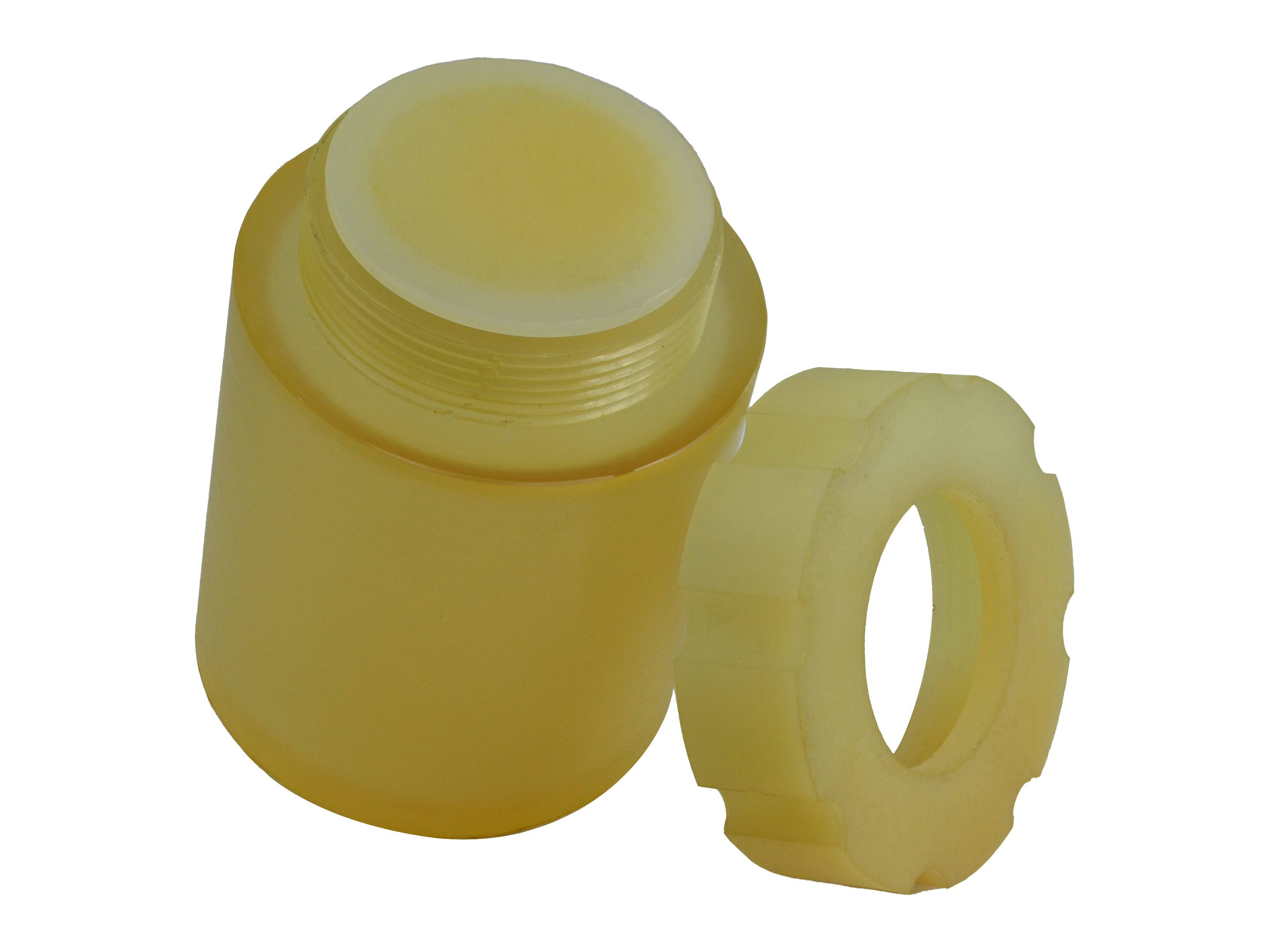

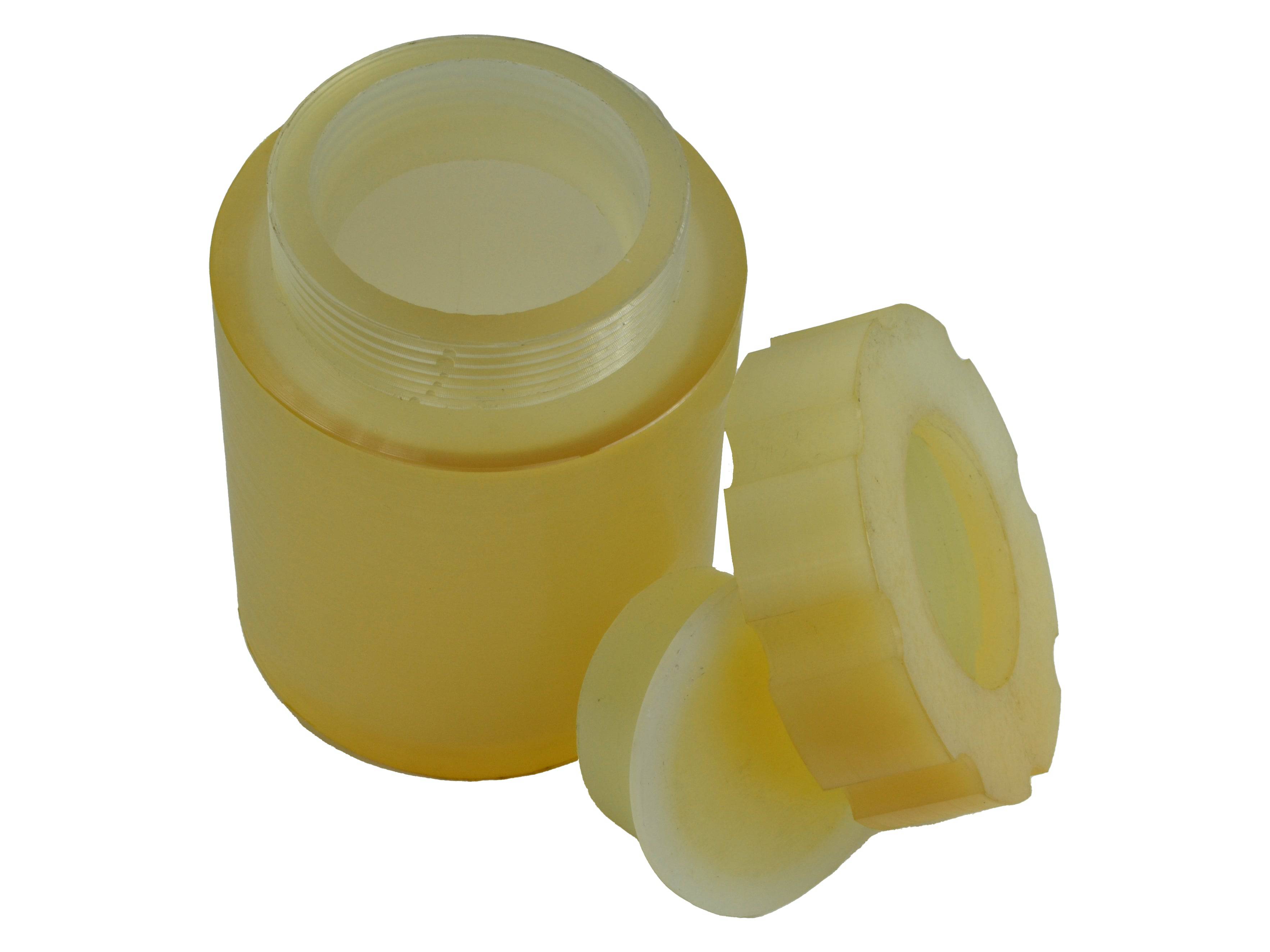

  • Leak-resistant: screw or clamp lids with silicon or gasket sealing.

  • Thick wall design for durability and long service life.

  • Suitable for caustic/abrasive samples, compatible with stainless steel or zirconia grinding balls.

Technical Specifications

SKU / Model

Volume (L)

Outer Diameter (mm)

Height / Depth (mm)

Net Weight (kg)

Max Loading Capacity

Density

Compatible Grinding Balls

CL0421

0.5

／

／

0.6

≤ 2⁄3 jar volume

1.14 g/cm3

stainless steel balls or zirconium oxide balls

CL0422

1

130

161

0.974

CL0423

2

155

196

1.65

CL0424

3

170

246

2.23

CL0425

5

200

290

2.93

CL0426

10

255

320

12.4

CL0427

12

／

／

／

CL0428

15

／

／

15.61

CL0429

20

／

／

21.11

Applications & Industries

Used in lab / pilot-scale settings for abrasive or caustic samples where metal jar contamination is undesirable, such as:

  • Battery & electronics R&D – polymer separator materials, electrode mixes

  • Pigment production & ceramics – oxide particles, colorants

  • Chemical labs – catalysts, abrasives

  • Material science – composites, coatings

FAQ

Q1: Can polyurethane jars handle wet milling?
A: Yes, Polyurethane jars with solid sealing lids/clamps are used for both wet and dry roller milling, especially for non-metallic or abrasive applications.

Q2: How to choose the correct jar size?
A: Pick jar volume that matches the roller mill holder and machine configuration. Aim for ≤ 2⁄3 of jar volume loaded (media + sample) for optimal performance.

Q3: Is PU material chemically stable?
A: PU is resistant to many caustic / abrasive conditions, though for strong acids or oxidisers, stainless steel or zirconia jars may be preferred.
