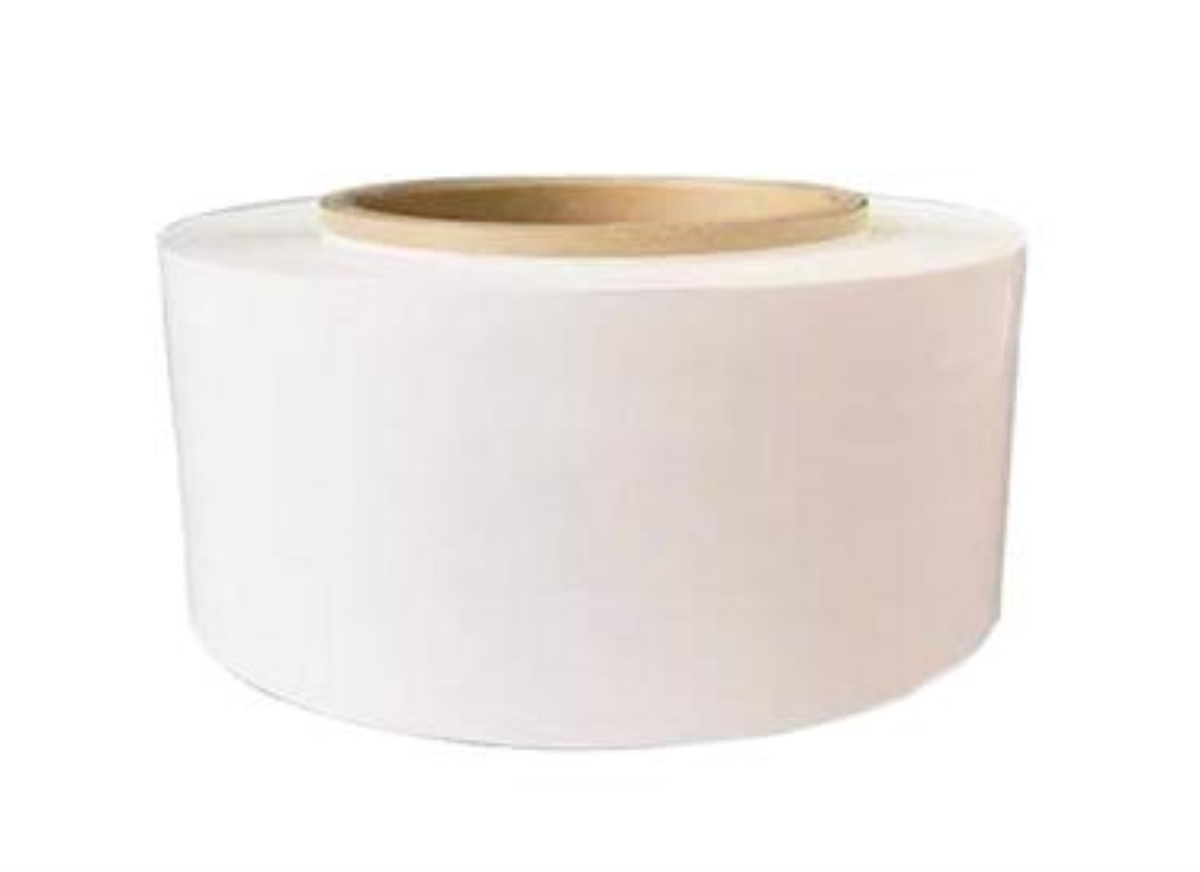

Cell Lab Polyethylene (PE) Battery Separator Roll [Wet Process]

Cell Lab Polyethylene (PE) Battery Separator Roll [Wet Process] Microporous PE separator film for high-performance lithium-ion batteries The Cell Lab Polyethylene (PE) Battery Separator Roll is produced via the wet stretching process to achieve superior porosity, mechanical strength and thermal...
Vendor: Cell Lab
SKU: CL0054
Product type: Battery Consumables
£209.00
£209.00
Subtotal: £209.00
Description
Description
x

Cell Lab Polyethylene (PE) Battery Separator Roll [Wet Process]

Microporous PE separator film for high-performance lithium-ion batteries

The Cell Lab Polyethylene (PE) Battery Separator Roll is produced via the wet stretching process to achieve superior porosity, mechanical strength and thermal stability. Designed for lithium-ion and next-generation battery applications, it offers excellent electrolyte wettability and uniform microporous structure that enhance ion transport and charge–discharge efficiency.

This separator provides balanced performance between safety, conductivity and cost-effectiveness, making it ideal for both laboratory research and mass production of energy-storage cells. Its low thermal shrinkage and high puncture strength ensure reliability even under stress conditions.

Key Features

  • Outstanding Mechanical Strength – Resists tearing and mechanical damage during electrode winding and cell stacking.

  • Excellent Chemical Resistance – Stable against electrolytes and oxidising environments for long-term performance.

  • High Electrical Insulation – Prevents internal short circuits and maintains uniform current distribution.

  • Thermal Shrinkage Control – Controlled shutdown response enhances battery safety at elevated temperatures.

  • Uniform Microporous Structure – Improves ionic conductivity and enhances energy density consistency.

  • Cost-Effective Production – Suitable for R&D evaluation and large-scale battery manufacturing lines.

Specifications:

Property Value
Material Polyethylene (PE)
Thickness 20 μm
Width 60 mm
Roll Length 1000 m / pack
Porosity 42 ± 3%
Air Permeability 350 ± 100 s / 100 mL
Puncture Strength ≥ 400 g
Tensile Strength ≥ 1400 kgf/cm² (MD) / ≥ 1300 kgf/cm² (TD)

Applications & Industries

  • Lithium-ion and polymer battery cells

  • Solid-state and hybrid electrolyte systems

  • Energy-storage modules and EV batteries

  • Pouch cell and cylindrical cell manufacturing

  • R&D laboratories and pilot-scale battery production

FAQ

Q1: What is the advantage of the wet process over the dry process?
A1: The wet process produces a more uniform microporous structure and better mechanical stability, ideal for high-energy-density cells.

Q2: Can this separator be used with NCM and LFP chemistries?
A2: Yes. It is chemically compatible with NCM, NCA, LFP, LMO and graphite anodes.

Q3: Does it support high-voltage electrolytes?
A3: Yes. Its excellent oxidation resistance allows use in cells above 4.3 V.

Q4: Can it be laminated with ceramic coating for extra thermal protection?
A4: Yes, PE base films are suitable for ceramic coating or multi-layer separator composites.

Q5: What storage conditions are recommended?
A5: Store in a dry, clean environment below 40 °C and below 65 % relative humidity to prevent moisture uptake.
