Polished Tungsten Carbide (WC-Co) Grinding & Milling Media Balls 1 kg

Cell Lab Polished Tungsten Carbide (WC-Co) Grinding & Milling Media Balls — 1 kg Packs Wear-resistant, high-density polishing balls for precision metal powder refining & hard material milling Cell Lab’s polished tungsten carbide (WC-Co) media balls are engineered for high...
Vendor: Cell Lab
SKU: CL0476
Product type: Milling Jars
£339.00
£339.00
Diameter (mm): 3 mm
Subtotal: £339.00
Description
Description
x

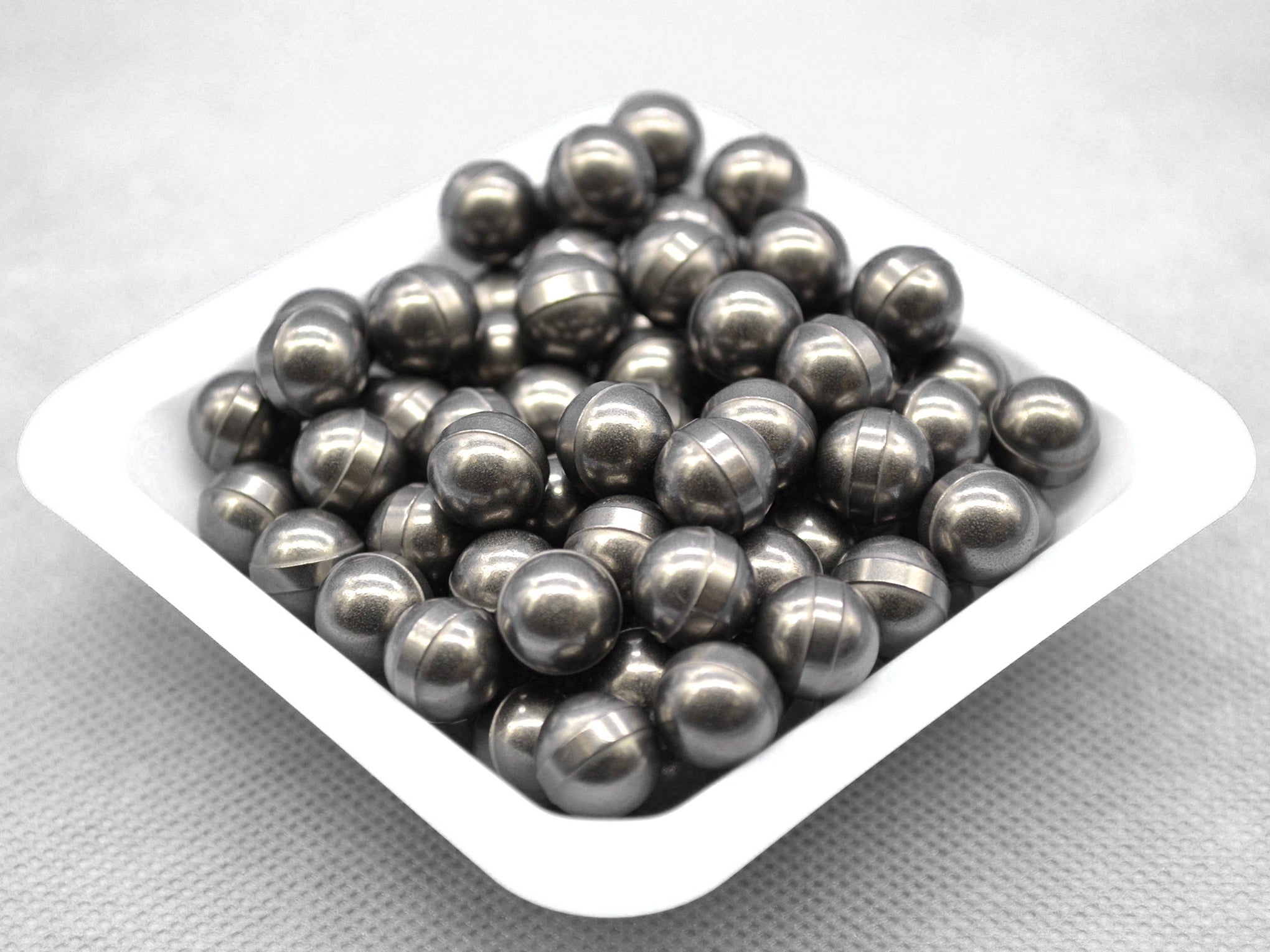

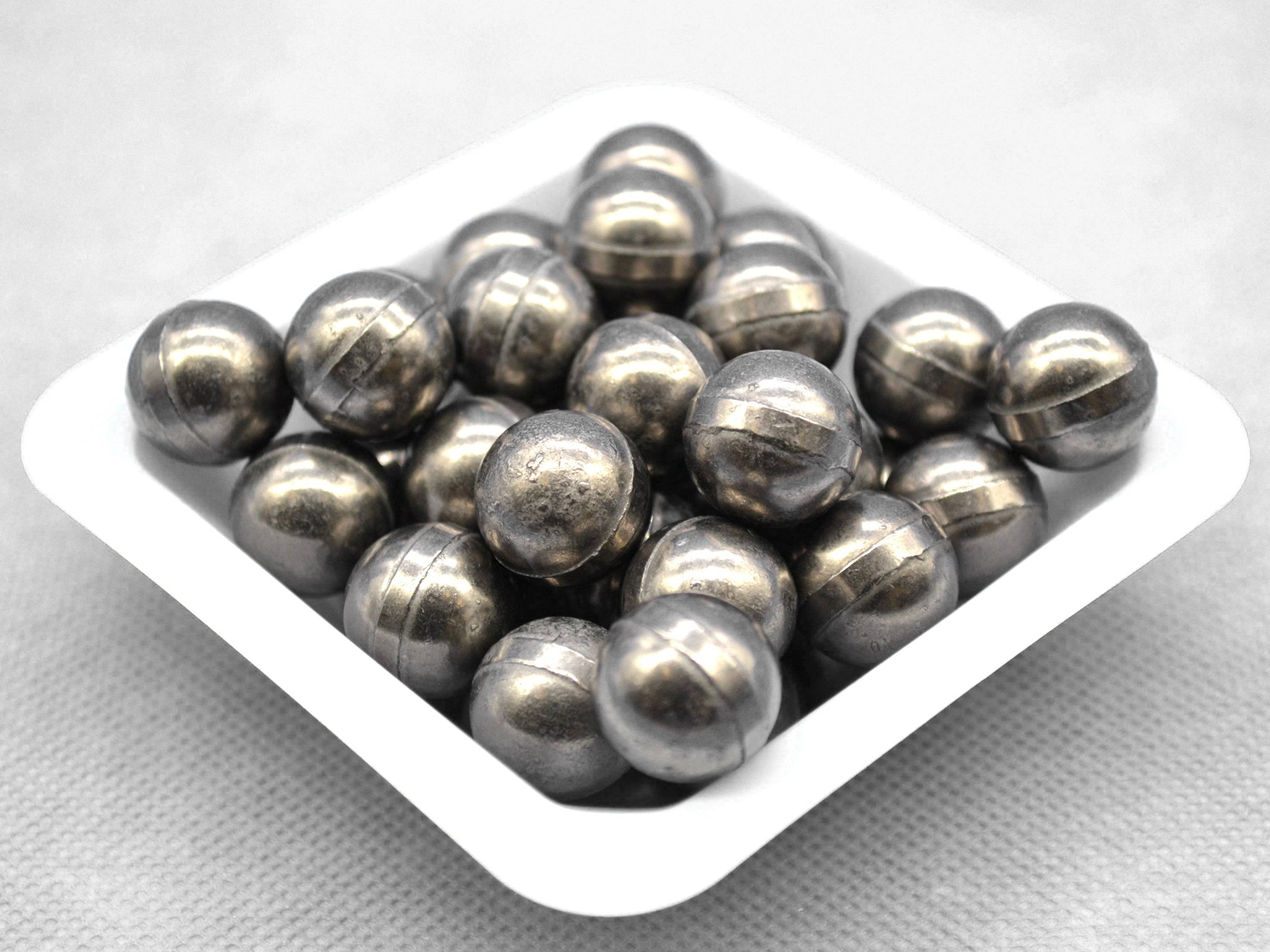

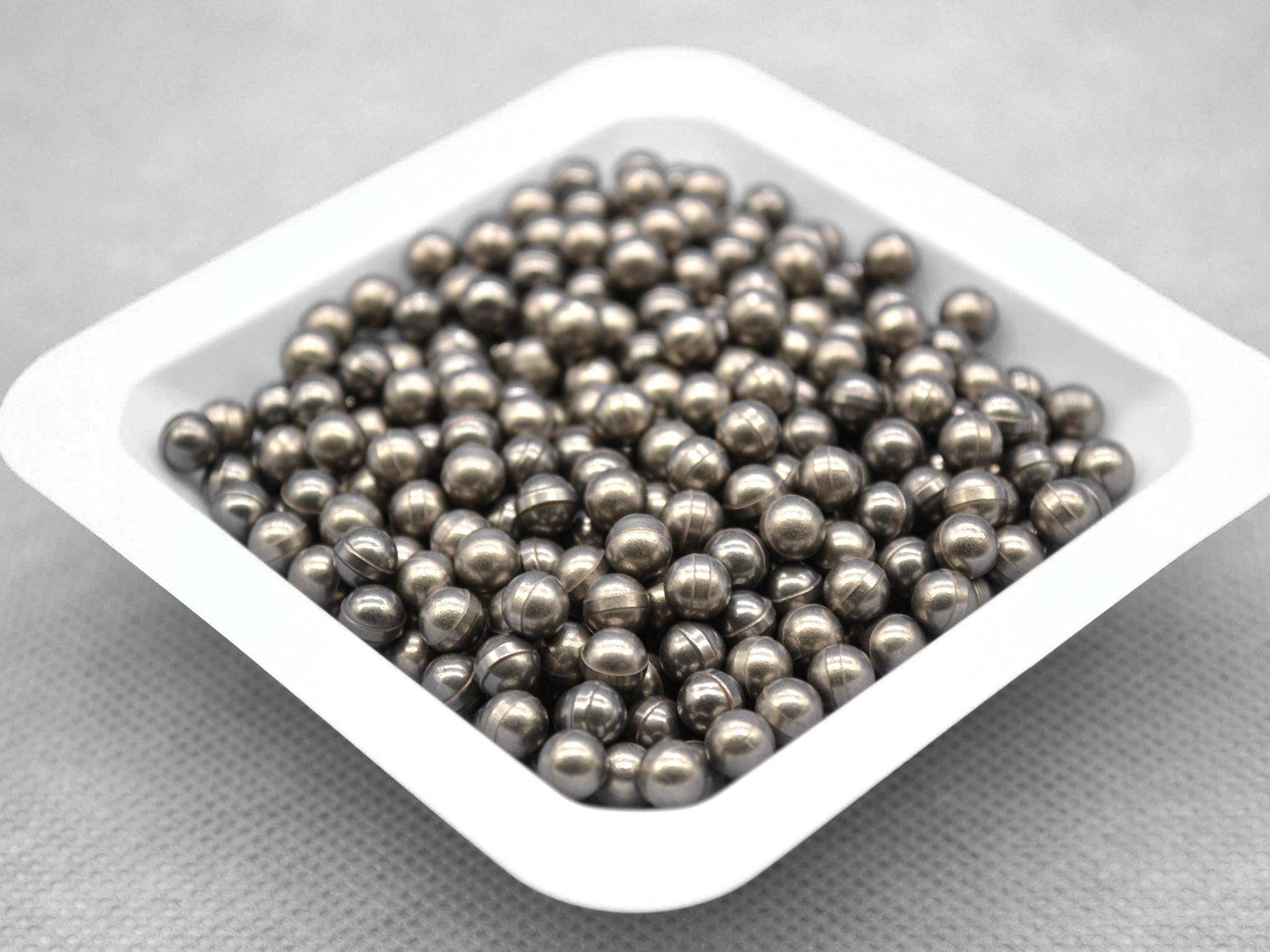

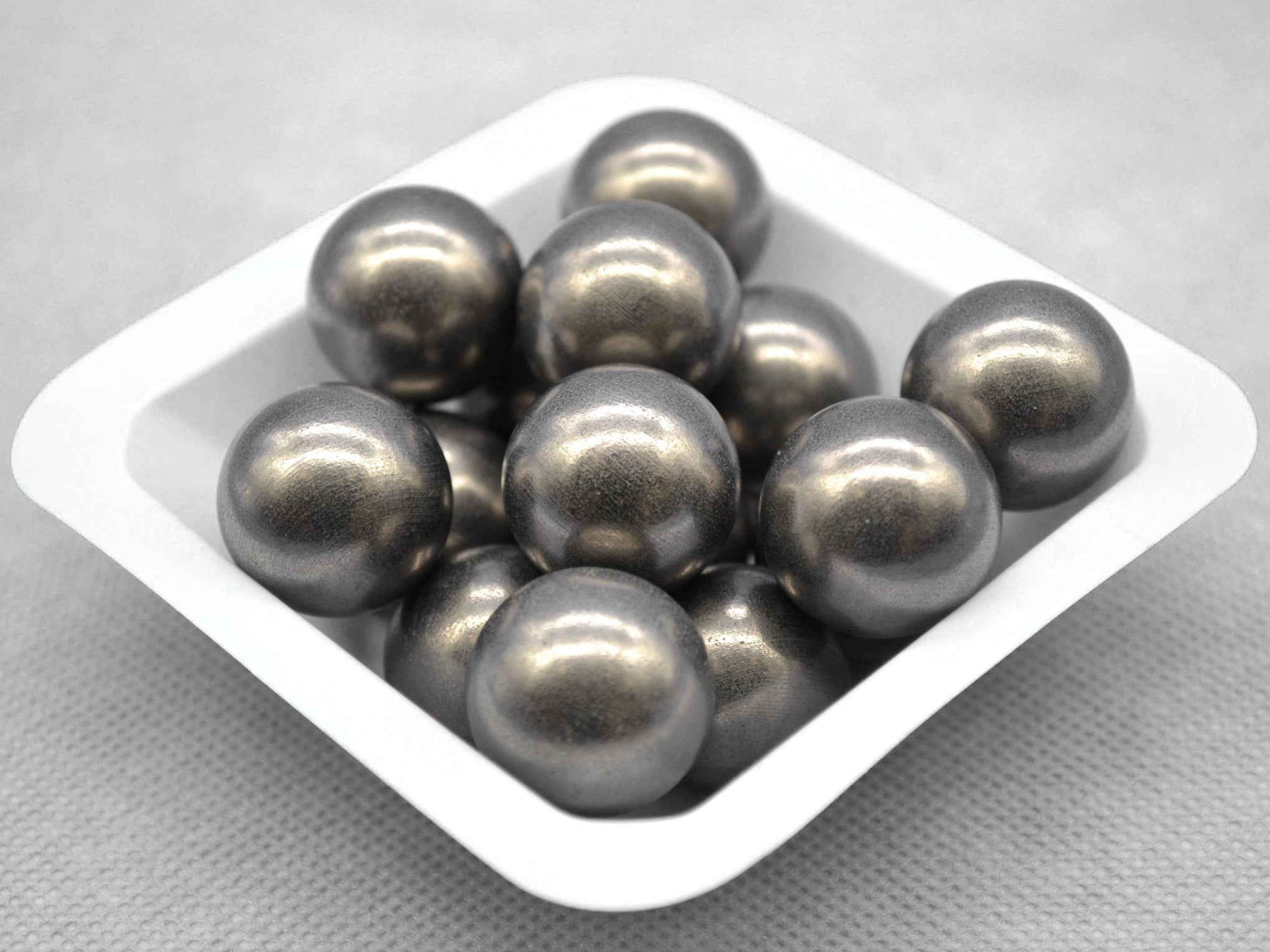

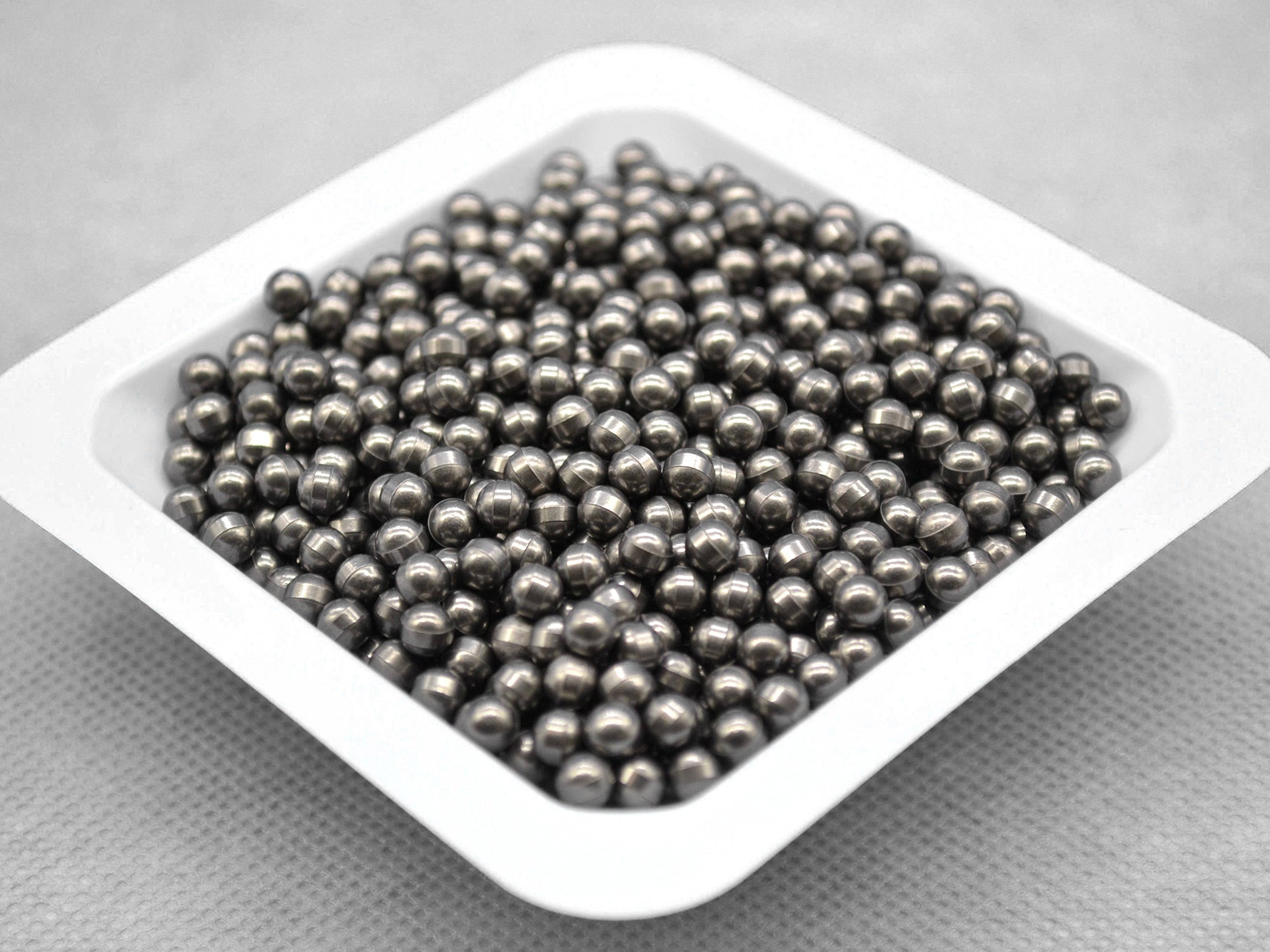

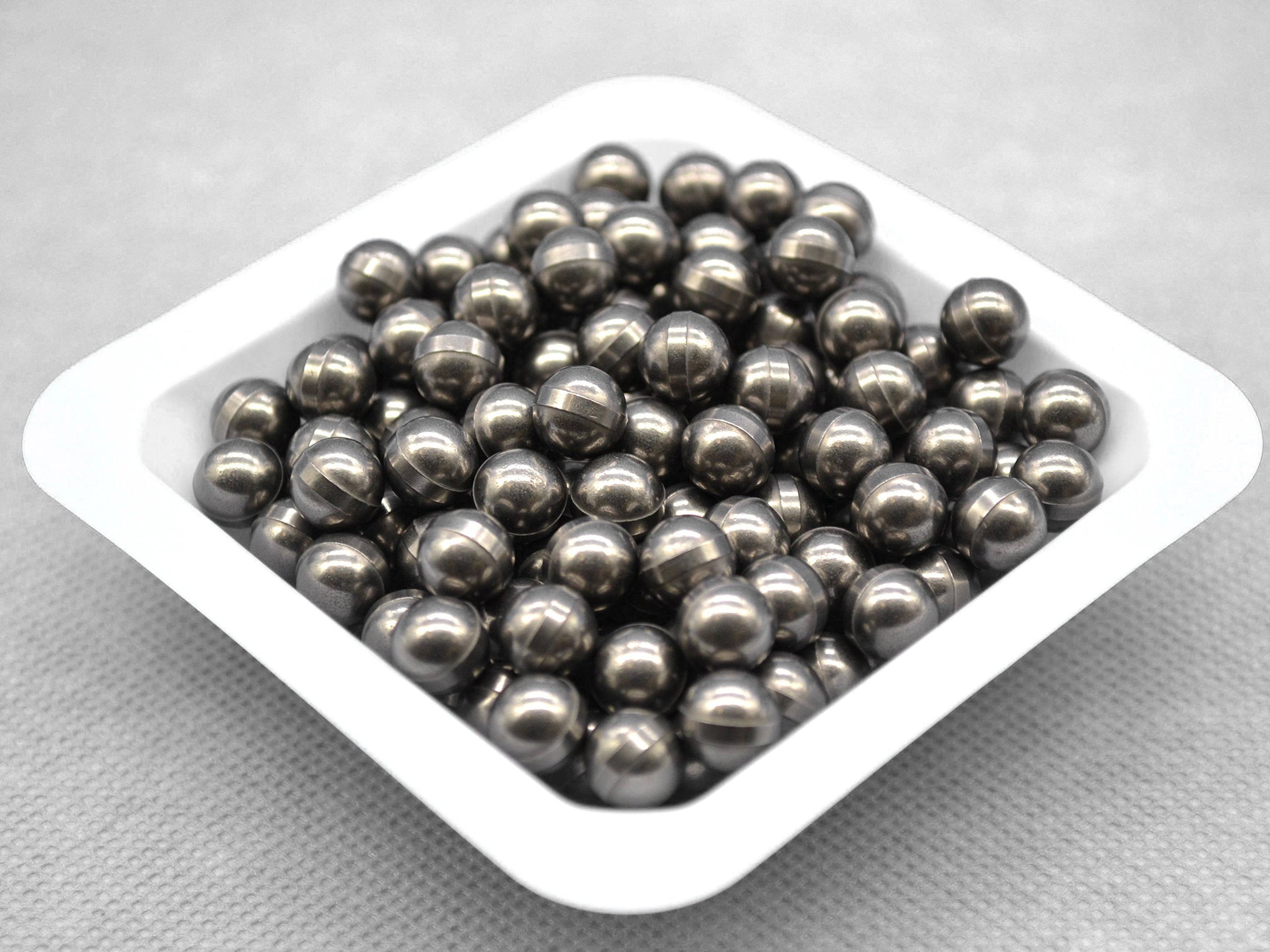

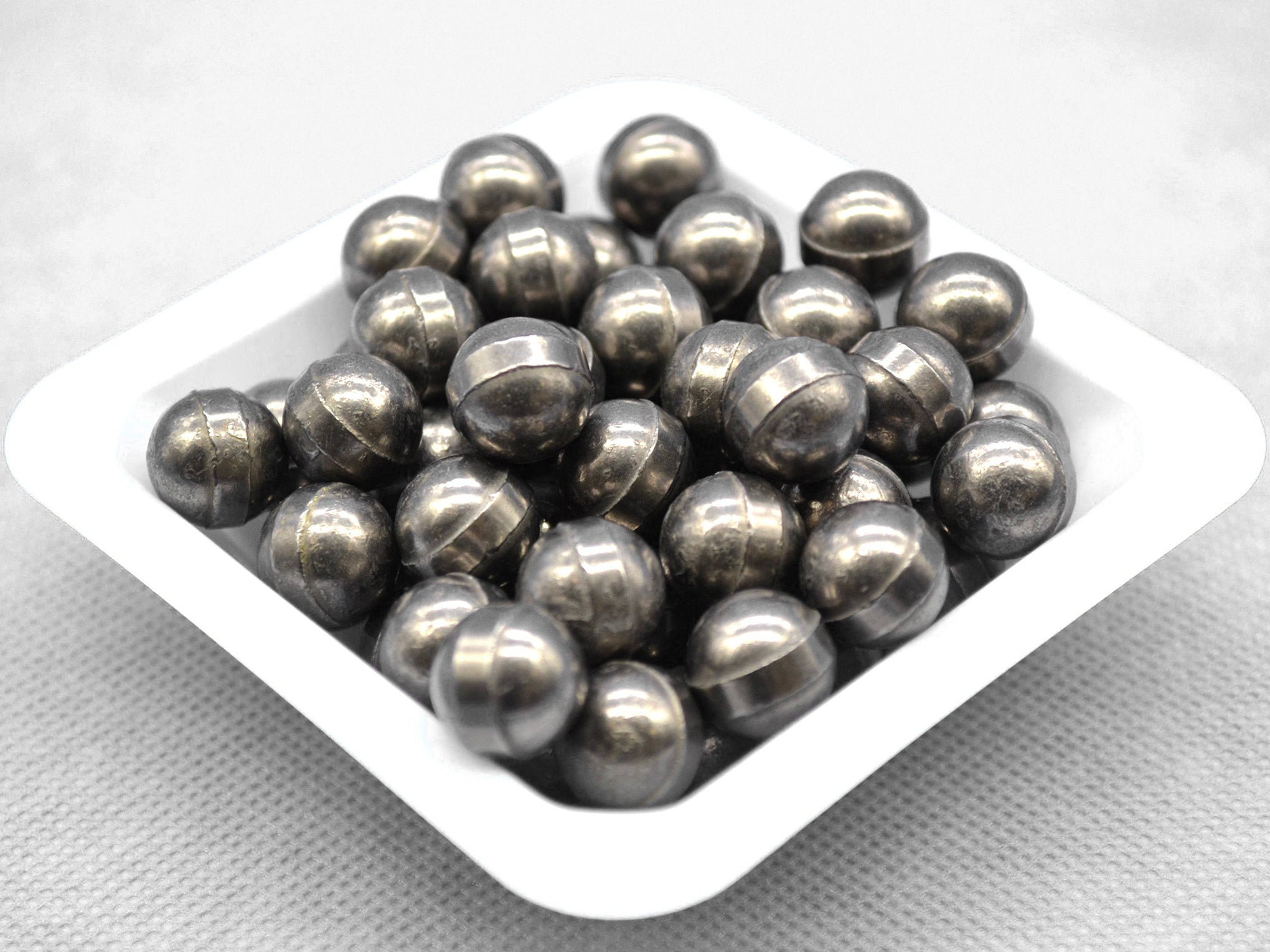

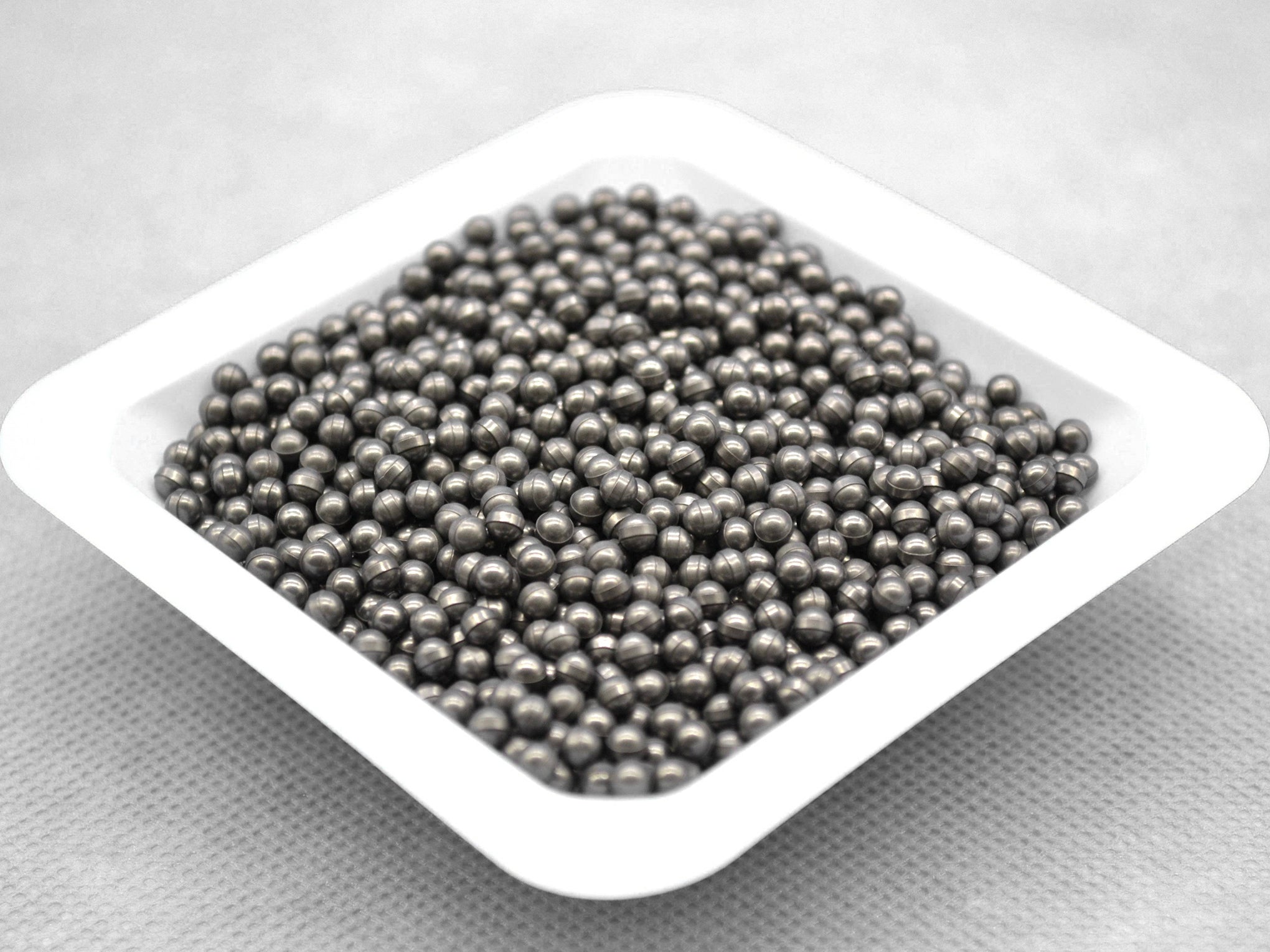

Cell Lab Polished Tungsten Carbide (WC-Co) Grinding & Milling Media Balls — 1 kg Packs

Wear-resistant, high-density polishing balls for precision metal powder refining & hard material milling

Cell Lab’s polished tungsten carbide (WC-Co) media balls are engineered for high hardness, excellent wear resistance, and chemical stability against acid and alkali environments. These wear-resistant milling balls are ideal for planet­ary ball milling, metal powder refining, ceramic grinding, electronics, paints, inks, battery materials R&D, mining, and chemical engineering where particle size uniformity and minimal contamination are essential.

Key Features (with SEO Keywords)

  • High hardness (＞ 90 HRA) & polished WC-Co balls — reduces wear and delivers consistent performance.

  • High density (14.95 g/cm³) milling media balls for strong impact and faster size reduction.

  • Excellent abrasion & wear resistance, acid/alkali and oxidation stable—longer lifespan in harsh milling of hard materials.

  • Broad size options within 3–20 mm range in 1 kg packs—supports mixing for both coarse and fine grinding phases.

  • Ideal for planetary ball milling, metal powder refining, ceramics, pigments, geology, and battery material formulations.

General Specifications (all variants, 1 kg packs)

  • Material: WC-Co (tungsten carbide–cobalt)

  • Density: 14.95 g/cm³

  • Shape: Spherical, polished finish

  • Hardness: > 90 HRA

  • Compatible samples: hard, abrasive materials

  • Suitable grinding jars: tungsten carbide jars

  • Available sizes (diameters): 3, 4, 5, 8, 10, 12, 15, 20 mm

Variant Specifications (1 kg Packs Only)

Diameter (mm) Product SKU (1 kg) Approx. Count / Balls per kg Notes
3 mm CL0476 ~ 4,735 balls Very fine grinding, high count for uniformity
4 mm CL0477 ~ 2,000 balls Balanced size; common for medium-fine milling
5 mm CL0478 ~ 1,023 balls Mix/coarse tasks; good for faster throughput
8 mm CL0479 ~ 250 balls Larger impacts; good for coarse reduction or pre-grind
10 mm CL0480 ~ 128 balls Coarser media; fewer balls per kg; higher impact per ball
12 mm CL0481 ~ 74 balls Coarse; heavy impact; use carefully to avoid overheating
15 mm CL0482 ~ 38 balls Very coarse reduction; effective for chunky feed or pre-crushed material
20 mm CL0483 ~ 16 balls Maximum impact size; lowest count; high energy per collision


FAQ

Q1: Can I mix different diameters in one 1 kg pack?
A: Yes. Mixing sizes (e.g., 3 mm + 5 mm + 10 mm) helps you achieve both coarse and fine grinding, improving overall efficiency and particle size uniformity.

Q2: What jar material is best for these WC-Co balls?
A: Use tungsten carbide jars to prevent wear and cross-contamination. Softer jars (such as stainless steel or alumina) may degrade quickly under heavy milling.

Q3: Are these balls heat sensitive?
A: WC-Co balls are thermally stable, but larger diameters (12–20 mm) can generate significant heat per impact. Ensure proper cooling and avoid excessively long milling durations.

Q4: How can I tell when the media needs replacing?
A: Watch for visible chipping, reduced diameter, increased surface roughness, or contamination in your milled product. When performance drops, it’s time to replace the media.

Q5: Does a polished finish make a difference?
A: Yes. Polished spherical balls minimise friction and surface irregularities, enhancing motion efficiency and extending both jar and media life.

Q6: Will cobalt leach out from WC-Co?
A: Cobalt serves as a binder in WC-Co. For ultra-low contamination applications, test your final product, control acidic environments, and avoid excessively long milling times.
