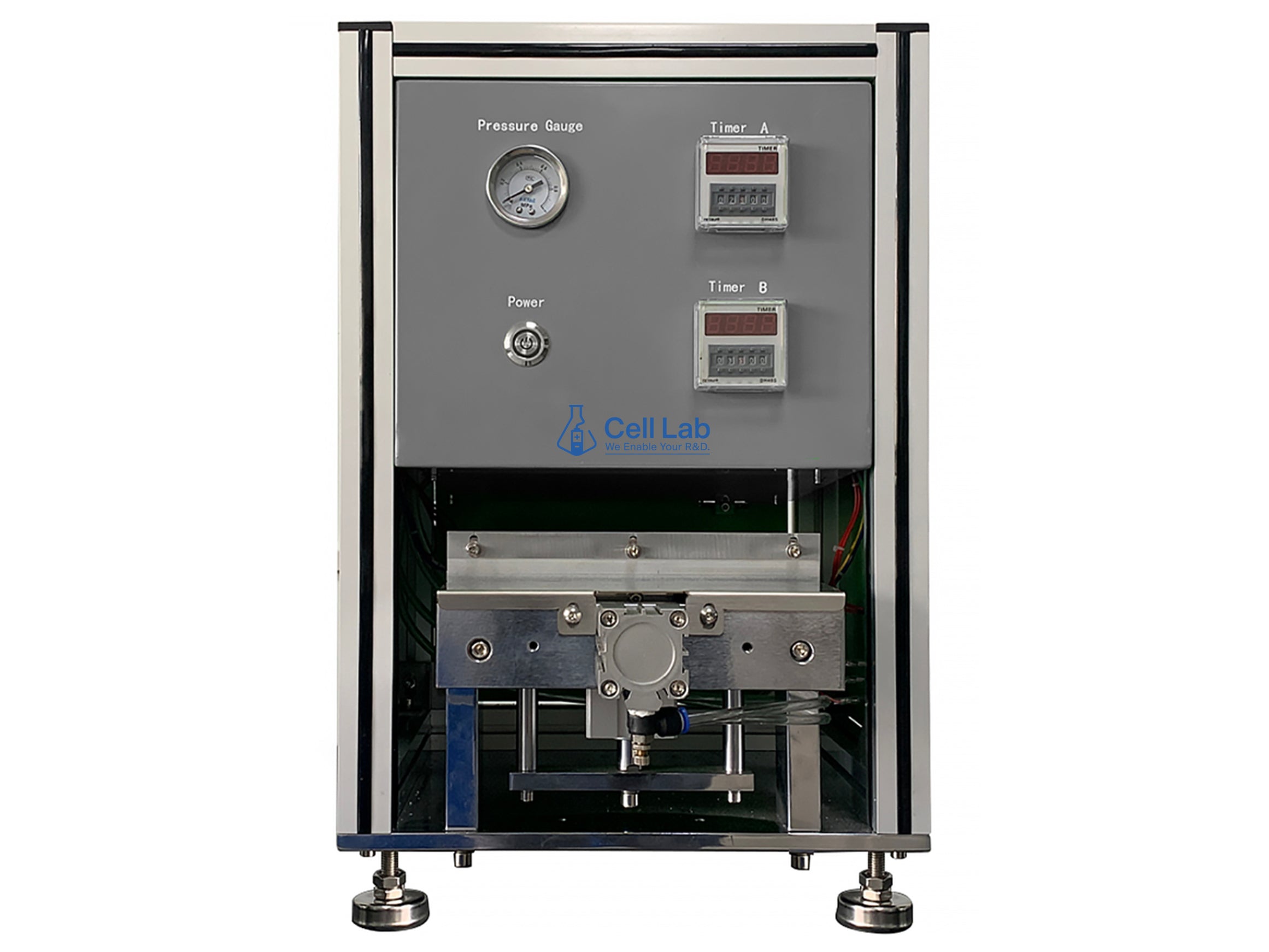

Cell Lab Pneumatic Battery Edge Folding Machine [Adjustable Width, Foot Pedal Operated]

Precision pneumatic pouch cell edge folding system for research and pilot-scale battery assembly

The Cell Lab Pneumatic Battery Edge Folding Machine is a specialised device designed for precise edge folding of pouch-type lithium-ion battery cases. With its adjustable mould width and pneumatic control system, it ensures uniform and repeatable folding for high-quality pouch cell sealing. The foot pedal operation provides hands-free control, enabling safe, efficient, and ergonomic workflows in R&D laboratories and small-scale production environments. This machine is ideal for solid-state and lithium-ion battery packaging, ensuring clean folds and consistent edge integrity before final heat sealing.

Key Features

Adjustable Folding Width
Customisable mould design allows flexible adjustment for different pouch cell sizes, supporting a wide range of laboratory battery formats.

Pneumatic Control System
Precise air pressure regulation (0.5–0.8 MPa) ensures smooth folding action and consistent results across repeated operations.

Foot Pedal Operation
Hands-free control via a responsive foot switch enables safe and efficient folding, improving workflow productivity.

High Throughput Efficiency
Delivers up to 300 folding cycles per hour, suitable for both research and pilot-scale cell fabrication.

Complete Tooling Kit
Includes foot pedal, air fittings, and essential accessories for immediate setup and reliable long-term performance.

Technical Specifications

Specification Details
Folding Blade Length 200 mm
Folding Width Adjustable (>1 mm)
Working Speed 300 times/hour
Air Pressure 0.5 – 0.8 MPa
Dimensions (L × W × H) 320 × 300 × 420 mm
Included Items Power line, foot pedal, socket head wrench, operating manual
Voltage Pneumatic only (no electrical input)
Warranty One year limited warranty with lifetime product support

Applications & Industries

  • Lithium-ion and solid-state pouch cell R&D

  • Battery prototyping and pilot line manufacturing

  • Material science and energy storage research

  • Laboratory-scale cell packaging and edge preparation

  • Educational and institutional research facilities

FAQ

Q1: Can this machine handle different pouch cell thicknesses?
Yes, the folding width and pressure are fully adjustable to accommodate various pouch thicknesses and foil laminates.

Q2: Does it require an external compressor?
Yes, a standard laboratory air compressor providing 0.5–0.8 MPa pressure is required for operation.

Q3: Is it suitable for solid-state pouch cells?
Absolutely. The pneumatic control ensures stable folding even for fragile or rigid electrolyte pouch films.

Q4: Can it be integrated into automated pouch cell lines?
Yes, it can be adapted for semi-automatic lines where manual precision and repeatability are critical.

Q5: What maintenance is required?
Regular inspection and light lubrication of moving parts are recommended to ensure long-term performance.
