Cell Lab Planetary Vacuum Mixer [5 Litre Capacity | High-Viscosity Slurry Mixing]
Cell Lab Planetary Vacuum Mixer [5 Litre Capacity | High-Viscosity Slurry Mixing] High-efficiency vacuum mixing system for solid-state battery and material research The Cell Lab Planetary Vacuum Mixer is designed for precise and efficient preparation of high-viscosity slurries used in...
- £30,290.00
- £30,290.00
- Unit price
- per
Subtotal:
£30,290.00
Couldn't load pickup availability
Description
xCell Lab Planetary Vacuum Mixer [5 Litre Capacity | High-Viscosity Slurry Mixing]
High-efficiency vacuum mixing system for solid-state battery and material research

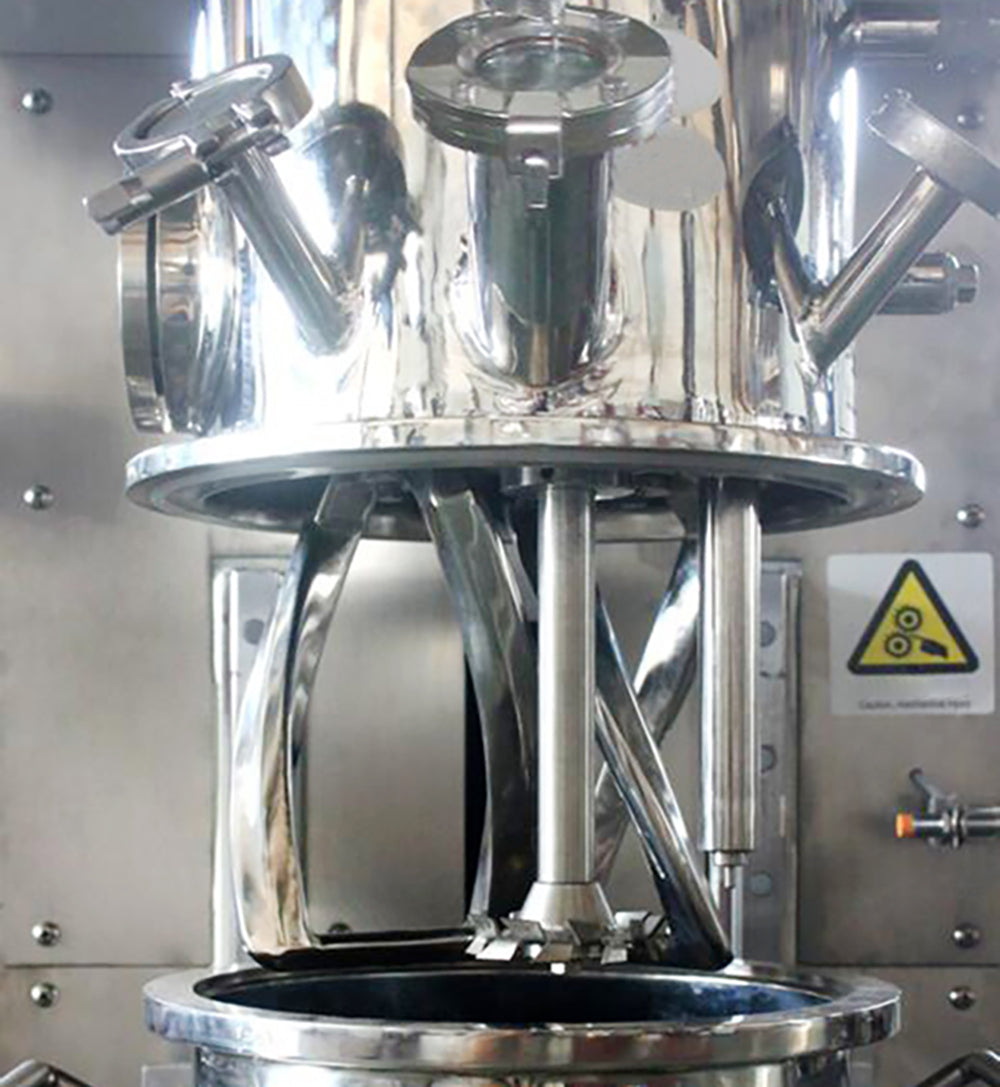

The Cell Lab Planetary Vacuum Mixer is designed for precise and efficient preparation of high-viscosity slurries used in solid-state and lithium-ion battery R&D. Combining planetary and rotational motion under vacuum, it ensures uniform dispersion of powders, binders, and solvents while eliminating trapped air bubbles. With adjustable working volume and reliable mechanical design, it delivers exceptional homogeneity and consistency for electrode, ceramic, and polymer material processing.
Key Features
-
Dual-Axis Planetary Motion: Simultaneous planetary and rotational movement guarantees thorough material blending and superior dispersion efficiency.
-
Vacuum Chamber Design: Removes trapped air and moisture during mixing to achieve dense, bubble-free slurry.
-
Flexible Working Volume: Operates effectively from 2.7 to 5 litres within an 8 L mixing chamber for batch flexibility.
-
Durable Construction: Built for long-term laboratory operation with low maintenance and high mechanical stability.
-
Wide Material Compatibility: Ideal for battery slurries, ceramic pastes, adhesives, and viscous chemical mixtures.
Specifications:
| Parameter | Specification |
|---|---|
| Voltage | Three Phase 380V |
| Design Total Volume | 8 L |
| Effective Working Volume | 2.7 – 5 L |
| Container Inner Diameter | 240 mm |
| Container Depth | 180 mm |
| Operating Temperature Range | -10 to +120 °C |
| Working Frequency | 5 – 50 Hz |
| Mixing Power | 1.5 kW |
| Blade Rotation Speed | 10 – 98 rpm |
| Planetary Rotation Speed | 5 – 50 rpm |
| Number of Mixing Blades | 2 pcs |
Applications & Industries
-
Solid-state and lithium-ion battery slurry preparation
-
Electrode material and binder dispersion
-
Ceramic and polymer compound mixing
-
Nanomaterial and functional powder processing
-
Advanced materials and chemical research labs
FAQ
Q1: What is the advantage of vacuum mixing?
It eliminates air bubbles and moisture from the slurry, ensuring higher density and improved electrochemical performance.
Q2: Can the working volume be adjusted?
Yes. The effective volume ranges from 2.7 to 5 litres depending on the material viscosity and batch requirements.
Q3: Is this machine suitable for solid-state battery research?
Absolutely. It is optimised for high-viscosity solid-state electrolyte and electrode slurries.
Q4: Can it mix non-battery materials?
Yes. It is widely used for ceramic pastes, polymers, adhesives, and nanomaterial slurries.
Q5: What is the power requirement?
It operates on a three-phase 380 V supply with a mixing power of 1.5 kW.
