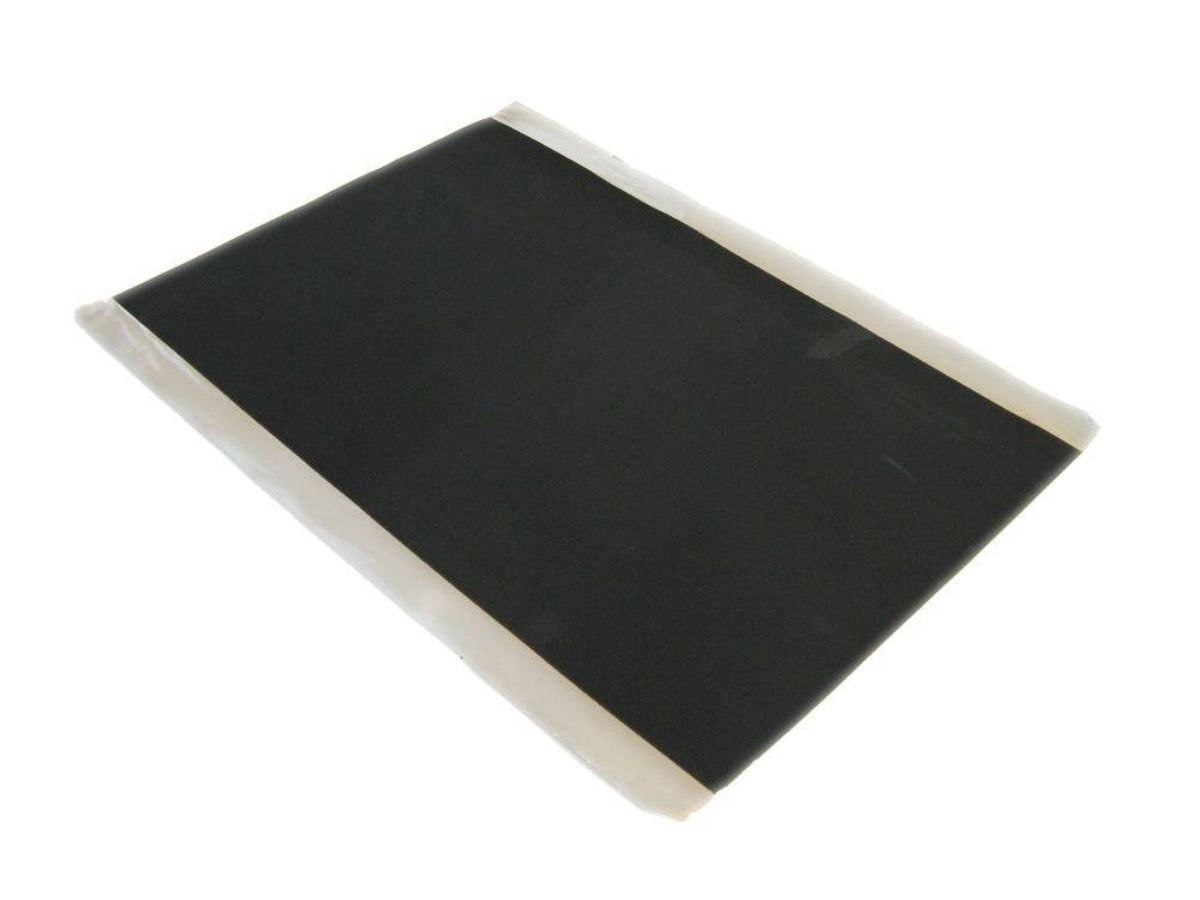

Cell Lab NMC532 Coated Aluminium Foil [241 × 175 mm, Single-Sided, 5 Sheets] – Pre-Coated Cathode Foil for Lithium-Ion Battery Research

High-performance NMC532 cathode sheets for lithium-ion and EV battery prototyping

The Cell Lab NMC532 Coated Aluminium Foil is a ready-to-use cathode substrate designed for lithium-ion battery and electric vehicle (EV) research. Coated with LiNi₀.₅Mn₀.₃Co₀.₂O₂ (NMC532) on high-purity aluminium foil, it provides excellent electrochemical stability, energy density, and reduced cobalt content compared to conventional LiCoO₂ electrodes.

Each sheet is single-side coated and optimised for consistent performance in coin cell and pouch cell assembly. With a specific capacity of 160 mAh/g, and active material loading of 95.5%, this material delivers strong power retention, long cycle life, and enhanced safety for advanced lithium-ion systems.

Ideal for use in automotive battery R&D, stationary energy storage, and academic research, these pre-coated foils streamline electrode preparation and reduce laboratory workload.

Key Features

High-Performance NMC532 Cathode
Delivers a specific capacity of 160 mAh/g and high material utilisation with 95.5% active loading.

Single-Sided Precision Coating
Coated on one side of 241 mm × 200 mm aluminium foil with an effective coating area of 241 mm × 175 mm.

Excellent Electrochemical & Thermal Stability
Low self-heating rate and improved safety under high-voltage operation compared with LiCoO₂.

Ready-to-Use for R&D
Pre-coated and dimensionally consistent, suitable for laboratory-scale coin and pouch cell assembly.

Customisable Specifications
Foil thickness, coating density, and dimensions can be tailored upon request to meet specific research needs.

Technical Specifications

Parameter Value
Pack Size 5 sheets
Substrate Material Aluminium (≥99.5% purity)
Substrate Thickness 16 µm
Substrate Size 241 × 200 mm
Coating Material NMC532 (LiNi₀.₅Mn₀.₃Co₀.₂O₂)
Coating Area 241 × 175 mm
Coating Side One side
Coating Density 11.5 mg/cm²
Specific Capacity 160 mAh/g
Active Material Loading 95.5%
Total Electrode Thickness 70–90 µm

Applications & Industries

  • Lithium-ion and solid-state battery R&D

  • EV and energy storage system (ESS) prototyping

  • Cathode material characterisation studies

  • Coin cell and pouch cell electrode development

  • Laboratory-scale pilot coating verification

FAQ

Q1: Can this foil be used directly for coin cell assembly?
Yes. Each sheet is ready for immediate use after vacuum drying to remove residual moisture.

Q2: Is double-sided coating available?
Yes. Dual-sided NMC532 coated foils can be customised upon request.

Q3: What type of electrolyte is compatible?
Compatible with standard lithium-ion electrolytes such as 1 M LiPF₆ in EC/DMC or EC/DEC.

Q4: What is the expected voltage range?
Typically 2.8–4.3 V vs. Li/Li⁺ depending on electrolyte and separator configuration.

Q5: How should the sheets be stored?
Store in an inert, moisture-free environment (e.g., argon glove box) to maintain electrode integrity.
