Cell Lab Nickel Metal Foil [High Purity, Excellent Conductivity]

Cell Lab Nickel Metal Foil [High Purity, Excellent Conductivity] High-purity nickel foil engineered for advanced energy storage and materials research The Cell Lab Nickel Metal Foil is a precision-rolled ≥99.9% pure nickel substrate offering excellent electrical conductivity, mechanical strength, and...
Vendor: Cell Lab
SKU: CL0235
Product type: Battery Consumables
£41.30
£41.30
Subtotal: £41.30
Description
Description
x

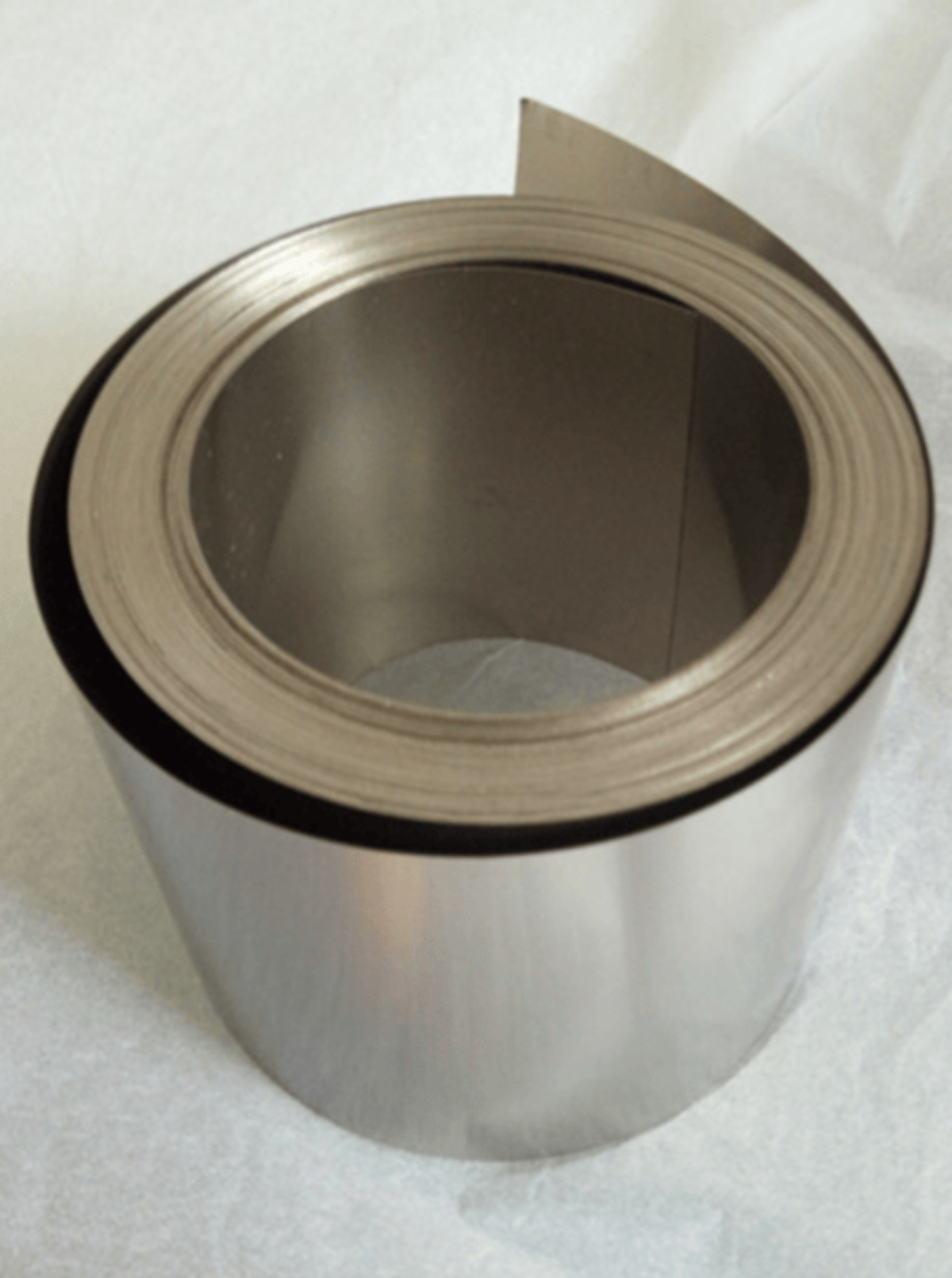

Cell Lab Nickel Metal Foil [High Purity, Excellent Conductivity]

High-purity nickel foil engineered for advanced energy storage and materials research

The Cell Lab Nickel Metal Foil is a precision-rolled ≥99.9% pure nickel substrate offering excellent electrical conductivity, mechanical strength, and thermal stability. Its outstanding chemical resistance and purity make it ideal for applications in lithium-ion batteries, supercapacitors, graphene CVD synthesis, catalysis, and sensor fabrication.

Thanks to its smooth surface and uniform thickness, it supports reliable in-situ growth of nickel-based active materials and consistent electrochemical performance in R&D and pilot-scale projects.

Key Features

High Purity Nickel Composition
Made from ≥99.9% pure nickel to ensure high corrosion resistance and minimal contamination.

Superior Electrical and Thermal Conductivity
Resistivity of 6.97 μΩ·cm at 20 °C provides excellent current collection and heat dissipation.

Versatile Research Applications
Widely used in battery current collectors, graphene CVD growth, catalysis, and thin-film deposition.

Stable and Durable Structure
Retains strength and surface integrity under high temperatures up to 1453 °C.

Customisable Dimensions
Standard size 100 mm × 100 mm × 0.1 mm; custom thickness and geometry available upon request.

Technical Specifications

Parameter Specification
Product SKU CL0235
Pack Size Pack of 2 pieces
Material Nickel ≥99.9%
Dimensions (each piece) 100 mm × 100 mm (customisable)
Thickness 0.1 mm
Resistivity 6.97 μΩ·cm at 20 °C
Melting Point 1453 °C (lit.)
Boiling Point 2732 °C (lit.)
Net Weight ~18 g (~9 g per piece)

Applications & Industries

  • Battery current collectors and electrode substrates

  • Graphene synthesis via CVD and thin-film deposition

  • Supercapacitors and electrochemical catalysts

  • Hydrogen evolution (HER) and oxygen evolution (OER) electrodes

  • Magnetic and thermoelectric materials research

FAQ

Q1: Can this nickel foil be used for CVD graphene growth?
Yes. Its high purity and smooth surface make it ideal for uniform graphene layer deposition.

Q2: Is the foil suitable for use as a battery current collector?
Absolutely. The low resistivity and excellent mechanical integrity ensure efficient current collection and electrode adhesion.

Q3: Can custom thickness or roll form be provided?
Yes. Cell Lab offers roll or sheet formats with thicknesses from 0.02 mm to 1.0 mm upon request.

Q4: Does the foil require any surface pre-treatment?
For electrode or CVD use, mild acid cleaning (e.g., dilute HCl) or plasma treatment can enhance surface activation.

Q5: How should the foil be stored?
Store in a clean, dry, and inert environment to prevent surface oxidation. Vacuum sealing is recommended for long-term storage.
