Cell Lab Natural Convection Horizontal Laboratory Drying Oven, Lab Drying Oven [PID Control | 43–225 L]

Cell Lab Natural Convection Horizontal Laboratory Drying Oven, Lab Drying Oven [PID Control | 43–225 L] Uniform, low-disturbance thermal drying with precision PID control The Cell Lab™ Natural Convection Horizontal Drying Oven delivers stable and uniform thermal performance through natural...
Vendor: Cell Lab
SKU: DO0005A
Product type: Drying Oven
£479.00
£479.00
Volume: 43L (A model)
Subtotal: £479.00
Description
Description
x

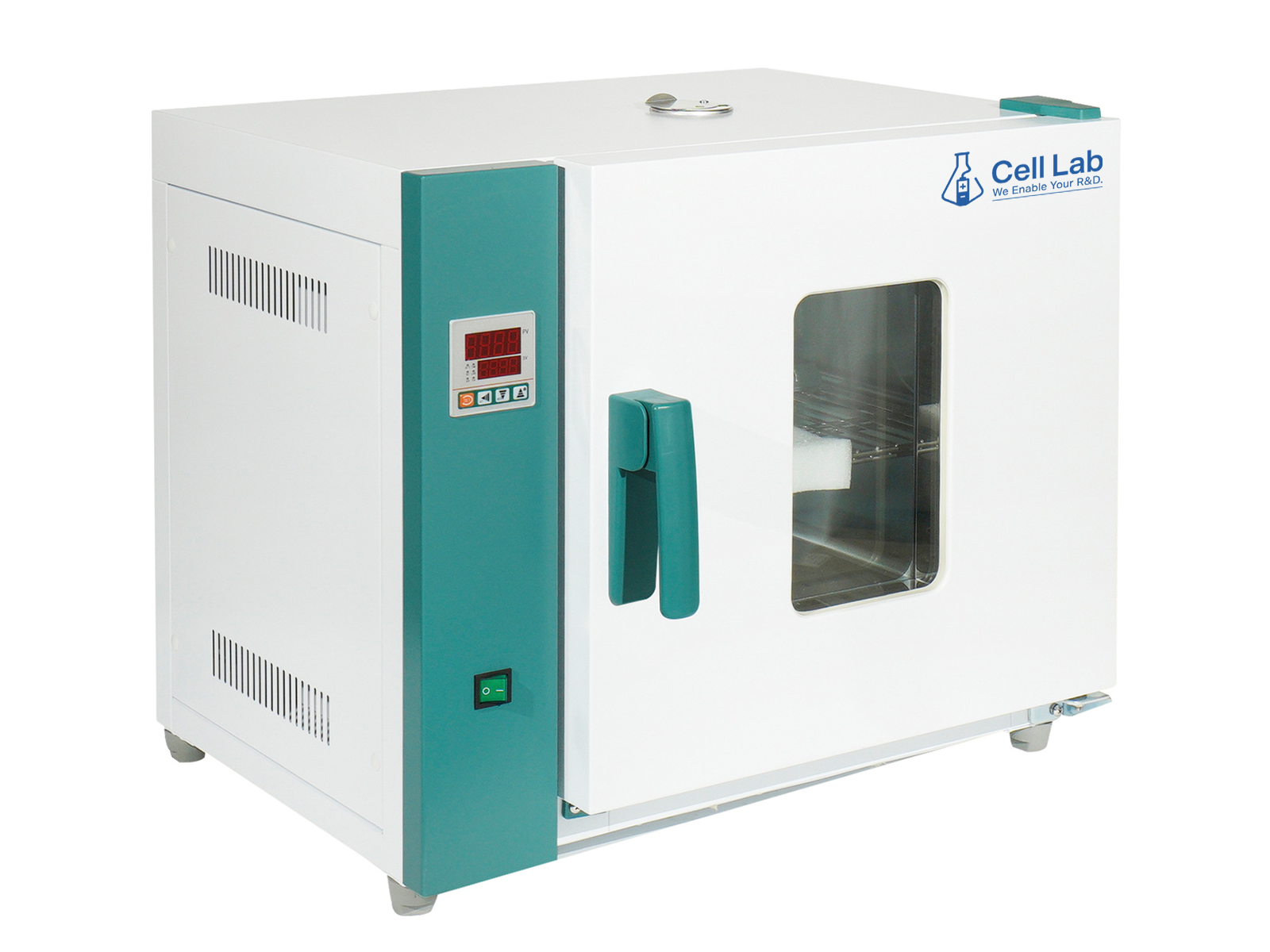

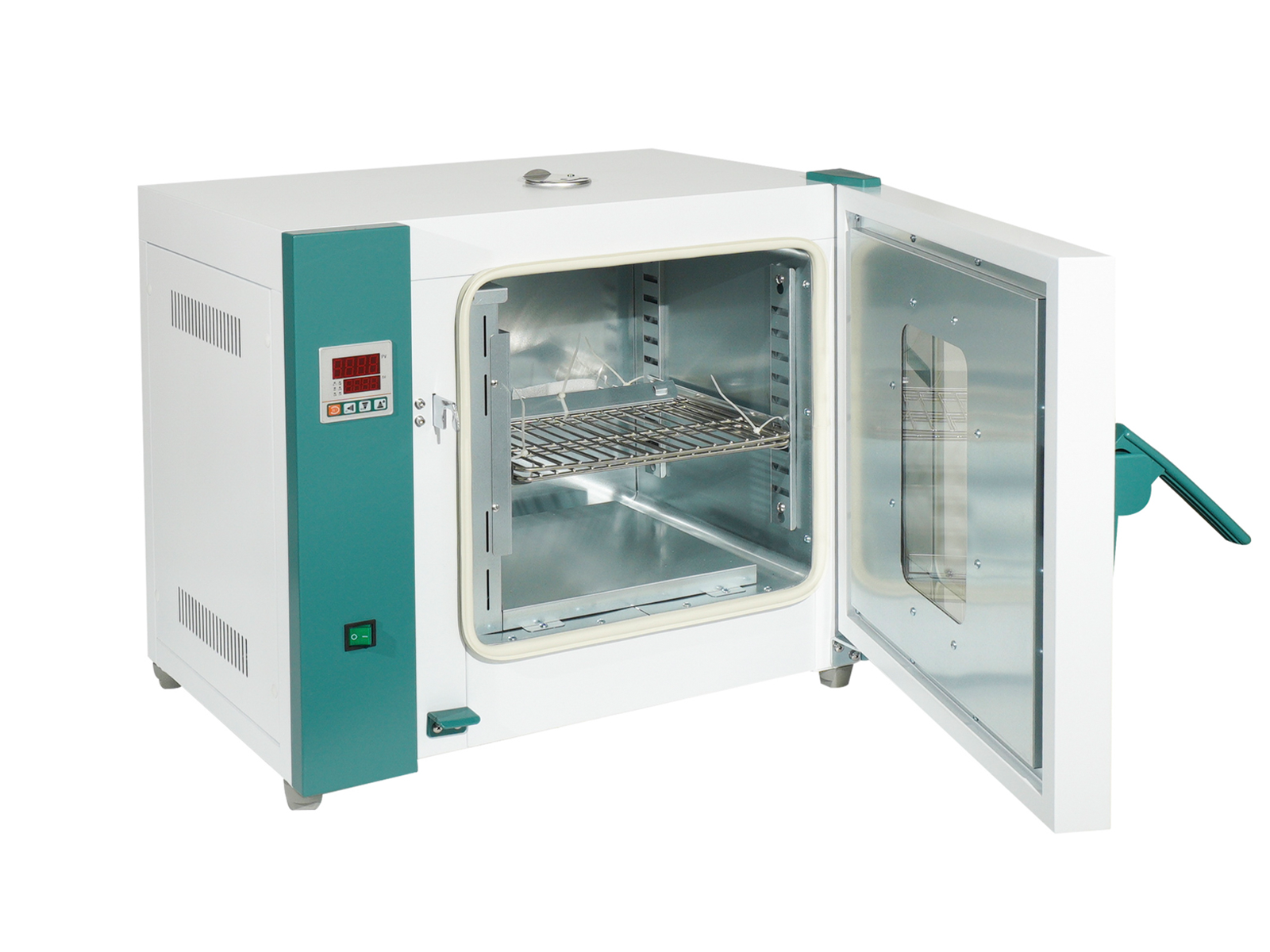

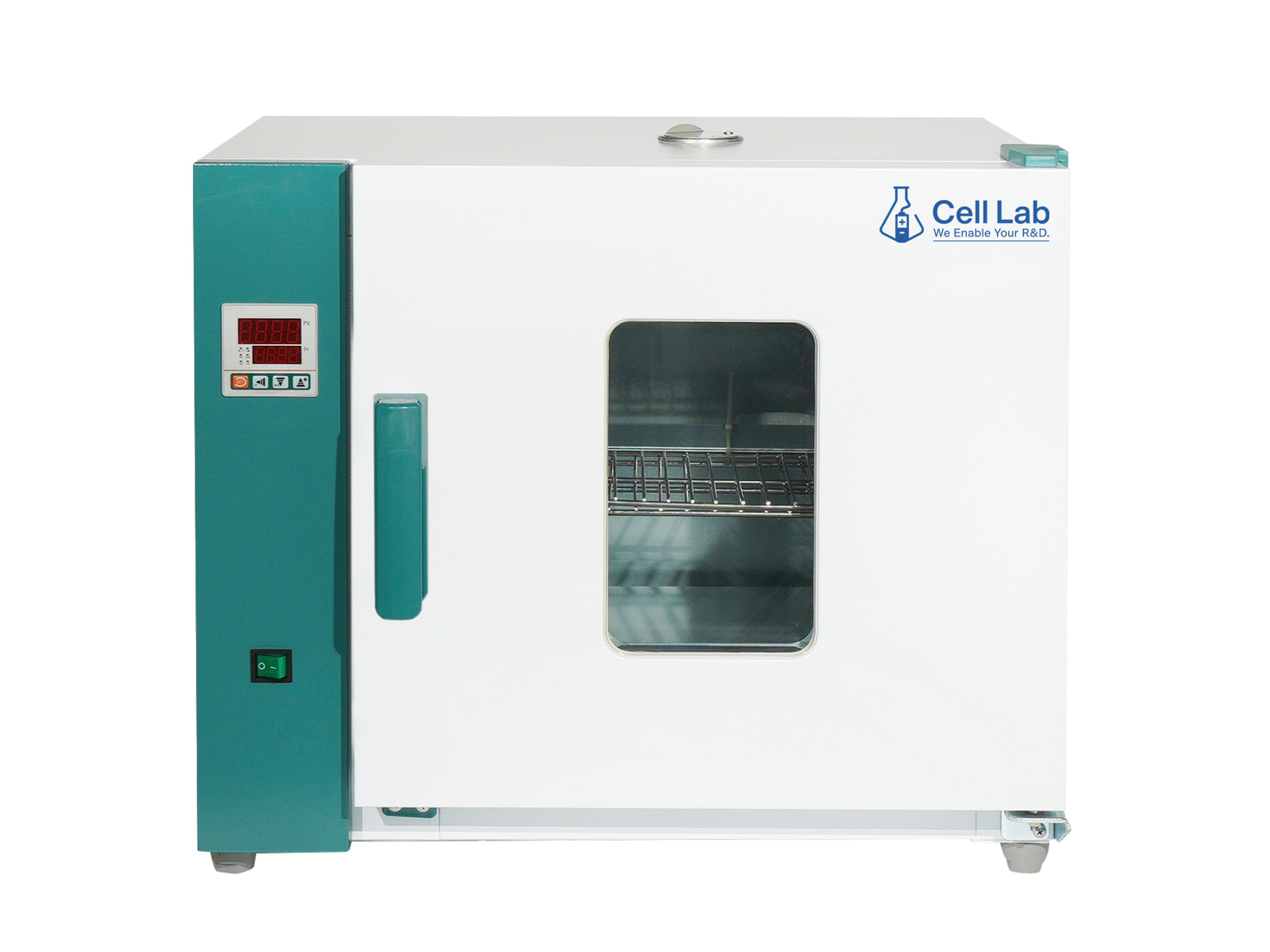

Cell Lab Natural Convection Horizontal Laboratory Drying Oven, Lab Drying Oven [PID Control | 43–225 L]

Uniform, low-disturbance thermal drying with precision PID control

The Cell Lab™ Natural Convection Horizontal Drying Oven delivers stable and uniform thermal performance through natural air convection, ensuring gentle, low-disturbance heat circulation. Designed for precision laboratory drying, baking, and heat treatment, it combines PID intelligent control, robust stainless-steel construction, and multiple safety protections to guarantee accuracy and long-term reliability.

Key Features

• Natural Convection Airflow
Employs horizontal air movement to achieve stable, noise-free drying — ideal for delicate samples, materials sensitive to forced airflow, or long-duration heating applications.

• Precision PID Temperature Control
Two-section PID intelligent controller ensures accurate thermal regulation from RT + 10 °C to 250 °C, with 0.1 °C resolution and ± 1 °C accuracy, maintaining consistent results across batches.

• Reliable Temperature Uniformity
Provides ± 3.5 % uniformity, ensuring even heat distribution across all chamber levels for reproducible drying and curing.

• Robust, Durable Construction
Built with a mirror-finish stainless-steel inner chamber (B type) or high-strength galvanised steel (A type), combined with cold-rolled electrostatic-coated outer shell and CE-certified rock-wool insulation for superior durability and energy efficiency.

• Intuitive Digital Interface
Features LED touch-button control, sensor deviation correction, overshoot self-tuning, and power-off parameter memory for reliable and user-friendly operation.

• Comprehensive Safety System
Includes sound-light over-temperature alarm and auto shut-off, ensuring operational safety in continuous laboratory environments.

Technical Parameters:

SKU

DO0005A/ DO0005B

DO0006A/ DO0006B

DO0007A/DO0007B

DO0008A/DO0008B

Cycle Mode

Natural convection

Function

Temp. Range

RT+10-250℃

Temp. Resolution Ratio

0.1℃

Temp. Motion

±1℃

Temp. Uniformity

±3.5%

Structure

Inner Chamber

 B model:High quality stainless steel;

A model:High strength galvanized sheet

Outer Shell

Cold rolling steel electrostatic spraying exterior

Insulation layer

High quality rock wool board(with CE)

Heater

Nickel chromium alloy heating wire

Power rating

1.2kW

1.6kW

2.3kW

3.0kW

Exhaust hole

Φ35mm top(with function of test hole)

Controller

Temp. control mode

Two temperature section PID intelligent

Temp. setting mode

Touch button setting

Temp. display mode

LED Digital display

Timer

0-9999min(with timing wait function)

Operation function

Fixed temperature operation, timing function,auto stop.

Additional function

Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory

Sensor

PT100

Safety device

Over temperature sound-light alarm

Specification

Inner Chamber size(W*L*H)(mm)

350*350*350

450*350*450

550*450*550

600*500*750

Exterior size (W*L*H)(mm)

652*472*587

752*472*687

852*572*786

902*622*986

Packing size (W*L*H)(mm)

745*605*745

845*605*850

945*705*950

955*755*1150

Volume

43L

71L

136L

225L

Shelf number

9

13

17

25

Load per rack

15kg

Shelf space

25mm

(50/60HZ)Current rating

AC 220V/5.5A

AC 220V/7.3A

AC 220V /9.1A

AC 220V /13.6A

NW/GW (kg）

40/46

45/50

62/68

77/96

Accessory

Shelf

2

Shelf frame

4

optional accessories

Shelves

Applications & Industries

  • Sample drying and dehydration

  • Material preheating and conditioning

  • Temperature stability and calibration testing

  • Heat-curing for coatings, powders, and polymers

  • Educational, research, and quality control laboratories

FAQ

Q1: What’s the advantage of natural convection compared to forced-air models?
A1: Natural convection provides quiet, vibration-free drying without disturbing sensitive samples or lightweight materials.

Q2: What temperature range can it reach?
A2: It operates from RT + 10 °C to 250 °C, covering a broad range for general drying and light heat-treatment processes.

Q3: How accurate is the temperature control?
A3: The PID controller ensures 0.1 °C resolution and ± 1 °C accuracy, ideal for reproducible laboratory work.

Q4: What’s the main structural difference between A and B types?
A4: The A type uses galvanised steel for cost efficiency, while the B type uses stainless steel for enhanced corrosion resistance and hygiene.

Q5: Is it suitable for long-term continuous operation?
A5: Yes, it’s designed for continuous use with auto-shutoff, overheat protection, and insulated thermal efficiency.
