Cell Lab Manual Vacuum Heated Press Dual 200 × 200 mm Plates

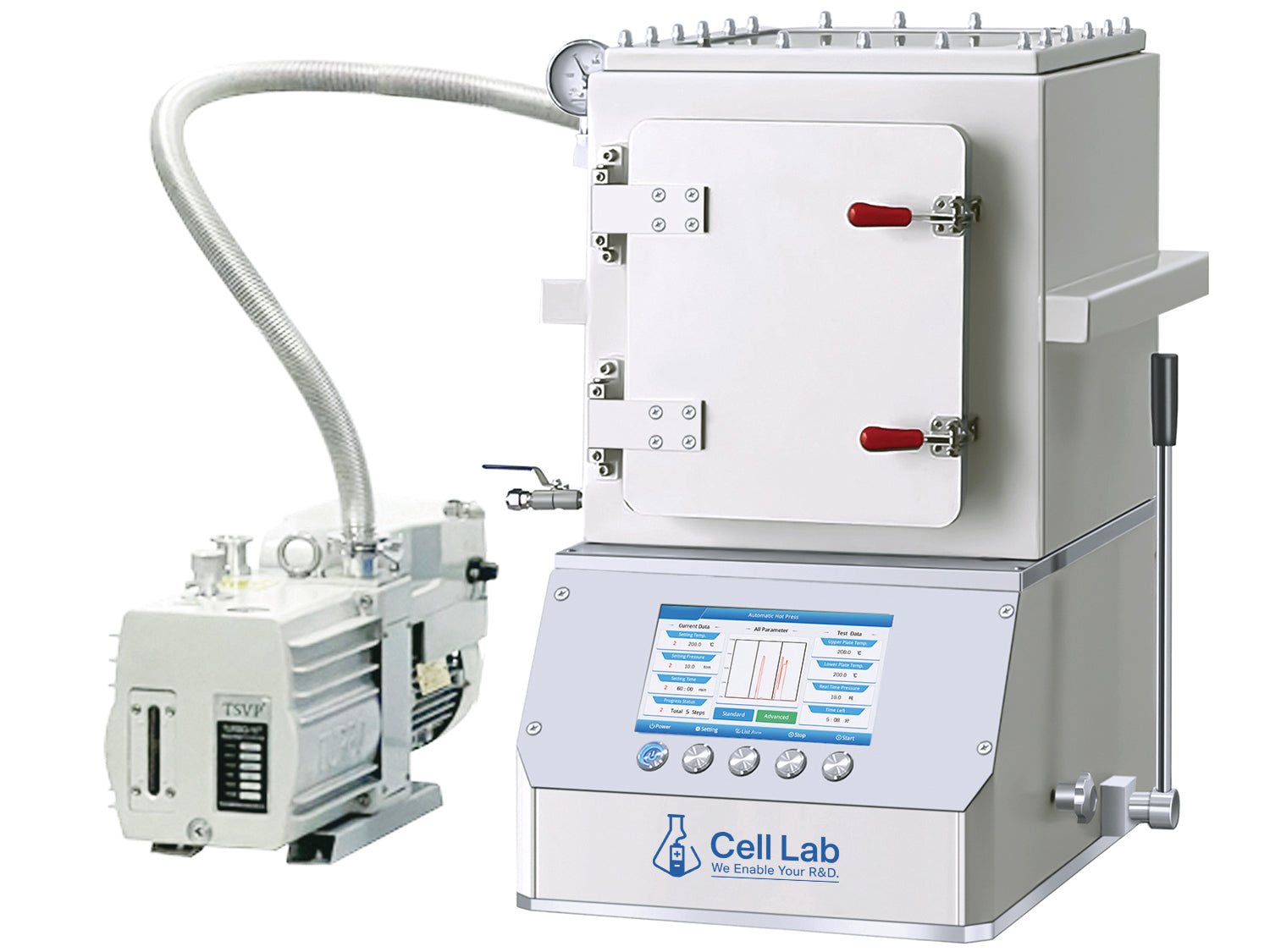

Cell Lab Manual Vacuum Heated Press [10 Ton, RT–300°C / 500°C / 800°C , Dual 200 × 200 mm Heating Plates] Precision Vacuum Hot Press for Battery Materials, Polymers, Ceramics & Advanced Material Research The Cell Lab Manual Vacuum Heated...
- £11,759.00
- £11,759.00
- Unit price
- per
Subtotal:
£11,759.00
Description
xCell Lab Manual Vacuum Heated Press [10 Ton, RT–300°C / 500°C / 800°C , Dual 200 × 200 mm Heating Plates]
Precision Vacuum Hot Press for Battery Materials, Polymers, Ceramics & Advanced Material Research
The Cell Lab Manual Vacuum Heated Lab Press is a high-performance laboratory hot pressing system designed for material compaction, lamination, sintering preparation, and thermal processing under vacuum conditions. Featuring a robust 10-ton manual hydraulic press and dual 200 × 200 mm heated platens, the system is suitable for battery electrode fabrication, polymer film lamination, ceramic composite preparation, and advanced materials research.
The integrated SS304 vacuum chamber provides an ultimate vacuum level of -0.1 MPa, reducing oxidation and contamination during heating and pressing processes. Equipped with a 7-inch touchscreen controller and programmable multi-stage heating and cooling profiles, the system delivers precise temperature management up to 300°C, 500°C or 800°C depending on the selected configuration.
Key Features
10-Ton Manual Hydraulic Pressing System
Provides stable and repeatable pressure control from 0–10 tons with a pressure resolution of 0.01 ton for laboratory-scale material processing.
Dual 200 × 200 mm Heated Platens
Large-area heating plates ensure uniform heat distribution for films, electrodes, membranes, composites and powder samples.
Vacuum Chamber with -0.1 MPa Capability
SS304 stainless steel vacuum chamber minimises oxidation and contamination during hot pressing operations.
Multi-Stage Heating & Cooling Program
Supports programmable heating and cooling profiles for advanced material development and thermal processing applications.
7-Inch Touchscreen Control System
Modern touchscreen interface enables precise monitoring of temperature, pressure and process parameters.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Manual Vacuum Heated Lab Press |
| Pressure Range | 0–10 Ton |
| Pressure Accuracy | 0.01 Ton |
| Vacuum Degree | -0.1 MPa |
| Vacuum Chamber Material | SS304 Stainless Steel |
| Display Screen | 7-inch Touchscreen |
| Pressurisation Method | Manual Hydraulic Press |
| Heating Method | Multi-Stage Heating & Cooling Program |
| Holding Time | ≥1 s |
| Heating Insulation | Imported Thermal Insulation Board |
| Heating Area | Dual Heating Plates, 200 × 200 mm |
| Working Space | 200 × 60 mm |
| Chamber Hatch Size | 300 × 350 mm |
| Vacuum Pump Dimensions | 490 × 230 × 340 mm |
| Vacuum Pump Weight | 20 kg |
| Press Dimensions (L × W × H) | 450 × 550 × 750 mm |
| Net Weight | 350 kg |
| Packing Dimensions | 725 × 620 × 890 mm |
| Gross Weight | 400 kg |
| Power Supply | 220V / 50Hz |
Available Temperature Configurations
| Model Version | Temperature Range | Heating Power |
|---|---|---|
| RT–300°C | Ambient to 300°C | 1.8 kW |
| RT–500°C | Ambient to 500°C | 3.0 kW |
| RT–800°C | Ambient to 800°C | 5.5 kW |
Applications & Industries
- Lithium-ion battery electrode hot pressing
- Solid-state battery research
- Polymer film and membrane lamination
- Ceramic and composite material preparation
- Powder compaction and densification
- Fuel cell component development
- Graphene and advanced functional materials
- Thin-film and multilayer material fabrication
- University and industrial R&D laboratories
FAQ
Q1: What is the maximum pressing force?
The system provides a maximum pressing force of 10 tons with a pressure accuracy of 0.01 ton.
Q2: What maximum temperature is available?
Three configurations are available with maximum temperatures of 300°C, 500°C or 800°C.
Q3: What vacuum level can the chamber achieve?
The chamber can reach an ultimate vacuum of -0.1 MPa for vacuum-assisted hot pressing applications.
Q4: What is the heating plate size?
The press uses dual heating platens measuring 200 × 200 mm.
Q5: Is the vacuum pump included?
Yes, the system configuration shown includes the matching vacuum pump assembly.
