Cell Lab Manual Vacuum Heated Press Dual 120 × 120 mm Plates
Cell Lab Manual Vacuum Heated Press [5 Ton, RT–300°C / 500°C / 800°C, Dual 120 × 120 mm Heating Plates] Compact Vacuum Hot Press for Battery Research, Polymer Processing and Advanced Materials Development The Cell Lab Manual Vacuum Heated Lab...
- £10,369.00
- £10,369.00
- Unit price
- per
Subtotal:
£10,369.00
Description
xCell Lab Manual Vacuum Heated Press [5 Ton, RT–300°C / 500°C / 800°C, Dual 120 × 120 mm Heating Plates]
Compact Vacuum Hot Press for Battery Research, Polymer Processing and Advanced Materials Development
The Cell Lab Manual Vacuum Heated Lab Press is a compact laboratory hot pressing system designed for material densification, film lamination, powder compaction and thermal processing under vacuum conditions. Combining a 5-ton manual hydraulic press with dual 120 × 120 mm heated platens, this system provides precise temperature and pressure control for research involving battery electrodes, ceramic materials, polymers, composites and functional films.
The integrated SS304 stainless steel vacuum chamber achieves an ultimate vacuum degree of -0.1 MPa, helping to minimise oxidation and contamination during heating and pressing operations. Equipped with a 7-inch touchscreen interface and programmable multi-stage heating and cooling functions, the system is available in 300°C, 500°C and 800°C temperature configurations to accommodate a wide range of laboratory applications.
Key Features
-
5-Ton Manual Hydraulic Pressing System
Provides accurate pressure control up to 5 tons with a pressure resolution of 0.01 ton, ensuring repeatable and reliable sample preparation. -
Dual 120 × 120 mm Heated Platens
Compact heated platens deliver uniform thermal distribution for laboratory-scale hot pressing and material consolidation. -
Vacuum Chamber with -0.1 MPa Capability
SS304 stainless steel vacuum chamber reduces oxidation and moisture contamination during high-temperature processing. -
Programmable Heating & Cooling Profiles
Supports multi-stage heating and cooling programmes for advanced material development and process optimisation. -
7-Inch Touchscreen Controller
User-friendly touchscreen interface enables precise monitoring and adjustment of temperature and process parameters.
Technical Specifications
| Parameter | Specification |
|---|---|
| Pressure Range | 0–5 Ton |
| Pressure Accuracy | 0.01 Ton |
| Vacuum Degree | -0.1 MPa |
| Vacuum Chamber Material | SS304 Stainless Steel |
| Display Screen | 7-Inch Touchscreen |
| Pressurisation Method | Manual Hydraulic Press |
| Heating Method | Multi-Stage Heating or Cooling Programme |
| Holding Time | ≥1 Second |
| Heating Insulation | Imported Thermal Insulation Board |
| Heating Plate Size | Dual 120 × 120 mm |
| Working Space | 120 × 55 mm |
| Chamber Size | 200 × 200 mm |
| Vacuum Pump Dimensions | 490 × 230 × 340 mm |
| Vacuum Pump Weight | 20 kg |
| Press Dimensions (L × W × H) | 400 × 450 × 700 mm |
| Net Weight | 300 kg |
| Packing Dimensions | 725 × 620 × 890 mm |
| Gross Weight | 350 kg |
| Power Supply | 220V / 50Hz |
Available Temperature Configurations
| Temperature Range | Heating Power |
|---|---|
| RT–300°C | 0.6 kW |
| RT–500°C | 1.0 kW |
| RT–800°C | 3.5 kW |
Applications & Industries
- Lithium-ion battery electrode fabrication
- Solid-state battery material research
- Polymer film and membrane lamination
- Ceramic powder densification
- Composite material processing
- Graphene and advanced functional materials
- Fuel cell component preparation
- Thin-film hot pressing
- University and industrial R&D laboratories
FAQ
Q1: What is the maximum pressing force?
The press provides up to 5 tons of manual hydraulic pressure with a resolution of 0.01 ton.
Q2: What temperature options are available?
The system is available in RT–300°C, RT–500°C and RT–800°C heating configurations.
Q3: What vacuum level can be achieved?
The vacuum chamber can reach an ultimate vacuum degree of -0.1 MPa.
Q4: What is the heating plate size?
The press uses dual heated platens measuring 120 × 120 mm.
Q5: Is the vacuum pump included?

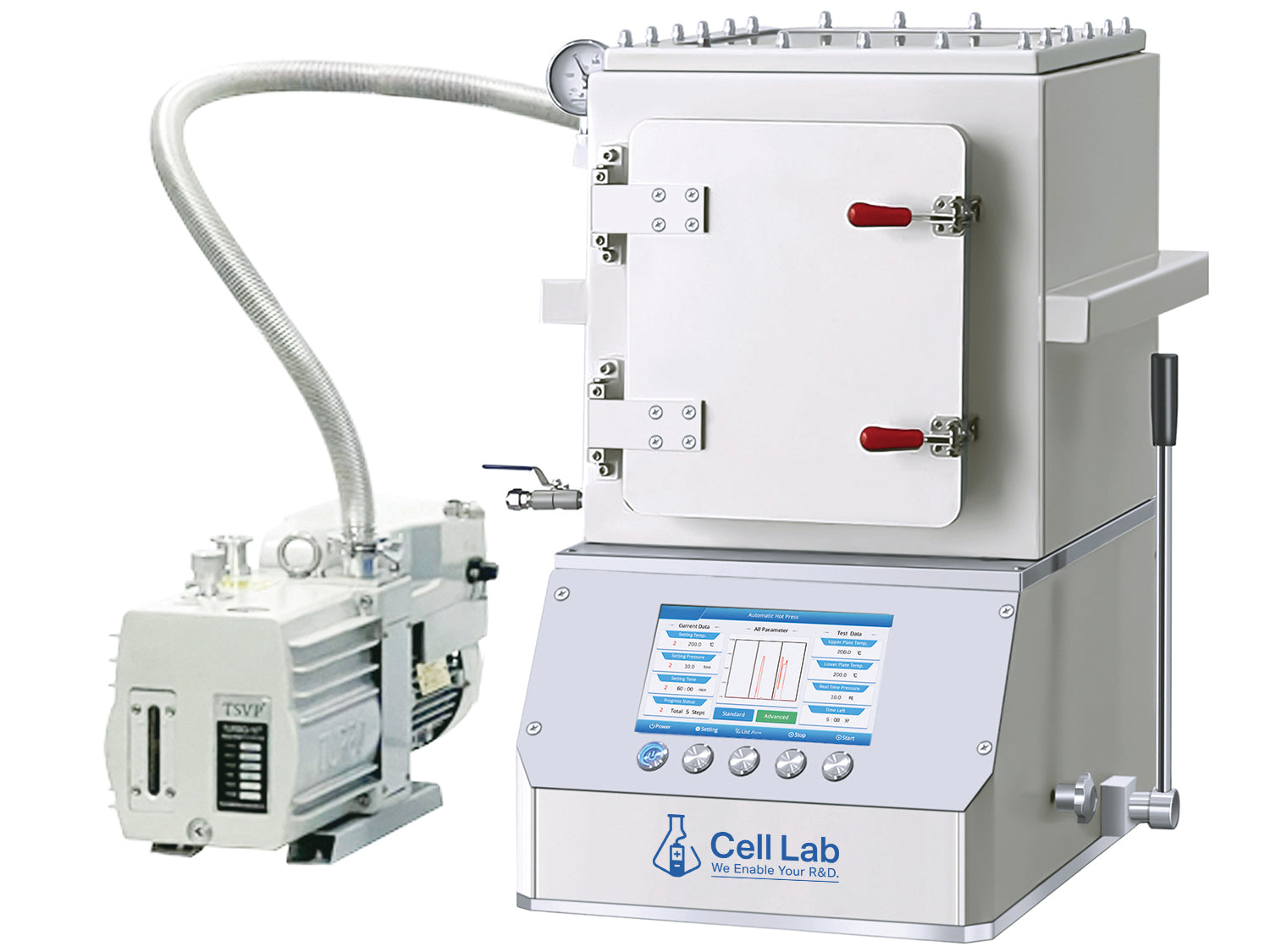

Yes, the vacuum pump assembly shown in the system configuration is included.
Q6: What materials can be processed?
The system is suitable for battery electrodes, polymer films, ceramic powders, composite materials, membranes and other advanced research materials.
