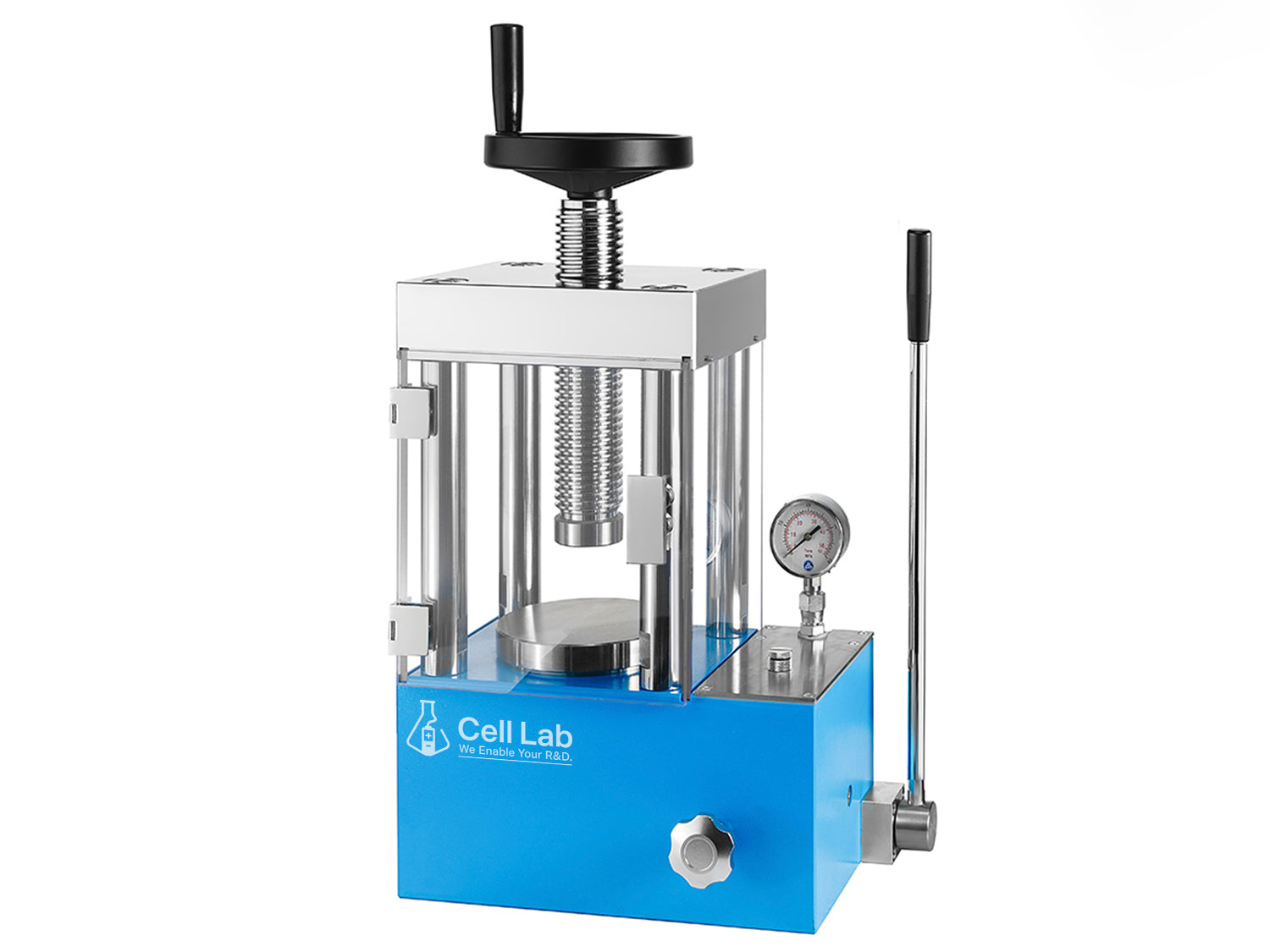

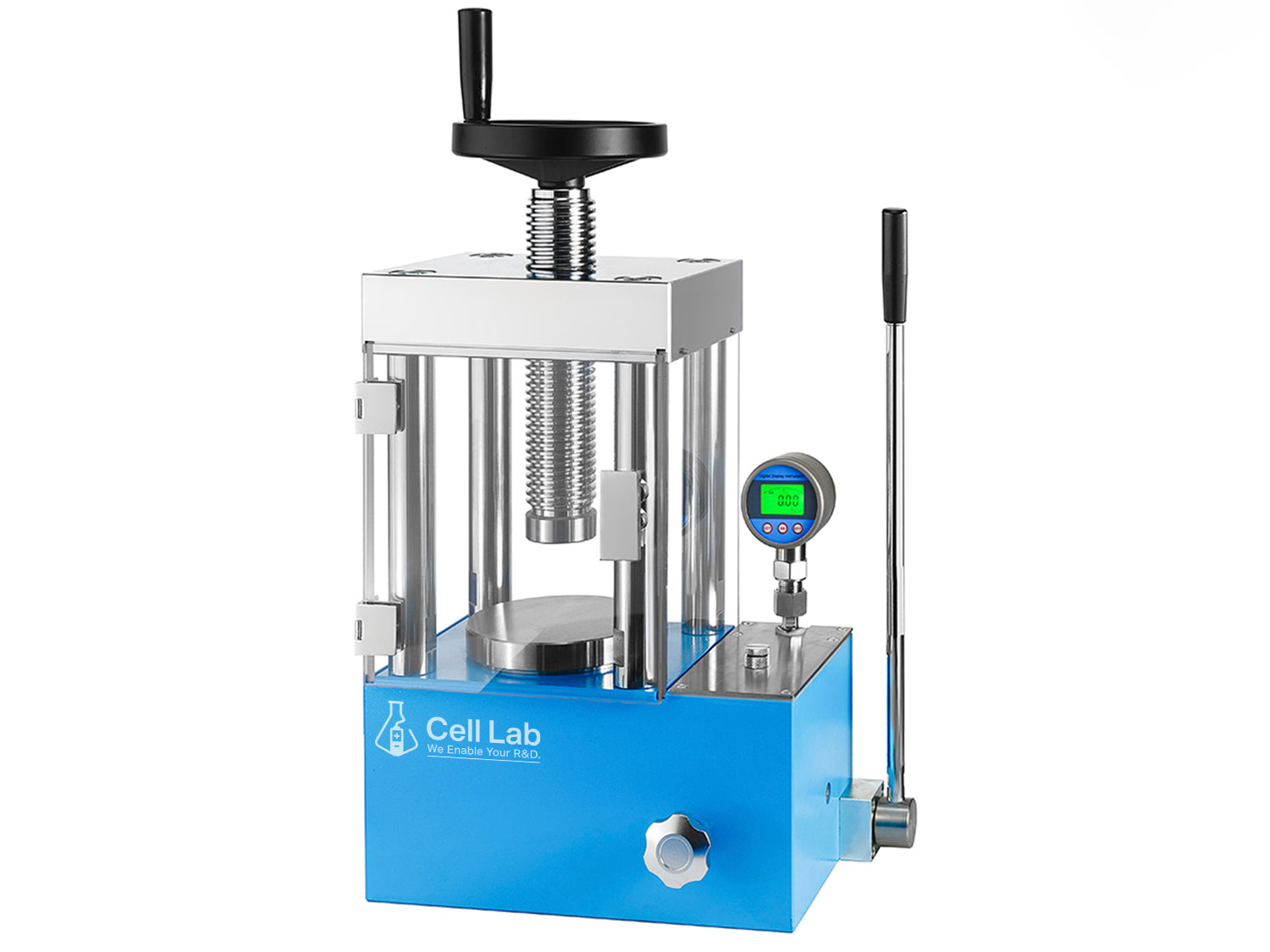

Cell Lab Manual Hydraulic Pellet Press with Safety Shield [15–60 Ton, Lab Scale]

High-Pressure Pellet Press Series for FTIR/XRF, Battery & Materials Research

The Cell Lab Manual Hydraulic Pellet Press with Safety Shield series is designed for laboratory-scale powder compaction and pellet pressing. With stable hydraulic systems, compact footprints, and integrated safety shields, these presses ensure safe and consistent performance. Each model (15T, 24T, 40T, 60T) is available with Regular Pressure Gauge or Digital Pressure Gauge options, giving laboratories flexibility in monitoring precision and usability. These presses are widely used in FTIR/XRF analysis, battery electrode fabrication, ceramics, metallurgy, and catalysis.

Key Features

  • Four pressure capacities – Available in 15T, 24T, 40T, and 60T models to match diverse needs.

  • Gauge options – Choose between Regular Pressure Gauge (cost-effective) or Digital Pressure Gauge (higher precision).

  • Integrated safety shields – Plexiglass or polycarbonate shields provide protection during operation.

  • Stable hydraulic performance – Pressure drop ≤1 MPa/10 min for reproducible sample quality.

  • Versatile applications – Suitable for FTIR/XRF spectroscopy, battery R&D, ceramics, metallurgy, and catalysis.

Specifications

Model / SKU Gauge Type Pressure Range Max Pressure Piston Diameter Max Travel Distance Pressure Stability Sample Stage Diameter Working Area (mm) Dimensions (L × W × H) Net Weight Safety Shield Warranty
CL0645 Regular 0–15 tons 15 tons 80 mm 30 mm ≤1 MPa / 10 min 90 mm 80 × 130 260 × 175 × 395 mm 42 kg Plexiglass 1 year
CL0646 Digital 0–15 tons 15 tons 80 mm 30 mm ≤1 MPa / 10 min 90 mm 80 × 130 260 × 175 × 395 mm 42 kg Plexiglass 1 year
CL0647 Regular 0–24 tons 24 tons 95 mm 30 mm ≤1 MPa / 10 min 105 mm 80 × 150 245 × 175 × 415 mm 65 kg Polycarbonate 1 year
CL0648 Digital 0–24 tons 24 tons 95 mm 30 mm ≤1 MPa / 10 min 105 mm 80 × 150 245 × 175 × 415 mm 65 kg Polycarbonate 1 year
CL0649 Regular 0–40 tons 40 tons 130 mm 50 mm ≤1 MPa / 10 min 140 mm 126 × 185 355 × 215 × 505 mm 90 kg Plexiglass 1 year
CL0650 Digital 0–40 tons 40 tons 130 mm 50 mm ≤1 MPa / 10 min 140 mm 126 × 185 355 × 215 × 505 mm 90 kg Plexiglass 1 year
CL0651 Regular 0–60 tons 60 tons 150 mm 50 mm ≤1 MPa / 10 min 160 mm 185 × 250 405 × 240 × 565 mm 120 kg Plexiglass 1 year
CL0652 Digital 0–60 tons 60 tons 150 mm 50 mm ≤1 MPa / 10 min 160 mm 185 × 250 405 × 240 × 565 mm 120 kg Plexiglass 1 year

Applications & Industries

  • FTIR/XRF spectroscopy – Consistent pellet pressing for analytical research.

  • Battery R&D – Electrode materials and powder compaction.

  • Ceramics & powder pressing – Dense compaction for ceramic and material science.

  • Metallurgy – Alloy and mineral sample preparation.

  • Catalysis & chemistry – Catalyst preparation and chemical engineering research.

FAQ

Q1: What models are available?
A: Four models – 15T, 24T, 40T, and 60T. Each is offered with Regular or Digital Pressure Gauge.

Q2: What is the benefit of a digital gauge?
A: Digital gauges provide higher precision and easier reading compared to regular analogue gauges.

Q3: How stable is the pressure system?
A: All models maintain ≤1 MPa pressure drop per 10 minutes for reliable sample quality.

Q4: Are these presses safe for lab use?
A: Yes. Each press is equipped with plexiglass or polycarbonate safety shields.

Q5: Which model should I choose?
A: 15T–24T models are ideal for compact labs and FTIR/XRF; 40T is suited for mid-to-high capacity use; 60T is recommended for heavy-duty and metallurgical applications.
