Cell Lab Manual Hydraulic Pellet Press [40-Ton, Lab Scale]

High-Force Pellet Press for Advanced Laboratory Applications

The Cell Lab 40-Ton Manual Hydraulic Pellet Press is a high-capacity laboratory tool designed for applications requiring extreme pressure and consistent pellet quality. With a durable steel frame, compact footprint, and stable hydraulic system, this press delivers up to 40 tons of pressure, ensuring reliable results for demanding research. It is widely used in FTIR/XRF spectroscopy, battery R&D, ceramics, metallurgy, and catalysis. Available with regular or digital pressure gauge options, it provides flexibility for laboratory workflows.

Key Features

  • Ultra-high pressure capacity – Provides up to 40 tons of pressing force, ideal for dense and uniform pellet formation.

  • Durable, compact structure – Heavy-duty construction with compact dimensions suited for laboratory environments.

  • Stable hydraulic performance – Pressure stability ≤1 MPa/10 min ensures consistent sample preparation.

  • Versatile operation – Suitable for FTIR/XRF, battery electrode research, ceramics, metallurgy, and catalysts.

  • Glovebox compatible – Can be operated inside a glovebox; seal check recommended to prevent oil leakage.

Specifications

Parameter CL0613 CL0614

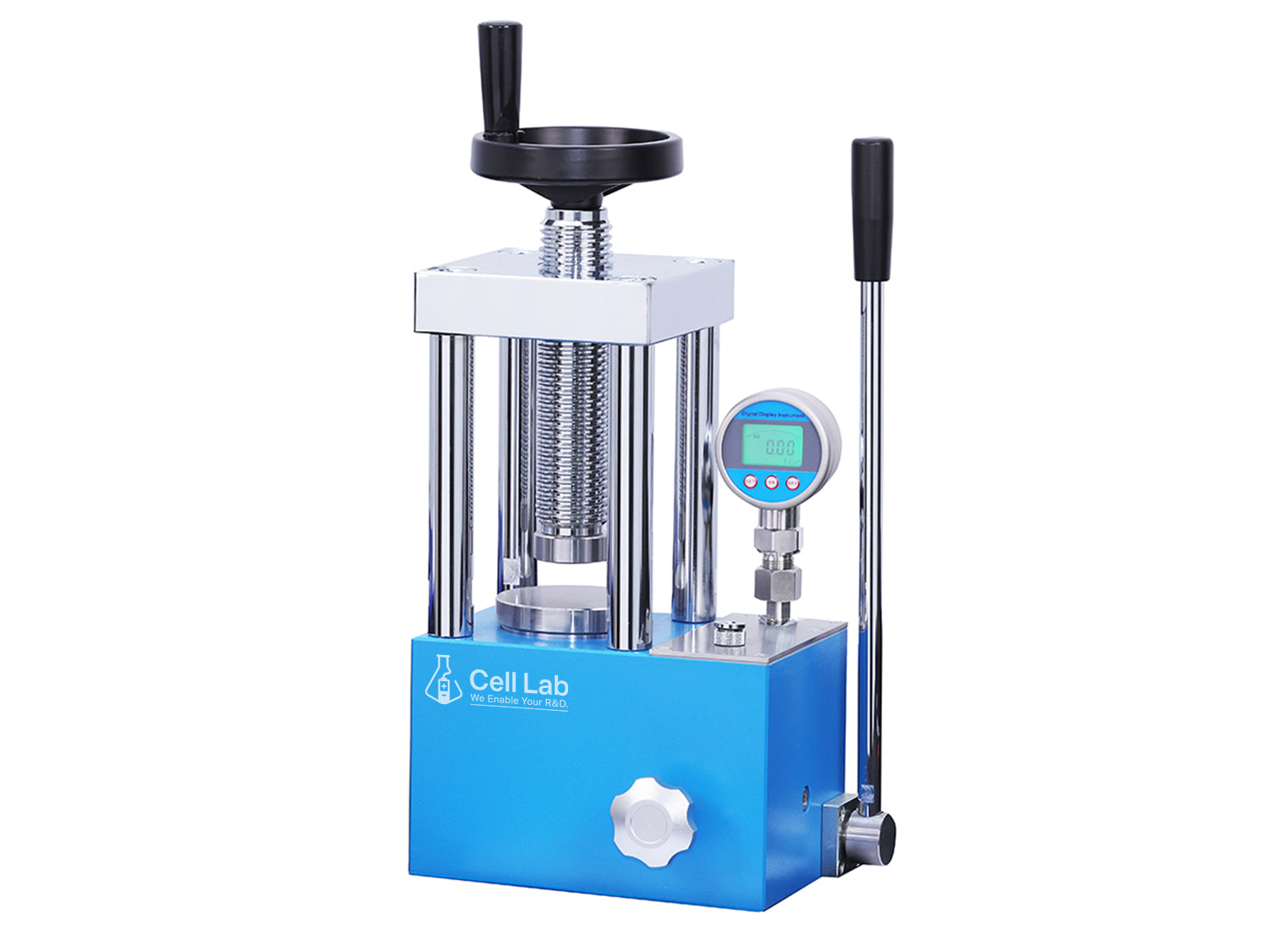

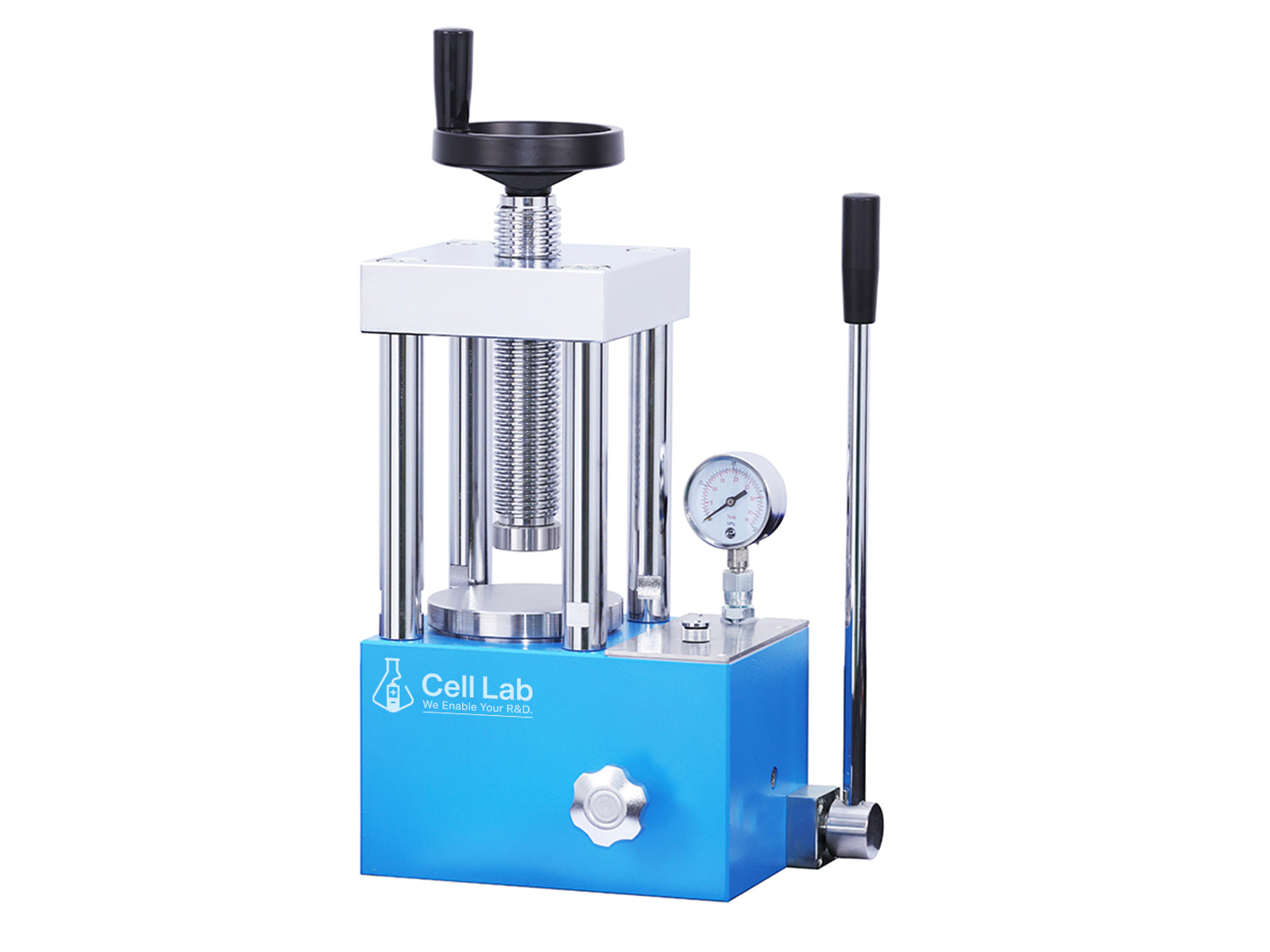

Design Regular Pressure Gauge Digital Pressure Gauge
Pressure Range 0–40 tons (0–30 MPa) 0–40 tons (0–30 MPa)
Max Pressure 40 tons 40 tons
Piston Diameter 130 mm 130 mm
Max Travel Distance 50 mm 50 mm
Pressure Stability ≤1 MPa / 10 min ≤1 MPa / 10 min
Sample Stage Diameter 140 mm 140 mm
Working Area 106 × 180 mm 106 × 180 mm
Dimensions 295 × 215 × 500 mm 295 × 215 × 500 mm
Net Weight 75 kg 75 kg
Warranty One-year limited warranty (improper use excluded) One-year limited warranty (improper use excluded)

Applications & Industries

  • FTIR/XRF sample preparation – precise pellet formation for spectroscopy.

  • Battery materials R&D – electrode and solid-state material pressing.

  • Ceramics & materials science – high-density powder compaction.

  • Metallurgy – alloy and mineral sample preparation.

  • Catalysis & chemical engineering – reliable pellet pressing for catalyst testing.

FAQ

Q1: What is the maximum pressure capacity?
A: The press provides up to 40 tons of hydraulic pressure, designed for dense pellet formation in advanced research.

Q2: What models are available?
A: Two models are available: PR0347A with a regular pressure gauge and PR0347B with a digital pressure gauge.

Q3: Can this be used inside a glovebox?
A: Yes, it can be operated in a glovebox, but O-ring seals should be checked regularly to prevent oil leakage.

Q4: What is the pressure stability of this press?
A: Pressure stability is ≤1 MPa per 10 minutes, ensuring consistent pellet quality.

Q5: What sample size does it support?
A: The press features a 140 mm sample stage diameter and a 106 × 180 mm working area, suitable for various pellet dimensions.
