Cell Lab Manual Hydraulic Pellet Press [30-Ton, Lab Scale]

High-Pressure Pellet Pressing for Analytical & Material Science Applications

The Cell Lab 30-Ton Manual Hydraulic Pellet Press is engineered for laboratories requiring high-pressure powder pressing with maximum efficiency and reliability. Built with a compact structure and durable design, this press provides stable pellet formation for a wide range of analytical and material science applications. It is widely used for FTIR/XRF sample preparation, battery electrode material processing, ceramic and metallurgical studies, as well as catalysis research. With multiple gauge options and optional safety shield configurations, it offers both flexibility and safety for diverse laboratory environments.

Key Features

  • High-pressure performance – Provides up to 30 tons of pressure, ensuring strong and uniform pellet formation.

  • Versatile design options – Available with regular or digital pressure gauges, with or without safety shields, to meet different laboratory needs.

  • Durable & compact construction – Four-column steel frame and heavy-duty piston for long-term stability in compact lab settings.

  • Stable hydraulic system – Ensures pressure stability (≤1 MPa/10 min) for consistent pellet quality.

  • Glovebox compatible – Can be safely operated inside a glovebox; seal inspection recommended to prevent oil leakage.

Specifications

Parameter CL0609 CL0610 CL0611 CL0612

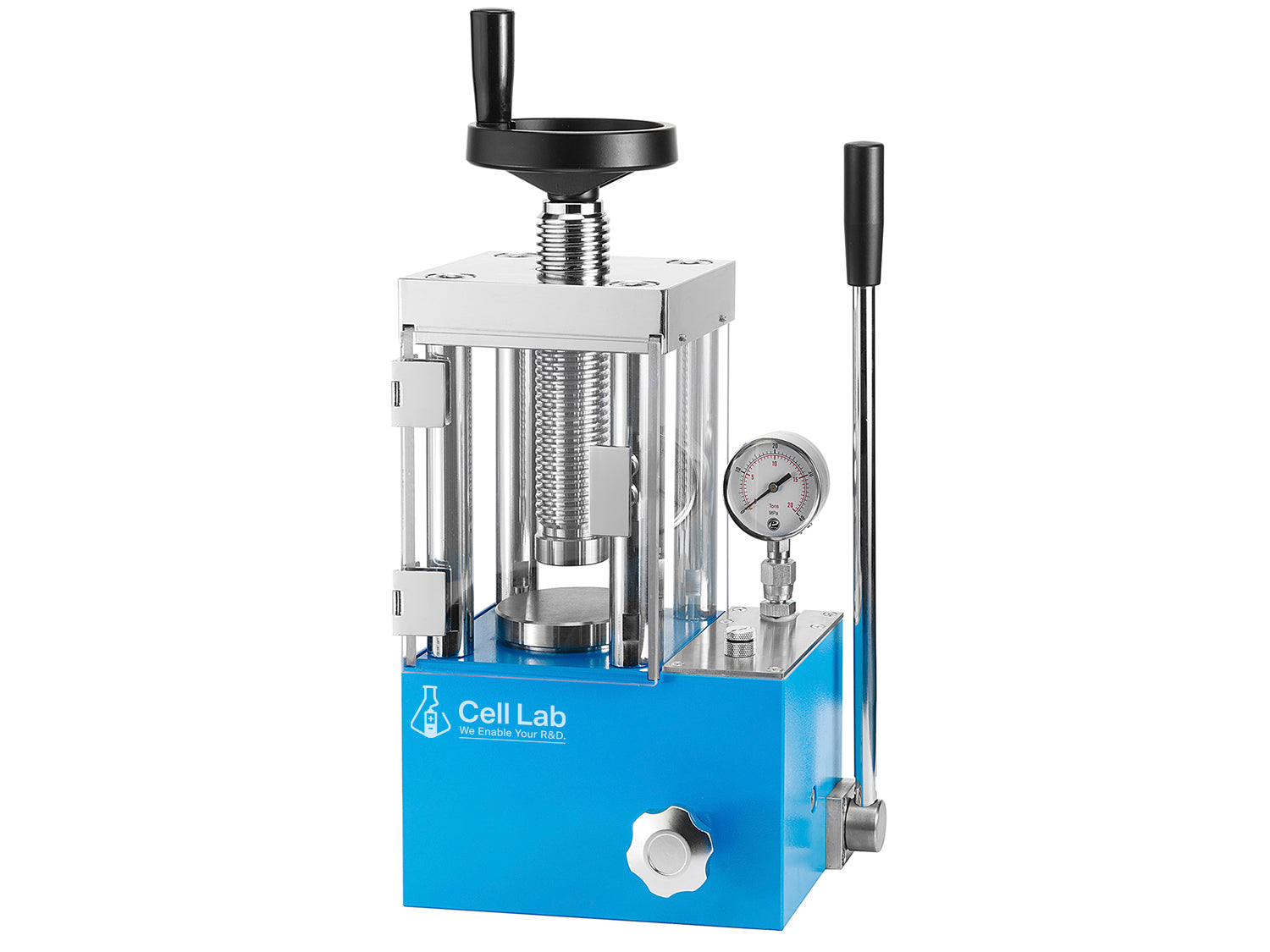

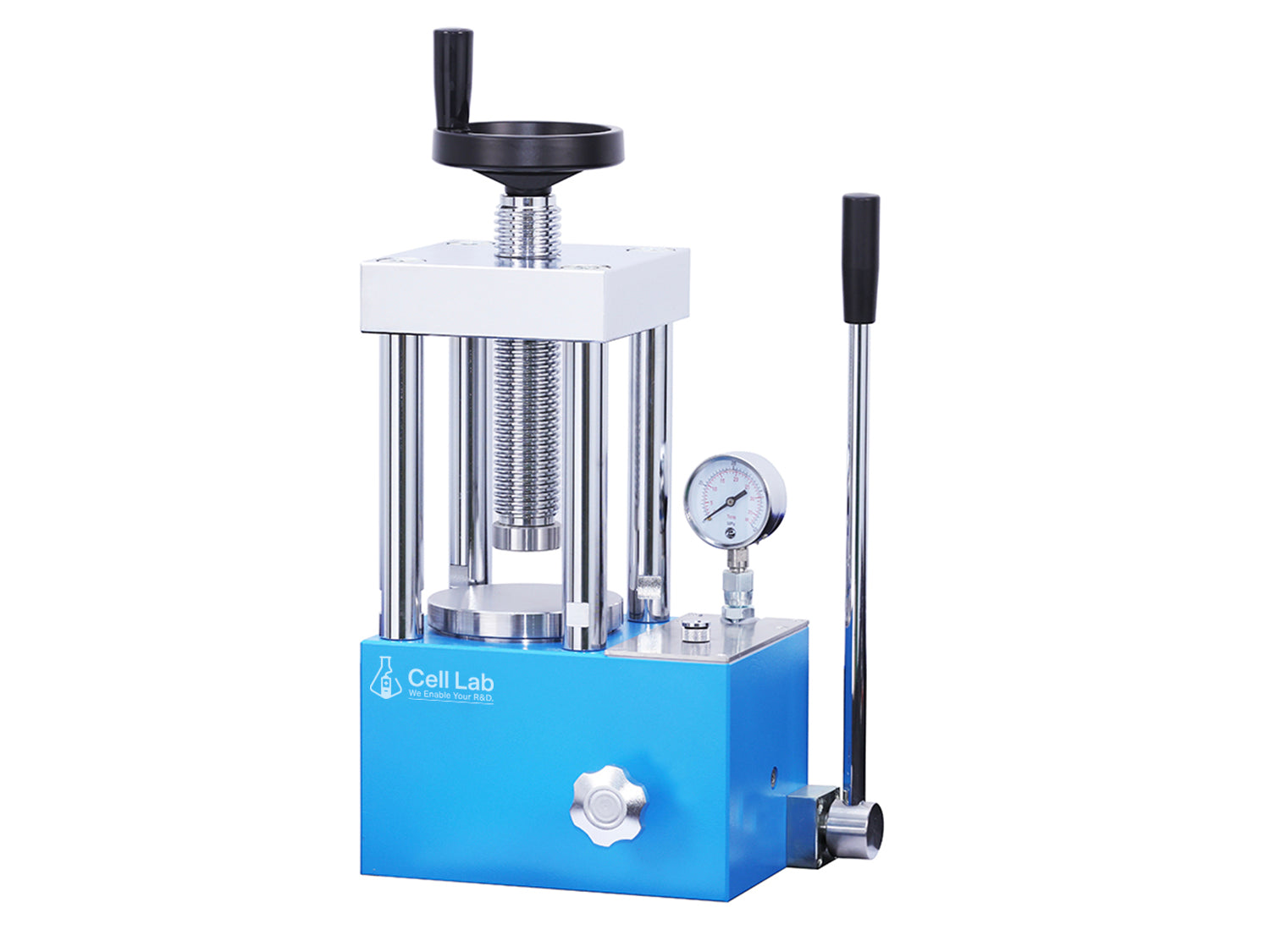

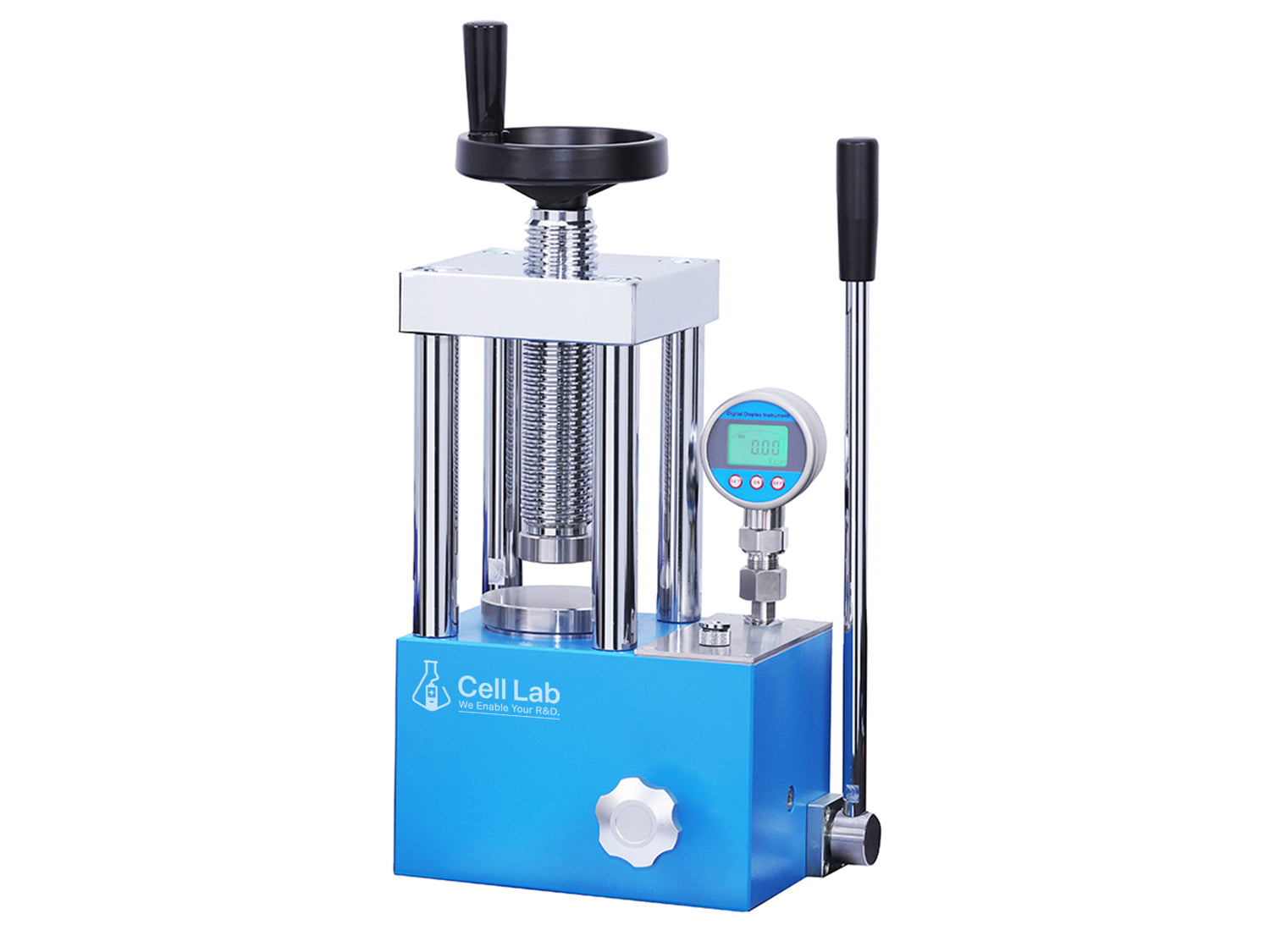

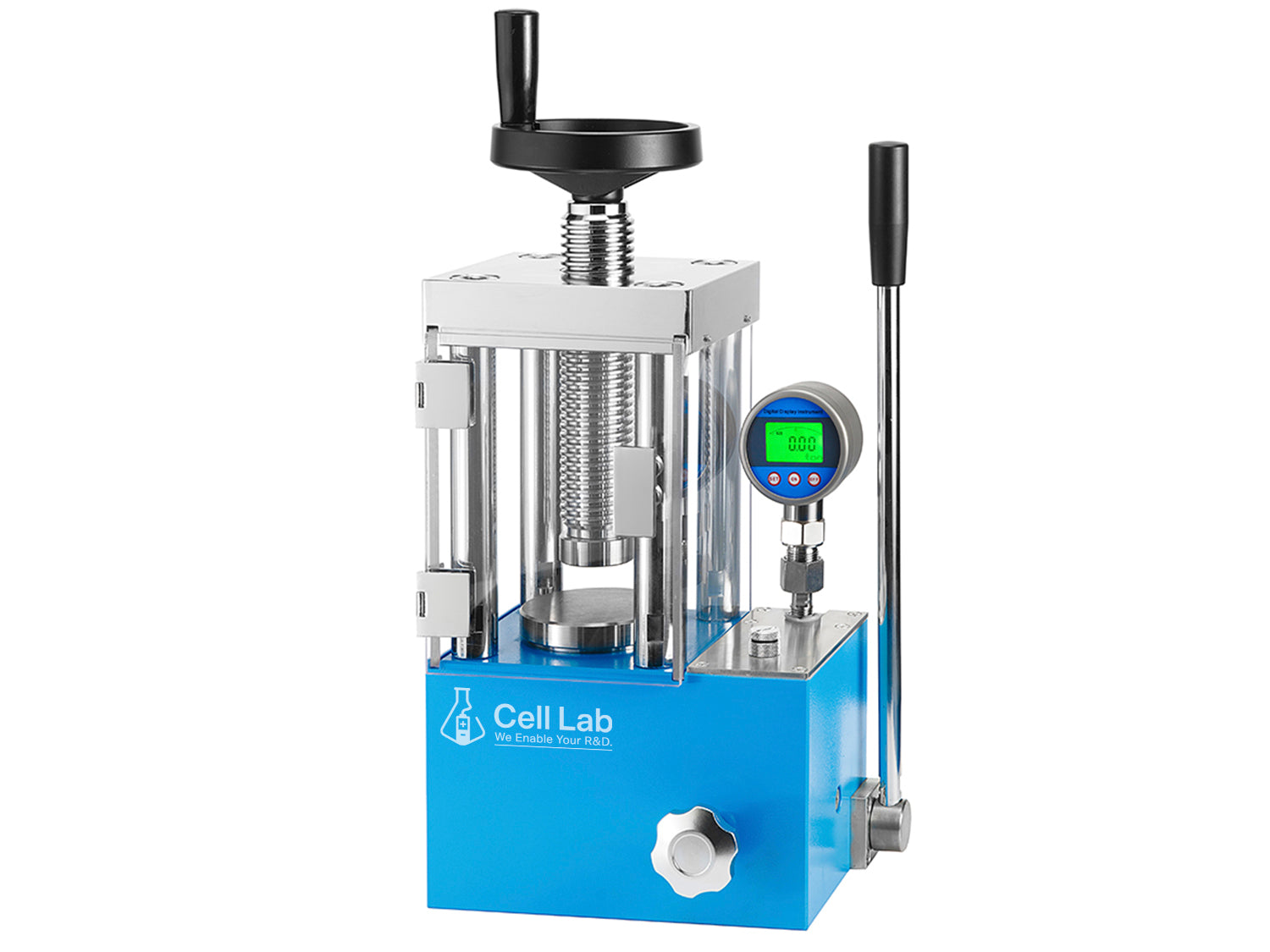

Design Regular Pressure Gauge Regular Pressure Gauge + Safety Shield Digital Pressure Gauge Digital Pressure Gauge + Safety Shield
Working Area 92 × 160 mm 112 × 160 mm 92 × 160 mm 112 × 160 mm
Dimensions 275 × 195 × 420 mm 305 × 195 × 425 mm 275 × 195 × 420 mm 305 × 195 × 425 mm
Net Weight 56 kg 65 kg 56 kg 65 kg
Safety Shield – Plexiglass – Plexiglass
Pressure Range 0–30 tons (0–31.5 MPa) 0–30 tons (0–31.5 MPa) 0–30 tons (0–31.5 MPa) 0–30 tons (0–31.5 MPa)
Max Pressure 30 tons 30 tons 30 tons 30 tons
Piston Diameter 110 mm 110 mm 110 mm 110 mm
Number of Columns 4 4 4 4
Max Travel Distance 40 mm 40 mm 40 mm 40 mm
Sample Stage Diameter 120 mm 120 mm 120 mm 120 mm
Pressure Stability ≤1 MPa / 10 min ≤1 MPa / 10 min ≤1 MPa / 10 min ≤1 MPa / 10 min
Warranty One-year limited warranty (improper use excluded) One-year limited warranty (improper use excluded) One-year limited warranty (improper use excluded) One-year limited warranty (improper use excluded)

Applications & Industries

  • FTIR/XRF spectroscopy sample preparation

  • Battery R&D – electrode material pellet pressing

  • Ceramics & materials science – fine powder compaction

  • Metallurgical studies – alloy and mineral pressing

  • Catalysis & chemical R&D laboratories

FAQ

Q1: What is the maximum pressure capacity of this press?
A: The press delivers up to 30 tons of hydraulic pressure, ideal for high-density pellet pressing.

Q2: What design options are available?
A: Four models: regular or digital pressure gauges, each available with or without a plexiglass safety shield.

Q3: Can it be used inside a glovebox?
A: Yes. It is compatible with glovebox operation, though seals should be checked periodically to avoid oil leakage.

Q4: What is the pressure stability of the hydraulic system?
A: ≤1 MPa per 10 minutes, ensuring uniform sample pellet quality.

Q5: What are typical applications?
A: FTIR/XRF pellet preparation, battery electrode pressing, ceramic compaction, metallurgy samples, and catalysis studies.
