Cell Lab Manual Hydraulic Pellet Press [3-Ton, Compact Lab Scale]

Compact, Reliable & Easy-to-Use Press for Powder-to-Pellet Applications

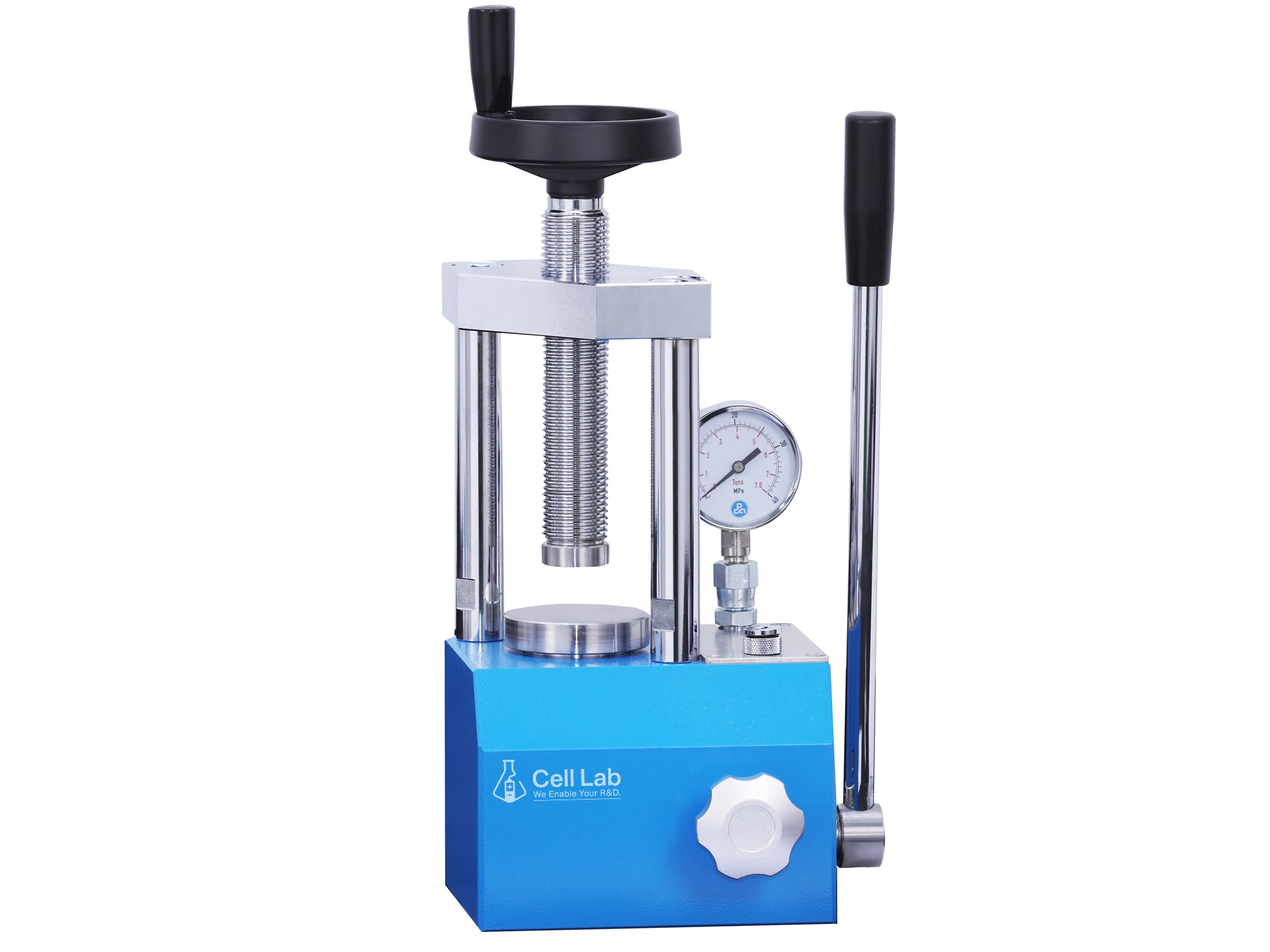

The Cell Lab 3-Ton Manual Hydraulic Pellet Press is designed for laboratory applications requiring compact size, consistent performance, and ease of use. With a sturdy steel structure and user-friendly design, this press allows fast compression of powders into uniform pellets. It is widely used for FTIR and XRF analysis, battery electrode material preparation, ceramic studies, metallurgical samples, and catalytic research. Its small footprint, fast operation, and low maintenance make it an essential tool for modern laboratories.

Key Features

  • Compact & efficient design – Small footprint and quick compression, ideal for laboratory use.

  • Versatile powder pressing – Suitable for FTIR/XRF analysis, battery materials, ceramics, metallurgy, and catalysis.

  • Stable & reliable pressure – Manual hydraulic system provides consistent sealing pressure up to 3 tons.

  • Easy cleaning & low maintenance – Smooth surfaces and simple structure for hassle-free use.

  • Glovebox compatible – Can be operated inside a glovebox; seal check recommended to prevent oil leakage.

Specifications

Parameter Value
Product Code CL0592 (Regular Gauge) / CL0593 (Digital Gauge)
Pressure Range 0–3 tons (28.8 MPa)
Max Pressure 3 tons
Pressure Stability ≤1 MPa / 10 min
Lead Screw Diameter 35 mm
Sample Stage Diameter 80 mm
Maximum Sample Height 130 mm
Dimensions 225 × 155 × 380 mm
Net Weight 28 kg
Warranty One-year limited warranty (improper use or rust excluded)

Applications & Industries

  • FTIR/XRF analytical sample preparation

  • Battery R&D – electrode material pellet pressing

  • Ceramics & materials science research

  • Metallurgy sample preparation

  • Catalyst testing & R&D laboratories

FAQ

Q1: What materials can be pressed with this 3-ton pellet press?
A: It is suitable for pressing powders into pellets for FTIR/XRF analysis, battery electrode materials, ceramic powders, catalysts, and metallurgical samples.

Q2: Can this press be used inside a glovebox?
A: Yes. It can operate inside a glovebox. However, the O-ring seal should be checked regularly to avoid potential oil leakage.

Q3: What is the maximum sample size that can be accommodated?
A: The sample stage diameter is 80 mm, and the maximum sample height is 130 mm, providing flexibility for different pellet dimensions.

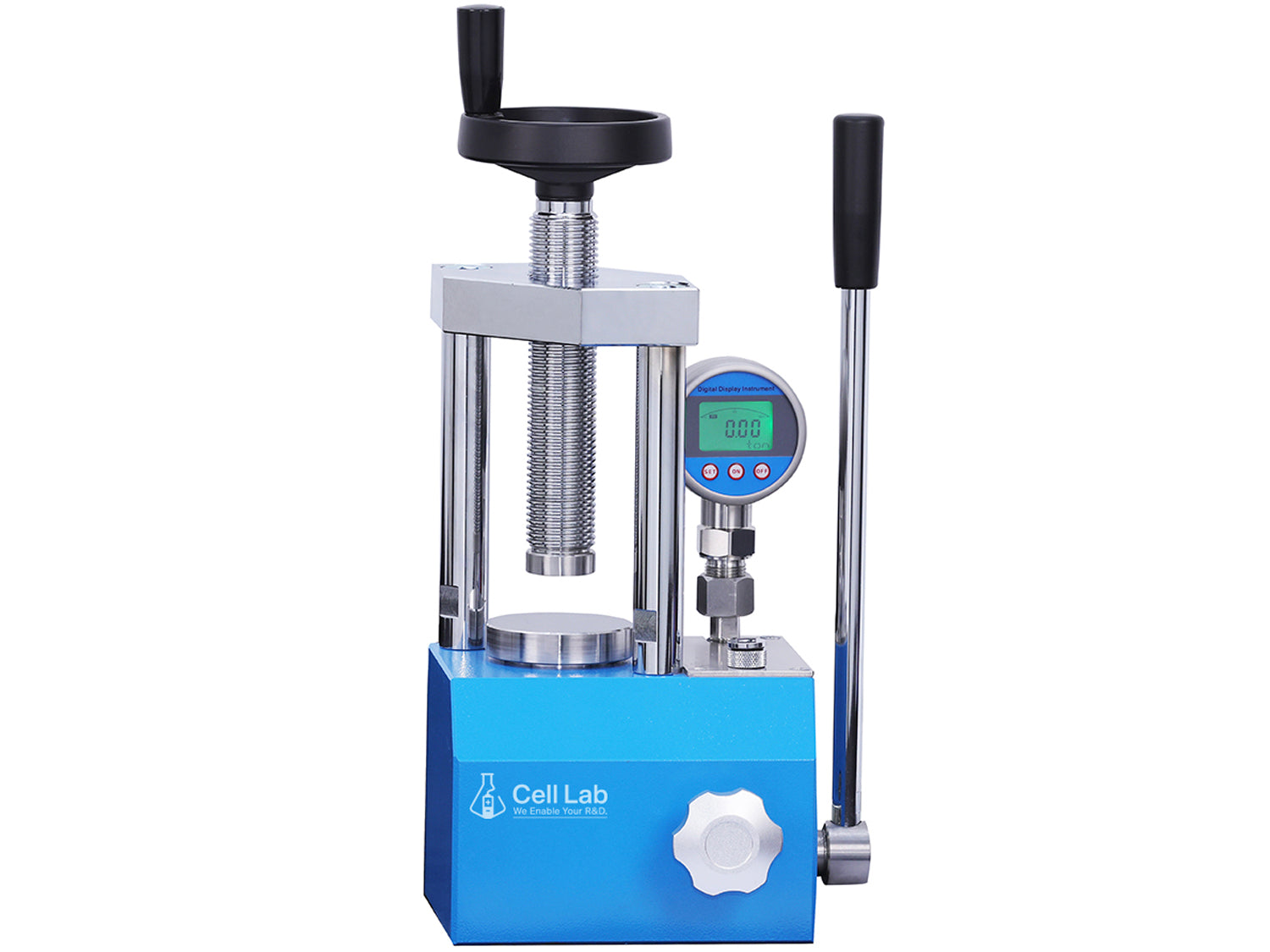

Q4: Does the press support both regular and digital pressure gauges?
A: Yes. Two models are available: PR0301A with a regular pressure gauge and PR0301 with a digital pressure gauge.

Q5: What maintenance is required?
A: The press should be cleaned after each use to ensure optimal performance and extended service life.
