Cell Lab Manual Hydraulic Pellet Press [12-Ton, Lab Scale]

Reliable Mid-Range Pellet Pressing for Laboratory Applications

The Cell Lab 12-Ton Manual Hydraulic Pellet Press is designed for laboratories requiring stable, mid-range pressing force in a compact design. With simple operation, fast compression, and low maintenance, this press is ideal for producing consistent pellets across a wide range of applications. It is widely used in FTIR/XRF analysis, battery electrode research, ceramic and metallurgical sample preparation, as well as catalysis studies. Available with either a regular or digital pressure gauge, it provides flexibility and precision for research workflows.

Key Features

  • Mid-range pressure capacity – Provides up to 12 tons of force for reliable pellet formation.

  • Compact & robust design – Small footprint and heavy-duty piston suitable for most lab environments.

  • Stable hydraulic system – Pressure stability ≤1 MPa/10 min ensures consistent and reproducible pellet quality.

  • Versatile use cases – Compatible with FTIR/XRF spectroscopy, battery research, ceramics, metallurgy, and catalysis.

  • Glovebox compatible – Can be safely used inside a glovebox; O-ring inspection recommended to avoid oil leakage.

Specifications

Parameter CL0617 CL0618

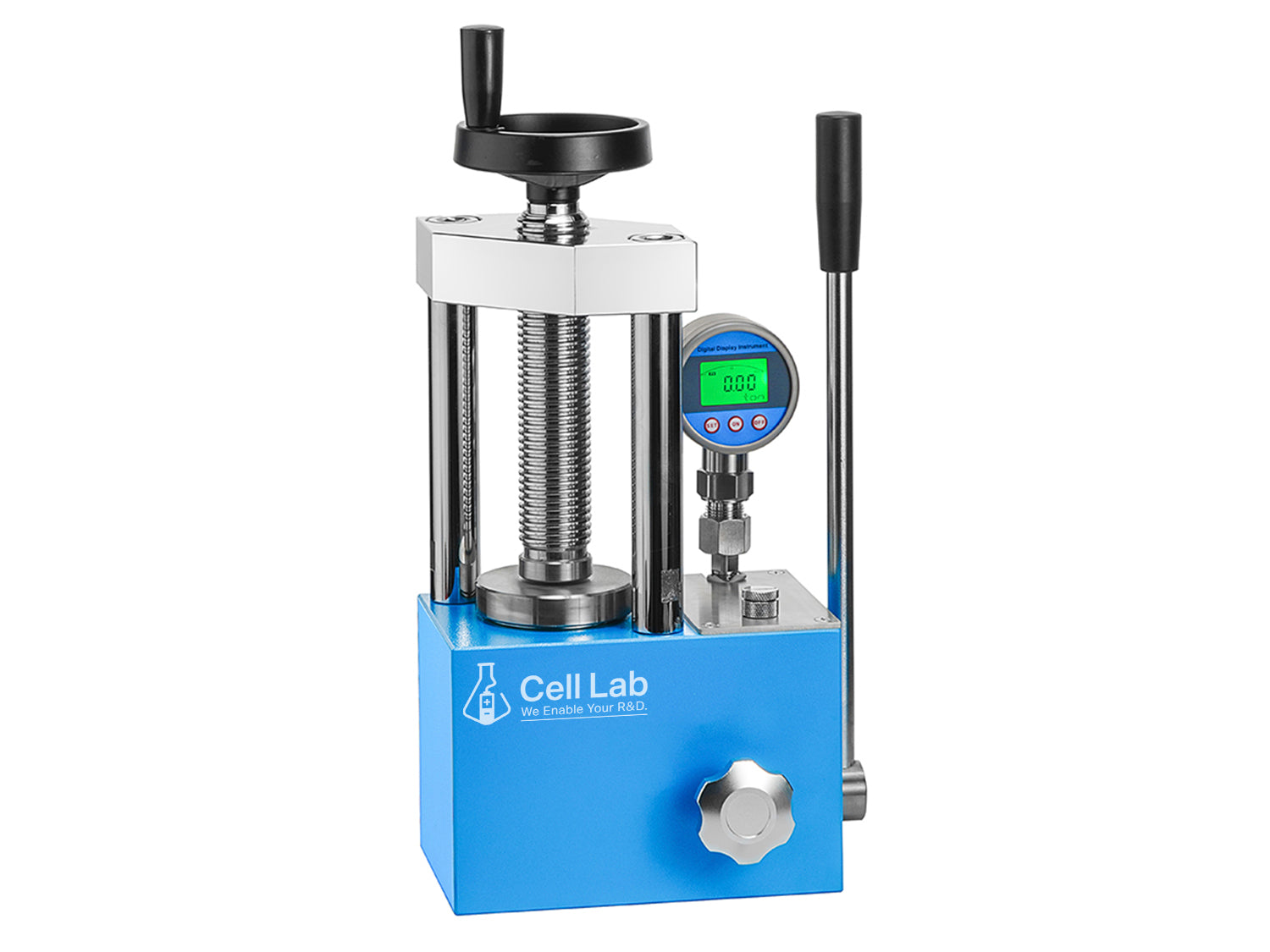

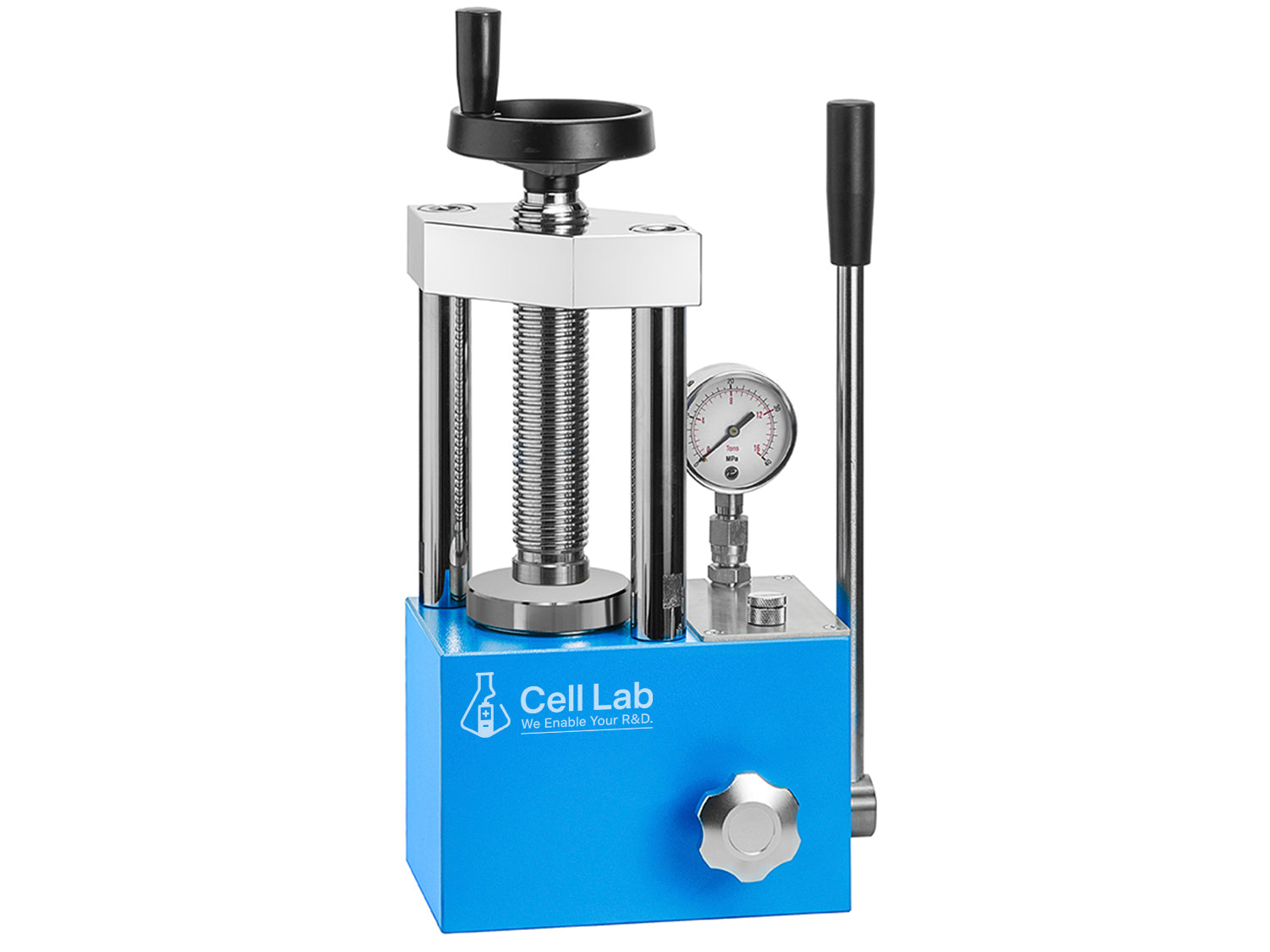

Design Regular Pressure Gauge Digital Pressure Gauge
Pressure Range 0–12 tons 0–12 tons
Max Pressure 12 tons 12 tons
Piston Diameter 70 mm 70 mm
Max Travel Distance 30 mm 30 mm
Pressure Stability ≤1 MPa / 10 min ≤1 MPa / 10 min
Sample Stage Diameter 80 mm 80 mm
Working Area 96 × 130 mm 96 × 130 mm
Dimensions 225 × 155 × 380 mm 225 × 155 × 380 mm
Net Weight 28 kg 28 kg
Warranty One-year limited warranty (improper use excluded) One-year limited warranty (improper use excluded)

Applications & Industries

  • FTIR/XRF spectroscopy – consistent sample pellet preparation.

  • Battery electrode R&D – compacting powders for electrode materials.

  • Ceramics & materials science – powder compaction for research.

  • Metallurgy – preparation of alloy and mineral samples.

  • Catalysis & chemistry laboratories – reproducible pellet pressing for catalyst testing.

FAQ

Q1: What is the maximum pressure capacity of this press?
A: It provides up to 12 tons of hydraulic pressure, making it ideal for mid-range laboratory applications.

Q2: What models are available?
A: Two models are available: PR0316A with a regular pressure gauge and PR0316B with a digital pressure gauge.

Q3: Can it be used inside a glovebox?
A: Yes. It can operate inside a glovebox, but the O-ring seal should be checked regularly to avoid oil leakage.

Q4: How stable is the hydraulic system?
A: The press has a pressure stability of ≤1 MPa per 10 minutes, ensuring consistent pellet quality.

Q5: What is the sample stage size?
A: The press features an 80 mm stage diameter and a 96 × 130 mm working area, suitable for a wide range of pellet dimensions.
