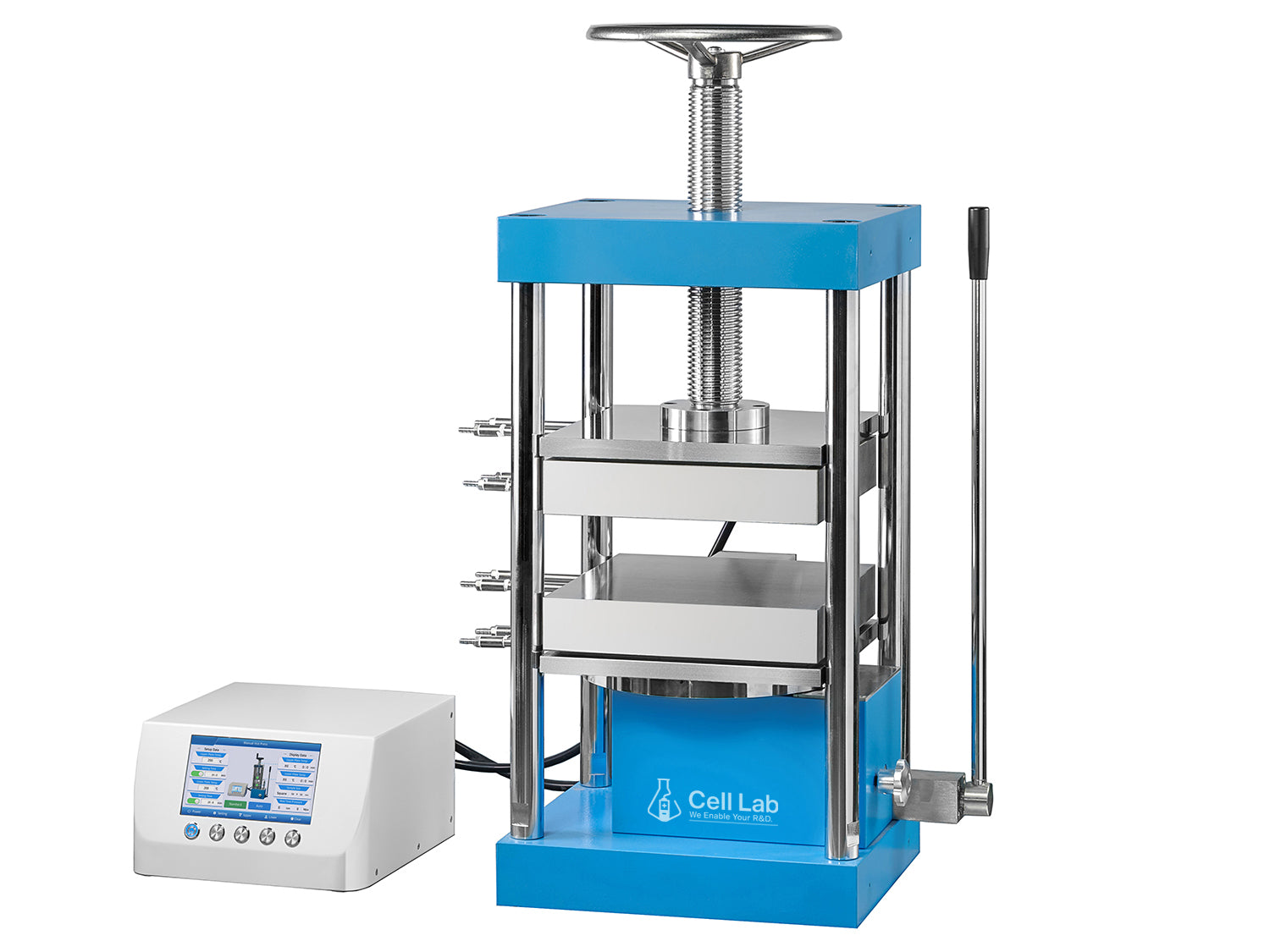

xCell Lab Manual Hydraulic Heated Lab Press [40T, 300*300 mm]
High-Pressure Heated Hydraulic Press for Battery Materials, Composite Lamination, Powder Metallurgy and Advanced Materials Research
The Cell Lab Manual Hydraulic Heated Lab Press is a heavy-duty laboratory hot pressing system designed for high-pressure compression and thermal processing of advanced materials. Equipped with dual 300 × 300 mm heated platens, a 40-ton manual hydraulic pressing system, and an intelligent 7-inch touchscreen temperature controller, the system delivers excellent temperature uniformity and precise pressure control for demanding research and pilot-scale production applications.
Available in 300°C and 500°C heating configurations, the press incorporates a programmable multi-stage heating and cooling system, optional water-cooling functionality, and imported thermal insulation materials to ensure high energy efficiency and stable temperature control during long-duration experiments.
The robust integrated hydraulic design eliminates sealing connections to minimize oil leakage while improving operational reliability and service life.
Key Features
- 40-Ton Manual Hydraulic Pressing Force: Provides stable and repeatable manual compression from 0–40 tons, suitable for high-density material forming, electrode calendaring and powder compaction.
- Dual 300 × 300 mm Heated Platens: Large-area dual heated platens provide uniform temperature distribution for large-format samples, laminates and composite materials.
- Programmable Heating and Cooling Control: Supports multi-stage heating and cooling profiles to improve process repeatability for complex thermal treatments.
- High Precision Temperature Control: Integrated PID control system provides 0.1°C temperature control accuracy, ensuring highly consistent thermal processing conditions.
- Integrated Hydraulic Structure: The monoblock hydraulic design eliminates external sealing joints, significantly reducing oil leakage risk and maintenance requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Manual Hydraulic Heated Lab Press |
| Maximum Pressure | 40 Tons |
| Pressure Range | 0–40 Tons |
| Pressure Accuracy | 0.01 Ton |
| Heating Temperature | RT–300°C / RT–500°C |
| Heating Power | 2 kW / 3.5 kW |
| Temperature Control Accuracy | 0.1°C |
| Hydraulic Cylinder Diameter | Φ130 mm Chrome-Plated Cylinder |
| Hydraulic Structure | Integrated Leak-Reduced Design |
| Heating Area | Dual 300 × 300 mm Heating Platens |
| Working Space | 300 × 220 mm |
| Heating Method | Multi-Stage Heating or Cooling Program |
| Heating Insulation | Imported Thermal Insulation Board |
| Cooling Method | Air Cooling or Optional Water Cooling |
| Constant Temperature Holding Time | ≥1 second |
| Display Screen | 7-inch Touchscreen |
| Voltage | 220V±10% / 50Hz |
Controller Specifications
| Parameter | Specification |
|---|---|
| Controller Dimensions | 490 × 395 × 235 mm |
| Controller Net Weight | 9.5 kg |
| Controller Gross Weight | 26.5 kg |
Hydraulic Press Specifications
| Parameter | Specification |
|---|---|
| Press Dimensions (K × P × H) | 800 × 400 × 900 mm |
| Net Weight | 350 kg |
| Gross Weight | 402 kg |
Optional Water Chiller
| Parameter | Specification |
|---|---|
| Dimensions | 550 × 340 × 430 mm |
| Net Weight | 11 kg |
Applications & Industries
- Lithium-ion battery electrode calendaring
- Solid-state battery material processing
- Polymer composite molding
- Ceramic powder compaction
- Powder metallurgy
- Carbon and graphite material pressing
- Fuel cell component fabrication
- Functional film lamination
- Thin-film material preparation
- University laboratories
- Materials science research institutes
- Pilot-scale manufacturing
FAQ
Q1: What is the maximum pressing force?
The hydraulic system provides up to 40 tons of manual pressing force with a resolution of 0.01 ton.
Q2: Which temperature versions are available?
Two standard heating configurations are available: RT–300°C and RT–500°C
Q3: Can the press perform cooling cycles?
Yes. The system supports natural air cooling and can be upgraded with an optional water chiller for accelerated cooling.
Q4: What is the usable pressing area?
The press uses dual heating platens measuring 300 × 300 mm.
Q5: What materials can be processed?
The press is suitable for battery materials, ceramics, composite laminates, polymer sheets, metal powders, graphite materials and other advanced materials requiring heated compression.
