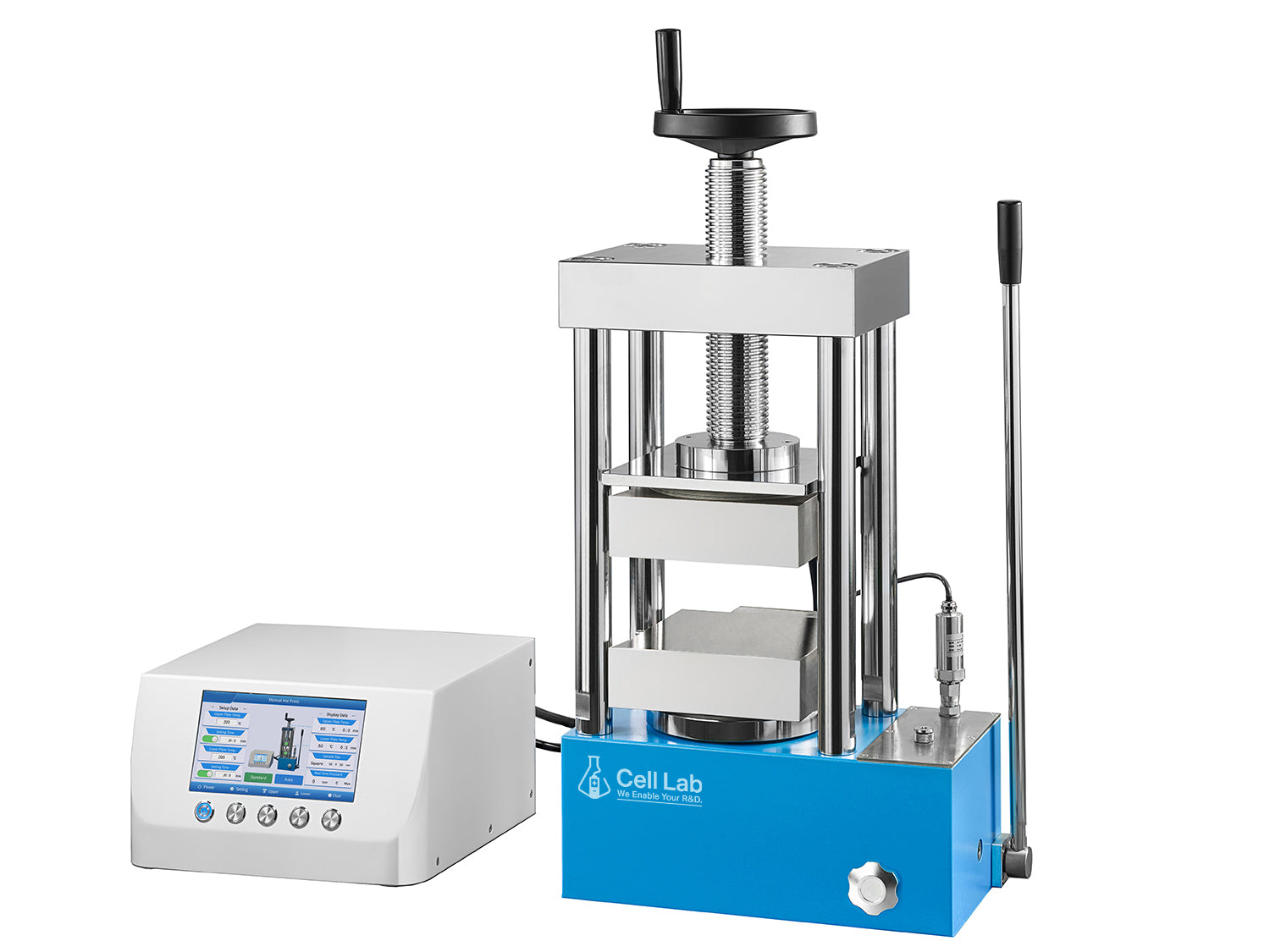

Cell Lab Manual Hydraulic Heated Lab Press [30–40 Ton, 300 °C, Large Plates]

High-Tonnage Heated Press for Polymers, Ceramics & Battery Films

The Cell Lab 30T–40T Manual Hydraulic Heated Lab Press series is designed for large-area heated pressing of polymers, ceramics, powders, and electrode or membrane films. Equipped with dual precision flat heating plates (300 × 300 mm or 400 × 400 mm), each model features independent digital temperature controllers for stable heating up to 300 °C.

These presses are ideal for laboratories requiring high-pressure compaction over larger sample areas, supporting both powder pressing and polymer film lamination. The robust hydraulic design ensures uniform load distribution and high reproducibility in R&D, pilot-scale production, and advanced materials testing.

Key Features

  • High tonnage capacity – Models available at 30T and 40T for large-area compaction.

  • Large dual heating plates – 300 × 300 mm or 400 × 400 mm, each with digital temperature control up to 300 °C.

  • Precision temperature stability – ±0.1 °C accuracy ensures uniform heating across the pressing surface.

  • Versatile lab applications – Suited for polymers, ceramics, battery electrode sheets, membranes, and composites.

  • Durable & easy to maintain – Heavy-duty frame with simple cleaning for long service life.

Specifications

Model Product No. Pressure Range Max Pressure Heating Plates Heating Range Temp. Control Accuracy Cooling Mode Press Dimensions (L × W × H) Overall Dimensions (incl. chiller) Net Weight Power Power Supply
30T (Without Chiller) CL0690 0–30 tons 30 tons Dual 300 × 300 mm Up to 300 °C ±0.1 °C Natural cooling 380 × 350 × 600 mm – ~300 kg – 220V / 50 Hz
30T (With Chiller) CL0691 0–30 tons 30 tons Dual 300 × 300 mm Up to 300 °C ±0.1 °C Water cooling 380 × 350 × 600 mm 700 × 400 × 600 mm ~320 kg – 220V / 50 Hz
40T (Without Chiller) CL0692 0–40 tons 40 tons Dual 400 × 400 mm Up to 300 °C ±0.1 °C Natural cooling 500 × 480 × 650 mm – 460 kg 5000 W 220V / 50 Hz
40T (With Chiller) CL0693 0–40 tons 40 tons Dual 400 × 400 mm Up to 300 °C ±0.1 °C Water cooling 500 × 480 × 650 mm 850 × 480 × 650 mm 485 kg 5000 W 220V / 50 Hz

Applications & Industries

  • Battery R&D – Fabrication of electrode sheets and separator films.

  • Polymer research – Heated pressing and lamination of polymer films.

  • Ceramics & minerals – Large-area compaction for materials and geological samples.

  • Catalysis & materials science – Preparation of functional material pellets.

  • Pilot-scale labs – Versatile large-format heated pressing for advanced R&D.

FAQ

Q1: What sizes of heating plates are available?
A: Standard options include 300 × 300 mm (30T) and 400 × 400 mm (40T).

Q2: What is the maximum operating temperature?
A: All models heat up to 300 °C, with ±0.1 °C control accuracy.

Q3: Can the press be used as a laminator?
A: Yes. It also serves as a laminator for polymer and membrane films.

Q4: Is cooling included?
A: The “with chiller” versions are equipped with water-cooling jackets for rapid cooling. “Without chiller” versions use natural cooling only.

Q5: What is the warranty policy?
A: One-year limited warranty; consumables and damage from misuse are excluded.
