Cell Lab Manual Hydraulic Heated Lab Press [24–60 Ton, up to 300–500 °C]

Cell Lab Manual Hydraulic Heated Lab Press [24–60 Ton, up to 300–500 °C] High-Pressure Heated Press Series for Polymers, Ceramics & Battery Films The Cell Lab Manual Hydraulic Heated Lab Press series offers a versatile range of benchtop systems (24-ton...
Vendor: Cell Lab
SKU: CL0643
Product type: Pellet Press Die Set
£5,529.00
£5,529.00
Style: Dual 180x180 mm 60 tons 300 °C
Subtotal: £5,529.00
Cell Lab Manual Hydraulic Heated Lab Press Series (24T & 60T): dual heated plates up to 300–500 °C, ±0.1 °C precision, and up to 60-ton force. Compact and versatile for polymers, ceramics, batteries, membranes, and film lamination.

Cell Lab Manual Hydraulic Heated Lab Press [24–60 Ton, up to 300–500 °C]

£5,529.00
Cell Lab Manual Hydraulic Heated Lab Press Series (24T & 60T): dual heated plates up to 300–500 °C, ±0.1 °C precision, and up to 60-ton force. Compact and versatile for polymers, ceramics, batteries, membranes, and film lamination.

Cell Lab Manual Hydraulic Heated Lab Press [24–60 Ton, up to 300–500 °C]

£5,529.00
Style: Dual 180x180 mm 60 tons 300 °C
Description
Description
x

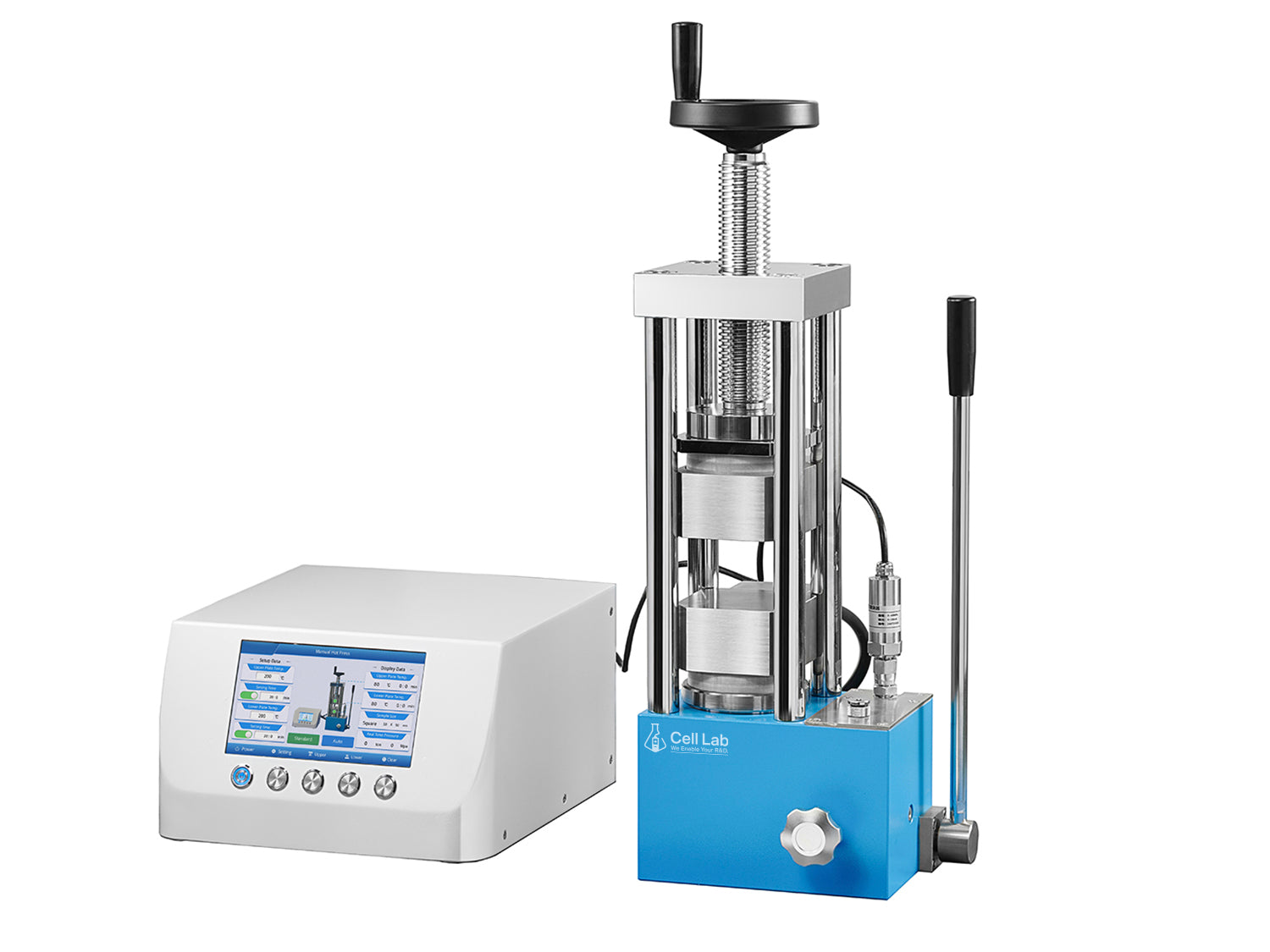

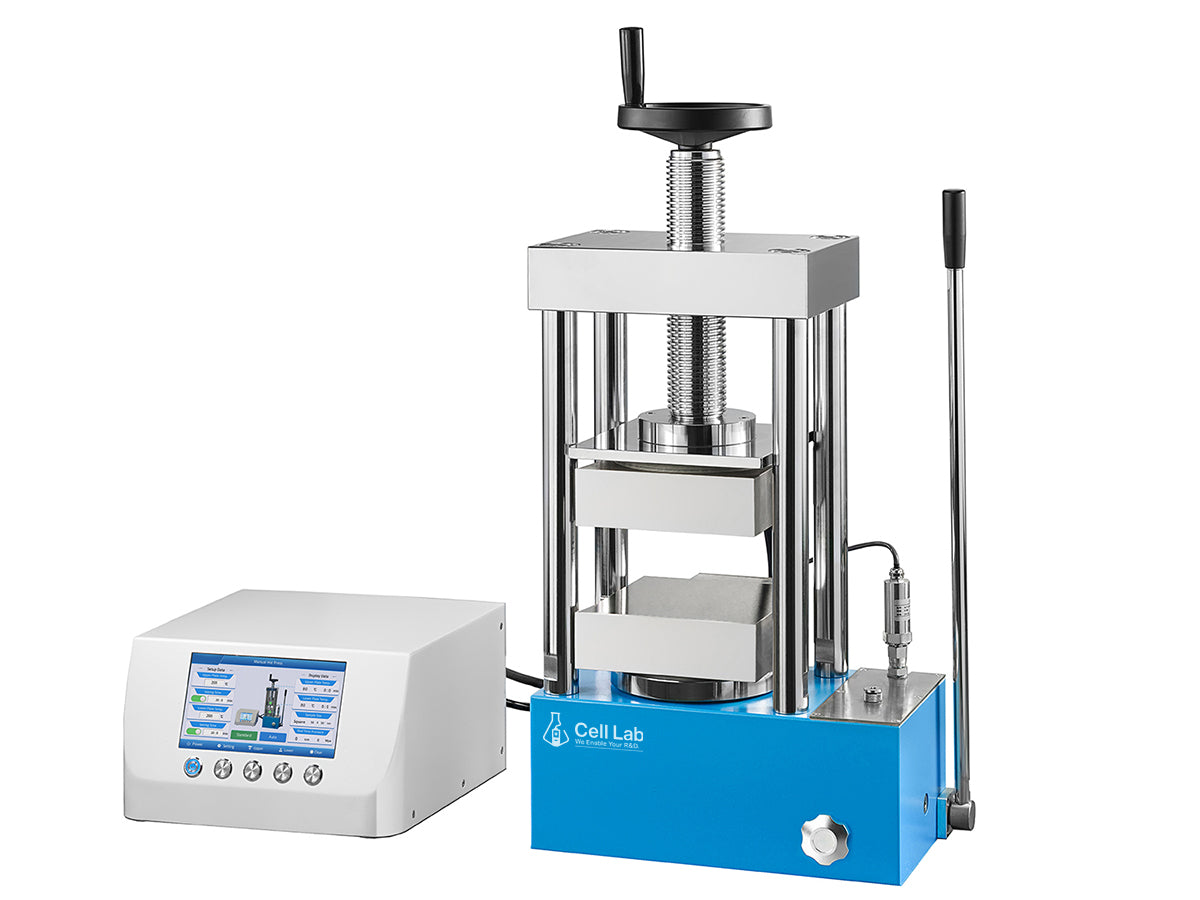

Cell Lab Manual Hydraulic Heated Lab Press [24–60 Ton, up to 300–500 °C]

High-Pressure Heated Press Series for Polymers, Ceramics & Battery Films

The Cell Lab Manual Hydraulic Heated Lab Press series offers a versatile range of benchtop systems (24-ton and 60-ton models) designed for heated pressing of polymers, ceramics, electrode sheets, and membranes. Depending on laboratory needs, the 24-ton model is available with heating up to 300 °C or 500 °C, while the 60-ton model provides larger plate size and ultra-high pressure for demanding applications. Each model features dual flat heating plates with independent digital temperature controllers, ensuring precise thermal regulation and reproducible sample preparation. In addition to powder pressing, all models can also serve as compact laminators for polymer films.

Key Features

  • Multiple models – Available in 24-ton (300 °C or 500 °C) and 60-ton (300 °C) variants.

  • Dual heated plates – Flat heating plates (100 × 100 mm for 24T, 180 × 180 mm for 60T) with independent temperature control.

  • Precision control – ±0.1 °C thermal accuracy across both plates ensures uniform heating.

  • High-pressure performance – Stable hydraulic system with pressing capacity up to 60 tons.

  • Versatile use – Supports powder compaction, heated pressing, and film lamination in battery R&D, ceramics, polymers, and materials science.

Specifications

Parameter 24T (300 °C) CL0638 24T (500 °C) CL0644 60T (300 °C) CL0643
Pressure Range 0–24 tons (0–34 MPa) 0–24 tons (0–34 MPa) 0–60 tons (0–33 MPa)
Max Pressure 24 tons 24 tons 60 tons
Heating Range Up to 300 °C Up to 500 °C Up to 300 °C
Heating Plate Size Dual 100 × 100 mm Dual 100 × 100 mm Dual 180 × 180 mm
Heating Plate Material – 3Cr13 stainless steel –
Piston Diameter 95 mm 95 mm 150 mm
Temperature Accuracy ±0.1 °C ±0.1 °C ±0.1 °C
Max Plate Separation 140 mm ~102 mm –
Pillar Spacing 80 mm – –
Press Dimensions (L × W × H) 245 × 175 × 500 mm 245 × 175 × 500 mm 420 × 280 × 550 mm
Net Weight 64 kg 58 kg 230 kg
Power Supply 220V / 50 Hz 220V / 50 Hz, 1000 W 220V / 50 Hz
Warranty One-year limited warranty (improper use excluded) One-year limited warranty (improper use excluded) One-year limited warranty (improper use excluded)

Applications & Industries

  • Polymer research – Heated pressing and lamination of polymer films.

  • Ceramics & powders – High-pressure heated compaction for material studies.

  • Battery R&D – Electrode sheet, separator film, and solid-state material fabrication.

  • Materials science & catalysis – Controlled heating and pressing for functional materials.

  • Thin-film research – Membrane and lamination processes under precise temperature and pressure.

FAQ

Q1: What models are available in this series?
A: The series includes 24-ton (available in 300 °C and 500 °C versions) and 60-ton (300 °C) models.

Q2: What are the heating plate sizes?
A: The 24T models feature dual 100 × 100 mm plates; the 60T model uses dual 180 × 180 mm plates.

Q3: How precise is the temperature control?
A: Each heating plate is regulated independently with ±0.1 °C accuracy.

Q4: Which model should I choose?
A: The 24T (300 °C) is suitable for most polymer and battery R&D; the 24T (500 °C) is recommended for applications requiring higher thermal processing; the 60T is ideal for high-capacity, large-sample, or heavy-duty compaction.

Q5: Can these presses be used as laminators?
A: Yes. All models also serve as compact laminators for polymer films.
