Cell Lab Manual Hydraulic Heated Lab Press [10T, 300 °C, Dual 180 × 180 mm Plates]

Cell Lab Manual Hydraulic Heated Lab Press [10T, 300 °C, Dual 180 × 180 mm Plates] Compact Heated Press for Polymers, Ceramics & Battery Films The Cell Lab 10-Ton Manual Hydraulic Heated Lab Press is engineered for heated pressing of...
Vendor: Cell Lab
SKU: CL0722
Product type: Pellet Press Die Set
£5,269.00
£5,269.00
Style: Without water chiller
Subtotal: £5,269.00
Cell Lab 10T Heated Lab Press with dual 180 × 180 mm plates, up to 300 °C, ±0.1 °C accuracy, optional water cooling, and compact benchtop design. Ideal for battery R&D, ceramics, and polymer film pressing.

Cell Lab Manual Hydraulic Heated Lab Press [10T, 300 °C, Dual 180 × 180 mm Plates]

£5,269.00
Cell Lab 10T Heated Lab Press with dual 180 × 180 mm plates, up to 300 °C, ±0.1 °C accuracy, optional water cooling, and compact benchtop design. Ideal for battery R&D, ceramics, and polymer film pressing.

Cell Lab Manual Hydraulic Heated Lab Press [10T, 300 °C, Dual 180 × 180 mm Plates]

£5,269.00
Style: Without water chiller
Description
Description
x

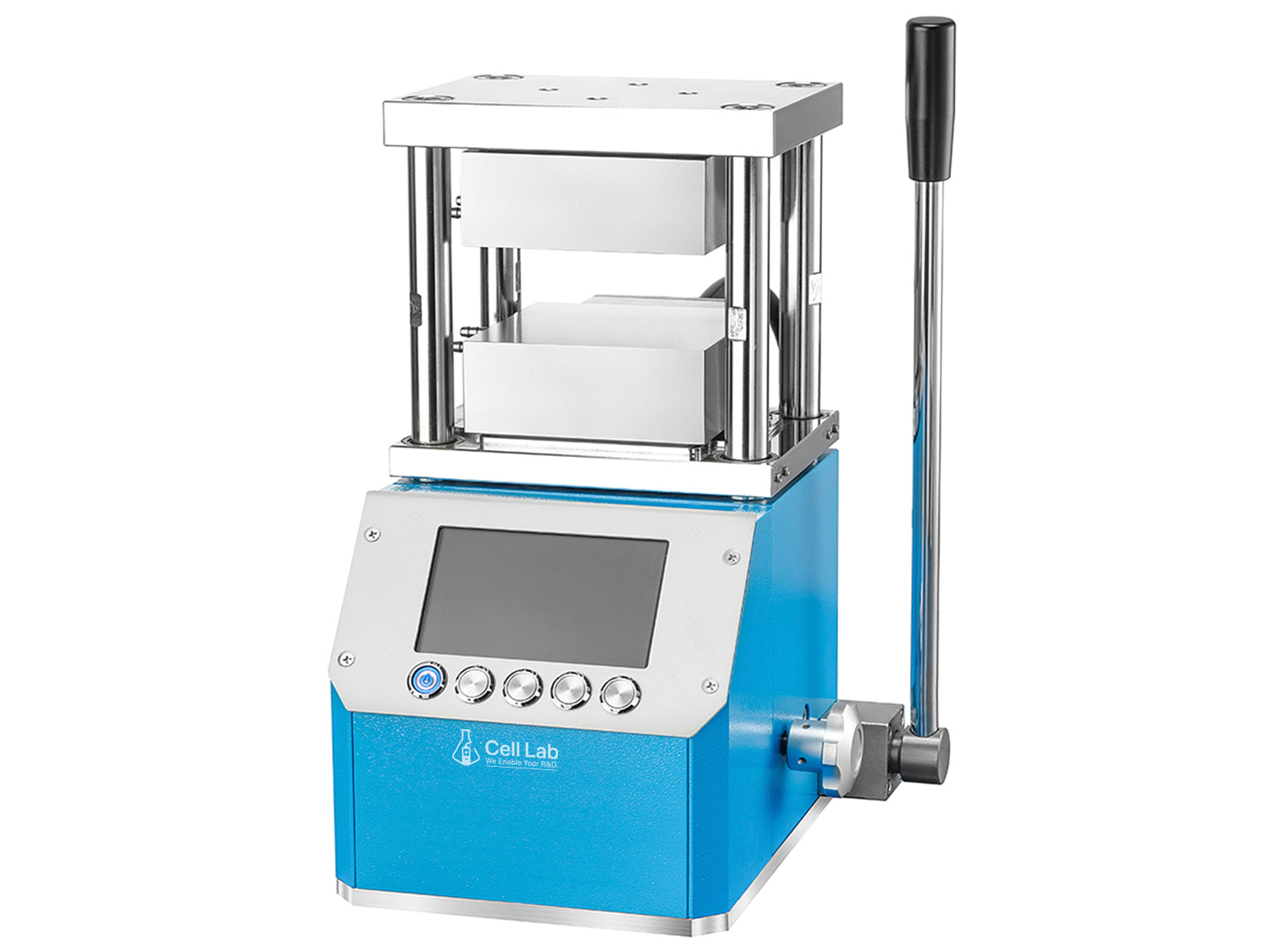

Cell Lab Manual Hydraulic Heated Lab Press [10T, 300 °C, Dual 180 × 180 mm Plates]

Compact Heated Press for Polymers, Ceramics & Battery Films

The Cell Lab 10-Ton Manual Hydraulic Heated Lab Press is engineered for heated pressing of polymer films, ceramic powders, and electrode or membrane sheets. Equipped with dual 180 × 180 mm flat heating plates and a precision digital controller, the press provides stable heating up to 300 °C with ±0.1 °C accuracy. Integrated water-cooling jackets allow rapid cooling when connected to an optional chiller, ensuring improved efficiency and reduced downtime.

This compact heated lab press is ideal for battery R&D, polymer research, and material science applications, offering both reliability and versatility in a benchtop design.

Key Features

  • 10-ton pressing capacity – Provides stable compaction for powders, films, and membranes.

  • Dual heated plates – 180 × 180 mm flat plates with independent digital temperature control.

  • Precise thermal regulation – ±0.1 °C accuracy ensures uniform and reproducible results.

  • Rapid cooling option – Supports water cooling with optional external chiller for fast cycle times.

  • Compact benchtop design – Small footprint yet powerful, suitable for diverse laboratory use.

Specifications

Parameter CL0721 (Without Chiller) CL0722 (With Chiller)
Pressure Range 0–10 Tons 0–10 Tons
Max Pressure 10 Tons 10 Tons
Heating Range Up to 300 °C Up to 300 °C
Piston Diameter 65 mm 65 mm
Temperature Control Accuracy ±0.1 °C ±0.1 °C
Cooling Mode Air cooling Water cooling (external chiller)
Heating Plates Dual 180 × 180 mm Dual 180 × 180 mm
Press Dimensions (L × W × H) 280 × 320 × 520 mm 280 × 320 × 520 mm
Net Weight 90 kg 95 kg
Power Supply 220V / 50 Hz, 1000 W 220V / 50 Hz, 1000 W
Warranty One-year limited (misuse excluded) One-year limited (misuse excluded)

Applications & Industries

  • Battery R&D – Electrode material and separator film pressing.

  • Ceramic & mineral research – Powder compaction with precise heating.

  • Polymer films – Heated pressing and lamination of polymer sheets.

  • Material science & catalysis – Laboratory-scale testing of functional materials.

  • Pharmaceuticals – Experimental tablet and pellet pressing under controlled temperature.

FAQ

Q1: What is the maximum pressure capacity?
A: The press delivers up to 10 tons, suitable for polymers, ceramics, and electrode films.

Q2: How accurate is the temperature control?
A: The dual heating plates are independently controlled with ±0.1 °C precision.

Q3: Can this press cool quickly after heating?
A: Yes. When connected to an external chiller, the plates can be rapidly cooled.

Q4: What are the plate dimensions?
A: Both heating plates are 180 × 180 mm, flat-surfaced for uniform pressing.

Q5: Is this suitable for glove box use?
A: Yes, its compact design allows use inside glove boxes, but seals should be checked periodically.
