Cell Lab Manual Hot Press [15T, 300/500 °C, 300 × 300 mm]
Cell Lab Manual Hot Press [15T, 300/500 °C, 300 × 300 mm] Compact manual hydraulic hot press with precise temperature and pressure control for laboratory powder pressing and material forming. General Description The Cell Lab Manual Hot Press is a...
- £8,469.00
- £8,469.00
- Unit price
- per
Subtotal:
£8,469.00
Description

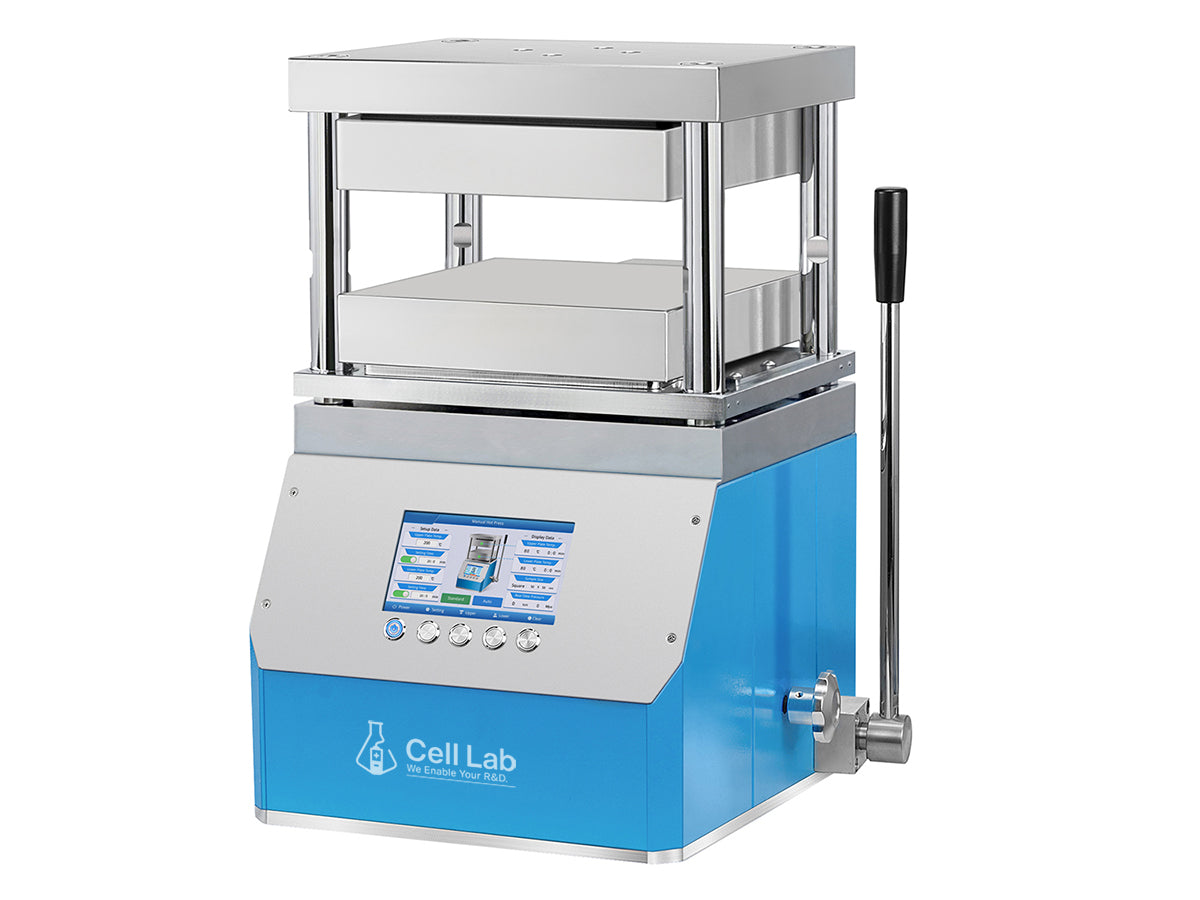

xCell Lab Manual Hot Press [15T, 300/500 °C, 300 × 300 mm]
Compact manual hydraulic hot press with precise temperature and pressure control for laboratory powder pressing and material forming.
General Description
The Cell Lab Manual Hot Press is a compact, laboratory-scale manual hydraulic hot press designed for powder compaction, material forming, lamination and thermal pressing applications. The pressing force is applied via manual hydraulic operation, while temperature, holding time and process steps are digitally programmable, offering an optimal balance between operator control and process precision.
With a maximum pressing force of 15 tons, dual-plate heating up to 500 °C, and up to 18 programmable control segments, it ensures stable and repeatable hot pressing performance. A 7-inch touch screen provides intuitive control of temperature, dwell time and cooling stages, while optional water-cooled rapid cooling improves process efficiency.
This manual hot press is ideal for battery materials, ceramics, polymers, composites and powder metallurgy research where fine process control and compact footprint are required.
Key Features
• Manual hydraulic hot press up to 15 tons – Hand-operated pressurisation with high mechanical stability and fine pressure resolution (0.01 T).
• Dual heating options up to 500 °C – RT–300 °C (2.5 kW) or RT–500 °C (4 kW) mold heating configurations.
• Programmable process control – Up to 18 independent program segments controlling temperature, holding time and cooling.
• High temperature precision – ±0.1 °C temperature control accuracy for reproducible laboratory results.
• Efficient insulation and cooling – Imported heat insulation materials with optional water-cooled rapid cooling.
Technical Specifications
General Parameters
| Item | Specification |
|---|---|
| Operation type | Manual hydraulic |
| Pressure range | 0–15.0 T |
| Pressure accuracy | 0.01 T |
| Constant temperature time | 1 s – ∞ |
| Temperature control accuracy | ±0.1 °C |
| Display screen | 7-inch touch screen |
Heating & Cooling
| Item | Specification |
|---|---|
| Mold heating temperature | RT–300 °C (2.5 kW) / RT–500 °C (4 kW) |
| Heating method | Dual-plate heating |
| Heat insulation | Imported heat insulation board |
| Cooling method | Water-cooled rapid cooling (water chiller optional) |
| Water cooling control | Manual activation or programmable multi-segment cooling |
Process & Structure
| Item | Specification |
|---|---|
| Process control | Up to 18 programmable segments |
| Speed regulation | Adjustable pressurisation speed and heating rate |
| Hydraulic structure | Seal-free connections to reduce oil leakage points |
Mechanical & Electrical
| Item | Specification |
|---|---|
| Power supply | 220 V / 50 Hz, customisable |
| Working space | 300 × 65 mm |
| Plate size | Dual heating plates, 300 × 300 mm (M × N) |
| Product dimensions | 450 × 420 × 450 mm (L × W × H) |
| Net weight | 180 kg |
| Package dimensions | 725 × 620 × 890 mm (L × W × H) |
| Gross weight | 216 kg |
Applications & Industries
-
Battery electrode and solid-state electrolyte pressing
-
Powder metallurgy and ceramic compaction
-
Polymer and composite lamination
-
Functional and advanced materials R&D
-
Laboratory-scale hot pressing and pilot trials
SEO keywords: manual hot press, laboratory hot press, hydraulic hot press, powder press machine, heated press, dual-plate hot press
FAQ
Q1: Is the CL0882 fully automatic?
No. The PC-600E is a manual hydraulic hot press. Pressurisation is manual, while temperature, holding time and process steps are digitally controlled.
Q2: What is the maximum pressing force?
The maximum pressing force is 15 tons, with 0.01-ton pressure accuracy.
Q3: Can temperature and cooling be programmed?
Yes. Temperature, dwell time and water-cooling can be programmed across up to 18 segments.
Q4: Is rapid cooling supported?
Yes. Optional water-cooled rapid cooling is available with an external chiller.
