Cell Lab Manual Disc Cutter For Battery Coin Cell Lab Research
Cell Lab Manual Disc Cutter [14 mm & 16 mm Precision Dies | For Battery Electrode and Separator Cutting] Compact Precision Disc Cutter for Battery Electrode, Separator Film and Coin Cell Sample Preparation The Cell Lab PT-10 Manual Disc Cutter...
- £1,549.00
- £1,549.00
- Unit price
- per
Subtotal:
£1,549.00
Description
xCell Lab Manual Disc Cutter [14 mm & 16 mm Precision Dies | For Battery Electrode and Separator Cutting]
Compact Precision Disc Cutter for Battery Electrode, Separator Film and Coin Cell Sample Preparation

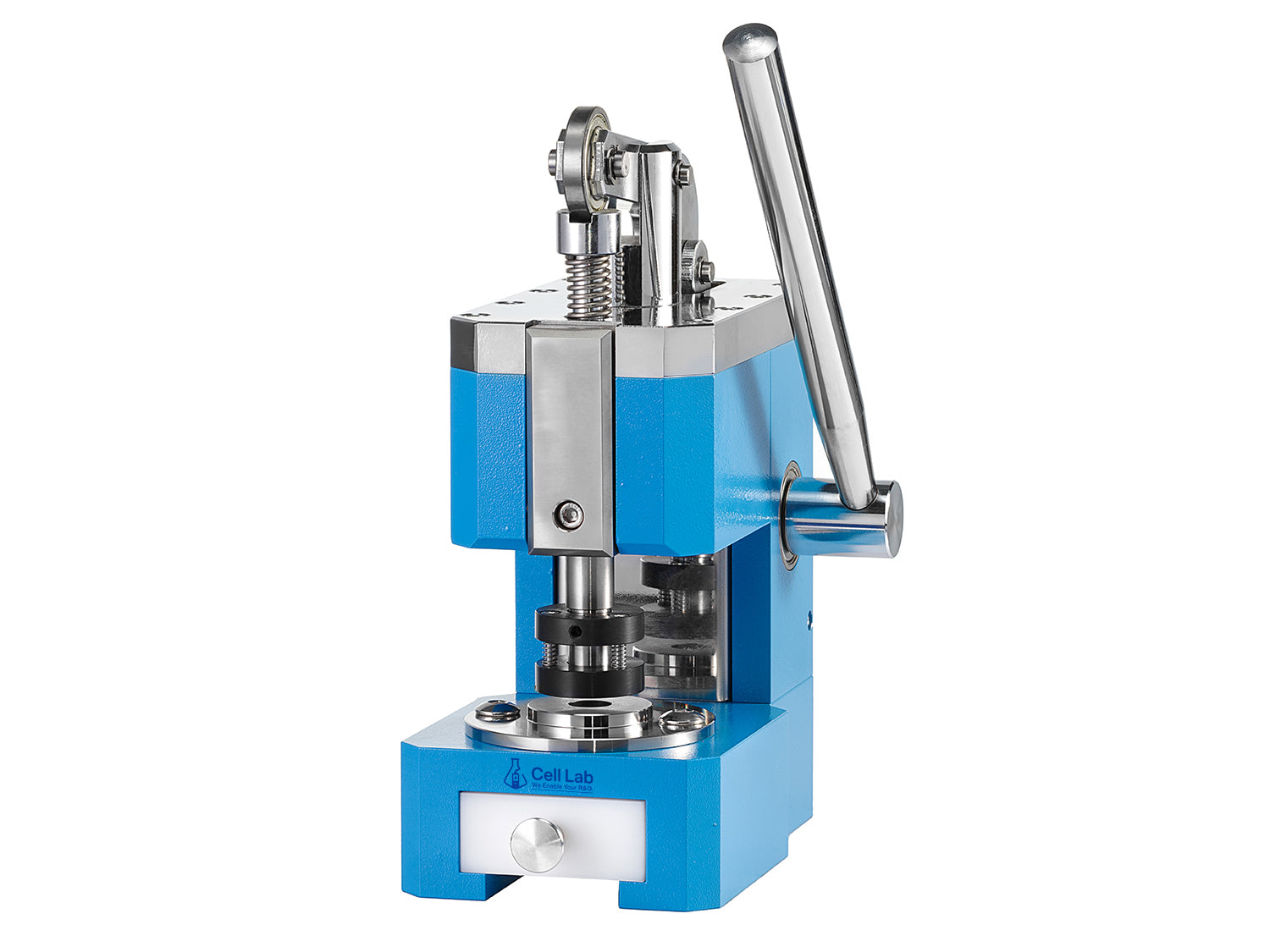

The Cell Lab PT-10 Manual Disc Cutter is a compact laboratory tool designed for precise cutting of circular electrode discs and separator films used in lithium-ion battery research, coin cell assembly and materials development.
Manufactured with hardened 3Cr13 stainless steel cutting dies, the PT-10 delivers clean, burr-free cutting performance for thin electrode sheets, metal foils and separator membranes. Its compact footprint allows the unit to be conveniently operated inside glove boxes with transfer chamber diameters larger than 230 mm, making it particularly suitable for moisture-sensitive battery material preparation.
Supplied with 14 mm and 16 mm precision cutting dies as standard, the PT-10 can also be equipped with custom die sizes from 3 mm to 24 mm to meet various laboratory and research requirements.
Key Features
- Designed for Battery Research Applications: Optimised for cutting battery electrodes, separator membranes and thin-film materials used in lithium-ion and solid-state battery research.
- Glove Box Compatible Design: Compact dimensions allow operation inside glove boxes with transfer chamber diameters greater than 230 mm.
- Precision Hardened Stainless Steel Dies: Manufactured from quenched 3Cr13 stainless steel for excellent cutting accuracy, durability and corrosion resistance.
- Multiple Die Sizes Available: Includes 14 mm and 16 mm cutting dies as standard. Optional custom dies from 3 mm to 24 mm are available.
- Clean and Repeatable Sample Preparation: Produces consistent circular samples with minimal deformation, ideal for coin cell assembly and laboratory testing.
Technical Specifications
| Parameter | Specification |
|---|---|
| SKU | CL0955 |
| Product Type | Manual Disc Cutter |
| Die Material | Hardened 3Cr13 Stainless Steel |
| Standard Die Sizes | 14 mm, 16 mm |
| Optional Die Sizes | 3–24 mm (Custom Available) |
| Suitable Sample Thickness | 0.01–0.5 mm |
| Sample Container Material | Antistatic ABS |
| Operation Method | Manual Press Cutting |
| Product Dimensions (L × W × H) | 140 × 200 × 400 mm |
| Net Weight | 12 kg |
| Packing Dimensions (L × W × H) | 410 × 330 × 550 mm |
| Gross Weight | 20 kg |
Applications & Industries
- Lithium-ion battery research
- Coin cell assembly (CR2032, CR2025, CR2016)
- Solid-state battery development
- Electrode sheet preparation
- Separator film cutting
- Thin metal foil sample preparation
- Graphene and carbon material research
- University laboratories
- Research institutes
- Advanced materials development
Standard Package Includes
- Manual disc cutter body
- 14 mm precision cutting die
- 16 mm precision cutting die
- Sample collection container
- Operation manual
Optional Accessories
- Custom cutting dies (3–24 mm)
- Electrode punching dies
- Separator cutting dies
- Replacement die sets
- Glove box operation accessories
FAQ
Q1: What materials can be cut using the CL0955?
The CL0955 is suitable for battery electrode sheets, separator films, thin metal foils, polymer films and other soft laboratory materials within the specified thickness range.
Q2: What die sizes are included?
The standard package includes 14 mm and 16 mm precision cutting dies.
Q3: Can custom die sizes be supplied?
Yes. Custom die diameters from 3 mm to 24 mm are available upon request.
Q4: Can this cutter be used inside a glove box?
Yes. The compact design is specifically intended for glove box operation and can pass through transfer chambers larger than 230 mm.
Q5: What is the maximum sample thickness?
The cutter is designed for materials with thicknesses between 0.01 mm and 0.5 mm.
