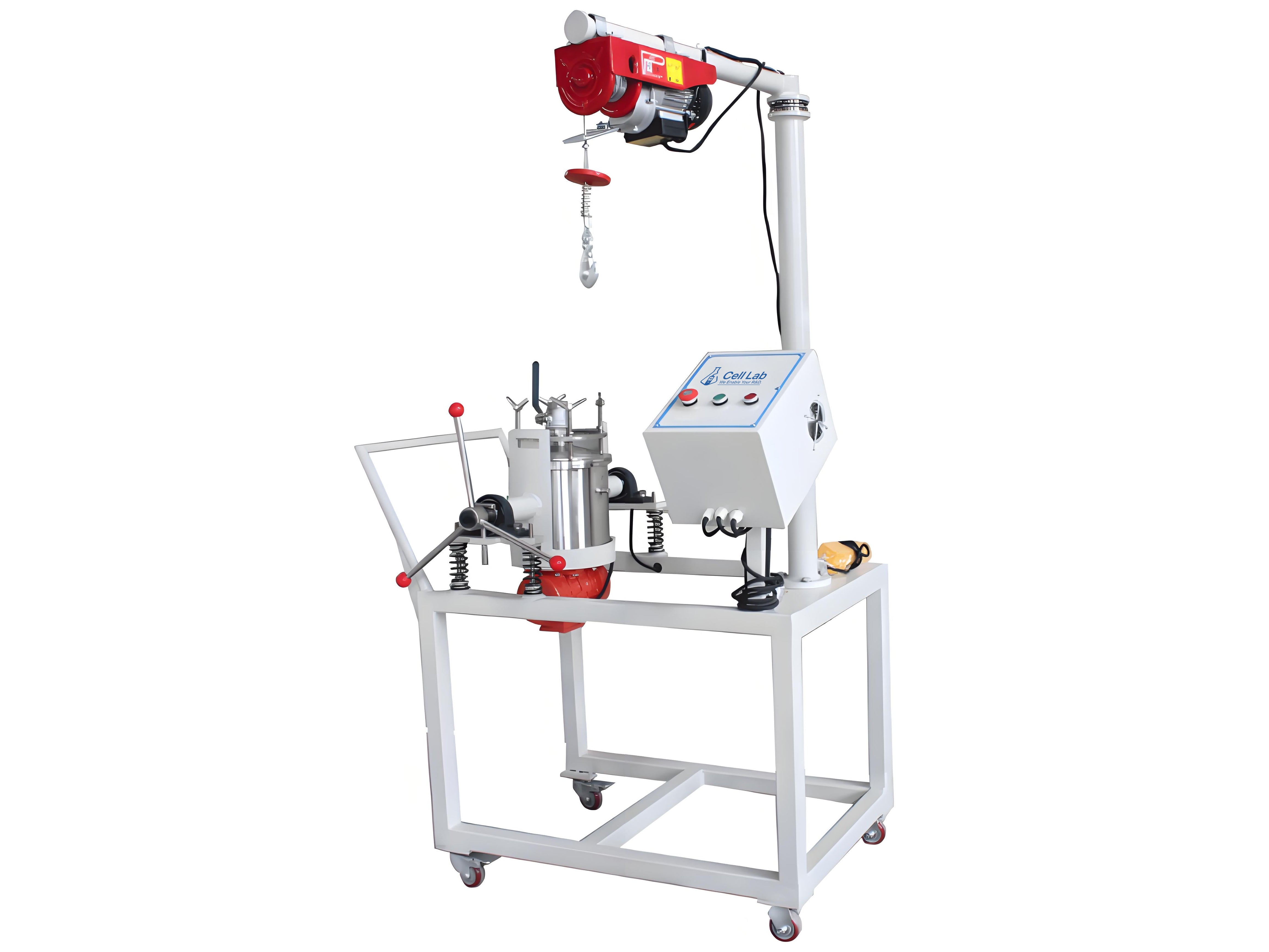

Integrated material loading system for 20 L–100 L planetary ball mills

The Cell Lab Loading System is a high-efficiency auxiliary device designed to optimise the material handling process for large-capacity planetary ball mills (20 L, 40 L, and 100 L).
This all-in-one system integrates feeding, discharging, and dumping functions within a single modular unit—dramatically reducing manual effort, dust exposure, and operational downtime.

Equipped with independent vibration and hoisting motors, it ensures stable material flow, smooth transfer, and uniform distribution into or out of planetary mill jars.
Built with robust, industrial-grade materials and user-safe controls, this system enhances both laboratory productivity and large-scale research efficiency.

Key Features

• All-in-one material handling solution – Combines feeding, discharging, and dumping functions into one automated unit, improving workflow efficiency.

• Compatible with large planetary mills – Engineered for Cell Lab 20 L, 40 L, and 100 L planetary ball mills; adaptable for other equivalent systems.

• Dual motorised design – Independent vibrating and hoisting motors provide controlled material transfer and smooth lifting operations.

• Industrial-grade durability – Built with heavy-duty steel structure and vibration-resistant components for reliable long-term operation.

• Enhanced safety & usability – Intuitive control panel with secure electrical systems ensures safe, ergonomic operation in lab or pilot environments.

Technical Specifications

Applications & Industries

The Cell Lab Loading System is ideal for:

• Battery material processing – efficient feeding and unloading of electrode powders and ceramic slurries.

• Metallurgy and mining – rapid handling of metal oxides, mineral samples, and abrasives.

• Advanced materials research – streamlined loading for nanomaterial or composite powder preparation.

• Pharmaceutical and chemical industries – contamination-free transfer of fine chemicals and formulations.

• Ceramics and pigment production – precise handling of heavy or dense raw materials.

FAQ

Q1: Which planetary ball mill models are compatible with this loading system?
A: It is specifically designed for Cell Lab 20 L, 40 L, and 100 L planetary mills, but can be adapted to similar models with comparable dimensions.

Q2: Can the vibration frequency be adjusted?
A: Yes. The system allows fine-tuning of vibration speed for optimal powder flow and consistent material loading.

Q3: Does it support automatic discharge into containers or trays?
A: Yes. The system’s dumping function enables direct and controlled discharge into collection bins or containers.

Q4: Is the hoisting mechanism motorised or manual?
A: It features a fully motorised hoisting system, allowing effortless lifting and lowering during operation.

Q5: Can this system operate continuously?
A: Yes. It is built for continuous or batch operation in research and small-scale production environments.

Diagram of Machine:
