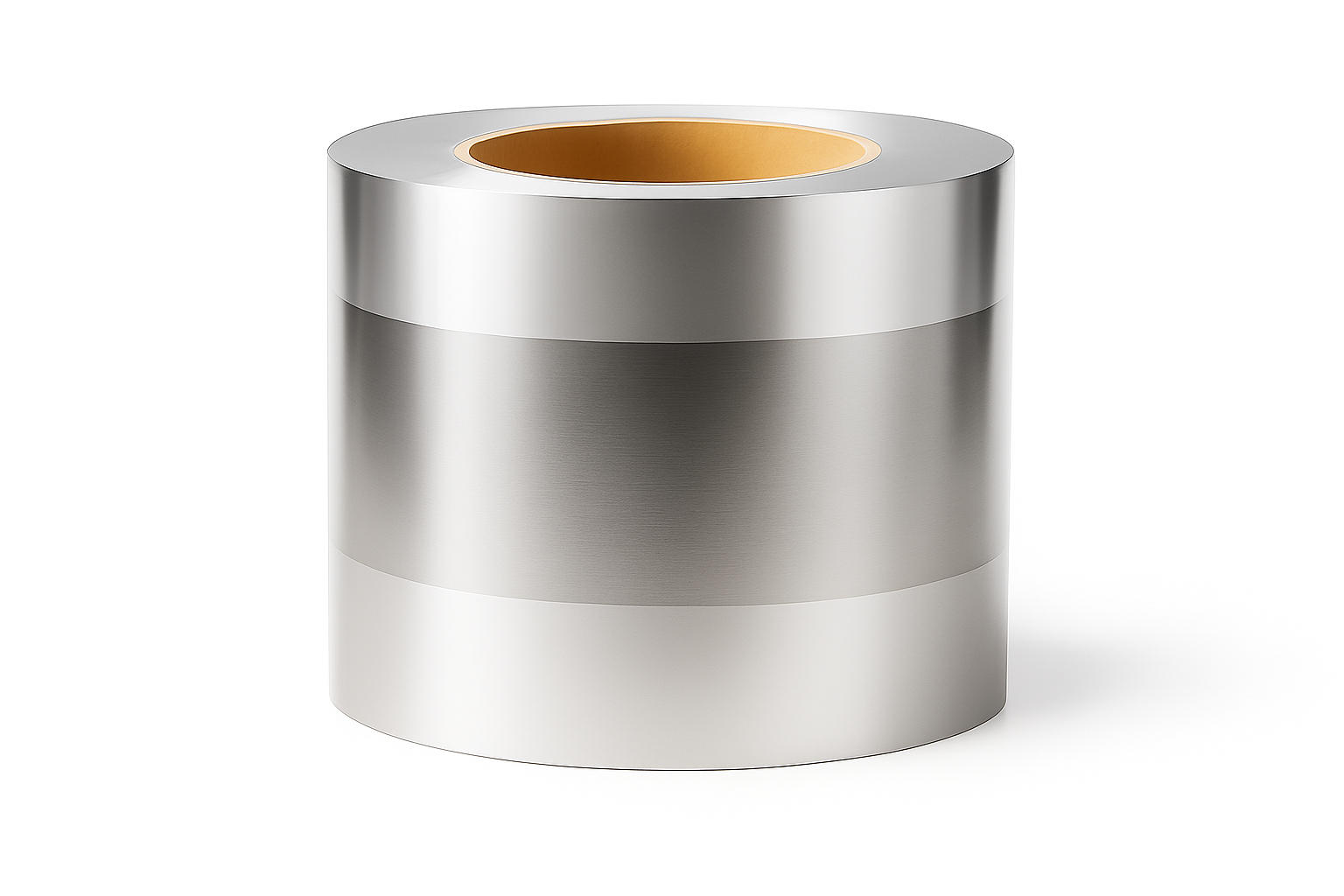

Cell Lab Lithium on 304 Stainless Steel Single-Side Laminated Foil [100 g/pack]

Corrosion-resistant lithium anode foil for Li–S, Li-ion, and solid-state battery research

General Description

Cell Lab lithium (20 µm) on 304 stainless steel (10 µm) single-side laminated foil is a next-generation anode material designed for lithium metal batteries, lithium–sulfur (Li–S) batteries, and solid-state lithium batteries.

Compared with conventional lithium–copper laminated foils, this product offers superior corrosion resistance and compatibility with sulfur-based electrode materials, making it an ideal choice for advanced Li–S battery research.

The foil design provides high packing efficiency (90–95%), lightweight performance, and robust stability during cycling. Cell Lab also offers lithium–nickel laminated foils and can customise thickness, width, and lamination type to meet specific R&D requirements.

⚠️ Handling Notice: Lithium foils are extremely reactive in air. All handling must be conducted in an argon-filled glove box (moisture < 2% RH).

Key Features

  • Corrosion Resistance — 304 stainless steel prevents reaction with sulfur-based electrodes, ideal for Li–S cells.

  • High Packing Efficiency — Optimised for pouch and cylindrical cells with up to 95% space utilisation.

  • Customisable Design — Options for single/double-side lamination, foil thickness, and width available.

  • Enhanced Battery Safety — Stainless steel carrier stabilises electrode structure and reduces degradation.

  • Research-Grade Quality — Produced in a dry room with strict control over oxygen and impurities.

Technical Specifications

Product No. Pack Size Material Lamination Type Dimensions (W × T) Carrier Foil Notes Storage
CL0748 100 g/pack Li (≥ 99.9% purity) + 304 Stainless Steel Single-side laminated Lithium foil: 20 µm × 60 mm wide 304SS: 10 µm × 100 mm wide Customisation available Ar-filled glove box (< 2% RH)

Applications & Industries

  • Lithium–sulfur battery R&D

  • Solid-state battery research

  • Li-ion battery prototyping

  • Advanced anode material studies

  • Electrochemical stability testing

FAQ

Q1: Why use stainless steel instead of copper foil?
Stainless steel offers much better corrosion resistance and is compatible with sulfur-based electrodes, making it more suitable for Li–S systems.

Q2: Can this product be customised?
Yes, both lithium and stainless steel thicknesses and widths can be customised. We also offer double-side lamination and lithium–nickel variants.

Q3: What is the shelf life?
When stored in an Ar-filled glove box with < 2% RH, the foil maintains stability for extended R&D use.

Q4: How is the product packaged?
Packaged in a dry room with protective sealing. Residual oxygen may be released upon opening.

Q5: Is this product hazardous?
Yes, lithium is classified as a hazardous material (HAZMAT). It requires regulated packaging and specialised shipping.
