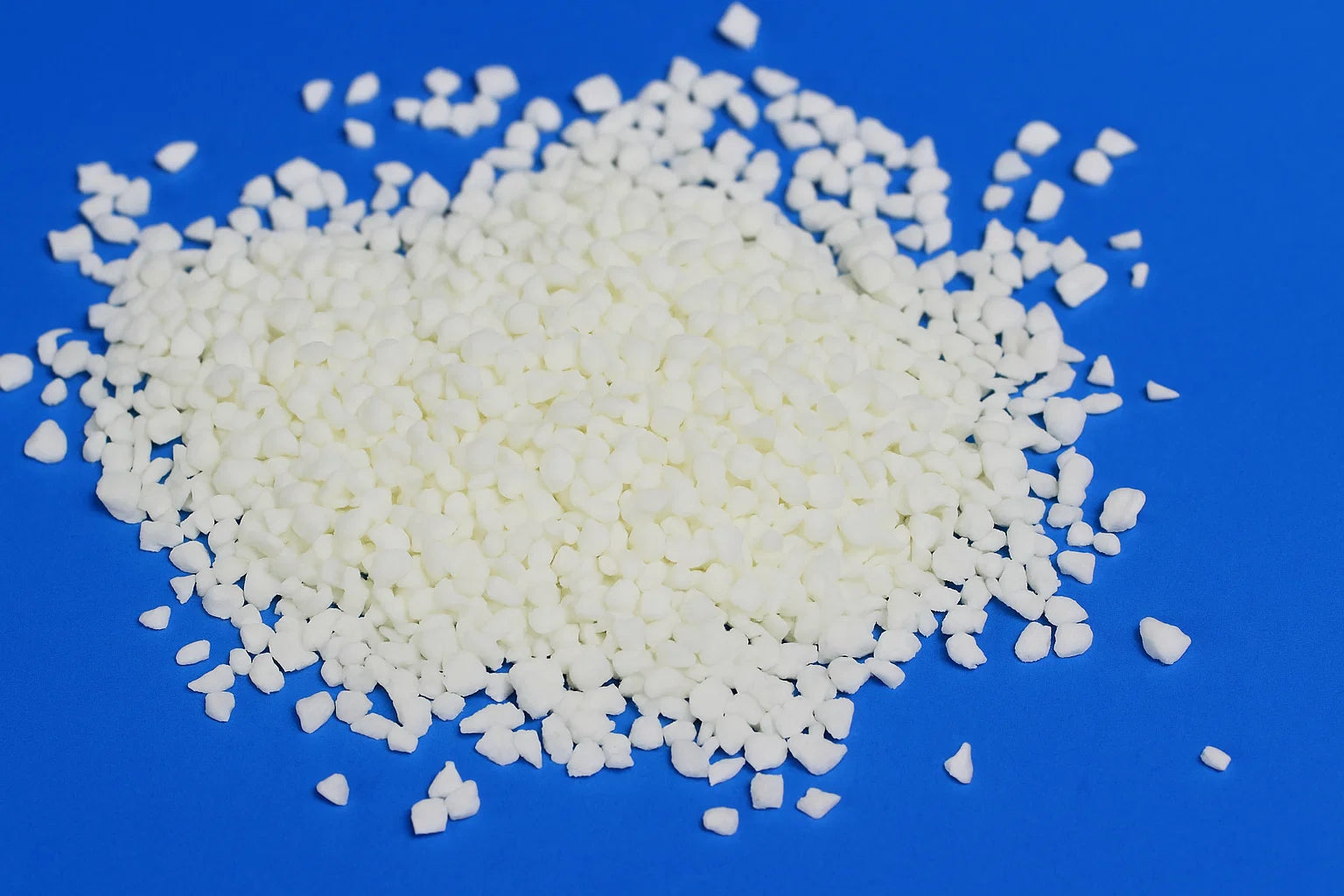

Cell Lab lithium fluoride granules – 99.999% (5N) high-purity LiF for vacuum deposition, batteries, optics, and ceramics. Ultra-low impurities, high thermal stability, and uniform granule size for advanced R&D and thin-film applications.
Cell Lab lithium fluoride granules – 99.999% (5N) high-purity LiF for vacuum deposition, batteries, optics, and ceramics. Ultra-low impurities, high thermal stability, and uniform granule size for advanced R&D and thin-film applications.

Cell Lab Lithium Fluoride (LiF) [99.999% 5N High Purity] – Ultra-Pure LiF Granules for Vacuum Deposition, Battery and Optical Applications

Cell Lab Lithium Fluoride (LiF) [99.999% 5N High Purity] – Ultra-Pure LiF Granules for Vacuum Deposition, Battery and Optical Applications High-purity LiF for solid-state electrolytes, thin-film deposition and ceramic research The Cell Lab Lithium Fluoride (LiF) granules are a 5N...
Vendor: Cell Lab
SKU: CL0221
Product type: Chemicals and Compounds
£268.28
£268.28
Choose a weight option for pricing: 50g
Subtotal: £268.28
Cell Lab lithium fluoride granules – 99.999% (5N) high-purity LiF for vacuum deposition, batteries, optics, and ceramics. Ultra-low impurities, high thermal stability, and uniform granule size for advanced R&D and thin-film applications.

Cell Lab Lithium Fluoride (LiF) [99.999% 5N High Purity] – Ultra-Pure LiF Granules for Vacuum Deposition, Battery and Optical Applications

£268.28
Cell Lab lithium fluoride granules – 99.999% (5N) high-purity LiF for vacuum deposition, batteries, optics, and ceramics. Ultra-low impurities, high thermal stability, and uniform granule size for advanced R&D and thin-film applications.

Cell Lab Lithium Fluoride (LiF) [99.999% 5N High Purity] – Ultra-Pure LiF Granules for Vacuum Deposition, Battery and Optical Applications

£268.28
Choose a weight option for pricing: 50g
Description
Description
x

Cell Lab Lithium Fluoride (LiF) [99.999% 5N High Purity] – Ultra-Pure LiF Granules for Vacuum Deposition, Battery and Optical Applications

High-purity LiF for solid-state electrolytes, thin-film deposition and ceramic research

The Cell Lab Lithium Fluoride (LiF) granules are a 5N (99.999%) ultra-high-purity fluoride material designed for demanding research and industrial applications. With extremely low trace-metal content, excellent chemical and thermal stability, and superior UV transparency, this LiF is ideal for solid-state electrolytes, vacuum deposition sources, and optical coatings.

Its consistent granule size (< 10 mm) ensures uniform evaporation rates and film quality in high-vacuum systems, making it suitable for precision thin-film deposition, advanced ceramics, and optoelectronic component manufacturing.

Key Features

5N High Purity (99.999%)
Ultra-low trace metal contamination verified by GDMS analysis, guaranteeing high performance in sensitive electronic and optical processes.

Exceptional Thermal and Chemical Stability
High melting point (845 °C) and strong resistance to most acids and solvents (except HF) for robust operation under vacuum or reactive conditions.

Versatile Scientific Applications
Suitable for Li-ion battery research, optical crystal fabrication, ceramic engineering, and vacuum evaporation.

Uniform Granule Distribution
Fine granules (< 10 mm) enable consistent heating and controlled coating thickness in thin-film deposition systems.

Multiple Pack Sizes Available
Offered in 50 g, 100 g, and 1 kg options to accommodate laboratory or pilot-scale requirements.

Technical Specifications

Parameter Specification
SKU CL0221 (50 g), CL0222 (100 g), CL0223 (1 kg)
Chemical Formula LiF
CAS Number 7789-24-4
Molecular Weight 25.94 g/mol
Colour White granules
Typical Size < 10 mm
Density 2.64 g/cm³ at 25°C
Melting Point 845°C
Solubility in Water 0.134 g/100 mL at 25°C
Purity 99.999% (5N), trace metals basis

Trace Metals Analysis (ppm wt)

(Measured via GDMS – values are representative)

Element Max. ppm Element Max. ppm Element Max. ppm
Fe 0.12 Na 0.05 Mg 0.16
Al 0.03 Mn 0.02 Zn <0.05
Cu <0.01 Ni <0.01 Co <0.01
B <0.01 Si <0.01 P <0.01
S <0.05 K <0.5 Ca <0.1
Ti <0.01 V <0.01 Cr <0.05
Mo <0.2 Sn <0.05 W <0.2
Pb <0.05 Cd <0.5 Hg <0.5

Applications & Industries

  • Battery R&D – Solid-state electrolytes and Li-ion cell precursors

  • Optics and Photonics – Deep-UV transparent optical crystals and windows

  • Vacuum Evaporation – Evaporation source for thin-film coatings and optical layers

  • Ceramics & Glass – Thermal shock and chemical resistance enhancement

  • Optoelectronics & OLEDs – Electron injection layers and transparent conductive films

Handling & Storage

  • Handle in a dry, inert atmosphere to prevent moisture uptake.

  • Avoid contact with strong acids and oxidisers.

  • Store in a tightly sealed container in a cool, dry environment.

  • SDS, CoA, and volume pricing available upon request.

FAQ

Q1: Is this LiF suitable for vacuum evaporation and PVD coatings?
Yes, its granule size and purity make it ideal for evaporation sources in PVD and thermal deposition systems.

Q2: Can it be used for solid-state electrolyte fabrication?
Yes. Its 5N purity and thermal stability are compatible with Li₃PS₄, LLZO, and LiPON research.

Q3: What is the difference between LiF powder and granules?
Granules offer better flowability and more uniform evaporation rates for vacuum processes.

Q4: Is LiF toxic or reactive in air?
LiF is stable and non-hygroscopic under normal conditions but should be handled in dry environments to avoid hydrolysis.

Q5: Are custom purities or particle sizes available?
Yes. Cell Lab can provide customised purity levels and granule distributions upon request.
