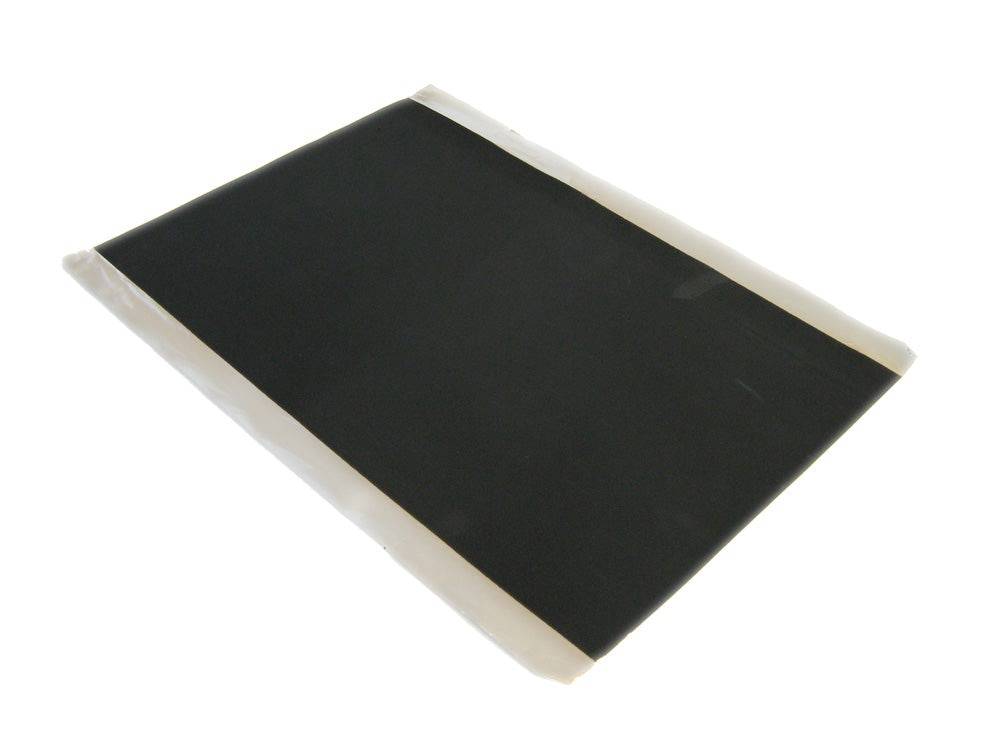

Cell Lab LiCoO₂ coated aluminium foil (241 × 200 mm, single-side, 5 sheets) – pre-coated LiCoO₂ cathode foil for lithium-ion battery research and coin cell fabrication. 158 mAh/g capacity, 12 mg/cm² loading.
Cell Lab LiCoO₂ coated aluminium foil (241 × 200 mm, single-side, 5 sheets) – pre-coated LiCoO₂ cathode foil for lithium-ion battery research and coin cell fabrication. 158 mAh/g capacity, 12 mg/cm² loading.

Cell Lab LiCoO₂ Coated Aluminium Foil [241 × 200 mm, Single-Sided, 5 Sheets] – Pre-Coated Cathode Foil for Lithium-Ion Battery Research

Cell Lab LiCoO₂ Coated Aluminium Foil [241 × 200 mm, Single-Sided, 5 Sheets] – Pre-Coated Cathode Foil for Lithium-Ion Battery Research Ready-to-use LiCoO₂ cathode foil for laboratory-scale lithium-ion cell fabrication The Cell Lab LiCoO₂ Coated Aluminium Foil provides a pre-fabricated...
Vendor: Cell Lab
SKU: CL0136
Product type: Battery Consumables
£189.00
£189.00
Subtotal: £189.00
Description
Description
x

Cell Lab LiCoO₂ Coated Aluminium Foil [241 × 200 mm, Single-Sided, 5 Sheets] – Pre-Coated Cathode Foil for Lithium-Ion Battery Research

Ready-to-use LiCoO₂ cathode foil for laboratory-scale lithium-ion cell fabrication

The Cell Lab LiCoO₂ Coated Aluminium Foil provides a pre-fabricated cathode substrate designed for coin cell and pouch cell assembly in lithium-ion battery research. Coated with high-purity LiCoO₂ (LCO) on a single side of 99.5%-pure aluminium foil, this electrode delivers stable electrochemical performance, high energy density, and excellent cycle consistency.

Originally introduced by the Goodenough group, LiCoO₂ remains one of the most widely used cathode materials due to its reliable 160 mAh/g-level capacity, high voltage profile (3.7 – 4.2 V), and strong thermal stability, making it ideal for laboratory R&D, prototyping, and teaching environments. Each sheet is vacuum-sealed to prevent contamination and is ready for use after drying.

Key Features

Pre-Coated Cathode Electrode Sheets
LiCoO₂ (12 mg/cm²) uniformly coated on aluminium foil for consistent laboratory results.

High Capacity and Utilisation
Delivers a specific capacity of 158 mAh/g with approximately 95% active material efficiency.

Single-Sided Coating Design
241 mm × 175 mm active area on 241 mm × 200 mm foil – ideal for coin and pouch cell testing.

Optimised Binder System
PVDF binder with CMC additive ensures smooth dispersion, adhesion and reduced precipitation.

Customisable Parameters
Coating density, foil thickness and sheet dimensions can be customised upon request.

Technical Specifications

Parameter Value
Product Name LiCoO₂ Coated Aluminium Foil
Pack Size 5 sheets
Substrate Material Aluminium (≥99.5% purity)
Substrate Thickness 16 µm
Substrate Size 241 × 200 mm
Coating Material LiCoO₂ (LCO)
Coating Area 241 × 175 mm
Coating Side One side
Coating Density 12 mg/cm²
Active Material Loading 95%
Specific Capacity 158 mAh/g
Total Electrode Thickness 66 µm

Applications & Industries

  • Coin cell and pouch cell R&D

  • Lithium-ion and solid-state battery cathode prototyping

  • Material evaluation and electrode formulation studies

  • Educational and pilot-scale battery production

  • Energy storage system and consumer battery research

FAQ

Q1: Can this foil be used directly in coin cell assembly?
Yes. After vacuum-drying to remove moisture, it is ready for cell stacking and sealing.

Q2: Is double-side coating available?
Yes. Dual-sided LiCoO₂ foils can be supplied on request for pouch cell assembly.

Q3: What electrolyte is recommended for testing?
1 M LiPF₆ in EC/DMC (1:1 v/v) is commonly used for LiCoO₂ systems.

Q4: Can the coating density be modified for higher loadings?
Yes. Customised mass loading (8–15 mg/cm²) and binder ratios are available.

Q5: How should the sheets be stored?
Store in a moisture-free, argon-filled environment to preserve cathode activity.
