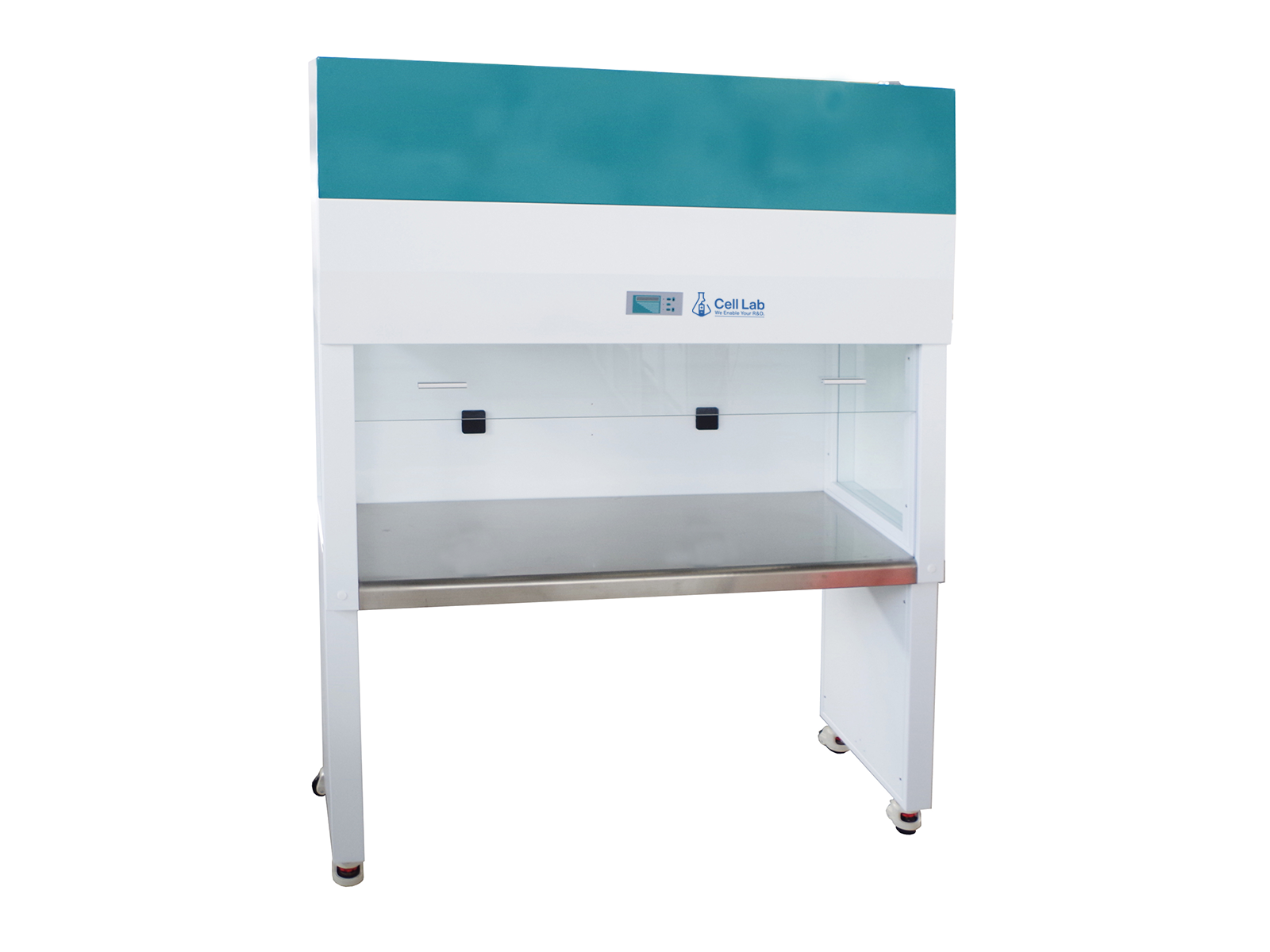

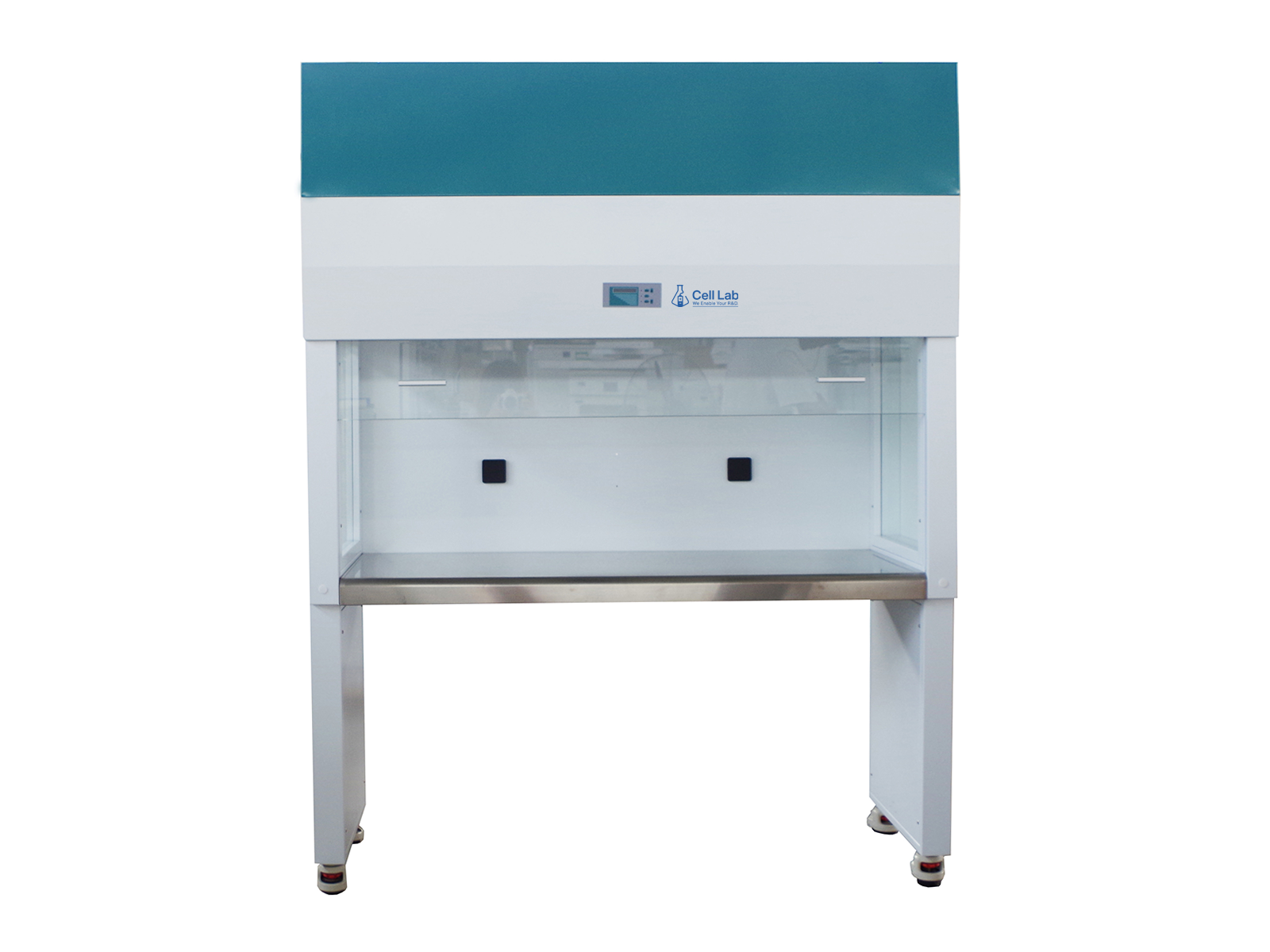

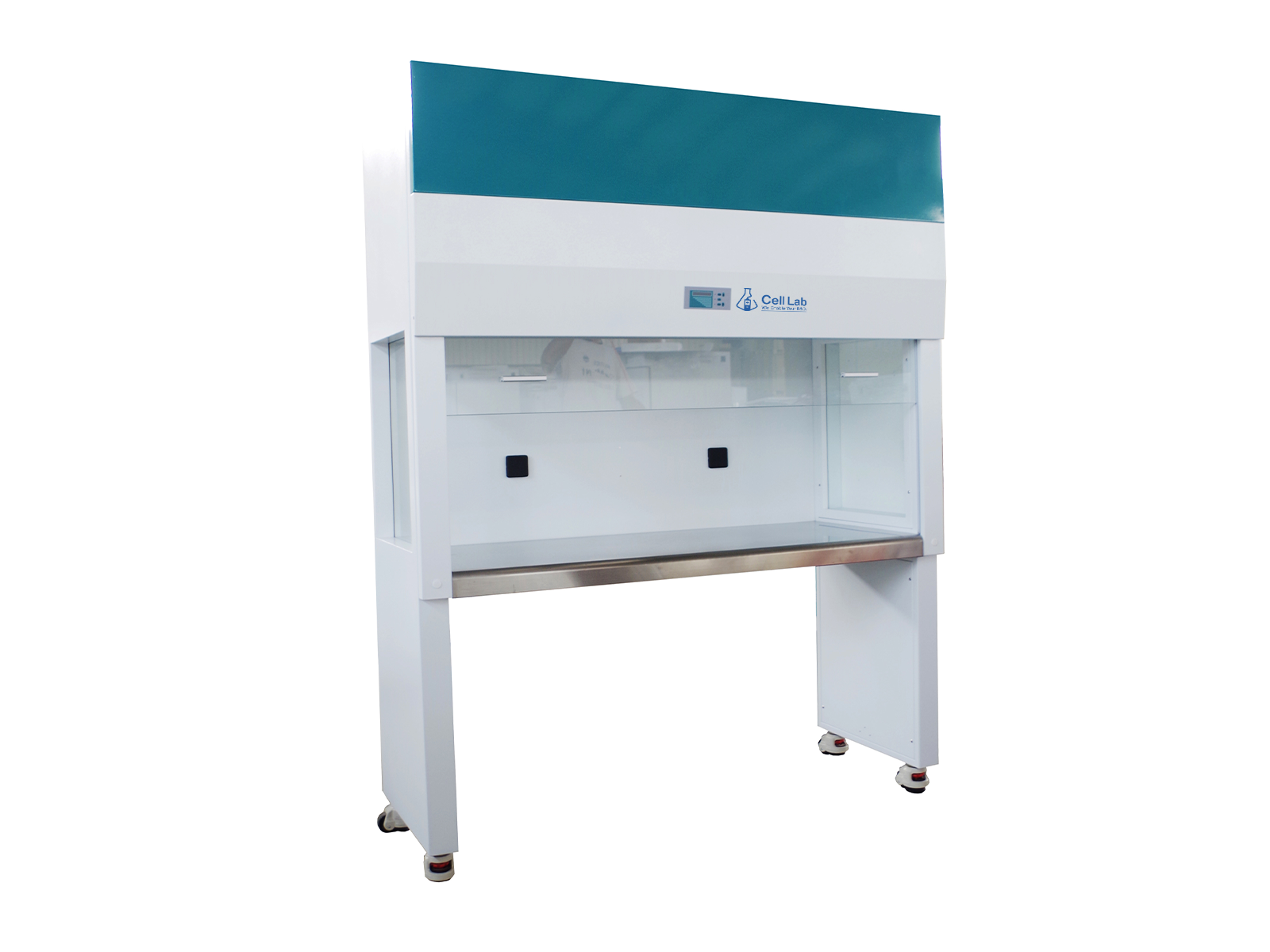

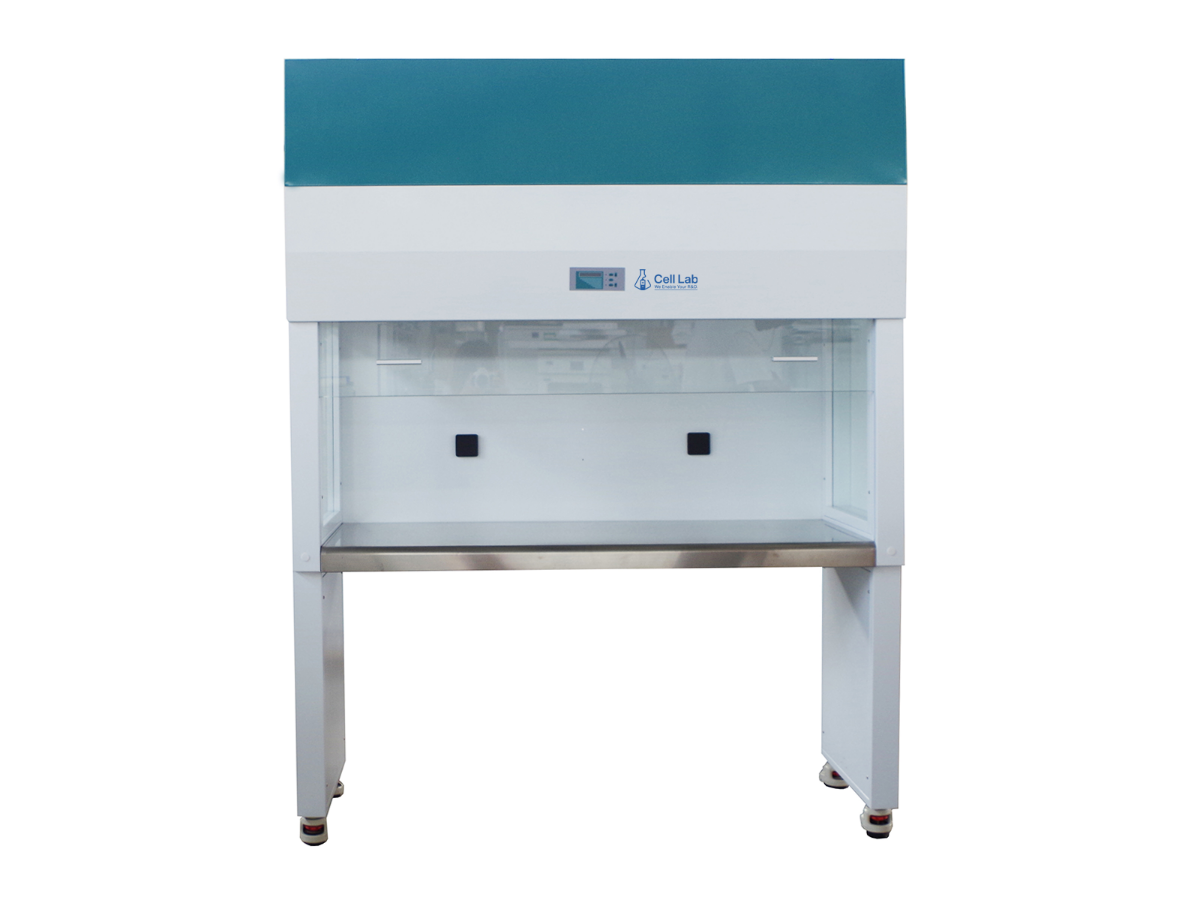

Cell Lab vertical laminar flow cabinet ensures ISO Class 100 clean air with HEPA filtration, multi-speed airflow control, and LCD safety interface for sterile laboratory and microbiological operations.
Cell Lab vertical laminar flow cabinet ensures ISO Class 100 clean air with HEPA filtration, multi-speed airflow control, and LCD safety interface for sterile laboratory and microbiological operations.
Cell Lab vertical laminar flow cabinet ensures ISO Class 100 clean air with HEPA filtration, multi-speed airflow control, and LCD safety interface for sterile laboratory and microbiological operations.
Cell Lab vertical laminar flow cabinet ensures ISO Class 100 clean air with HEPA filtration, multi-speed airflow control, and LCD safety interface for sterile laboratory and microbiological operations.
Cell Lab vertical laminar flow cabinet ensures ISO Class 100 clean air with HEPA filtration, multi-speed airflow control, and LCD safety interface for sterile laboratory and microbiological operations.
Cell Lab vertical laminar flow cabinet ensures ISO Class 100 clean air with HEPA filtration, multi-speed airflow control, and LCD safety interface for sterile laboratory and microbiological operations.

Cell Lab Laminar Flow Cabinet (Vertical Type) [ISO Class 100 | HEPA Filtration | LCD Control]

Cell Lab Laminar Flow Cabinet (Vertical Type) [ISO Class 100 | HEPA Filtration | LCD Control] Precision airflow control in a clean, sterile workspace The Cell Lab™ Laminar Flow Cabinet (Vertical Type) is designed to provide ISO Class 100 particle-free...
Vendor: Cell Lab
SKU: LF0001
Product type: Laminar Flow Cabinets
£1,999.00
£1,999.00
Volume: one operator one side
Subtotal: £1,999.00
Description
Description
x

Cell Lab Laminar Flow Cabinet (Vertical Type) [ISO Class 100 | HEPA Filtration | LCD Control]

Precision airflow control in a clean, sterile workspace

The Cell Lab™ Laminar Flow Cabinet (Vertical Type) is designed to provide ISO Class 100 particle-free air across a SUS304 stainless-steel workspace. Featuring vertical airflow, HEPA filtration, and intelligent wind speed control, this cabinet ensures clean, sterile conditions for microbiological research, sample preparation, and sensitive assembly processes — protecting both the operator and the experiment.

Key Features

• Vertical Airflow Purification System
A uniform vertical laminar airflow design combined with a semi-sealed SUS304 stainless-steel table prevents cross-contamination and minimises external air intrusion into the sterile workspace.

• Adjustable Multi-Stage Airflow Control
A high-efficiency centrifugal fan offers five-stage speed adjustment (0.2–0.6 m/s), easily controlled via the intuitive LCD panel. The airflow system gradually transitions from 0.6 m/s to 0.2 m/s, meeting variable application requirements while maintaining ISO Class 100 cleanliness.

• Advanced HEPA Filtration System
Equipped with separator-free HEPA filters (≥99.995% efficiency for 0.3 μm particles), ensuring continuous, ultra-clean airflow with consistent performance and low resistance. The washable pre-filter extends the service life of the HEPA element.

• Intelligent LCD Control Interface
The colour LCD screen allows full control over sterilisation timing, power sockets, lighting, and UV operation. Models LF-xxxxL include integrated wind speed sensors, UV safety interlocks, and remote control capability for advanced user management.

• Safety-Oriented Structure
The tempered glass front door automatically disables the UV lamp when opened. Built-in power sockets, LED/UV one-key control, HEPA replacement prompts, and foot-level adjusters provide comprehensive operator safety and convenience.

Technical Parameters:


Model

LF-0001

LF-0002

LF-0003

LF-0004

LF-0001L

LF-0002L

LF-0003L

LF-0004L

Applicable Station

one operator one side

one operator two sides

two operators one side

two operators two sides

 Airflow Direction

Vertical

Function

Cleanliness

Class 100

Collection Efficiency

0.3um particle ≥99.995%

Colony Count

≤0.5/vessel (petri dish is φ 90mm )

Wind Speed

initial: 0.6（m/s）,final：0.2 （m/s）

Wind Speed Range

0.2-0.6 （m/s）

Noise Level

≤62db

Vibration Semi-Peak Value

≤3um

Illumination Intensity （Lx）

≥800LX（Activity Center）

Work Surface Bearing

50kg

Composition

Inner Chamber

SUS304 Stainless steel plate

Outer Shell

Stainless steel electrostatic spraying exterior

Operation door

Tempered Glass

HEPA Filter （mm）

900*640*50 one piece

1300*640*50 one piece

Pre-Filter （mm）

464*360*5 one piece

712*360*5 one piece

Fluorescent Lamp

16W*2

24W*2

UV Lamp

20W*1

30W*1

Top Fan

180W one piece

180W two pieces

Rated power

240W

440W

Controller

Display

LCD color screen

Wind Speed Control

Intelligent multi-level adjustable

Additional Function

Built in 2 multi-purpose sockets, high- efficiency filter, sterilization lamp replacement prompt,  foot level adjustment, lighting sterilization one key on/ off

Specification

Inner Size (W*L*H)(mm)

920*690*650

920*690*650

1320*690*650

1320*690*650

Exterior Size (W*L*H)(mm)

1060*763*1834

1060*763*1834

1460*763*1834

1460*763*1834

Packing Size (W*L*H)(mm)

1210*885*1999

1210*885*1999

1610*885*1999

1610*885*1999

Max Power of universal socket

Single socket: 800W

Current Rating （50/60Hz）

AC220V

AC220V

NW/GW kg

160/200

165/205

200/250

205/255

Applications & Industries

  • Microbiological and cell culture laboratories

  • Pharmaceutical research and quality control

  • Semiconductor and optics component assembly

  • Food safety and environmental testing labs

  • Cleanroom sample preparation and packaging

FAQ

Q1: What is the difference between LF and LF-L models?
A1: LF-L models include wind speed sensors, UV safety interlocks, and remote control, offering enhanced functionality and real-time monitoring.

Q2: Does the cabinet protect both user and sample?
A2: The vertical laminar design primarily protects the sample and workspace, not the operator. For hazardous material handling, a biosafety cabinet is recommended.

Q3: What is the cleanliness class of the airflow?
A3: It provides ISO Class 100 (US FED 209E Class 5) clean air with ≥99.995% HEPA filtration efficiency.

Q4: Can airflow speed be adjusted?
A4: Yes, users can fine-tune airflow from 0.2–0.6 m/s via the multi-stage intelligent control system.

Q5: How is UV sterilisation handled safely?
A5: The UV lamp automatically shuts off when the front glass door is opened, preventing accidental exposure.
