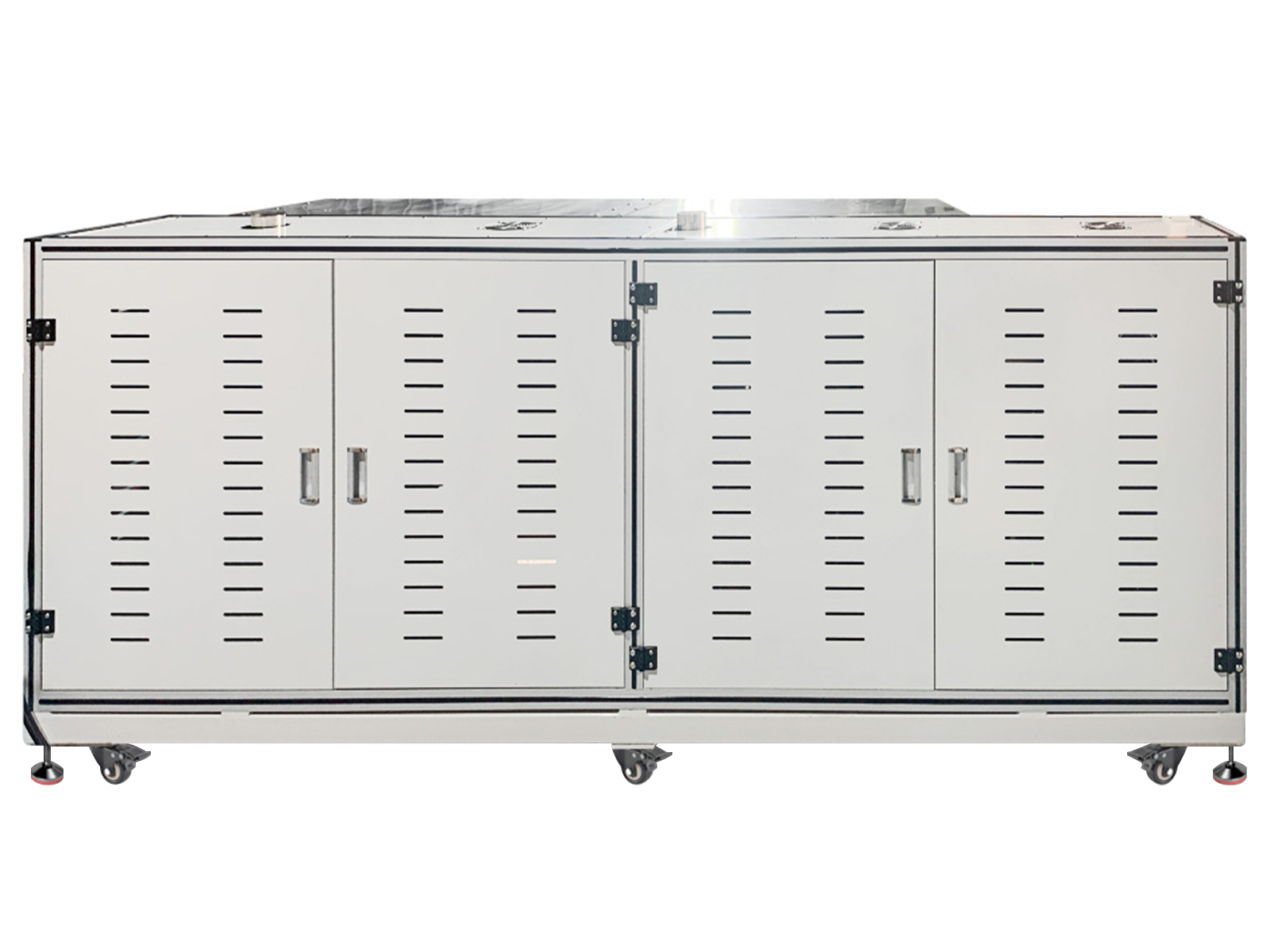

Cell Lab laboratory transfer coating machine with two-zone oven achieves ±3 µm precision and dual mode operation for battery electrode and thin-film R&D, ensuring uniform drying and accurate film control.

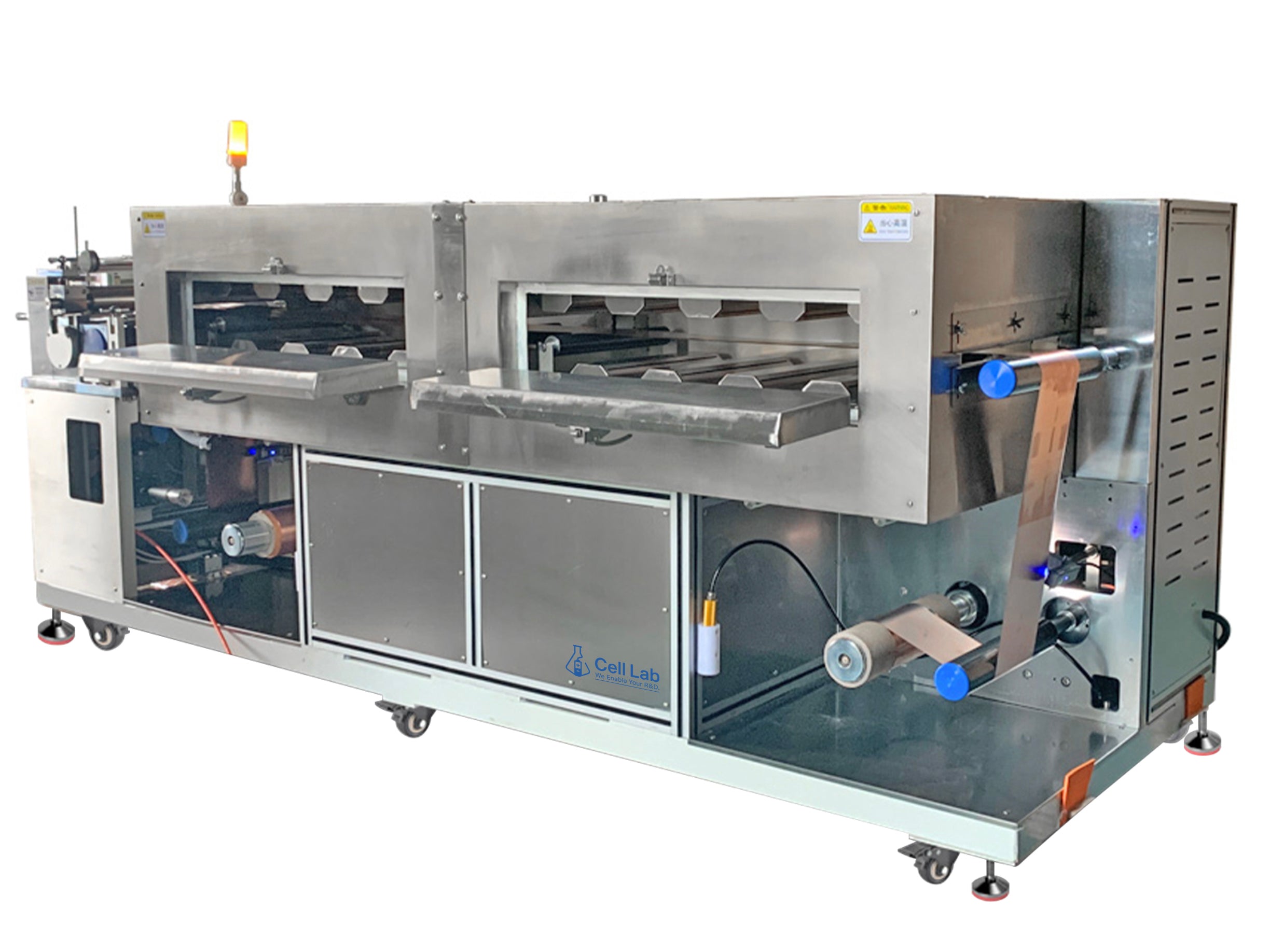

Cell Lab laboratory transfer coating machine with two-zone oven achieves ±3 µm precision and dual mode operation for battery electrode and thin-film R&D, ensuring uniform drying and accurate film control.
Cell Lab laboratory transfer coating machine with two-zone oven achieves ±3 µm precision and dual mode operation for battery electrode and thin-film R&D, ensuring uniform drying and accurate film control.
Cell Lab laboratory transfer coating machine with two-zone oven achieves ±3 µm precision and dual mode operation for battery electrode and thin-film R&D, ensuring uniform drying and accurate film control.

Cell Lab Laboratory Transfer Coating Machine [Two-Zone Oven | Precision Control]

Cell Lab Laboratory Transfer Coating Machine [Two-Zone Oven | Precision Control] High-accuracy thin-film coating system for battery electrode and material R&D The Cell Lab Laboratory Transfer Coating Machine is designed for advanced thin-film and electrode coating research. Equipped with dual...
Vendor: Cell Lab
SKU: CL0091
Product type: Battery Equipment
£189,998.36
£189,998.36
Subtotal: £189,998.36
Description
Description
x

Cell Lab Laboratory Transfer Coating Machine [Two-Zone Oven | Precision Control]

High-accuracy thin-film coating system for battery electrode and material R&D

The Cell Lab Laboratory Transfer Coating Machine is designed for advanced thin-film and electrode coating research. Equipped with dual oven zones for uniform drying, it supports both continuous and intermittent coating modes, ensuring high reproducibility and tight control of coating thickness. Ideal for battery R&D, flexible substrates, and solid-state electrolyte coatings, this unit offers precise control, versatile operation, and reliable temperature management for experimental and pilot-scale production.

Key Features

  • Dual-Zone Oven Control: Provides independent temperature regulation to achieve uniform drying and solvent evaporation during coating.

  • High Coating Precision: Delivers ±3 µm coating accuracy and ±1.0 % double-sided film-weight uniformity.

  • Flexible Substrate Support: Compatible with aluminium and copper foils ranging from 8 to 30 µm in thickness.

  • Versatile Operation Modes: Supports both continuous and intermittent coating for diverse R&D applications.

  • R&D-Optimised Design: Engineered for small-batch experimental work and customised coating processes.

Specifications:

Parameter Specification
Coating Method Continuous / Intermittent
Oven Sections 2 zones
Mechanical Speed Max. 2 m/min
Coating Speed 0 – 1 m/min
Coating Gap Max. 100 mm (adjustable)
Substrate Thickness Cu foil: 8–30 μmAl foil: 8–30 μm
Roll Surface Width 330 mm
Effective Coating Width ≤ 300 mm
Coated / Rubber Roller Diameter Φ120 mm
Squeegee Roller Diameter Φ80 mm
Coating Accuracy ±3 μm
Film Weight Accuracy ±1.0% (double-coated)
Slurry Viscosity 2000–12000 mPa·s
Dry Thickness Range 20–200 μm
Solid Content 20 – 85%
Coating Size Accuracy L ≤ ±1 mm, W ≤ ±0.5 mm
Alignment Accuracy L ≤ ±1 mm, W ≤ ±0.5 mm

Applications & Industries

  • Lithium-ion and solid-state battery electrode coating

  • Flexible substrate and thin-film materials research

  • Conductive slurry and separator coating experiments

  • Laboratory and pilot-scale electrode manufacturing

  • Advanced materials and electrochemical R&D

FAQ

Q1: What coating materials can this system handle?
It supports cathode, anode, and separator coatings using slurries with viscosities between 2000 – 12000 mPa·s.

Q2: Can the machine operate in intermittent mode?
Yes. Users can switch between continuous and intermittent coating to suit specific R&D requirements.

Q3: How is coating uniformity maintained?
Dual-zone oven control ensures stable drying, while precision rollers and servo adjustment maintain consistent coating thickness.

Q4: Is the system suitable for flexible films?
Absolutely. It accommodates both copper and aluminium foils, as well as flexible polymer substrates for thin-film research.

Q5: What’s the recommended use case for this model?
It is ideal for laboratory-scale process optimisation before scaling to industrial roll-to-roll coating lines.
