Cell Lab Lab-Scale 5-Ton Manual Hydraulic Pellet Press [Compact, Digital Display Option]

Lightweight, benchtop manual hydraulic press for laboratory pellet preparation in spectroscopy, batteries & materials research

General Description

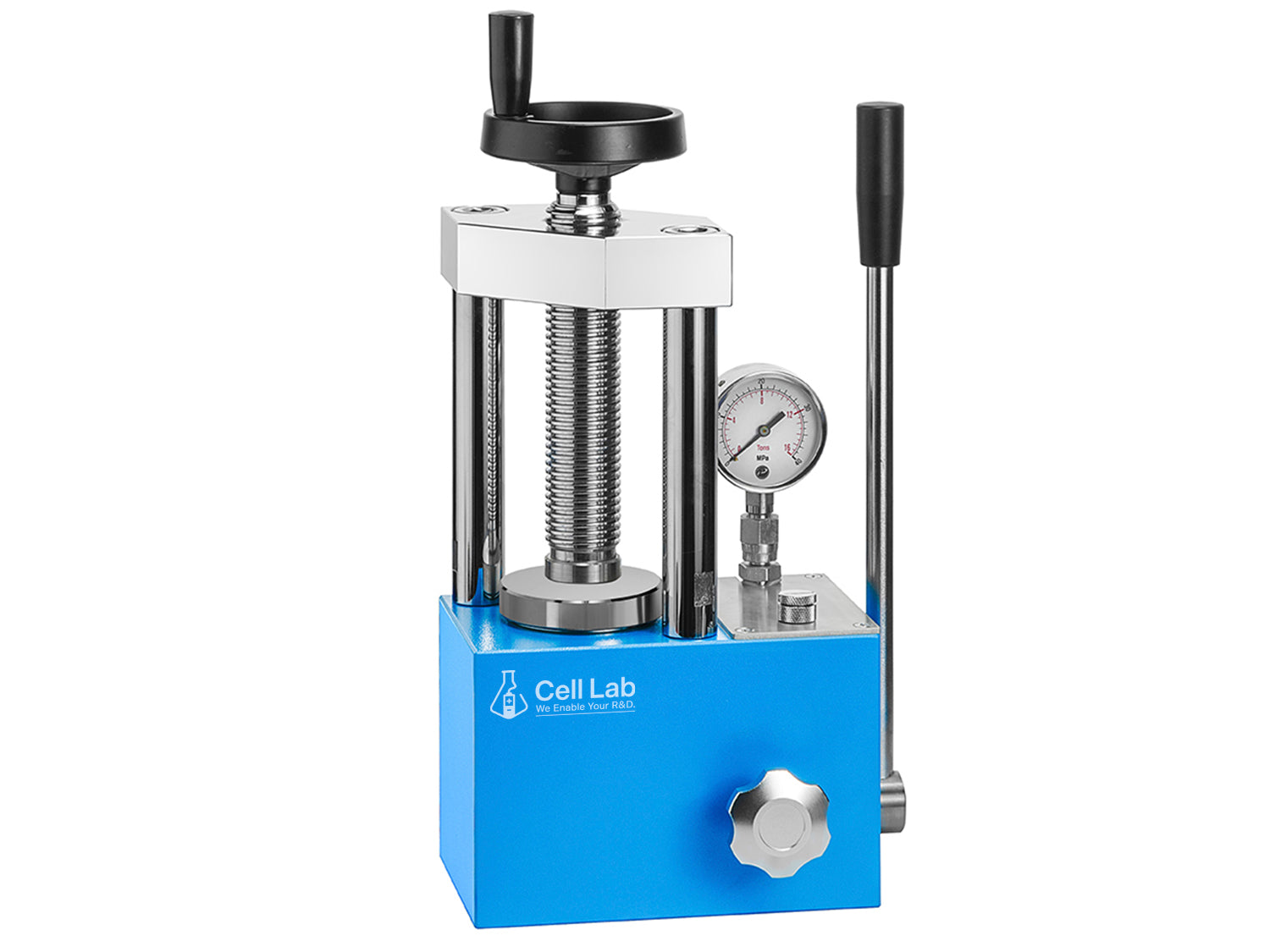

The Cell Lab 5-Ton Manual Hydraulic Pellet Press is a compact and easy-to-use benchtop press designed for laboratory-scale pellet preparation. With a maximum load of 5 metric tons (31.4 MPa), it is widely applied in FTIR/XRF spectroscopy, battery electrode research, ceramics, catalysis, and metallurgy.

Featuring fast compression, stable pressure, simple operation, and low maintenance, this press is ideal for routine laboratory use. It is available with either a regular pressure gauge or a digital pressure gauge for precise monitoring. When operated inside a glove box, the O-ring should be inspected periodically to prevent oil leakage.

Key Features

  1. Compact and portable — Lightweight design (28 kg) ideal for benchtop laboratories.

  2. Maximum pressure 5 tons — Provides stable compaction for small-scale pellet formation.

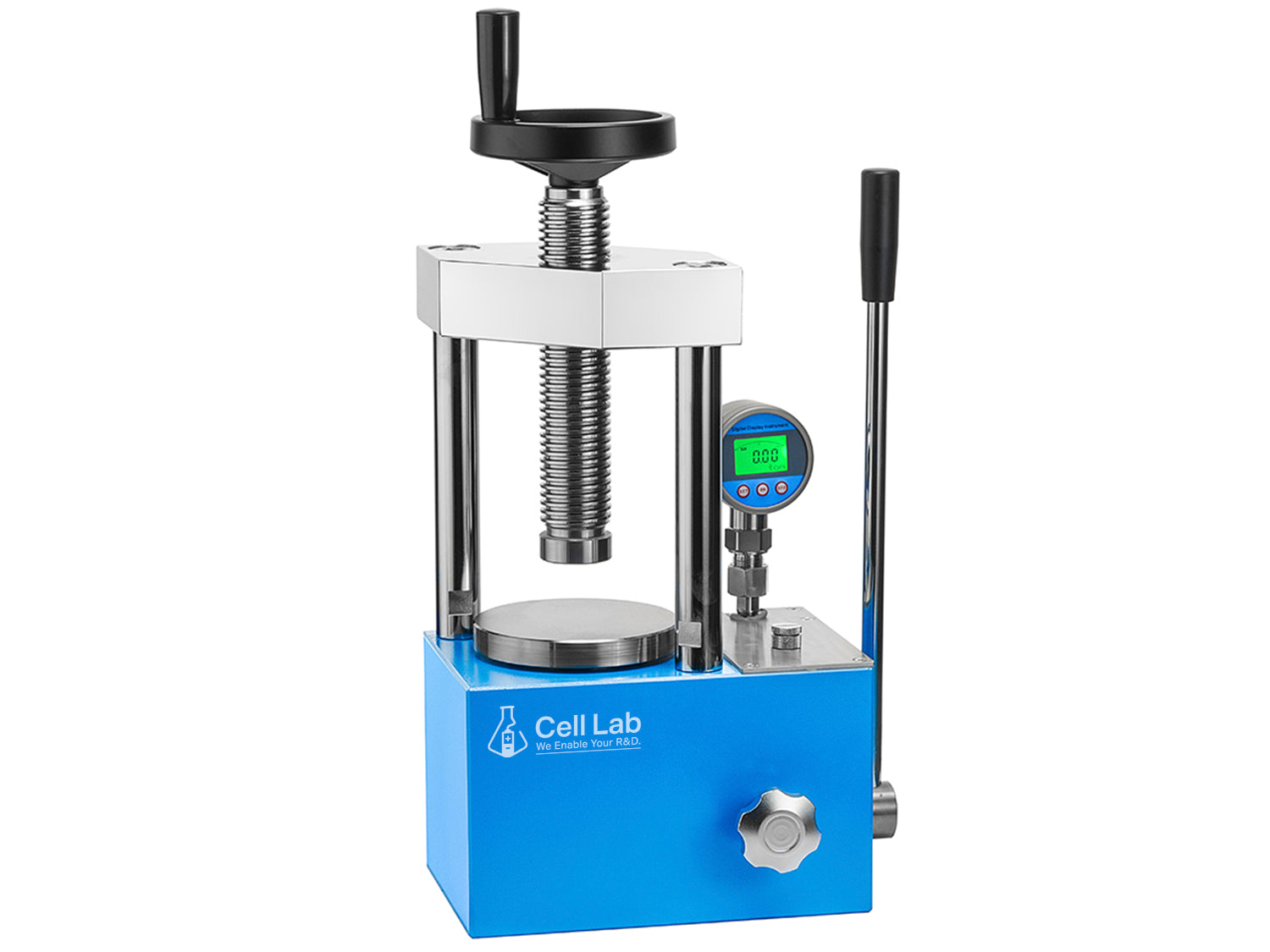

  3. Digital display option — Choose between regular or digital pressure gauge for accuracy.

  4. Laboratory versatility — Suitable for spectroscopy, battery R&D, ceramics, and metallurgy.

  5. Durable construction — Made for long-term use with minimal cleaning and maintenance.

Specifications

Property Value
Product No. CL0628 (Regular Pressure Gauge) / CL0629 (Digital Pressure Gauge)
Pressure Range 0–5 tons (31.4 MPa)
Max Pressure 5 metric tons
Piston Diameter 45 mm
Max Piston Travel Distance 30 mm
Pressure Stability ≤1 MPa / 10 min
Sample Stage Diameter 80 mm
Max Sample Height 130 mm
Dimensions (W × L × H) 225 × 155 × 380 mm
Net Weight 28 kg
Warranty 1 year (manufacturing defects only)

Applications & Industries

  • FTIR & XRF spectroscopy — Small pellet preparation for analytical testing.

  • Battery materials — Pressing of electrode powders for lithium-ion and solid-state research.

  • Ceramics & catalysts — Sample pelletisation for reproducibility and testing.

  • Metallurgy & powder R&D — Compacting fine powders for laboratory analysis.

  • Academic laboratories — Cost-effective, small-scale manual press for teaching and research.

FAQ

Q1: What is the maximum pressure capacity of this press?
It can reach up to 5 metric tons, equivalent to 31.4 MPa.

Q2: What gauge options are available?
Both regular and digital pressure gauge options are offered.

Q3: Can this press be used in a glove box?
Yes. It can be used inside a glove box, but check the O-ring seal regularly to prevent leaks.

Q4: How should I maintain the press?
Clean after each use, keep it dry, and inspect seals periodically. Apply oil if stored for long periods.

Q5: What is covered under warranty?
Warranty covers manufacturing defects only. The press is considered a consumable item.
