Cell Lab Lab-Scale 15-Ton Manual Hydraulic Pellet Press [Two-Column & Four-Column Designs]
Cell Lab Lab-Scale 15-Ton Manual Hydraulic Pellet Press [Two-Column & Four-Column Designs] Compact, durable hydraulic press for pellet preparation in spectroscopy, battery R&D & materials science General Description The Cell Lab 15-Ton Manual Hydraulic Pellet Press is designed for medium-scale...
- £1,409.00
- £1,409.00
- Unit price
- per
Subtotal:
£1,409.00
Couldn't load pickup availability
Description
xCell Lab Lab-Scale 15-Ton Manual Hydraulic Pellet Press [Two-Column & Four-Column Designs]
Compact, durable hydraulic press for pellet preparation in spectroscopy, battery R&D & materials science
General Description
The Cell Lab 15-Ton Manual Hydraulic Pellet Press is designed for medium-scale laboratory pellet preparation. With a maximum load of 15 metric tons, it offers the perfect balance between compact structure, simple manual operation, fast compression, and reliable pressure stability.

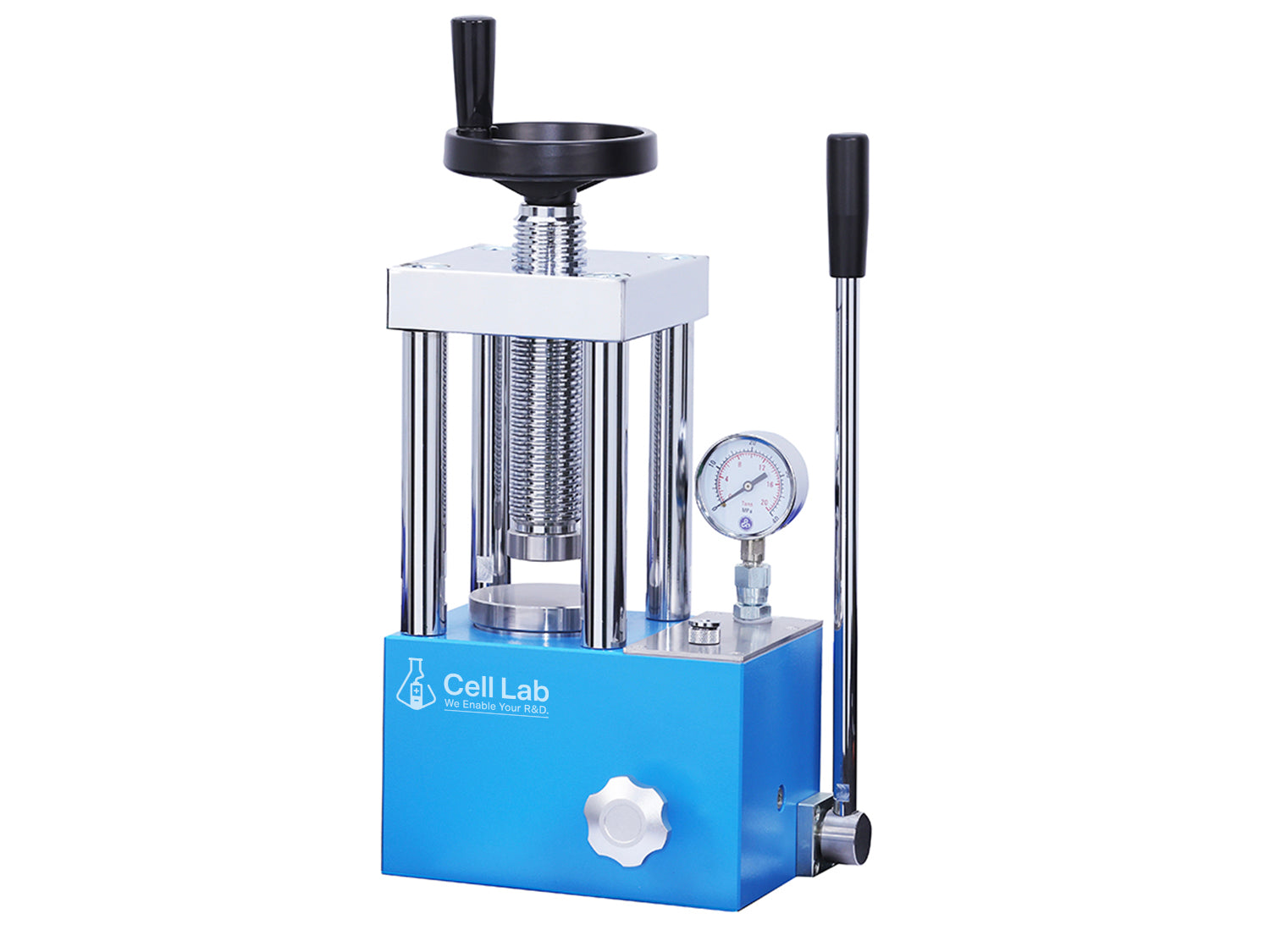

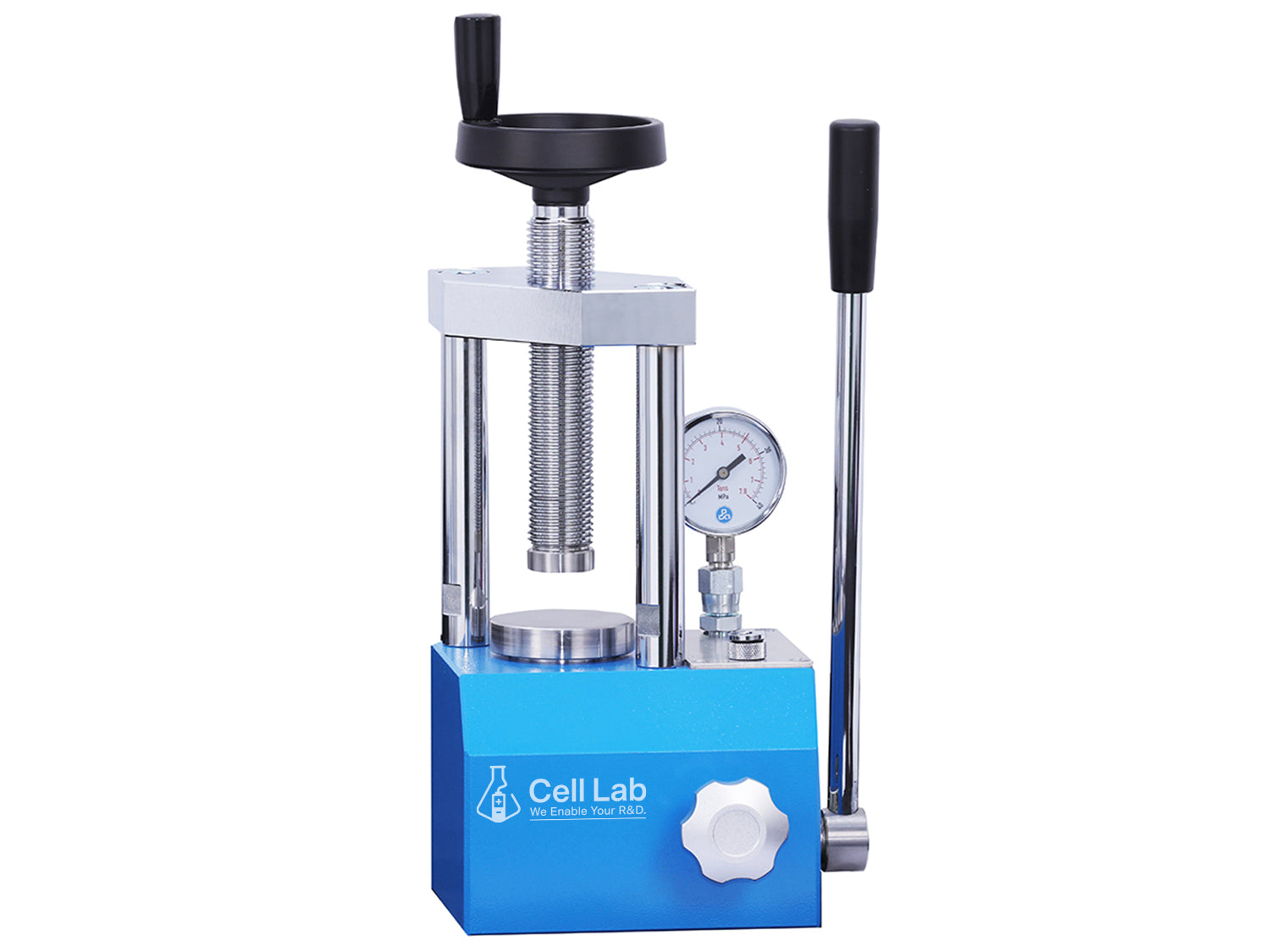

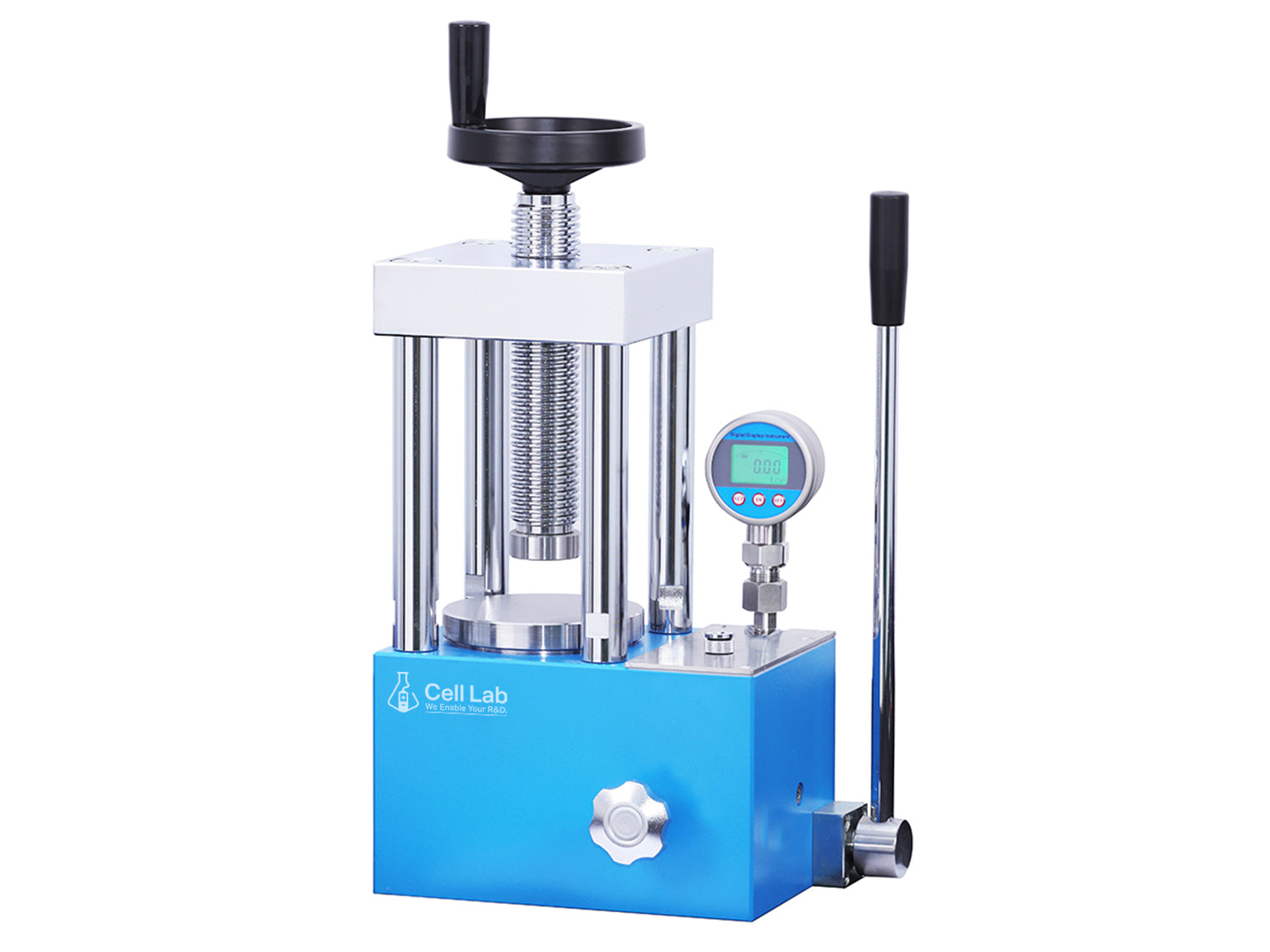

Available in two-column (140 × 150 mm working area) and four-column (80 × 130 mm working area) designs, the press accommodates different laboratory setups. It is widely used for FTIR/XRF analysis, lithium battery electrode pressing, ceramics, catalysts, and powder metallurgy.
When operated inside a glove box, the O-ring seal should be checked regularly to prevent oil leakage.
Key Features
-
15-ton pressure capacity — Suitable for a wide range of laboratory pellet pressing applications.
-
Compact benchtop design — Space-saving and easy to operate manually.
-
Two-column or four-column models — Flexibility to meet different laboratory requirements.
-
Durable construction — Alloy tool steel piston and high-strength frame ensure long service life.
-

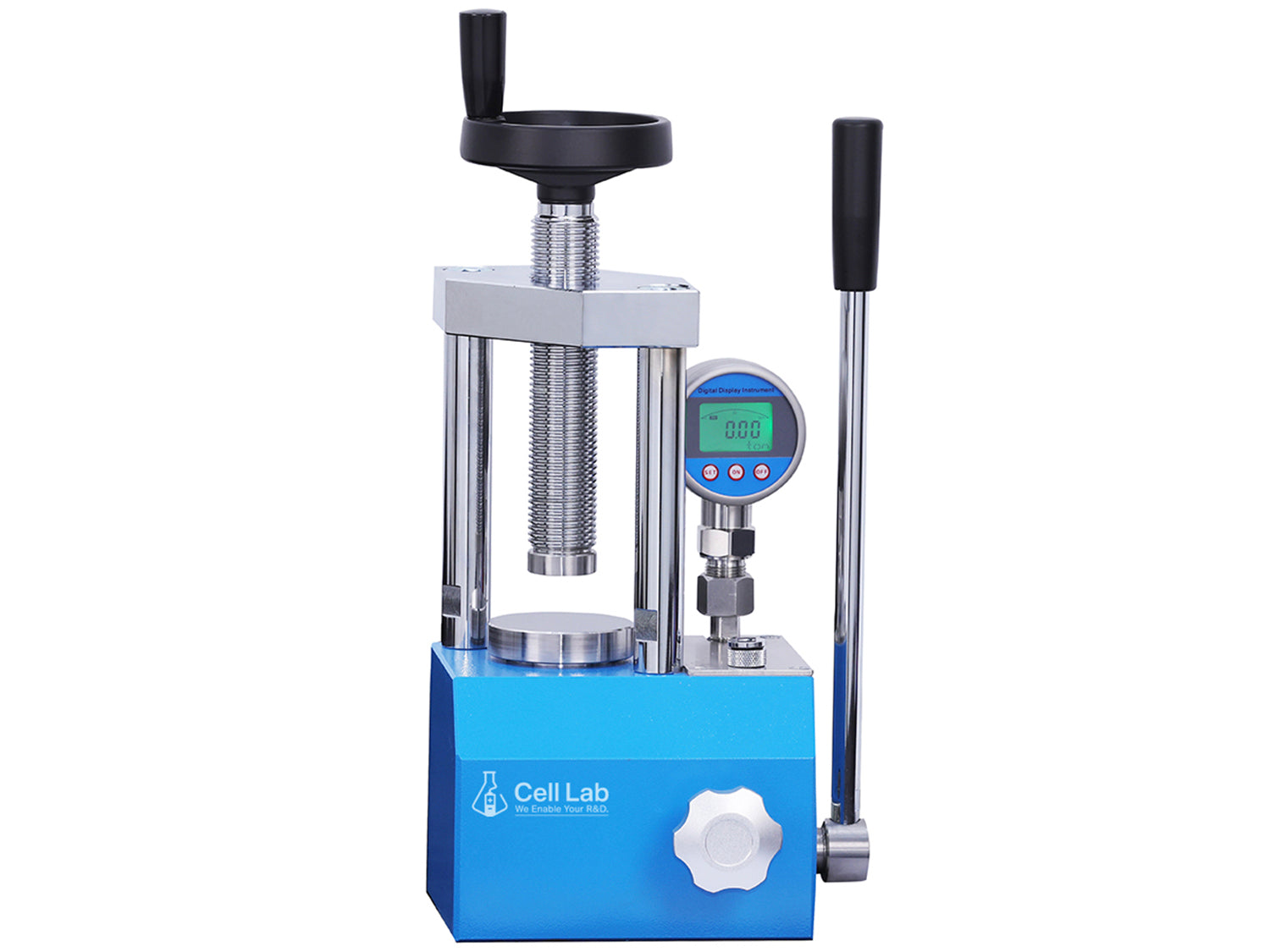

Gauge options — Available with either regular or digital pressure gauge.
Specifications
| Property | Value |
|---|---|
| Product No. | CL0631 (Regular, Two-Column) / CL0632 (Digital, Two-Column) / CL0633 (Regular, Four-Column) / CL0634 (Digital, Four-Column) |
| Pressure Range | 0–15 metric tons |
| Max Pressure | 15 tons |
| Piston Diameter | 80 mm |
| Max Travel Distance | 30 mm |
| Pressure Stability | ≤1 MPa / 10 min |
| Sample Stage Diameter | 90 mm |
| Working Area | 140 × 150 mm (Two-Column) / 80 × 130 mm (Four-Column) |
| Dimensions (W × L × H) | 245 × 175 × 390 mm |
| Net Weight | 38–40 kg |
| Warranty | 1 year (manufacturing defects only) |
Applications & Industries
-
FTIR/XRF spectroscopy — Reliable pellet pressing for analytical measurements.
-
Battery research — Electrode material compaction for lithium-ion & solid-state batteries.
-
Ceramics & catalysts — Compacting powders for reproducible testing.
-
Powder metallurgy — Medium-scale pelletisation for laboratory R&D.
-
Materials science & QC — Versatile pressing solution for research and industry labs.
FAQ
Q1: What are the main differences between the two-column and four-column models?
The two-column version offers a larger working area, while the four-column design provides enhanced stability for smaller sample sizes.
Q2: What pressure gauge options are available?
Both regular and digital pressure gauges are available for precise pressure monitoring.
Q3: Can this press be used inside a glove box?
Yes, but the O-ring seal should be checked regularly to avoid oil leakage.
Q4: What is the maximum piston travel distance?
The piston travel distance is 30 mm.
Q5: How should I maintain the press?
Clean after each use, store in a dry environment, and lightly oil surfaces if stored for extended periods.
