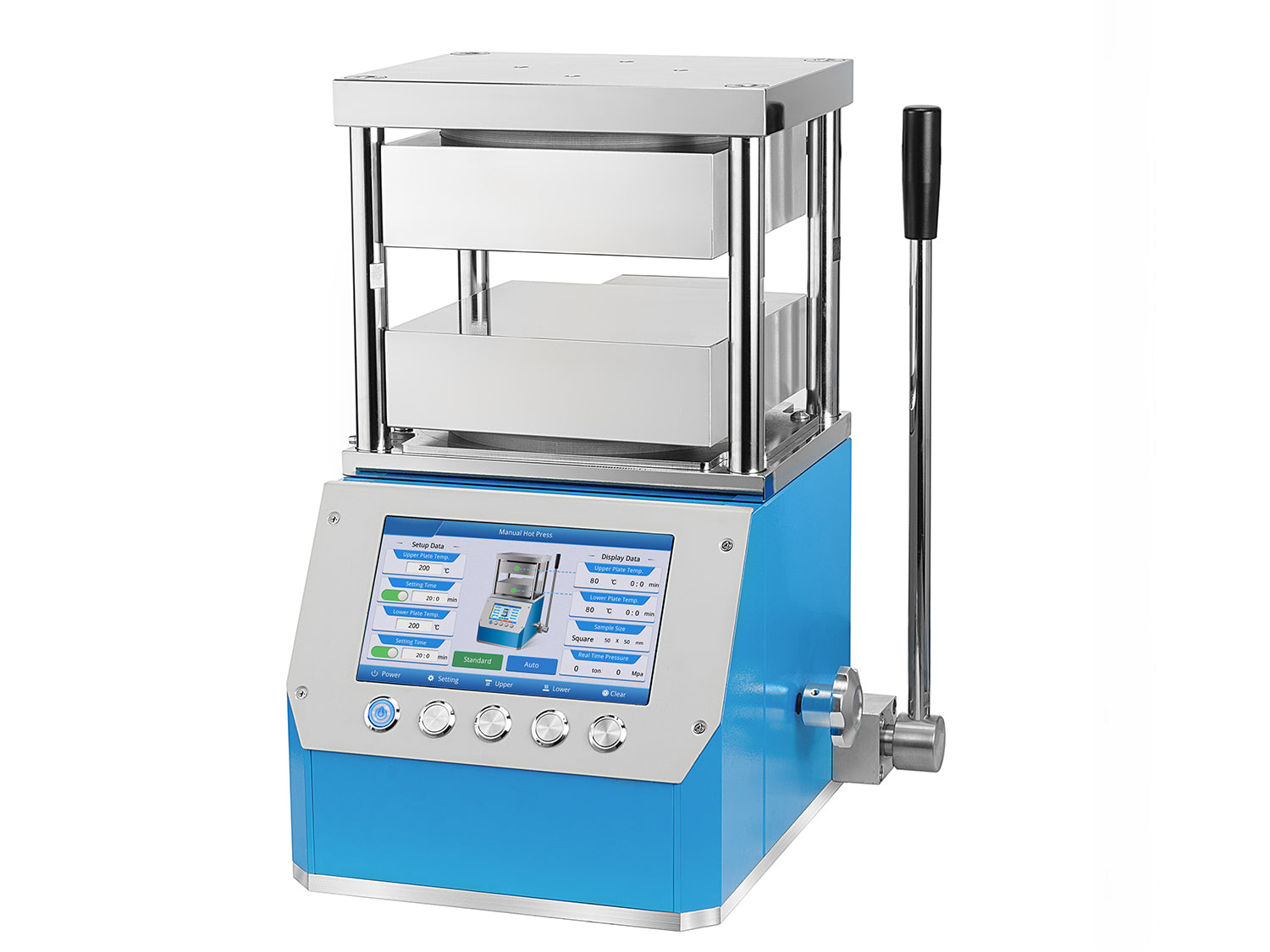

Cell Lab Integrated Hot Press with dual 180 × 180 mm heating platens, 0–10 ton pressure and RT–300 °C, RT–500 °C or RT–800 °C heating options. Compact hydraulic hot press for battery, ceramic, polymer and advanced materials research.
Cell Lab Integrated Hot Press with dual 180 × 180 mm heating platens, 0–10 ton pressure and RT–300 °C, RT–500 °C or RT–800 °C heating options. Compact hydraulic hot press for battery, ceramic, polymer and advanced materials research.

Cell Lab Integrated Hot Press [10 T, 300 °C/500 °C/800 °C, Dual 180 × 180 mm Heating Platens]

Cell Lab Integrated Hot Press [10 T, 300 °C/500 °C/800 °C, Dual 180 × 180 mm Heating Platens] Compact integrated hydraulic hot press with dual 180 × 180 mm heating platens for battery, ceramic, polymer and advanced materials research General...
Vendor: Cell Lab
SKU: CL0995
Product type: Pellet Press Machine
£2,386.36
£2,386.36
Power: 300℃ 1.2KW 180×180
Subtotal: £2,386.36
Description
Description
x

Cell Lab Integrated Hot Press [10 T, 300 °C/500 °C/800 °C, Dual 180 × 180 mm Heating Platens]

Compact integrated hydraulic hot press with dual 180 × 180 mm heating platens for battery, ceramic, polymer and advanced materials research

General Description

The Cell Lab Integrated Hot Press is a compact hydraulic hot pressing system designed for material forming, powder compaction, lamination, film pressing and battery material research. Its integrated structure combines the heating and pressing components into a space-efficient laboratory system, while the dual 180 × 180 mm heating platens provide a defined heating area for small- to medium-format samples.

Three temperature configurations are available, with maximum operating temperatures of 300 °C, 500 °C or 800 °C. The system provides a 0–10 ton pressure range with 0.01 ton pressure accuracy and 0.1 °C temperature control accuracy, supporting controlled thermal and mechanical processing.

A 7-inch touch screen provides an intuitive interface for operation and parameter setting. The multi-stage heating or cooling program allows controlled thermal processing, while optional water cooling can accelerate cooling when required.

The compact design makes this hot press particularly suitable for battery R&D, ceramic materials, polymer processing, powder metallurgy, composite materials and laboratory-scale sample preparation.

Key Features

• Up to 10-ton pressing capacity — Provides a 0–10 ton pressure range with 0.01 ton pressure accuracy for controlled sample compaction and forming.

• Dual 180 × 180 mm heating platens — Provides a defined dual-platen heating area suitable for battery electrodes, films, powders, ceramics and other laboratory samples.

• Three temperature configurations — Available in RT–300 °C, RT–500 °C and RT–800 °C versions to accommodate different thermal processing requirements.

• Precise temperature control — Temperature control accuracy of 0.1 °C supports stable and repeatable thermal processing.

• Integrated compact design — Combines the hot pressing system into a space-efficient structure, making it suitable for laboratory environments where equipment footprint matters.

Available Models

SKU Heating Temperature Heating Power Heating Platens
CL0995 RT–300 °C 1.2 kW Dual 180 × 180 mm
CL0996 RT–500 °C 2.4 kW Dual 180 × 180 mm
CL0997 RT–800 °C 5 kW Dual 180 × 180 mm

Technical Specifications

General Parameters

Parameter Specification
Model CL0995 / CL0996 / CL0997
Pressure Range 0–10 T
Pressure Accuracy 0.01 ton
Temperature Control Accuracy 0.1 °C
Piston Diameter Chrome-plated oil cylinder, Ø65 mm
Structural Design Integral structure; no sealing connection to reduce oil leakage
Constant Temperature Time ≥1 s
Display Screen 7-inch Touch Screen
Heating Method Multi-stage heating or cooling program

Heating System

Parameter CL0995 CL0996 CL0997
Heating Temperature RT–300 °C RT–500 °C RT–800 °C
Heating Power 1.2 kW 2.4 kW 5 kW
Heating Area Dual 180 × 180 mm Dual 180 × 180 mm Dual 180 × 180 mm
Heating Method Multi-stage heating or cooling program Multi-stage heating or cooling program Multi-stage heating or cooling program

Cooling & Insulation

Parameter Specification
Heating Insulation Method Imported heating insulation board
Cooling Method Air / Water cooling
Water Chiller Optional
Water Chiller Dimensions 550 × 340 × 430 mm
Water Chiller Net Weight 11 kg

Mechanical Specifications

Parameter Specification
Working Space 185 × 60 mm
Machine Dimensions 320 × 290 × 420 mm (L × W × H)
Net Weight 95 kg
Packing Dimensions 405 × 330 × 550 mm (L × W × H)
Gross Weight 105 kg
Power Supply 110 V / 220 V

Applications & Industries

  • Battery Research — Hot pressing of battery electrodes, separator materials and other functional battery components.
  • Ceramic Materials — Thermal pressing and compaction of ceramic powders and advanced ceramic materials.
  • Polymer & Composite Materials — Heated pressing, forming and lamination of polymer films and composite materials.
  • Powder Metallurgy — Controlled compaction and thermal processing of metal powders.
  • Thin Films & Functional Materials — Preparation and pressing of films, membranes and other functional material samples.
  • Advanced Materials Research — Laboratory-scale material forming, thermal processing and process development.

FAQ

Q1: What is the maximum pressing force?

The Cell Lab Integrated Hot Press provides a pressure range of 0–10 tons, with a pressure accuracy of 0.01 ton.

Q2: What heating temperature options are available?

Three configurations are available: RT–300 °C, RT–500 °C and RT–800 °C.

Q3: What are the heating powers of the three models?

CL0995 has 1.2 kW heating power, CL0996 has 2.4 kW, and CL0997 has 5 kW.

Q4: What is the heating platen size?

All three models use dual 180 × 180 mm heating platens.

Q5: How accurate is the temperature control?

The specified temperature control accuracy is 0.1 °C.

Q6: Does the system support cooling?

Yes. The system supports air or water cooling. A water chiller is available as an optional accessory.

Q7: What is the working space?

The working space is 185 × 60 mm, as specified in the technical parameters.
