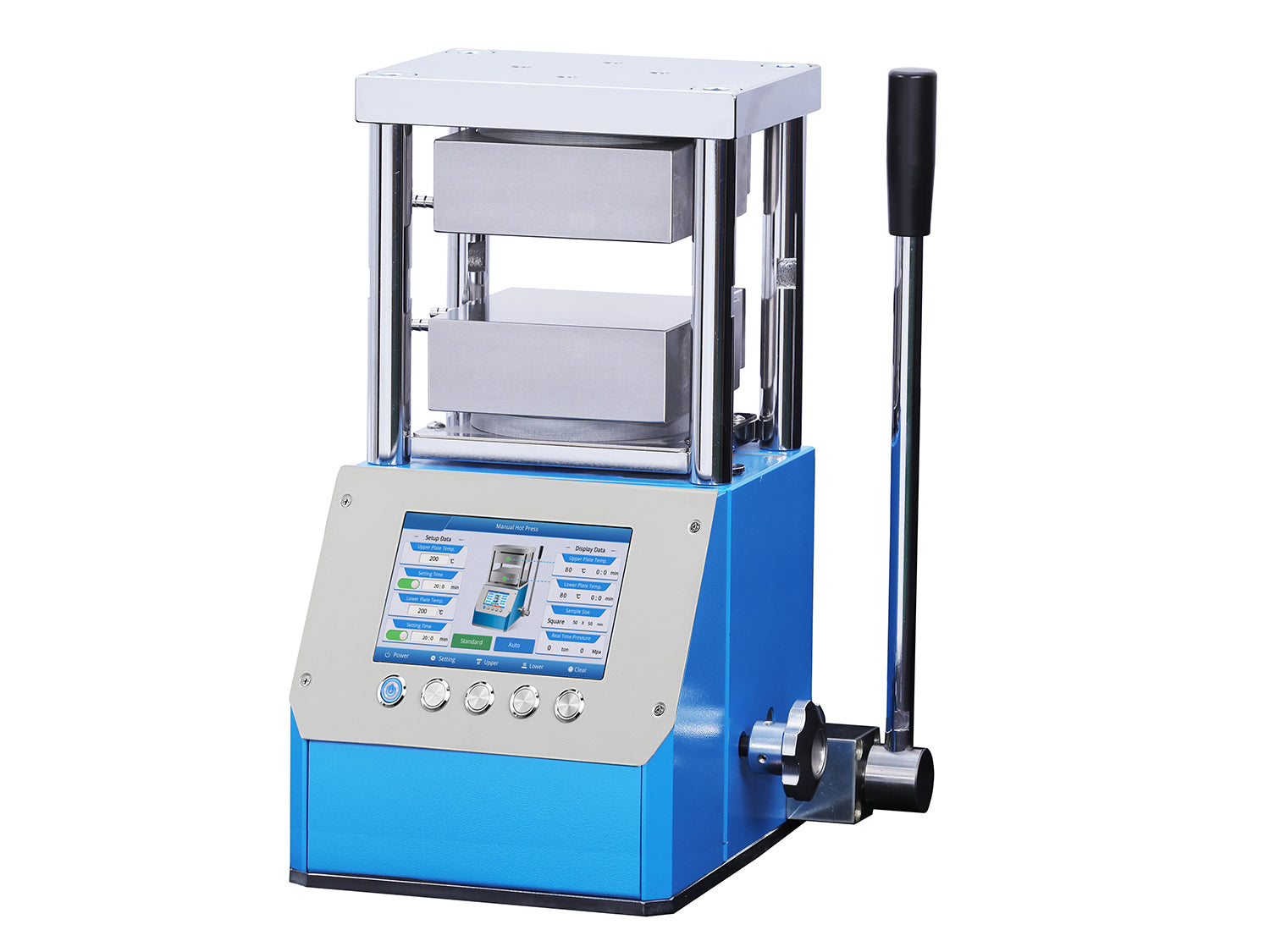

Cell Lab Integrated Hot Press with dual 120 × 120 mm heating platens, 0–5 ton pressure and RT–300 °C, RT–500 °C or RT–800 °C heating options. Compact hydraulic hot press for battery, ceramic, polymer and advanced materials research.
Cell Lab Integrated Hot Press with dual 120 × 120 mm heating platens, 0–5 ton pressure and RT–300 °C, RT–500 °C or RT–800 °C heating options. Compact hydraulic hot press for battery, ceramic, polymer and advanced materials research.

Cell Lab Integrated Hot Press [10 T, 300 °C/500 °C/800 °C, Dual 120 × 120 mm Heating Platens]

Cell Lab Integrated Hot Press [10 T, 300 °C/500 °C/800 °C, Dual 120 × 120 mm Heating Platens] Compact integrated hydraulic hot press with dual 120 × 120 mm heating platens for battery, ceramic, polymer and advanced materials research General...
Vendor: Cell Lab
SKU: CL0998
Product type: Pellet Press Machine
£1,431.82
£1,431.82
Power: 300℃ 0.6KW 120×120
Subtotal: £1,431.82
Description
Description
x

Cell Lab Integrated Hot Press [10 T, 300 °C/500 °C/800 °C, Dual 120 × 120 mm Heating Platens]

Compact integrated hydraulic hot press with dual 120 × 120 mm heating platens for battery, ceramic, polymer and advanced materials research

General Description

The Cell Lab Integrated Hot Press is a compact hydraulic hot pressing system designed for material forming, powder compaction, lamination, film pressing and battery material research. Its integrated structure combines the heating and pressing components into a space-efficient laboratory system, while the dual 120 × 120 mm heating platens provide a defined heating area for small-format samples.

Three configurations are available with maximum heating temperatures of 300 °C, 500 °C or 800 °C. The system provides a 0–5 ton pressure range, 0.01 ton pressure accuracy, and 0.1 °C temperature control accuracy, supporting controlled thermal and mechanical processing.

The system features a 5-inch touch screen for operation and parameter setting. The multi-stage heating or cooling program supports controlled thermal processing, while air or water cooling can be selected depending on the application. A water chiller is available as an optional accessory.

Its compact integrated design makes this hot press suitable for battery R&D, ceramic materials, polymer processing, powder metallurgy, composite materials and laboratory-scale sample preparation.

Key Features

• Up to 5-ton pressing capacity — Provides a 0–5 ton pressure range with 0.01 ton pressure accuracy for controlled sample compaction and forming.

• Dual 120 × 120 mm heating platens — Provides a compact dual-platen heating area suitable for battery electrodes, films, powders, ceramics and small-format laboratory samples.

• Three temperature configurations up to 800 °C — Available in RT–300 °C, RT–500 °C and RT–800 °C versions for different thermal processing requirements.

• Precise temperature control — Temperature control accuracy of 0.1 °C supports stable and repeatable thermal processing.

• Compact integrated structure — The integrated design reduces equipment footprint while combining hydraulic pressing and heated platen functions in one laboratory system.

Available Models

SKU Heating Temperature Heating Power Heating Platens
CL0998 RT–300 °C 0.6 kW Dual 120 × 120 mm
CL0999 RT–500 °C 1 kW Dual 120 × 120 mm
CL1000 RT–800 °C 3.5 kW Dual 120 × 120 mm

Technical Specifications

General Parameters

Parameter Specification
Model CL0998 / CL0999 / CL1000
Pressure Range 0–5 T
Pressure Accuracy 0.01 ton
Temperature Control Accuracy 0.1 °C
Piston Diameter Chrome-plated oil cylinder, Ø50 mm
Structural Design Integral structure; no sealing connection, reducing oil leakage
Constant Temperature Time ≥1 s
Display Screen 5-inch Touch Screen
Heating Method Multi-stage heating or cooling program

Heating System

Parameter CL0998 CL0999 CL1000
Heating Temperature RT–300 °C RT–500 °C RT–800 °C
Heating Power 0.6 kW 1 kW 3.5 kW
Heating Area Dual 120 × 120 mm Dual 120 × 120 mm Dual 120 × 120 mm
Heating Method Multi-stage heating or cooling program Multi-stage heating or cooling program Multi-stage heating or cooling program

Cooling & Insulation

Parameter Specification
Heating Insulation Method Imported heating insulation board
Cooling Method Air / Water cooling
Water Chiller Optional
Water Chiller Dimensions 550 × 340 × 430 mm
Water Chiller Net Weight 11 kg

Mechanical Specifications

Parameter Specification
Working Space 120 × 55 mm
Machine Dimensions 250 × 230 × 380 mm (L × W × H)
Net Weight 55 kg
Packing Dimensions 405 × 330 × 550 mm (L × W × H)
Gross Weight 65 kg
Power Supply 110 V / 220 V

Applications & Industries

  • Battery Research — Hot pressing of battery electrodes, separator materials and other functional battery components.
  • Ceramic Materials — Thermal pressing and compaction of ceramic powders and advanced ceramic materials.
  • Polymer & Composite Materials — Heated pressing, forming and lamination of polymer films and composite materials.
  • Powder Metallurgy — Controlled compaction and thermal processing of metal powders.
  • Thin Films & Functional Materials — Preparation and pressing of films, membranes and other functional material samples.
  • Advanced Materials Research — Laboratory-scale material forming, thermal processing and process development.

FAQ

Q1: What is the maximum pressing force?

The Cell Lab Integrated Hot Press provides a pressure range of 0–5 tons, with a pressure accuracy of 0.01 ton.

Q2: What heating temperature options are available?

Three configurations are available: RT–300 °C, RT–500 °C and RT–800 °C.

Q3: What are the heating powers of the three models?

CL0998 has 0.6 kW heating power, CL0999 has 1 kW, and CL1000 has 3.5 kW.

Q4: What is the heating platen size?

All three models use dual 120 × 120 mm heating platens.

Q5: How accurate is the temperature control?

The specified temperature control accuracy is 0.1 °C.

Q6: Does the system support cooling?

Yes. The system supports air or water cooling. A water chiller is available as an optional accessory.

Q7: What is the working space?

The working space is 120 × 55 mm.
