Cell Lab Inert Atmosphere Glove Box with Gas Purification System
Cell Lab Inert Atmosphere Glove Box with Gas Purification System [Dual Glove Ports, O₂ & H₂O <0.1 ppm] High-Purity Controlled Atmosphere Glove Box for Lithium Battery Research, Materials Development and Sensitive Laboratory Applications The Cell Lab Inert Atmosphere Glove Box...
- £21,425.00
- £21,425.00
- Unit price
- per
Subtotal:
£21,425.00
Description

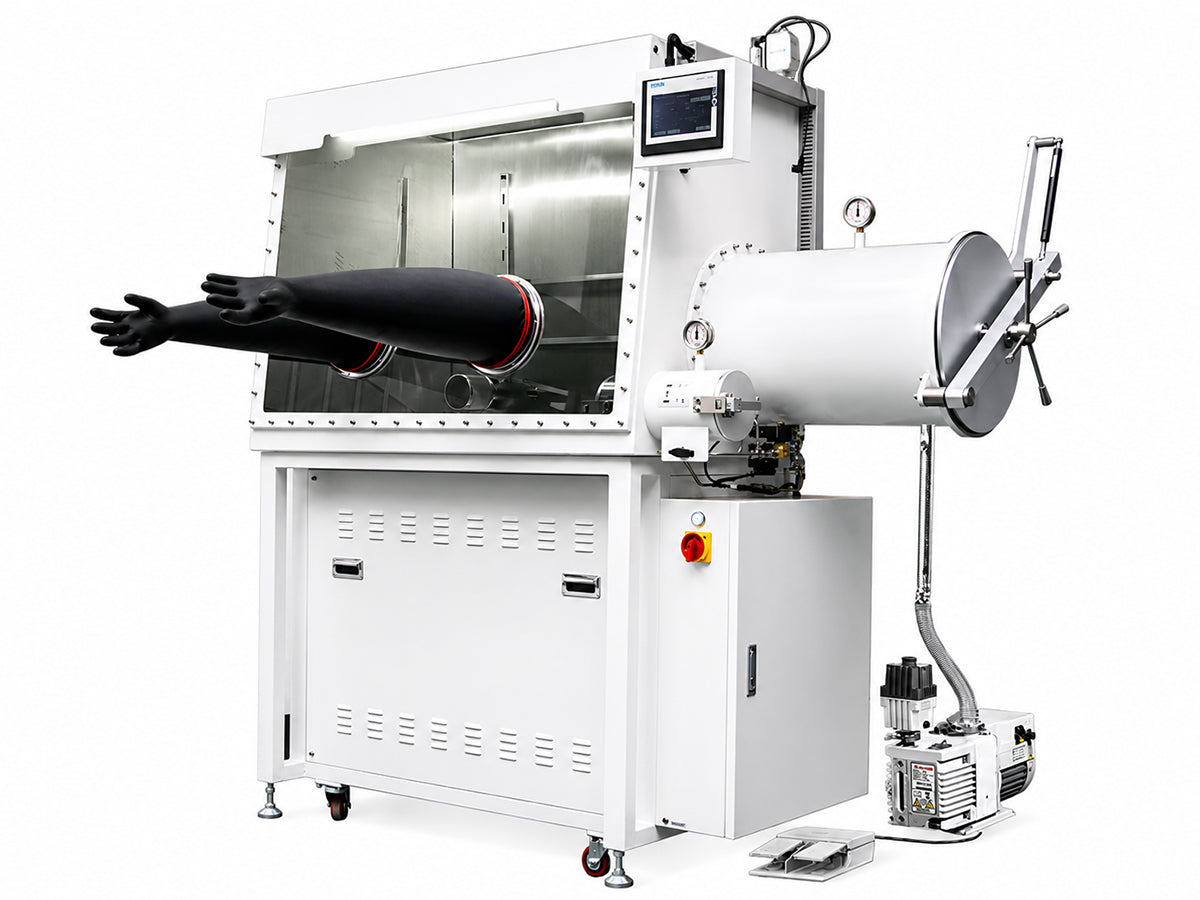

xCell Lab Inert Atmosphere Glove Box with Gas Purification System [Dual Glove Ports, O₂ & H₂O <0.1 ppm]
High-Purity Controlled Atmosphere Glove Box for Lithium Battery Research, Materials Development and Sensitive Laboratory Applications
The Cell Lab Inert Atmosphere Glove Box with Gas Purification System is a fully integrated sealed workstation designed to provide an ultra-low oxygen and moisture environment for research, development and manufacturing processes involving air-sensitive materials.
Combining a stainless steel glove box chamber, automatic gas purification system, vacuum antechambers, oxygen and moisture monitoring, and intelligent touchscreen control, the system continuously circulates inert gas through a high-efficiency purification column to remove oxygen and water vapour. The result is a stable ultra-high purity atmosphere with oxygen and moisture levels maintained below 0.1 ppm under normal operating conditions.
It is ideal for lithium battery research, solid-state battery development, OLED production, semiconductor materials, advanced chemicals, pharmaceuticals, supercapacitors, welding applications and other moisture-sensitive or oxygen-sensitive processes.
Key Features
-
Ultra-Low Oxygen & Moisture Environment
Advanced gas purification technology continuously removes oxygen and water vapour, maintaining O₂ and H₂O levels below 0.1 ppm for sensitive applications. -
Automatic Gas Purification & Regeneration System
Integrated closed-loop gas circulation system automatically purifies and regenerates the atmosphere, ensuring long-term stable operation with minimal inert gas consumption. -
Large Stainless Steel Working Chamber
Constructed from heavy-duty SUS304 stainless steel with a spacious 1220 × 760 × 900 mm work area for research, pilot-scale processing and production activities. -
Intelligent Touchscreen Monitoring & Data Logging
7-inch colour touchscreen displays oxygen concentration, moisture concentration, system pressure and operational parameters in real time while automatically recording system data. -
Dual Vacuum Antechamber Transfer System
Large and small vacuum antechambers enable efficient transfer of materials and tools without compromising atmosphere purity.
Technical Specifications
| Parameter | Specification |
|---|---|
| SKU | CL0943 |
| Chamber Dimensions (W × D × H) | 1220 × 760 × 900 mm |
| Chamber Material | SUS304 Stainless Steel |
| Chamber Thickness | 3 mm |
| Viewing Window | 8 mm Tempered Glass |
| Glove Ports | 2 |
| Port Diameter | Ø220 mm |
| Gloves | Butyl Rubber |
| Glove Length | 800 mm |
| Glove Thickness | 0.4 mm |
| Adjustable Shelves | 2 |
| Shelf Size | 800 × 200 mm |
| Lighting System | Integrated Internal Lighting |
| HEPA Filters | Inlet & Outlet, >0.3 μm Filtration |
| KF40 Spare Ports | 4 |
| Electrical Feedthrough | Included |
| Gas/Liquid Feedthrough | Included |
| Power Supply | 220V / 50Hz |
| Maximum Power | Approx. 2.8 kW |
| Working Gas | N₂, Ar, He or Other Inert Gases |
| Regeneration Gas | 5–10% H₂ Mixed with Inert Gas |
| Chamber Pressure Control Range | +1500 Pa to -1500 Pa |
| Circulation Blower Capacity | 1.8 m³/min |
| Oxygen Removal Capacity | 60 L |
| Moisture Removal Capacity | 2 kg |
| Oxygen Concentration | <0.1 ppm |
| Moisture Concentration | <0.1 ppm |
| Oxygen Measurement Range | 0–1000 ppm |
| Oxygen Measurement Resolution | 0.1 ppm |
| Moisture Measurement Range | 0–1000 ppm |
| Moisture Measurement Resolution | 0.1 ppm |
| Leak Rate | <0.001 vol%/h |
| Controller | PLC-Based Intelligent Touchscreen System |
| Data Logging | Automatic System Recording |
Vacuum Antechamber Specifications
Large Automatic Vacuum Antechamber
| Parameter | Specification |
| Size | Ø385 × 600 mm |
| Material | SUS304 Stainless Steel |
| Door Material | Anodised Aluminium |
| Control Mode | Automatic Touchscreen Control |
| Leak Rate | ≤0.001 vol%/h |
Small Tool Transfer Antechamber
| Parameter | Specification |
| Size | Ø150 × 300 mm |
| Material | SUS304 Stainless Steel |
| Operation | Manual Three-Way Valve |
| Leak Rate | ≤0.001 vol%/h |
Included Accessories
- Integrated gas purification system
- Vacuum pump (10 m³/h rotary vane type)
- Oxygen analyser
- Moisture analyser
- Dual butyl gloves
- Dual HEPA filtration system
- Internal lighting system
- Adjustable shelves
- Electrical feedthrough
- Gas/liquid feedthrough
- Large vacuum antechamber
- Small vacuum antechamber
- Foot pedal pressure control system
- Automatic purge valve
- Vacuum gauges
Applications & Industries
- Lithium-ion battery research and manufacturing
- Solid-state battery development
- Sodium-ion battery research
- Battery material synthesis
- OLED research and production
- Semiconductor material handling
- Perovskite solar cell development
- Supercapacitor research
- Advanced chemical synthesis
- Pharmaceutical R&D
- Welding and brazing processes
- Nuclear materials research
- New energy material development
- Air-sensitive powder processing
- Moisture-sensitive material handling
FAQ
Q1: What oxygen and moisture levels can the system achieve?
The CL0943 can maintain oxygen and moisture concentrations below 0.1 ppm under standard operating conditions.
Q2: Which gases can be used inside the glove box?
The system is designed for nitrogen (N₂), argon (Ar), helium (He) and other inert gases.
Q3: Does the system include oxygen and moisture monitoring?
Yes. Both oxygen and moisture analysers are included and provide real-time monitoring through the touchscreen interface.
Q4: Is automatic gas purification included?
Yes. The glove box includes a fully integrated automatic gas purification and regeneration system.
Q5: Can materials be transferred without exposing the chamber atmosphere?
Yes. The system includes both a large automatic vacuum antechamber and a small tool-transfer antechamber to maintain atmosphere integrity.
Q6: Is a vacuum pump included?
Yes. A 10 m³/h rotary vane vacuum pump is supplied as standard equipment.
