Cell Lab High-Purity Natural Agate Milling Jar [99.91% SiO₂ | 50 ml – 1 L]

Cell Lab High-Purity Natural Agate Milling Jar [99.91% SiO₂ | 50 ml – 1 L] Precision grinding jar for contamination-free planetary milling The Cell Lab™ High-Purity Natural Agate Milling Jar is meticulously hand-crafted from Brazilian natural agate containing ≥ 99.91...
Vendor: Cell Lab
SKU: CL0027
Product type: Milling Jars
£182.29
£182.29
Capacity: 50 mL
Subtotal: £182.29
Cell Lab high-purity natural agate milling jars (≥ 99.91 % SiO₂) provide contamination-free precision grinding for planetary mills in battery, ceramics, chemical, and materials science research.

Cell Lab High-Purity Natural Agate Milling Jar [99.91% SiO₂ | 50 ml – 1 L]

£182.29
Cell Lab high-purity natural agate milling jars (≥ 99.91 % SiO₂) provide contamination-free precision grinding for planetary mills in battery, ceramics, chemical, and materials science research.
Cell Lab high-purity natural agate milling jars (≥ 99.91 % SiO₂) provide contamination-free precision grinding for planetary mills in battery, ceramics, chemical, and materials science research.
Cell Lab high-purity natural agate milling jars (≥ 99.91 % SiO₂) provide contamination-free precision grinding for planetary mills in battery, ceramics, chemical, and materials science research.
Cell Lab high-purity natural agate milling jars (≥ 99.91 % SiO₂) provide contamination-free precision grinding for planetary mills in battery, ceramics, chemical, and materials science research.

Cell Lab High-Purity Natural Agate Milling Jar [99.91% SiO₂ | 50 ml – 1 L]

£182.29
Capacity: 50 mL
Description
Description
x

Cell Lab High-Purity Natural Agate Milling Jar [99.91% SiO₂ | 50 ml – 1 L]

Precision grinding jar for contamination-free planetary milling

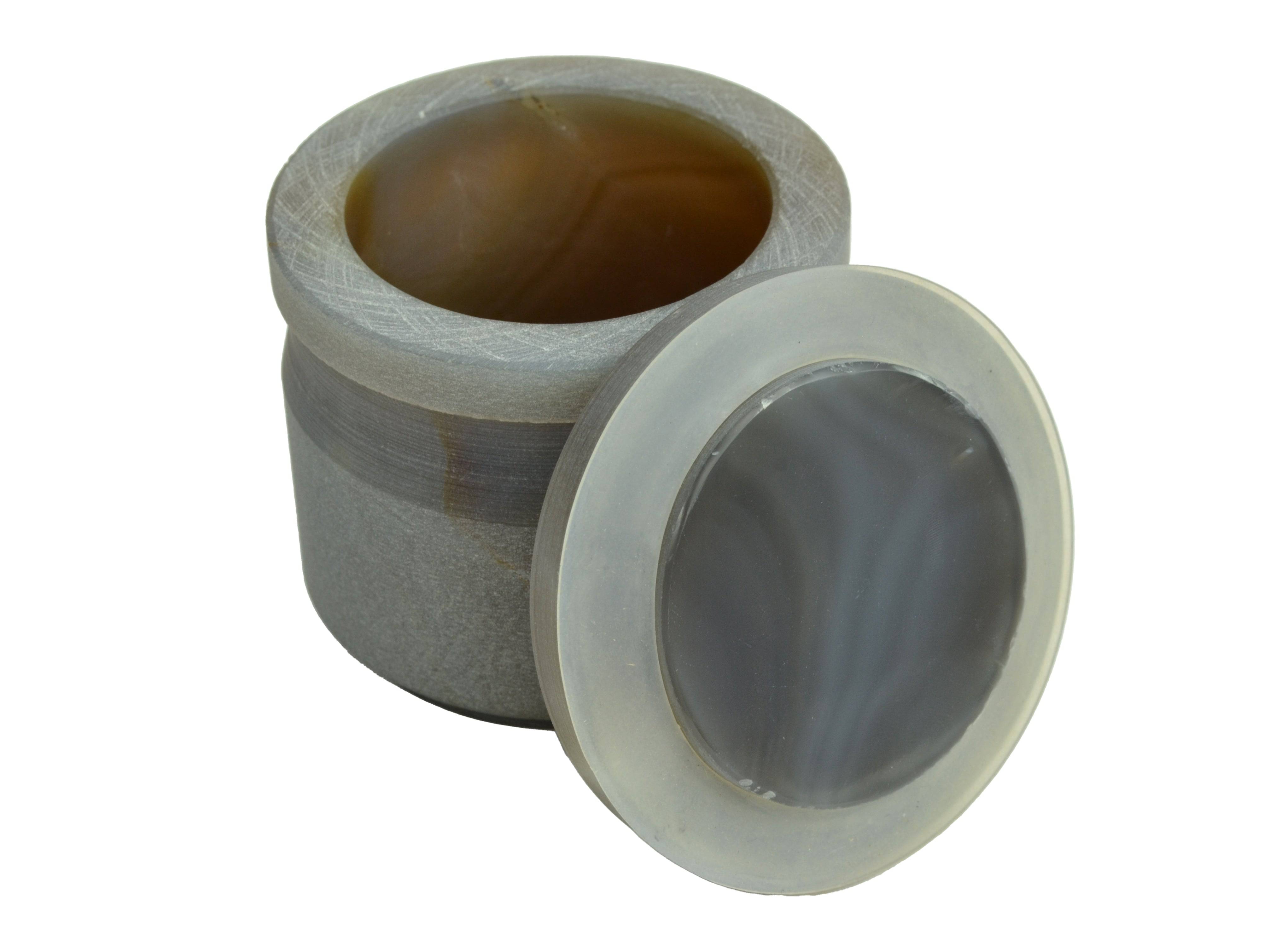

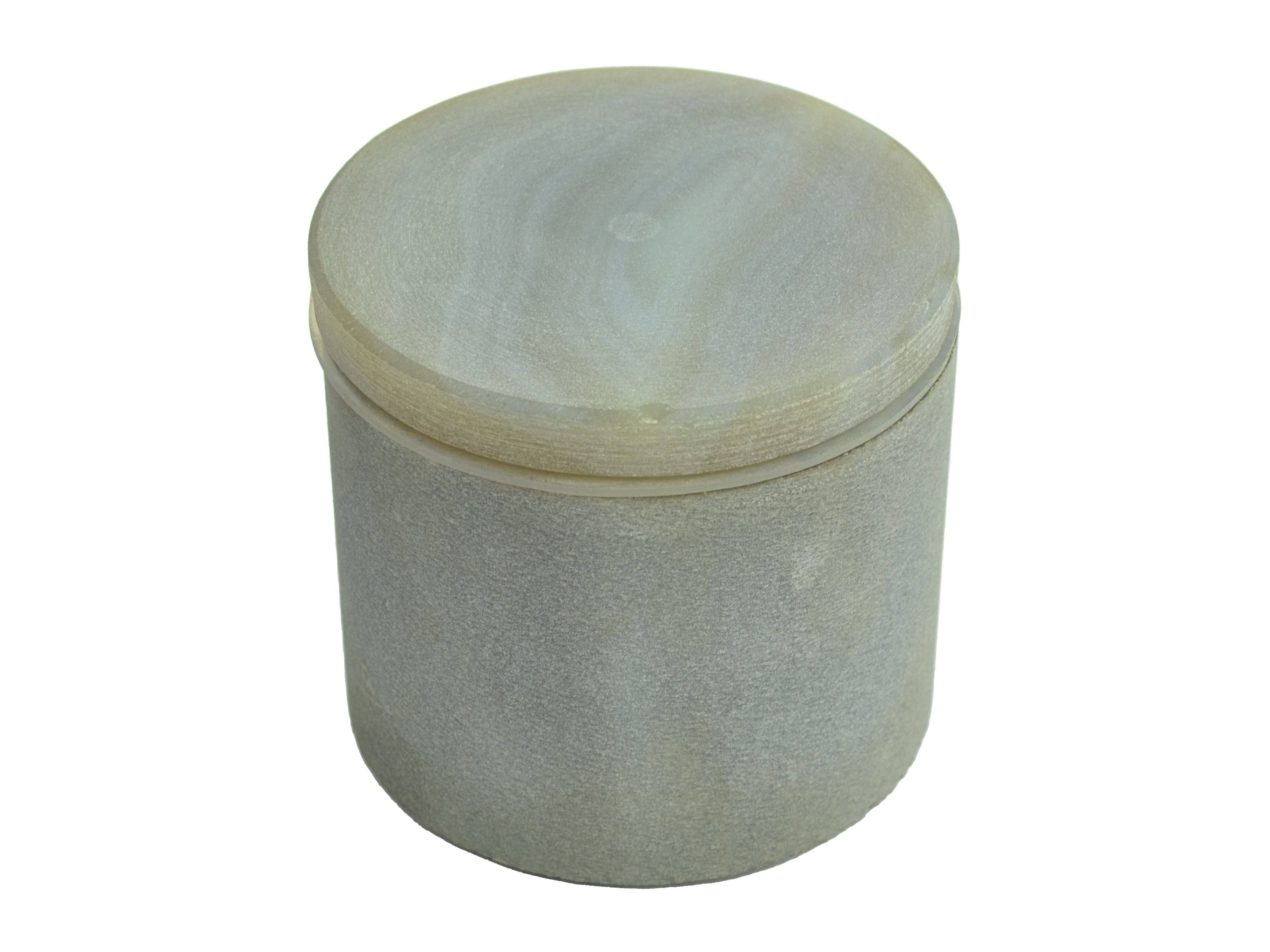

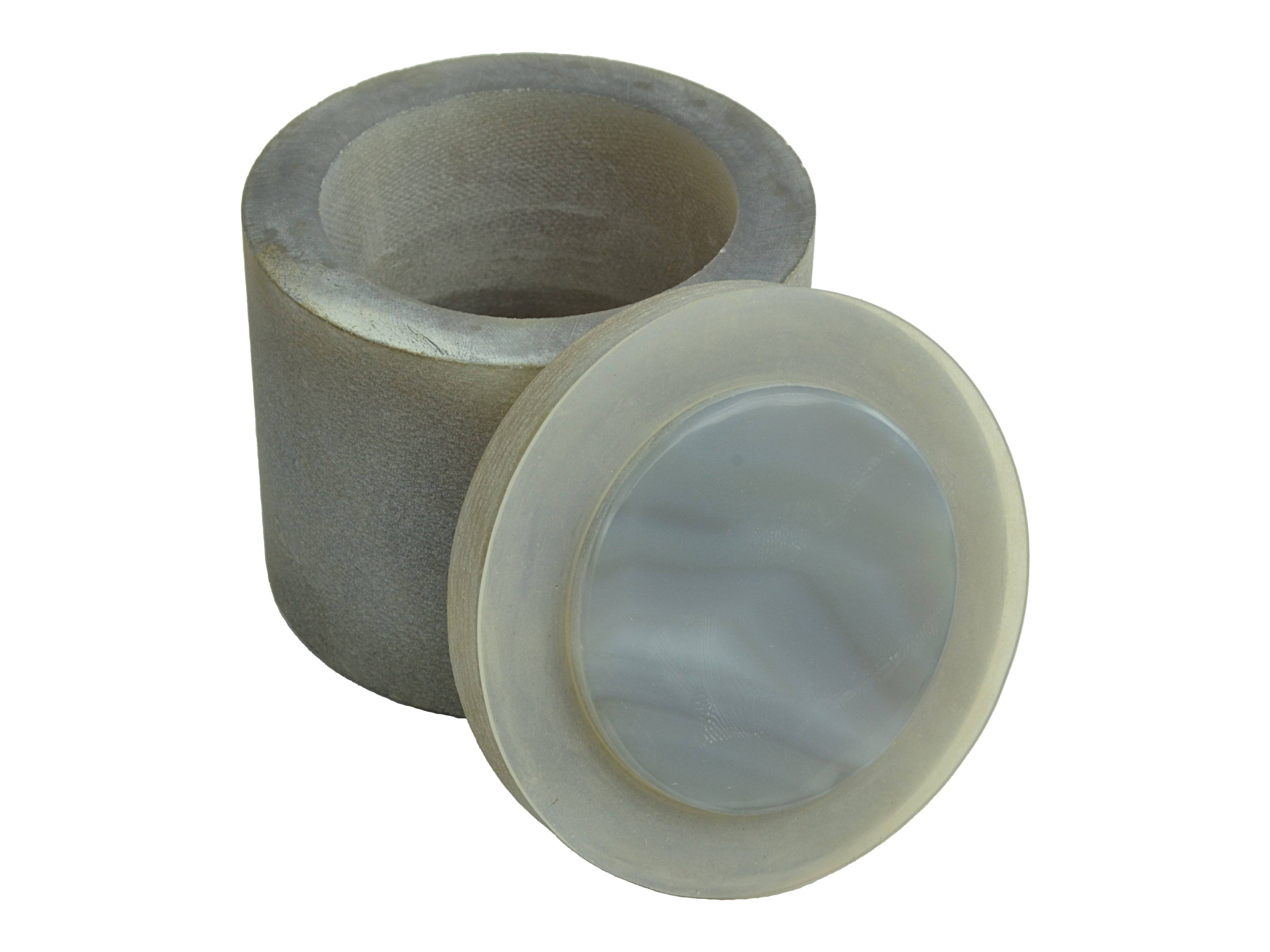

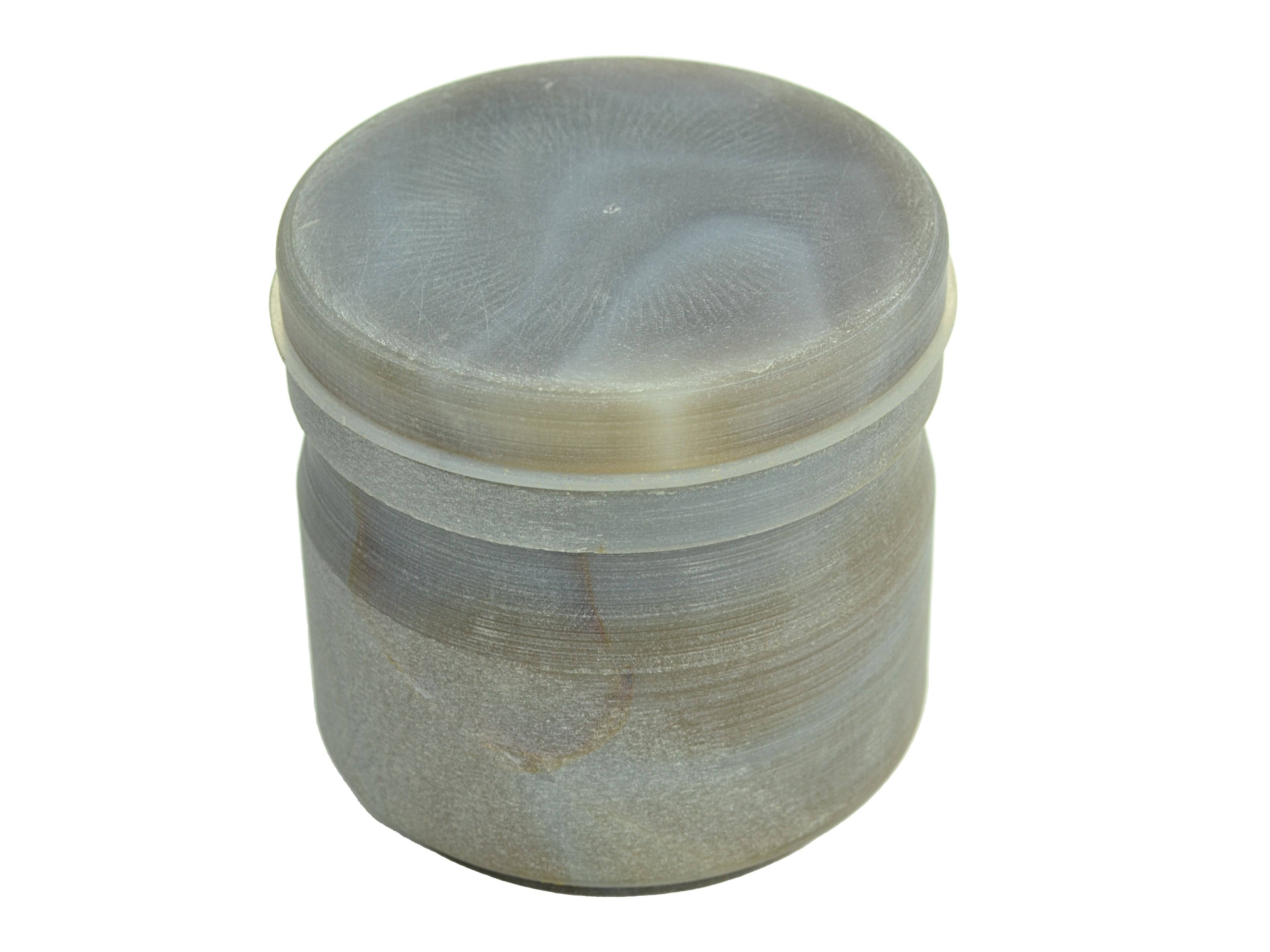

The Cell Lab™ High-Purity Natural Agate Milling Jar is meticulously hand-crafted from Brazilian natural agate containing ≥ 99.91 % SiO₂, offering exceptional hardness, chemical resistance, and purity. Designed for planetary ball mills and other high-energy milling systems, these jars ensure minimal sample contamination and uniform particle size reduction for demanding laboratory and industrial research applications.

Each jar includes a precision-fit lid and rubber sealing gasket for airtight grinding, ensuring clean and reproducible milling results under both wet and dry conditions.

Key Features

• Ultra-High-Purity Natural Agate (≥ 99.91 % SiO₂)
Manufactured from premium Brazilian agate with near-zero metallic impurities, ensuring analytical-grade sample integrity.

• Superior Mechanical Strength and Density
High hardness (Mohs 6.5 – 7) and specific gravity 2.65 g/cm³ enable consistent grinding efficiency and long service life.

• Excellent Chemical Inertness
Highly resistant to most acids and solvents (except HF), making it ideal for use in chemical, geological, and materials research.

• Mirror-Polished Non-Porous Surface
Smooth internal finish prevents sample adhesion, simplifies cleaning, and reduces cross-contamination risk.

• Crack-Resistant Cylindrical Design
Withstands high-speed impacts and centrifugal forces in planetary ball mills.

• Wide Compatibility
Fits most planetary and laboratory-scale ball mill systems, ensuring easy replacement and flexible experimental setup.

Technical Data for Agate Grinding Jars


    Capacity Inner Diameter (mm) Outer Diameter (mm) Inner Depth (mm) Height without Lid (mm) Height with Lid (mm) Weight (kg)
    50ml 45 65 37 49 57 0.36
    100ml 50 75 52 62 70 0.56
    150ml 62 90 55 70 80 0.93
    250ml 73 94 70 80 90 0.84
    300ml 79 102 71 81 95 1.18
    400ml 80 106 80 93 103 1.38
    500ml 82 106 90 100 108 1.31
    1L 107 133 114 126 141 2.54

     Element Analysis for Agate Grinding Jars

    General Specifications
    Main Material Agate - SiO₂
    Chemical Composition
    Element Share %
    Silicon Oxide - SiO₂ 99.91%
    Aluminium Oxide - Al₂O₃ 0.20%
    Sodium Carbonate - Na₂O 0.20%
    Iron Oxide - Fe₂O₃ 0.01%
    Calcium Oxide - CaO 0.01%
    Magnesium - Mg 0.01%
    Potassium Carbonate - K₂O 0.01%
    Manganese Oxide - MnO 0.01%
    Physical and Mechanical Properties
    Specific Gravity 2.65 g/cm³
    Hardness 6.5 ~ 7 Mohs

    Applications & Industries

    • Fine powder grinding in battery material research

    • Ceramics, metallurgy, and mineral processing

    • Pharmaceutical and food-grade sample milling

    • Geological, chemical, and analytical laboratories

    • Spectroscopy, XRF, and IR sample preparation

    Jar & Media Compatibility Tips

    To achieve the best grinding performance, always match the jar and milling media materials.
    For example, a 250 ml agate jar pairs best with approximately 250 g of mixed-size agate balls.
    Optimisation may vary with sample hardness, brittleness, and grinding duration.

    FAQ

    Q1: Why choose agate jars over zirconia or stainless-steel?
    A1: Agate provides superior chemical purity and ultra-low contamination, critical for trace-element and high-precision research.

    Q2: Can agate jars handle both wet and dry milling?
    A2: Yes — they are suitable for both conditions, maintaining stable performance and easy cleaning.

    Q3: How should I clean the jar after use?
    A3: Rinse with ethanol or deionised water using a soft brush or lint-free cloth; avoid metal tools.

    Q4: Are the jars compatible with high-energy planetary mills?
    A4: Yes — each jar is precision balanced and impact-resistant, making it safe for high-speed planetary operation.

    Q5: What material should I choose for matching grinding balls?
    A5: Use agate milling balls of the same purity for optimal results and lowest abrasion.
