Cell Lab High Energy Vertical Planetary Ball Mill Machine [ LCD Control]

Cell Lab High Energy Vertical Planetary Ball Mill Machine [0.4L-100L, LCD Control] Compact Vertical Planetary Mill for Ultrafine Grinding in Lab Environments The Cell Lab High-Energy Vertical Planetary Ball Mill is engineered for labs needing a high-energy planetary ball mill capable of...
Vendor: Cell Lab
SKU: CL0453
Product type: Ball Mills
£2,629.00
£2,629.00
Volume: 0.4L (4 x 100mL)
Subtotal: £2,629.00
Description
Description
x

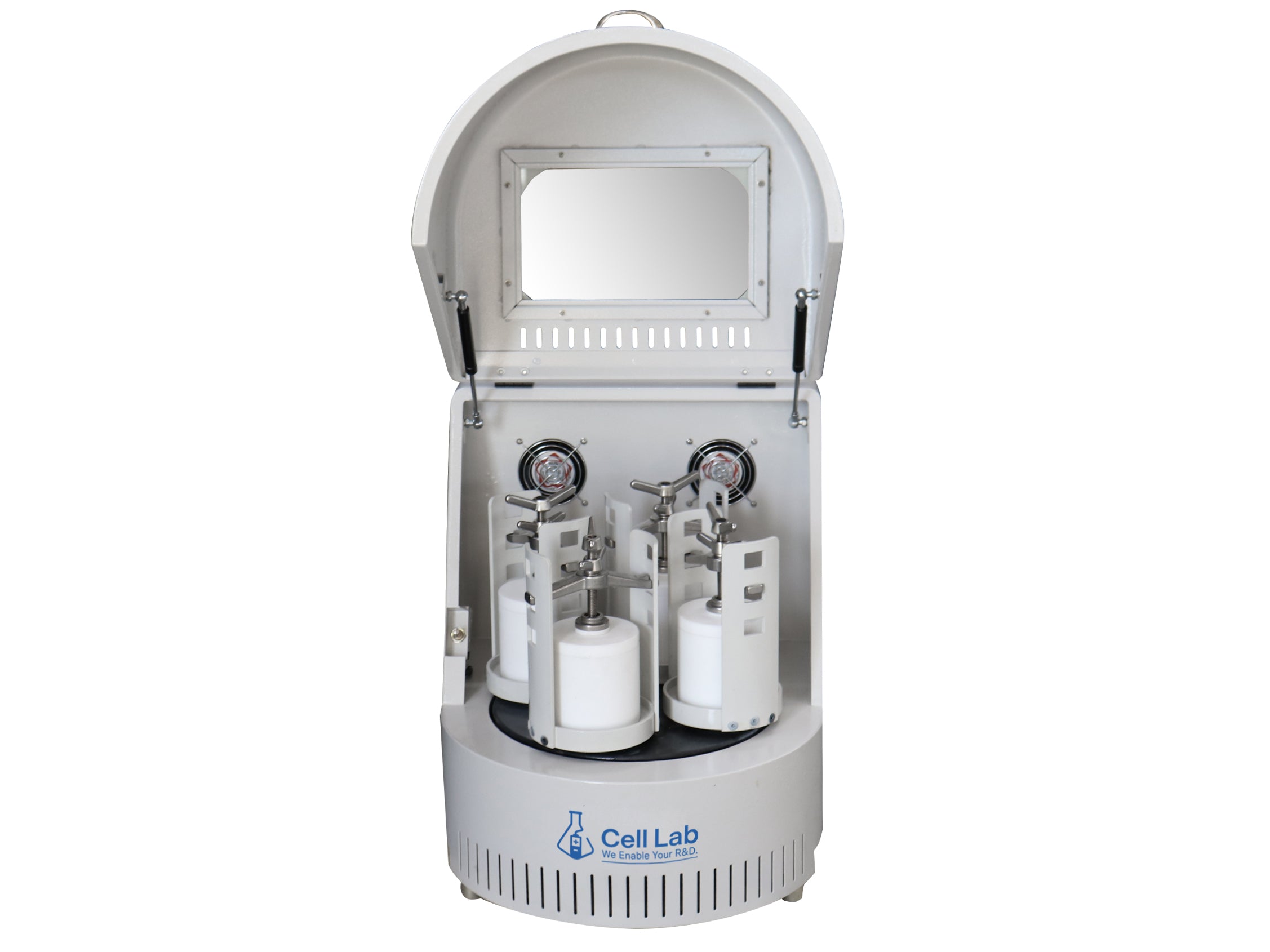

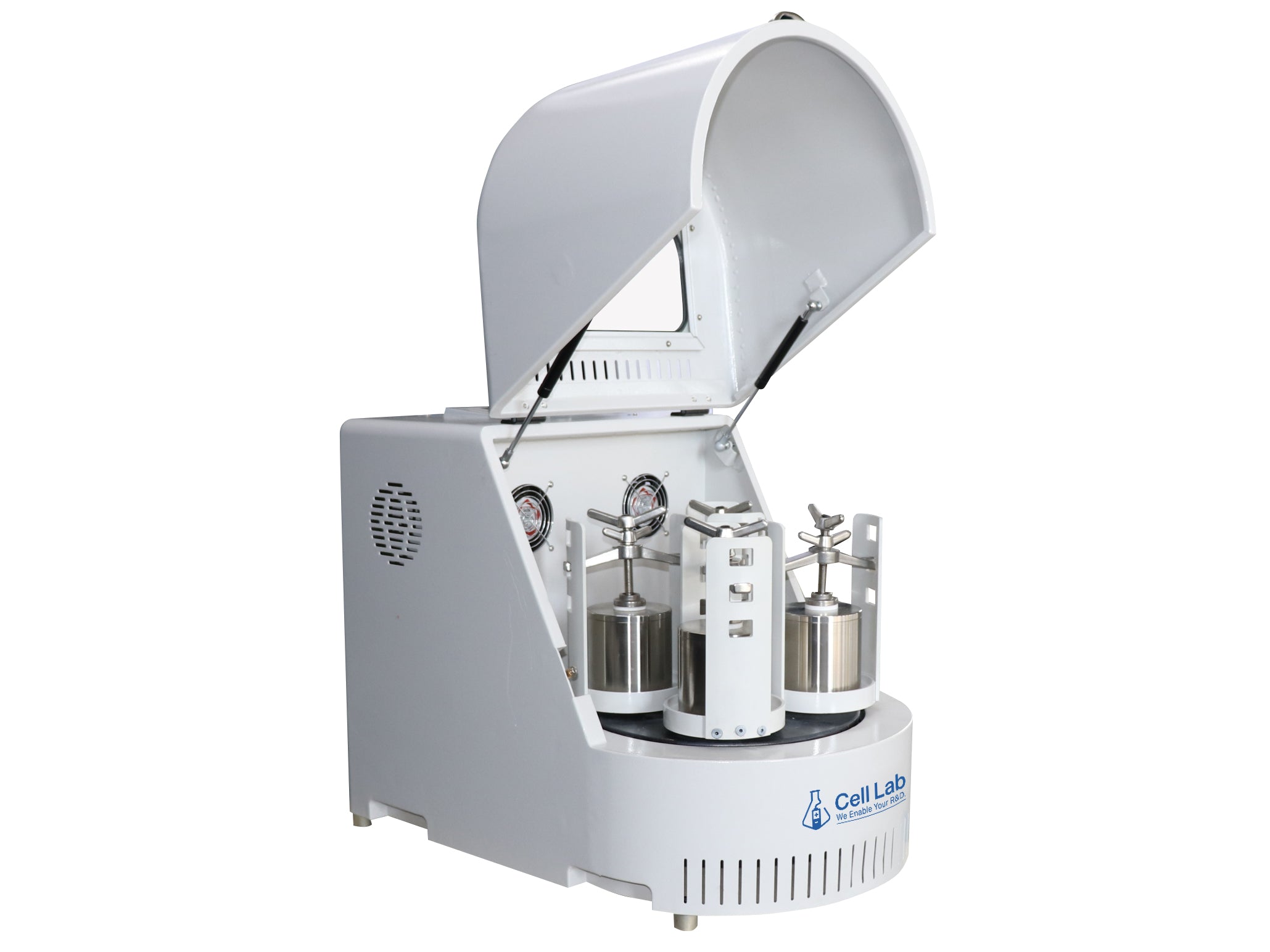

Cell Lab High Energy Vertical Planetary Ball Mill Machine [0.4L-100L, LCD Control]

Compact Vertical Planetary Mill for Ultrafine Grinding in Lab Environments

The Cell Lab High-Energy Vertical Planetary Ball Mill is engineered for labs needing a high-energy planetary ball mill capable of ultrafine powder grinding. This vertical mill supports dry and wet milling modes, operates quietly thanks to special gear design, and is glove box compatible (0.4L Mini Model)—ideal for sensitive R&D work.

    Its programmable milling segments with reversible rotation allow users to fine-tune speed profiles, ensuring reproducible results for materials science, battery research, ceramics, and any lab requiring precise nanometre powder grinding.

    Key Features

    • Supports ultrafine output granularity, suitable for fine powders.

    • Drive and motor: gear-drive design for low noise and stable speed.

    • Built with safety‐transparent viewport and secured jar holders to prevent jars from dislodging.

    • Programmable milling segments + reversible rotation (clock-wise/anti-clockwise) for uniform milling.

    • Suitable for labs needing bench top, glove box compatible high energy vertical milling.

    Specifications

    Model Number

    Mill Jar Capacity

    Total Volume

    Max Rotation Speed (RPM)

    Power (kW)

    Material Capacity (L)

    Outer Dimension (mm)

    Work Modes

    Note

    CL0453

    50mL or 100mL

    0.4L (4 x 100mL)

    870

    0.25

    0.12

    530 × 300 × 360

    Dry & Wet Milling

    /

    CL0454

    250mL

    1L (4 x 250mL)

    670

    0.75

    0.35

    760 × 470 × 600

    CL0455

    500mL

    2L (4 x 500mL)

    670

    0.75

    0.65

    760 × 470 × 600

    CL0456

    1L

    4L (4 x 1L)

    670

    0.75

    1.3

    760 × 470 × 600

    CL0457

    1.5L

    6L (4 x 1.5L)

    670

    0.75

    2

    760 × 470 × 600

    CL0458

    2L

    8L (4 x 2L)

    580

    1.5

    2.5

    800 × 560 × 642

    CL0459

    2.5L

    10L (4 x 2.5L)

    580

    1.5

    3

    800 × 560 × 642

    CL0460

    3L

    12L (4 x 3L)

    580

    1.5

    4

    800 × 560 × 642

    CL0461

    4L

    16L (4 x 4L)

    510

    3

    5

    950 × 600 × 710

    CL0462

    5L

    20L (4 x 5L)

    430

    4

    6

    1200 × 790 × 930

    CL0463

    10L

    40L (4 x 10L)

    390

    5.5

    13

    1400 × 880 × 1070

    Contact us for quote

    CL0464

    15L

    60L (4 x 15L)

    360

    7.5

    20

    1600 × 1070 × 1250

    CL0465

    25L

    100L (4 x 25L)

    240

    11

    35

    1750 × 1140 × 1330

    Applications & Use Cases

    • Ultrafine powder production for battery materials, ceramics, advanced composites.

    • Research labs needing glove box compatible mills, especially for 0.4 L variant.

    • Chemical and pharmaceutical labs doing APIs, pigment grinding, mechanical alloying.

    • Pilot scale / material science where larger load volumes are needed but same control and uniformity are desired.

    FAQ

    Q1: Do larger models maintain ultrafine grinding capability?
    A: Yes—smaller models (0.4-4 L) are optimized for nanometre / ~0.1 µm outputs; larger ones focus on throughput but still allow fine size reduction under proper conditions.

    Q2: Is 0.4 L model glove box compatible?
    A: Yes. The 0.4 L size can be placed in glove boxes. But note: cannot use argon atmosphere with 110 V power supply in that model due to possible arcing.

    Q3: Can all models run in wet and dry modes?
    A: All models support both dry & wet milling; some with appropriate jars also support vacuum milling.
