Precision Heating Split Cell for Solid-State Lithium Battery Research

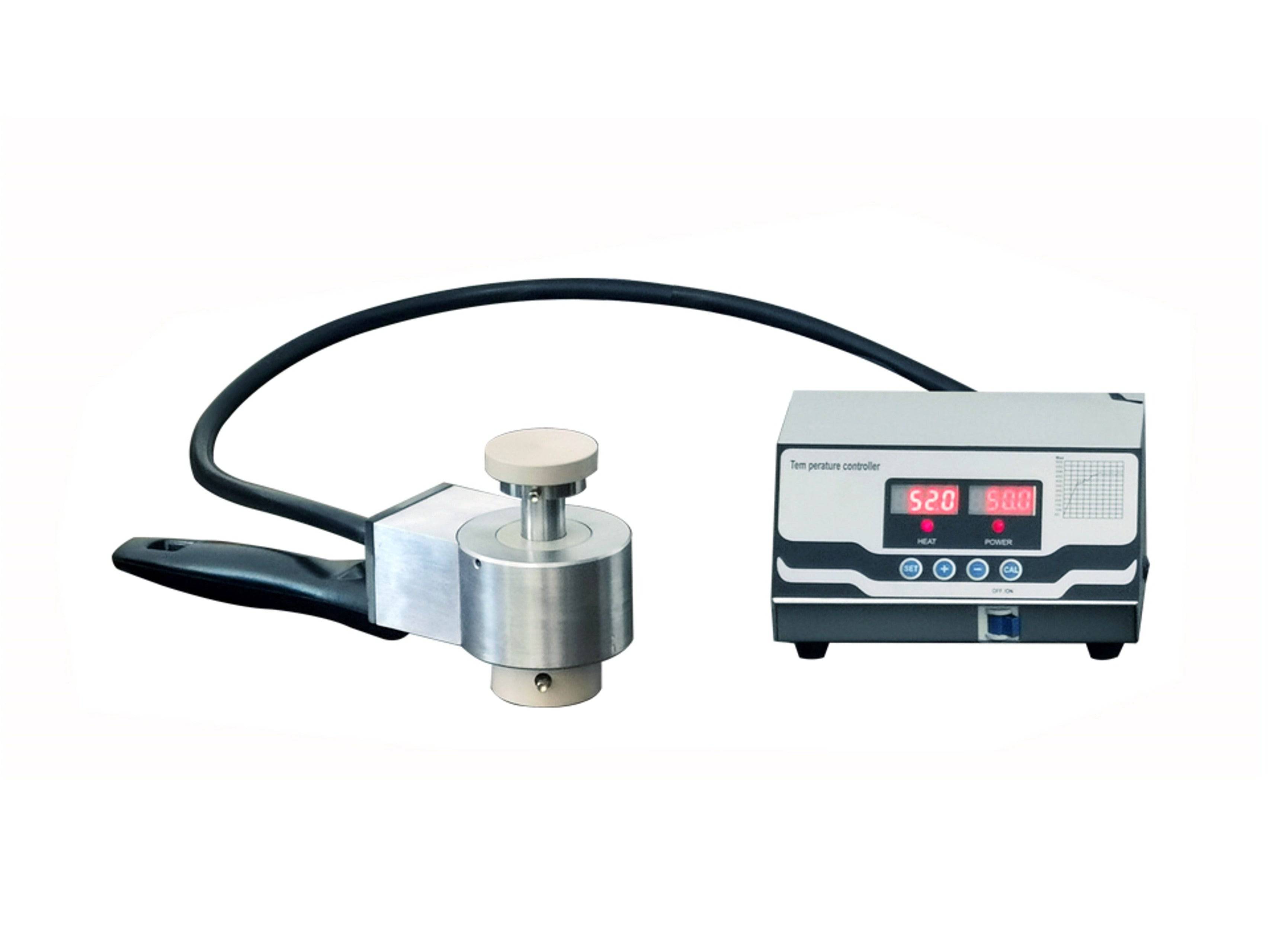

The Cell Lab Heatable PEEK Split Cell Test Kit (12 mm) is engineered for advanced solid-state battery and electrolyte research. Designed to operate under controlled pressure and heating conditions, it supports precise testing of lithium-ion conductivity, interfacial stability, and electrochemical behaviour of solid-state electrolyte materials.

Constructed with high-performance PEEK sleeves and stainless steel electrodes, this test kit can be heated up to 200 °C, enabling studies that require elevated temperature environments. It is suitable for symmetric lithium cell testing, solid-state electrolyte analysis, and voltage sweep characterisation.

Key Features

• Heating capability up to 200 °C – Enables advanced thermal studies of solid-state electrolytes.

• 12 mm diameter chamber – Ideal for research-scale electrolyte and battery material evaluation.

• Durable PEEK construction – Chemically resistant sleeve ensures stable performance under pressure.

• High-hardness stainless steel electrodes – 3Cr13 material (HRC60–62) provides reliable electrical contact.

• Compatible with pressure jig and sensors – Can be paired with load sensor kits for precise pressure monitoring.

Specifications

Applications & Industries

• Solid-state lithium battery R&D – Ionic conductivity and interfacial resistance studies.

• Symmetric lithium cell testing – Lithium vs lithium evaluations under controlled conditions.

• Electrochemical characterisation – LSV and impedance testing of solid electrolytes.

• Material science research – High-temperature and pressure-controlled electrolyte evaluation.

• Quality control – Product validation for battery-grade solid electrolyte materials.

FAQ

Q1: What is the maximum operating temperature?
A: The PEEK Split Cell can be heated up to 200 °C for solid-state battery research.

Q2: Can this be used for symmetric lithium testing?
A: Yes. It is widely used for lithium/lithium symmetric cell testing.

Q3: What accessories are available?
A: Optional PEEK sleeves, screws, and the Cell Lab Pressure Jig with Load Sensor Kit can be ordered together.

Q4: What is the chamber size?
A: The internal chamber is 12 mm in diameter with a depth of 45 mm.

Q5: Is customisation available?
A: Yes. Cell Lab provides custom dimensions and configurations upon request.
