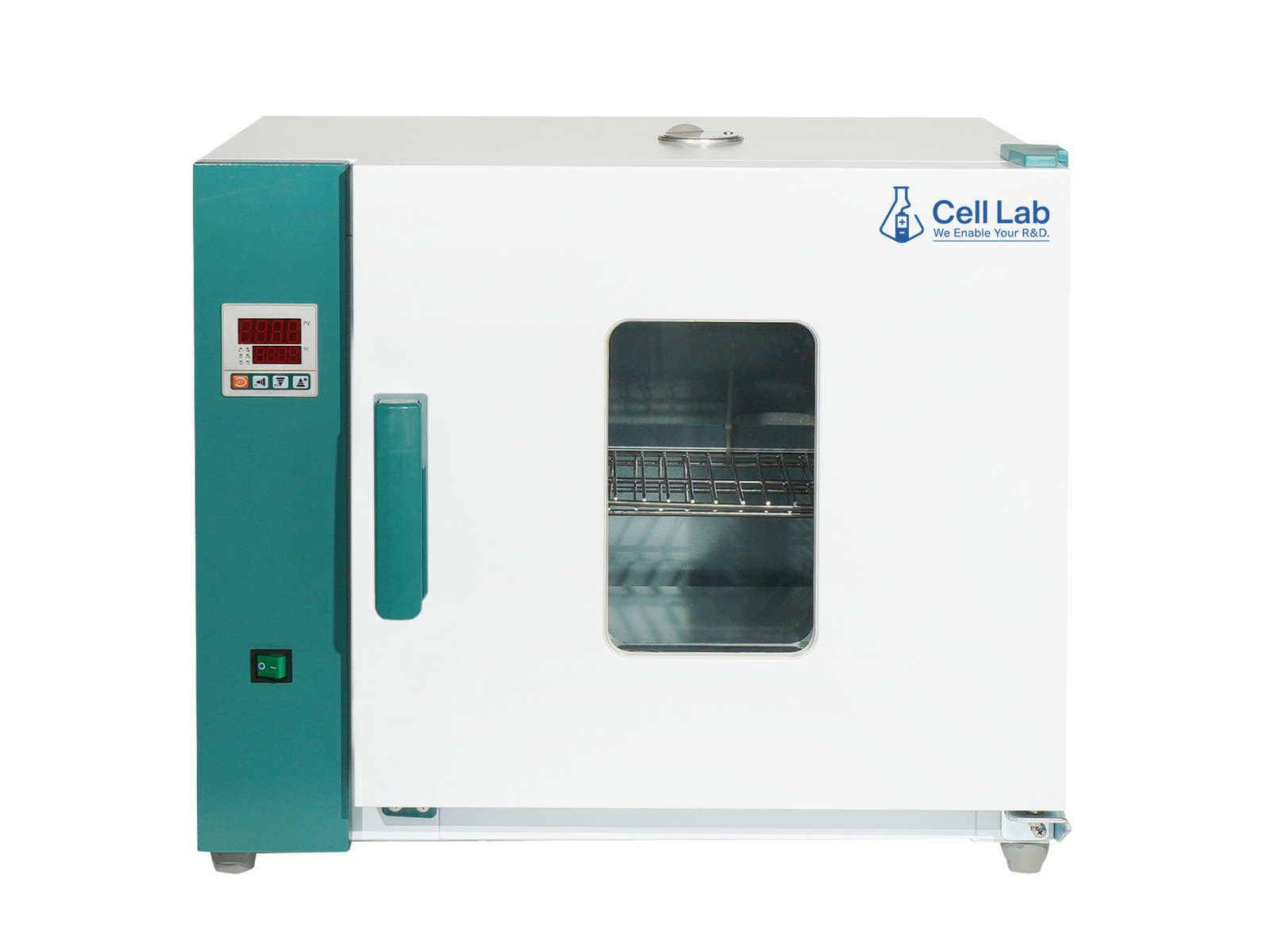

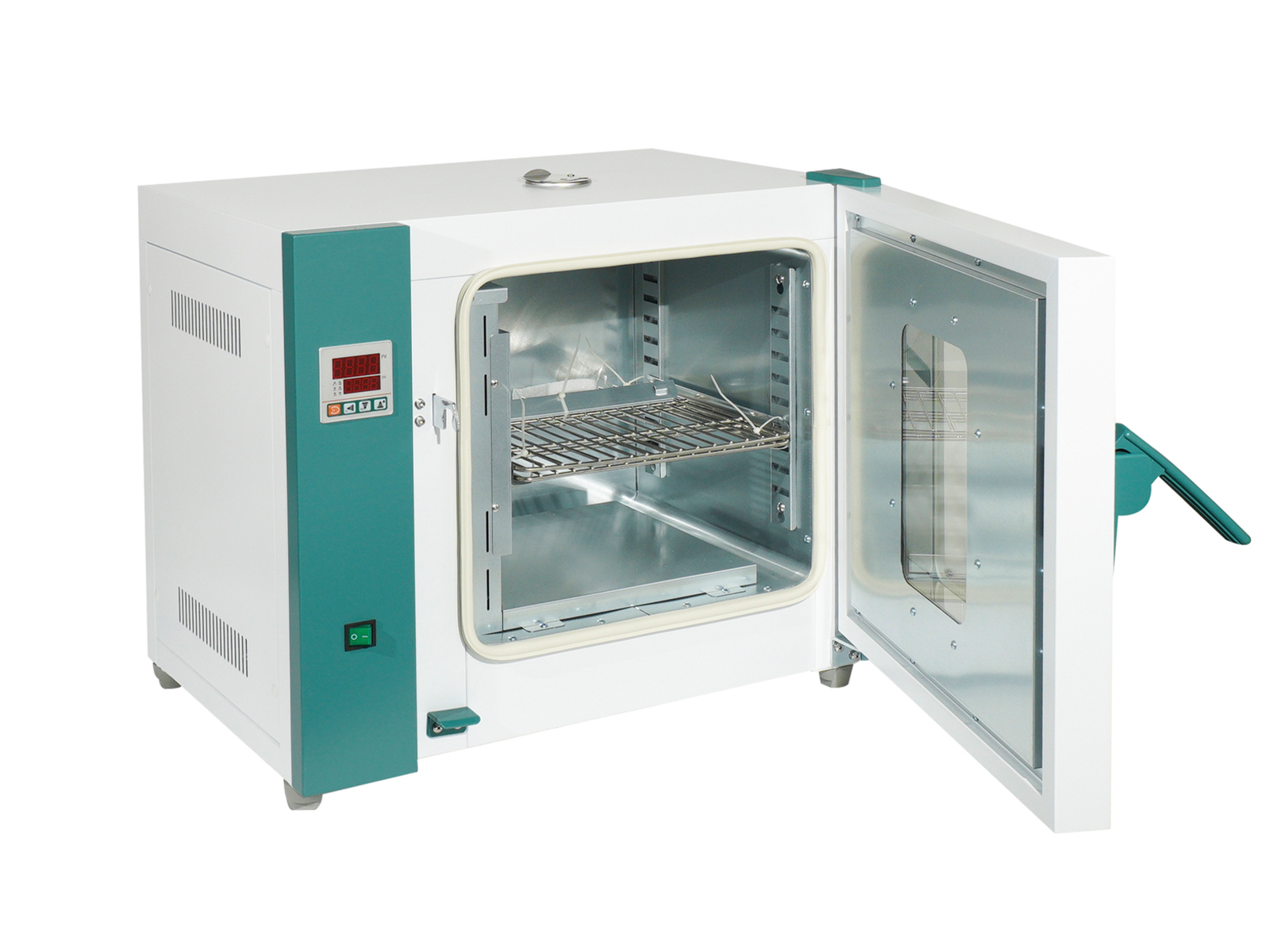

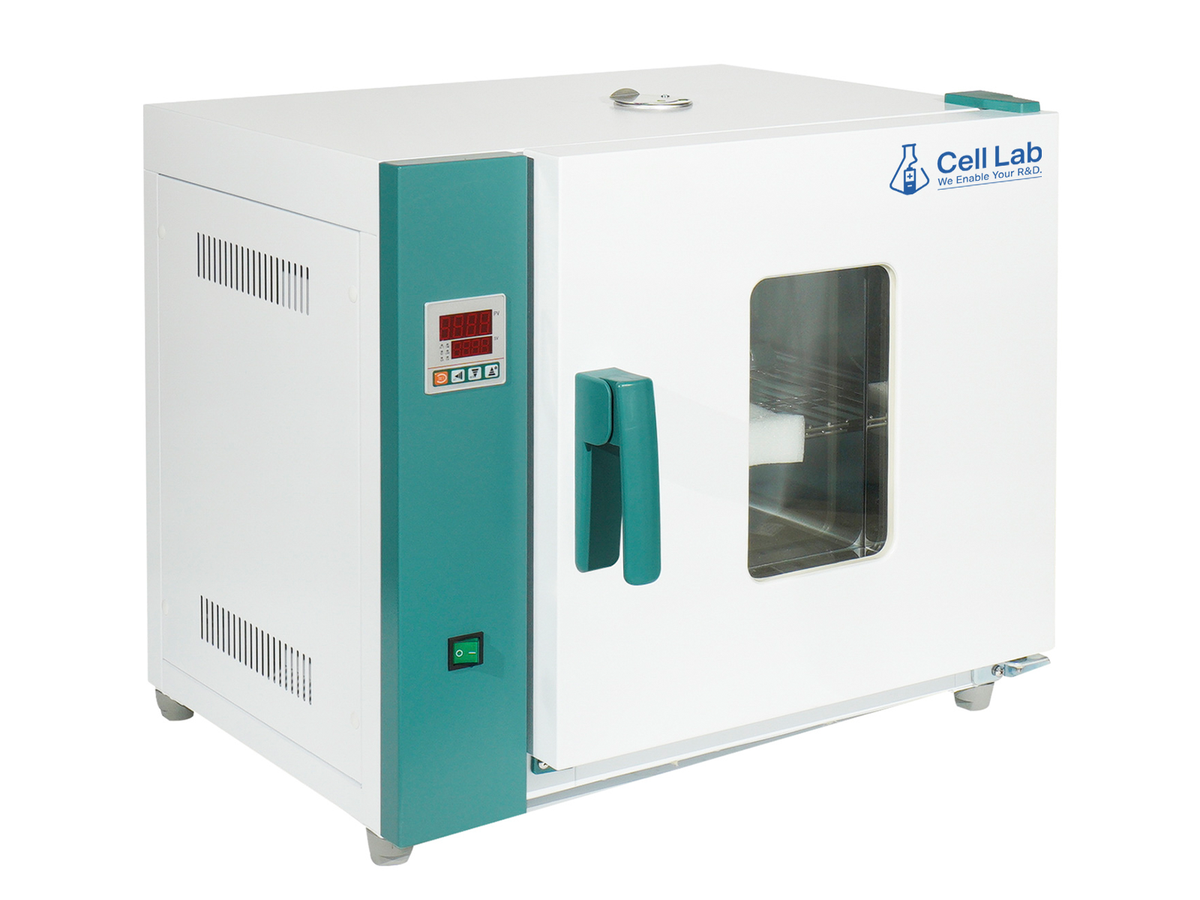

Cell Lab Forced Convection Horizontal Laboratory Drying Oven, Lab Drying Oven [PID Control | 43–225 L]

High-efficiency thermal drying with rapid and uniform forced air circulation

The Cell Lab™ Forced Convection Horizontal laboratory drying oven delivers fast, uniform, and energy-efficient drying using a powerful forced air convection system. Equipped with precision PID temperature control, stainless-steel interior, and multi-layer safety protection, it is ideal for laboratory applications such as baking, curing, preheating, and heat treatment in research, industry, and quality testing environments.

Key Features

• Forced Air Convection System
Dual horizontal air ducts and a high-performance fan ensure rapid and even heat transfer, achieving stable temperature uniformity across all shelves.

• Intelligent PID Temperature Control
Temperature range from RT + 10 °C – 250 °C, with 0.1 °C resolution and ± 1 °C accuracy, managed by a two-stage PID microprocessor for consistent, reproducible thermal performance.

• High Uniformity and Stability
Uniform temperature distribution within ± 2.5 %, ensuring reliable drying and curing results even for sensitive or critical samples.

• Durable Laboratory Construction
Built with a mirror-finish stainless-steel inner chamber (B type) or galvanised steel (A type), combined with cold-rolled electrostatic-coated outer housing and CE-certified rock wool insulation for maximum thermal efficiency and structural longevity.

• User-Friendly Digital Interface
Equipped with LED digital display, touch-button controls, and integrated features such as parameter locking, overshoot self-tuning, and power-off memory restoration.

• Comprehensive Safety Features
Includes over-temperature sound-light alarms, sensor calibration, and automatic shut-off for safe and continuous operation in high-precision laboratory environments.

Technical Parameters:

SKU

DO0001A/ DO0001B

DO0002A/ DO0002B

DO0003A/DO0003B

DO0004A/DO0004B

Cycle Mode

Forced convection

Function

Temp. Range

RT+10-250℃

Temp. Resolution Ratio

0.1℃

Temp. Motion

±1℃

Temp. Uniformity

 ±2.5%

Structure

Inner Chamber

 B model:High quality stainless steel;

 A model:High strength galvanized sheet

Outer Shell

Cold rolling steel electrostatic spraying exterior

Insulation layer

High quality rock wool board(with CE)

Heater

Stainless steel electric heating tube

Power rating

1.2kW

1.6kW

2.3kW

3.0kW

Exhaust hole

Φ35mm top(with function of test hole)

Controller

Temp. control mode

Two temperature section PID intelligent

Temp. setting mode

Touch button setting

Temp. display mode

LED Digital display

Timer

0-9999min(with timing wait function)

Operation function

Fixed temperature operation, timing function,auto stop.

Additional function

Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory

Sensor

PT100

Safety device

Over temperature sound-light alarm

Specification

Inner Chamber size(W*L*H)(mm)

350*350*350

450*350*450

550*450*550

600*500*750

Exterior size (W*L*H)(mm)

652*472*587

752*472*687

852*572*786

902*622*986

Packing size (W*L*H)(mm)

745*605*745

845*605*850

945*705*950

955*755*1150

Volume

43L

71L

136L

225L

Shelf number

9

13

17

25

Load per rack

15kg

Shelf space

25mm

(50/60HZ)Current rating

AC 220V/5.5A

AC 220V/7.3A

AC 220V /9.1A

AC 220V13.6A

NW/GW (kg）

40/46

45/50

62/68

77/96

Accessory

Shelf

2

Shelf frame

4

optional accessories

Shelves

Applications & Industries

  • Laboratory sample drying and sterilisation

  • Material pre-treatment and heat conditioning

  • Curing of coatings, adhesives, and composites

  • General temperature stability testing

  • Industrial and academic R&D laboratories

FAQ

Q1: What’s the difference between A and B models?
A1: The A model uses galvanised steel for general applications, while the B model features a stainless-steel chamber for enhanced corrosion resistance and hygiene.

Q2: Is forced convection better than natural convection?
A2: Forced convection provides faster and more uniform temperature distribution, making it ideal for materials requiring high thermal consistency.

Q3: Can the oven operate continuously?
A3: Yes — it’s designed for continuous laboratory operation with built-in safety protections and over-temperature alarms.

Q4: What type of insulation is used?
A4: All models use CE-certified rock wool, ensuring energy efficiency and stable thermal retention.

Q5: Can I connect external sensors or data loggers?
A5: Yes — optional RS485 communication interfaces are available upon request.
